2022 SUBARU BRZ airbag

Table of ContentsIntroduction ............................................................................................................. 1Illustrated Index .................................................................................................... 13Seat, Seatbelt and SRS Airbags .......................................................................... 29
Chapter 1
Keys and Doors .................................................................................................... 93Chapter 2
Instruments and Controls .................................................................................. 123Chapter 3
Climate Control ................................................................................................... 197Chapter 4
Audio.................................................................................................................... 209Chapter 5
Interior Equipment .............................................................................................. 211Chapter 6
Starting and Operating ....................................................................................... 221Chapter 7
Driving Tips ......................................................................................................... 289Chapter 8
In Case of Emergency ........................................................................................ 301Chapter 9
Appearance Care ................................................................................................ 331Chapter 10
Maintenance and Service ................................................................................... 337Chapter 11
Specifications ..................................................................................................... 379Chapter 12
Consumer Information and Reporting Safety Defects .................................... 393Chapter 13
Index .................................................................................................................... 409Chapter 14
B5=B8.ERRN 1 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

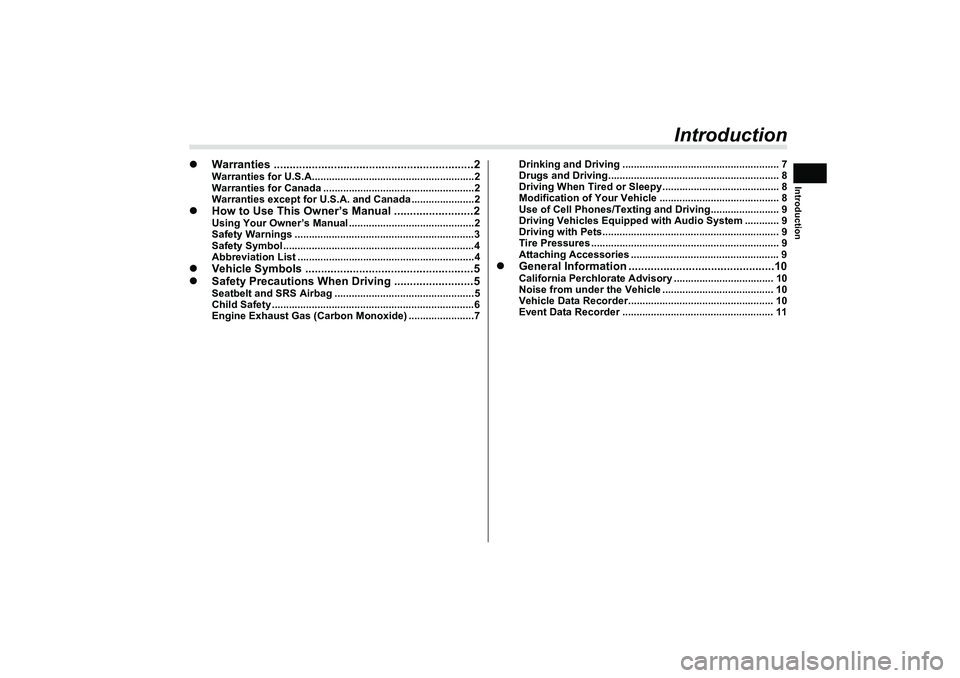

Introduction
Introduction
z
Warranties ...............................................................2Warranties for U.S.A.........................................................2
Warranties for Canada .....................................................2
Warranties except for U.S.A. and Canada ......................2
z
How to Use This Owner’s Manual .........................2Using Your Owner’s Manual ............................................2
Safety Warnings ...............................................................3
Safety Symbol ...................................................................4
Abbreviation List ..............................................................4
z
Vehicle Symbols .....................................................5
zSafety Precautions When Driving .........................5Seatbelt and SRS Airbag .................................................5
Child Safety .......................................................................6
Engine Exhaust Gas (Carbon Monoxide) .......................7 Drinking and Driving ....................................................... 7
Drugs and Driving............................................................ 8
Driving When Tired or Sleepy......................................... 8
Modification of Your Vehicle .......................................... 8
Use of Cell Phones/Texting and Driving........................ 9
Driving Vehicles Equipped with Audio System ............ 9
Driving with Pets.............................................................. 9
Tire Pressures .................................................................. 9
Attaching Accessories ..............
...................................... 9
z
General Information ..............................................10California Perchlorate Advisory ................................... 10
Noise from under the Vehicle ....................................... 10
Vehicle Data Recorder................................................... 10
Event Data Recorder ..................................................... 11
B5=B8.ERRN 1 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

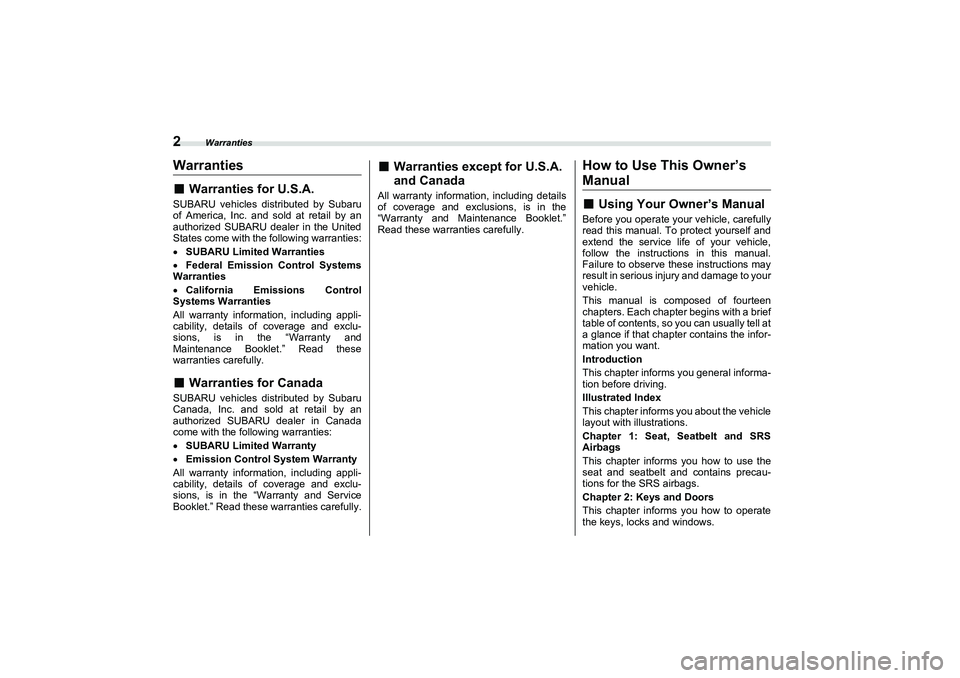

Warranties
2Warranties■
Warranties for U.S.A.
SUBARU vehicles distributed by Subaru
of America, Inc. and sold at retail by an
authorized SUBARU dealer in the United
States come with the following warranties:
SUBARU Limited Warranties
 Federal Emission Control Systems
Warranties
 California Emissions Control
Systems Warranties
All warranty information, including appli-
cability, details of coverage and exclu-
sions, is in the “Warranty and
Maintenance Booklet.” Read these
warranties carefully.■
Warranties for Canada
SUBARU vehicles distributed by Subaru
Canada, Inc. and sold at retail by an
authorized SUBARU dealer in Canada
come with the following warranties:
 SUBARU Limited Warranty
 Emission Control System Warranty
All warranty information, including appli-
cability, details of coverage and exclu-
sions, is in the “Warranty and Service
Booklet.” Read these warranties carefully.
■
Warranties except for U.S.A.
and Canada
All warranty information, including details
of coverage and exclusions, is in the
“Warranty and Maintenance Booklet.”
Read these warranties carefully.
How to Use This Owner’s Manual■
Using Your Owner’s Manual
Before you operate your vehicle, carefully
read this manual. To protect yourself and
extend the service life of your vehicle,
follow the instructions in this manual.
Failure to observe these instructions may
result in serious injury and damage to your
vehicle.
This manual is composed of fourteen
chapters. Each chapter begins with a brief
table of contents, so you can usually tell at
a glance if that chapter contains the infor-
mation you want.
Introduction
This chapter informs you general informa-
tion before driving.
Illustrated Index
This chapter informs you about the vehicle
layout with illustrations.
Chapter 1: Seat, Seatbelt and SRS
Airbags
This chapter informs you how to use the
seat and seatbelt and contains precau-
tions for the SRS airbags.
Chapter 2: Keys and Doors
This chapter informs you how to operate
the keys, locks and windows.
B5=B8.ERRN 2 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Vehicle Symbols
5
Introduction
– CONTINUED –
Vehicle SymbolsThere are some of the symbols you may
see on your vehicle.
For warning and indicator lights, refer to
"Warning and Indicator Lights" P26.
Safety Precautions When Driving■
Seatbelt and SRS Airbag
For instructions and precautions, carefully
read the following sections.
 For the seatbelt syst em, refer to "Seat-
belts" P39.
 For the SRS airbag system, refer to
"SRS Airbag (Supplemental Restraint
System Airbag)" P60.
Mark Name
WARNING
CAUTION
Read these instructions care-
fully
Wear eye protection
Battery fluid contains sulfuric
acid
Keep children away
Keep flames away
Prevent explosions
WARNING
 All persons in the vehicle must
fasten their seatbelts BEFORE
the vehicle starts to move. Other-
wise, the possibility of serious
injury becomes greater in the
event of a sudden stop or acci-
dent.To obtain maximum protection in
the event of an accident, the
driver and all passengers must
always wear seatbelts when in
the vehicle. The SRS (Supple-
mental Restraint System) airbag
does not do away with the need to
fasten seatbelts. In combination
with the seatbelts, it offers the
best combined protection in case
of a serious accident.
Not wearing a seatbelt increases
the chance of severe injury or
death in a crash even when the
vehicle has the SRS airbag.
The SRS airbags deploy with
considerable speed and force.
Occupants who are out of the
proper position when the SRS
airbag deploys could suffer very
serious injuries. Because the
SRS airbag needs enough space
for deployment, the driver should
always sit upright and well back
in the seat as far from the steering
wheel as practical while still
maintaining full vehicle control
and the front passenger should
move the seat as far back as
possible and sit upright and well
back in the seat.
B5=B8.ERRN 5 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Safety Precautions When Driving
6■
Child Safety
WARNING
Never hold a child on your lap or
in your arms while the vehicle is
moving. The passenger cannot
protect the child from injury in a
collision, because the child will
be caught between the passenger
and objects inside the vehicle.While riding in th e vehicle, infants
and small children should always
be seated in the REAR seat in an
infant or child restraint system
which is appropriate for the
child’s age, height and weight. If a
child is too big for a child
restraint system, the child should
sit in the REAR seat and be
restrained using the seatbelts.
According to accident statistics,
children are safer when properly
restrained in the rear seating
positions than in the front seating
positions. Never allow a child to
stand up or kneel on the seat.
 Place children in the REAR seat
properly restrained at all times in
a child restraint system or in a
seatbelt. The SRS airbag deploys
with considerable speed and
force and can injure or even kill
children, especially if they are not
restrained or improperly
restrained. Because children are
lighter and weaker than adults,
their risk of being injured from
deployment is greater.NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT PASSENGER'S SEAT.
DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S
HEAD TOO CLOSE TO THE SRS
AIRBAG.Always lock the passengers’
windows using the lock switch
when children are riding in the
vehicle. Failure to follow this
procedure could result in injury
to a child operating the power
window. Refer to "Windows"

P116.
Never leave unattended children,
adults or animals in the vehicle.
They could accidentally injure
themselves or others through
inadvertent operation of the
vehicle. Also, on hot or sunny
days, temperature in a closed
vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to them.Help prevent children, adults or
animals from locking themselves
in the trunk. On hot or sunny
days, the temperature in the trunk
could quickly become high
enough to cause death or serious
heat-related injuries including
brain damage to anyone locked
inside, particularly for small chil-
dren.When leaving the vehicle, close
all windows and lock all doors.
Also make certain that the trunk
is closed.
B5=B8.ERRN 6 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Safety Precautions When Driving
7
Introduction
– CONTINUED –
For instructions and precautions, carefully
read the following sections.
For the seatbelt system, refer to "Seat-
belts" P39.
 For the child restraint system, refer to
"Child Restraint Systems" P46.
 For the SRS airbag system, refer to
"SRS Airbag (Supplemental Restraint
System Airbag)" P60.
■
Engine Exhaust Gas (Carbon
Monoxide)
■
Drinking and Driving
Put children aged 12 and under or
1.5 m (4 feet 11 inches) tall or less
in the REAR seat properly
restrained at all times in a child
restraint device or in a seatbelt.
The SRS airbag deploys with
considerable speed and force
and can injure or even kill chil-
dren, especially if they are 12
years of age and under or 1.5 m (4
feet 11 inches) tall or less and are
not restrained or improperly
restrained. Because children are
lighter and weaker than adults,
their risk of being injured from
deployment is greater.
WARNING
Never inhale engine exhaust gas.
Engine exhaust gas contains
carbon monoxide, a colorless
and odorless gas which is
dangerous, or even lethal, if
inhaled.Always properly maintain the
engine exhaust system to prevent
engine exhaust gas from entering
the vehicle.Never run the engine in a closed
space, such as a garage, except
for the brief time needed to drive
the vehicle in or out of it. Avoid remaining in a parked
vehicle for a long time while the
engine is running. If that is
unavoidable, then use the ventila-
tion fan to force fresh air into the
vehicle. Always keep the front ventilator
inlet grille free from snow, leaves
or other obstructions to ensure
that the ventilation system
always works properly.
If at any time you suspect that
exhaust fumes are entering the
vehicle, have the problem
checked and corrected as soon
as possible. If you must drive
under these conditions, drive
only with all windows fully open.Keep the trunk lid closed while
driving to prevent exhaust gas
from entering the vehicle.
WARNING
Drinking and then driving is very
dangerous. Alcohol in the blood-
stream delays your reaction and
impairs your perception, judgment
and attentiveness. If you drive after
drinking even if you drink just a lit-
tle it will increase the risk of being
involved in a serious or fatal acci-
dent, injuring or killing yourself,
your passengers and others. In
addition, if you are injured in the
accident, alcohol may increase the
severity of that injury.Please don’t drink and drive.
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

General Information
10
General Information■
California Perchlorate Advi-
sory
Certain vehicle co mponents such as
airbag modules, seatbelt pretensioners
and keyless entry transmitter batteries
may contain perchlorate material. Special
handling may apply for service or vehicle
end of life disposal. See www.dtsc.ca.gov/
hazardouswaste /perchlorate.■
Noise from under the Vehicle
NOTE
You may hear a noise from under the
vehicle approximately 5 to 10 hours
after the ignition sw itch is turned to
the “OFF” position. However, this
does not indicate a malfunction. This
noise is caused by the operation of the
fuel evaporation leakage checking
system and the operation is normal.
The noise will stop after approximately
15 minutes.
■
Vehicle Data Recording
The vehicle is equipped with sophisticated
computers that will record certain data,
such as:
 Vehicle speed
 Engine speed
 Engine control information
 Shift state information
 Driving information, etc.
▼
Data usage
SUBARU may use the data recorded in
this computer to diagnose malfunctions,
conduct research and development, and
improve quality.
SUBARU will not disclose the recorded
data to a third party except:
 With the consent of the vehicle owner
or with the consent of the lessee if the
vehicle is leased
 In response to an official request by the
police, a court of law or a government
agency
 For use by SUBARU in a lawsuit
 For research purposes where the data
is not tied to a specific vehicle or vehicle
owner
 Do not connect any unauthorized
accessories or devices to the
data link connector (OBDII port).
This connector should be used
only with compatible diagnostic
devices for inspection and main-
tenance by an authorized service
technician using authorized
service tools. Connecting unau-
thorized devices, such as a
driver-behavior tracking device,
may adversely affect vehicle
systems, including safety
systems, or allow others to
access information stored in your
vehicle. The use of unauthorized
devices may also cause unex-
pected malfunctions, such as a
drained battery, or may damage
vehicle systems. The manufac-
turer’s warranty will not cover
any part that malfunctions, fails,
or is damaged due to the use of
an unauthorized device with the
data link connector.
B5=B8.ERRN 10 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Steering Wheel
20Steering Wheel
11
9
33
9
22
4
5
6
8
7
002019
1)Audio control switches
*1
2) Control switches for combination meter
display (color TFT) (page 152)
3) Shift paddles (AT models) (page 239)
4) Following distance setting switch
*2
5) Talk switch for voice command
system
*1
6) Cruise control switches (page 260)
*2
7) SRS airbag (page 60)
8) Horn (page 195)
9) Hands-free phone switches
*1
*1: For details about how to use the switches,refer to the separate audio Owner’s
Manual.
*2: For models with the EyeSight system, refer to the Owner’s Manual supplement
for the EyeSight system.
B5=B8.ERRN 20 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
