2022 SUBARU BRZ Owners Manual

Interior Equipment6
Interior Equipment
6-1. Interior Light ........................................................212
Map Lights.....................................................................212
OFF Delay Timer ...........................................................212
6-2. Sun Visors ...........................................................213
Vanity Mirror with Light (If Equipped) ........................213
6-3. Storage Compartment ........................................213
Glove Box ......................................................................214
Center Console .............................................................214
6-4. Bottle Holders .....................................................215
6-5. Accessory Power Outlets ...................................215
6-6. USB Power Supply ..............................................216
How to Use the USB Power Supply ........................... 217
6-7. Ashtray (Dealer Option) ......................................217
6-8. Floor Mat ..............................................................218
6-9. Under-Floor Storage Compartment
(models with the flat tire repair kit) .................219
B5=B8.ERRN 211 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Interior Light
2126-1. Interior Light■
Map Lights
▼
Map light switches
To turn on the map light, press the lens.
To turn it off, press the lens again. ▼
Door interlock switch1) Door interlock switchThe door interlock switch has the following
positions.
OFF:
The map lights do not illuminate
automatically in conjunction with a door
opening. However, the lights can be
turned on manually by pressing the map
light lens.
DOOR: The map lights illuminate auto-
matically when any of the doors (other
than the trunk lid) is opened even while
the map light is off. Several seconds after
all of the doors (other than the trunk lid)
are closed, the map lights gradually turn
off. For details, refer to "OFF Delay Timer"
 P212.
■
OFF Delay Timer
The following lights have an automatic illu-
mination function.
 Map lights
 Trunk
When the interior light switch is set to the
“DOOR” position, the light will automati-
cally turn on and off depending on the
locking and unlocking of the doors, the
opening and closing of the doors, as well
as the position of the ignition switch.NOTEThe setting for the period of time in
which the lights remain on (OFF delay
timer) can be changed by a SUBARU
dealer. Contact your SUBARU dealer
for details. Also, the setting can be
changed by operating the center infor-
mation display. For details, refer to
"Car settings" 
P165.
CAUTION
When leaving your vehicle, make
sure the lights are turned off to
avoid battery discharge.
602244
1
602245
B5=B8.ERRN 212 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Sun Visors
213
Interior Equipment6
– CONTINUED –
6-2. Sun VisorsTo block out glare, swing down the visors.
To use the sun visor at a side window,
swing it down and move it sideways.■
Vanity Mirror with Light (If
Equipped)
To use the vanity mirror, swing down the
sun visor and open the vanity mirror
cover.
The lights beside the vanity mirror illumi-
nate when the mirror cover is opened.NOTEUse of the vanity mirror light for a long
period of time while the engine is not
running can cause battery discharge.
6-3. Storage Compartment
CAUTION
Keep the vanity mirror cover closed
while the car is being driven to
avoid being blinded by glare.
601182
602246
CAUTION
Keep the storage compartment
closed when it is not being used.
If left open, in the event of sudden
braking, etc., stowed items may
fly out, possibly leading to an
accident.Do not store the following items
in the storage compartment.
Otherwise, it may cause a fire or
accident.
- Spray cans, containers with
flammable or corrosive liquids
or any other dangerous items.- Plastic or other heat-vulner-able or flammable articles
such as a lighter.
B5=B8.ERRN 213 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Storage Compartment
214■
Glove Box
To open the glove box, pull the handle. To
close it, push the lid firmly upward.■
Center Console
To open the center console, push on the
button lightly and it will automatically
open.
▼
Cup Holder and Console Tray
MT models
AT modelsThe cup holder and console tray is built
into the center console.
602247602248
CAUTION
Take care to avoid spills. Bever-
ages, if hot, might burn you and/
or your passengers. Spilled
beverages may also damage
upholstery, carpets or audio
equipment.Do not pick up a cup from the cup
holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an acci-
dent.Take care not to spill a beverage
on the select lever/shift lever or
any switch(es) in the adjacent
area. If the beverage is spilled, it
may cause a malfunction of the
select lever/shift lever and/or
switch(es).
602367602249
B5=B8.ERRN 214 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Bottle Holders
215
Interior Equipment6
– CONTINUED –
6-4. Bottle HoldersThe bottle holder equipped on each door
trim can be used to hold beverage bottles
and other items.
6-5. Accessory Power OutletsPower outlet in the glove boxAccessory power outlets are provided in
the glove box. Electrical power (12 V DC)
from the battery is available at any of the
outlets when the ignition switch is in either
the “ACC” or “ON” position.
You can use an in-vehicle electrical appli-
ance by connecting it to an outlet.
The maximum power rating of an appli-
ance that can be connected is 120 W. Do
not use an appliance which exceeds the
indicated wattage for each outlet.
When using appliances connected to two
or more outlets simultaneously, the total
power consumed by them must not
exceed 120 W.
CAUTION
 Do not pick up a bottle from the
bottle holder or pu t a bottle in the
holder while you are driving, as
this may distract you and lead to
an accident. When placing a beverage in a
bottle holder, make sure it is
capped. Otherwise, the beverage
could spill when opening/closing
the door or while driving and, if
the beverage is hot, it could burn
you and/or your passengers.
602250
602251
CAUTION
Do not attempt to use a cigarette
lighter in the accessory power
outlet.Do not place any foreign objects,
especially metal ones such as
coins or aluminum foil, into the
accessory power outlet. That
could cause a short circuit.
Always put the cap on the acces-
sory power outlet when it is not in
use.Use only electrical appliances
which are designed for 12 V DC.
The maximum power rating of an
appliance that can be connected
is 120 W. Do not use an appliance
which exceeds the indicated
wattage for each outlet.When using appliances con-
nected to two or more outlets
simultaneously, the total power
consumed by them must not
exceed 120 W. Overloading the
accessory power outlet can
cause a short circuit. Do not use
double adapters or more than
one electrical appliance.
B5=B8.ERRN 215 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

USB Power Supply
216
6-6. USB Power Supply
NOTEThe rated voltage of each USB
terminal is 5 V/2.1 A (total 4.2 A). For
details about the maximum rated
power, refer to "How to Use the USB
Power Supply" 
P217. Before
connecting a device, be sure to read
the instruction manual of the device
and check whether or not this specifi-
cation of the output is supported by the
device. If a device that requires power
exceeding the maximum rating is
connected, power supply or charging
may not be possible. Even if charging
could be completed, the time required
for charging may be longer than when
the genuine charger for that device is
used.
 Depending on the device, charging
may be possible only when a special
 If the plug on your electric appli-
ance is either too loose or too
tight for the accessory power
outlet, this can result in a poor
contact or cause the plug to get
stuck. Only use plugs that fit
properly.Use of an electric appliance in the
accessory power outlet for a long
period of time while the engine is
not running can cause battery
discharge.Before driving your vehicle, make
sure that the plug and the cord on
your electrical appliance will not
interfere with your shifting gears
and operating the accelerator and
brake pedals. If they do, do not
use the electrical appliance while
driving.
CAUTION
The specification of a USB
terminal that can be used is the A-
type. If a different specification of
terminal is connected, power
supply or charging may not be
possible, or the device may
malfunction.There is a risk that a connected
device may malfunction or data
may be damaged. The connection
of a device shall be performed at
your responsibility.To avoid an electric shock or a
malfunction, observe the
following precautions.
- Do not connect a USB hub.- Do not insert any metal or
other foreign object into the
USB terminal.- Do not spill water or otherliquid on the USB terminal.
Be careful not to pull the
connected cable. Doing so could
break the USB terminal and the
connected device.
If a device is connected for a long
time when the engine is not
running, doing so may cause the
risk of a discharged battery. Even
when the engine is running, we
recommend that you do not
connect a device for an unneces-
sarily long time.Do not connect a malfunctioning
device. Doing so may cause the
risk of smoke and fire.
B5=B8.ERRN 216 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Ashtray (Dealer Option)
217
Interior Equipment6
– CONTINUED –
cable is used. In this case, be sure to
connect the device using the special
cable.
When a device that communicates
with a PC is connected, power supply
or charging may not be possible.
 When connect a device for charging,
disconnect the device promptly after
charging is completed.■
How to Use the USB Power
SupplyConsole USB power supply (an audio
device can be connected and used)Use the USB terminal to use or charge an
electronic device.
When using the USB, open the USB
power supply cover. After use, close it. When the ignition switch is in the “ACC” or
“ON” position, the power can be supplied
to the electronic device. Up to 5 V/2.1 A
can be supplied from each terminal (total
of 4.2 A).
6-7. Ashtray (Dealer Option)NOTEParticles of ash and tobacco will accu-
mulate around the hinges of the ash-
tray’s inner lid. Clean them off using a
toothbrush or a similar narrow-ended
implement.
602252
CAUTION

Do not use ashtrays as waste
receptacles or leave a lighted
cigarette in an ashtray. This could
cause a fire.Always extinguish matches and
cigarettes before putting them
into the ashtray, and then close
the ashtray securely. If you keep
the ashtray open, the fire of the
cigarette may spread to another
cigarette butt and start a fire. Do not put flamma ble material in
the ashtray. Do not leave a lot of cigarette
butts in the ashtray.
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

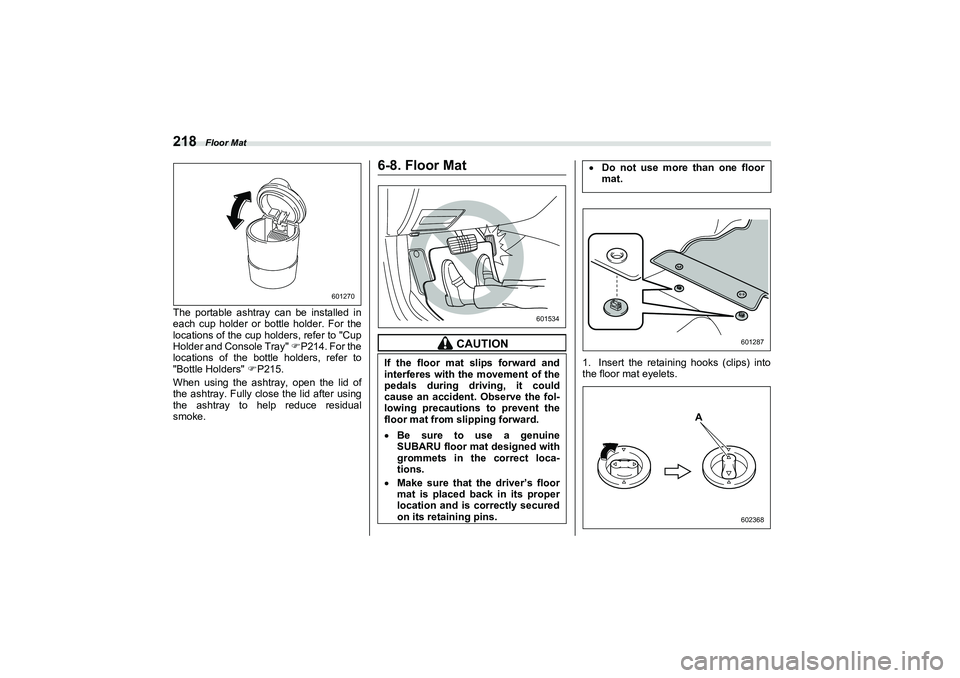

Floor Mat
218The portable ashtray can be installed in
each cup holder or bottle holder. For the
locations of the cup holders, refer to "Cup
Holder and Console Tray" P214. For the
locations of the bottle holders, refer to
"Bottle Holders"  P215.
When using the ashtray, open the lid of
the ashtray. Fully close the lid after using
the ashtray to help reduce residual
smoke.
6-8. Floor Mat
1. Insert the retaining hooks (clips) into
the floor mat eyelets.
601270
CAUTION
If the floor mat slips forward and
interferes with th e movement of the
pedals during driving, it could
cause an accident. Observe the fol-
lowing precautions to prevent the
floor mat from slipping forward. Be sure to use a genuine
SUBARU floor mat designed with
grommets in the correct loca-
tions.Make sure that the driver’s floor
mat is placed back in its proper
location and is correctly secured
on its retaining pins.
601534
Do not use more than one floor
mat.
601287
A
602368
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
