2022 SUBARU BRZ Owners Manual

Fuses
371
Maintenance and Service11
– CONTINUED –
It is unnecessary to periodically check the
battery fluid level or periodically refill with
distilled water.
11-26. FusesNOTEFuse rating and using circuit are
described on the fuse box cover.
The fuses are designed to melt during an
overload to prevent damage to the wiring
harness and electrical equipment. The
fuses are located in two fuse boxes.
One is located under the instrument panel
behind the fuse box cover on the driver’s
seat side. To remove the cover, pull it out.
 To lessen the risk of sparks,
remove rings, metal watchbands,
and other metal jewelry. Never
allow metal tools to contact the
positive battery terminal and
anything connected to it WHILE
you are at the same time in
contact with any other metallic
portion of the vehicle because a
short circuit will result. Keep everyone including children
away from the battery.Charge the battery in a well-venti-
lated area.Battery posts, terminals, and
related accessories contain lead
and lead compounds, chemicals
known to the State of California to
cause cancer and reproductive
harm. Batteries also contain
other chemicals known to the
State of California to cause
cancer. Wash hands after
handling.
CAUTION
Never use more than 10 amperes
when charging the battery because
it will shorten battery life.
CAUTION
Never replace a fuse with one hav-
ing a higher rating or with material
other than a fuse because serious
damage or a fire could result.
B02117
B5=B8.ERRN 31 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Fuses
3721) Fuse pullerThe other one (main fuse box) is housed
in the engine compartment. Also, the fuse
puller are stored in the fuse box.
Pinch the upper part of the fuse puller
when removing it from the main fuse box.
1) Good
2) BlownIf any lights, accessories or other elec-
trical controls do not operate, inspect the
corresponding fuse. If a fuse has blown,
replace it.
1. Turn the ignition switch to the “OFF”
position and turn off all electrical accesso-
ries.
2. Remove the fuse box cover.
3. Determine which fuse may be blown.
Look at the back side of each fuse box
cover.4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown,
replace it with a spare fuse of the same
rating.
6. If the same fuse blows again, this indi-
cates that its system has a problem.
Contact your SUBARU dealer for repairs.
1B02118
B01008
12
B00975
B5=B8.ERRN 32 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Installation of Accessories
373
Maintenance and Service11
– CONTINUED –
11-27. Installation of Acces-soriesAlways consult your SUBARU dealer
before installing fog lights or any other
electrical equipment in your vehicle. Such
accessories may cause the electronic
system to malfunction if they are incor-
rectly installed or if they are not suited for
the vehicle. We recommend that you
install only genuine SUBARU accessories
on your vehicle.
11-28. Replacing Bulbs
■
Headlights
The LED headlight warning light illumi-
nates if the LED headlights malfunction.
Have your vehicle inspected at a
SUBARU dealer as soon as possible.■
Backup Light
NOTE
 It may be difficult to replace the
bulbs. We recommend that you have
the bulbs replaced by your SUBARU
dealer if necessary.
 If a genuine SUBARU accessory has
been installed to the rear bumper,
check the manual included with the
accessory.
WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down, Otherwise, there
is the risk of sustaining a burn
injury.
CAUTION
 Before replacing a backup light,
stop the engine and allow the
exhaust pipes and surrounding
parts to cool suffi ciently. As the
bulbs are near the exhaust pipes,
there is a risk of being burned. Replace any bulb only with a new
bulb of the specified wattage.
Using a bulb of different wattage
could result in a fire. For the spec-
ified wattage of each bulb, refer to
"Bulb Chart" 
P387. For replace-
ment, contact your SUBARU
dealer.
B02119
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Bulbs
3741. Remove the clips.
2. Remove the rear bumper cover.3. Turn the bulb socket counterclockwise
and remove it.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Install the bulb socket by turning it
clockwise.
6. Reconnect the electrical connector.
7. Reinstall the rear bumper cover.
■
Trunk Light■
Other Bulbs
It may be difficult to replace the bulbs.
We recommend that you have the
bulbs replaced by your SUBARU dealer
if necessary.■
Adjusting Headlight Aim1) Adjustment bolt A
2) Adjustment bolt B▼
Before checking the headlight
aiming
1. Make sure the vehicle has a full tank of
gasoline and the area around the head-
light is not deformed.
2. Park the vehicle on level ground.
3. Sit in the driver’s seat.
4. Bounce the vehicle several times.
B02120B02121
CAUTION
Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.
B02122
2
1
B02156
B5=B8.ERRN 34 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Battery
375
Maintenance and Service11
– CONTINUED –
▼
Headlight aim adjustment1) Adjustment direction mark1. Turn the bolt A clockwise or
counterclockwise to adjust it. Remember
the direction of the rotation and number of
rotations.2. Turn bolt B the same number of turns
and in the same direction as step 1.
NOTE
If the headlight aim cannot be
adjusted, contact your SUBARU
dealer.
 To inspect of the headlight aim posi-
tion, consult a SUBARU dealer.
11-29. Replacing BatteryThe access key fob may be discharged
under the following conditions.
 The operation of the keyless access
function is unstable
 The operating distance of the remote
keyless entry system is unstable
 The transmitter does not operate prop-
erly when used within the standard
distance
Replace the battery with a new one.
1
B02157
B02158
CAUTION
 Do not let dust, oil or water get on
or in the access key fob/trans-
mitter when replacing battery.Be careful not to damage the
printed circuit board in the
access key fob/transmitter when
replacing the battery.Be careful not to allow children to
touch the battery and any
removed parts; children could
swallow them.There is a danger of an explosion
if the battery is incorrectly
replaced. Replace only with the
same or equivalent type of the
battery.
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Battery
376NOTEReplace only with the same or
equivalent type of battery recom-
mended by the manufacturer.
 Dispose of used batteries according
to the local laws.
 Mount the battery in the correct
orientation to prevent fluid leakage. Be
careful not to bend the terminals. It
may result in a malfunction.
 It is recommended that the battery
should be replaced by a SUBARU
dealer.
 Use a new battery.
 After replacing the battery, confirm
that the access key fob/transmitter
functions properly.■
Replacing Battery of Access
Key Fob
Battery: Button battery CR2032 or
equivalent1) Release button
2) Emergency key1. Take out the emergency key. 2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.
3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.

Batteries shall not be exposed to
excessive heat such as bright
sunlight, fire or the like.
CAUTION
When removing or fitting the
access key fob cover, make sure
that the plastic part does not
come off or become misaligned.
Before replacin g the battery,
remove any static electricity.
1
2
202500
B01977B01546
B5=B8.ERRN 36 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Battery
377
Maintenance and Service11

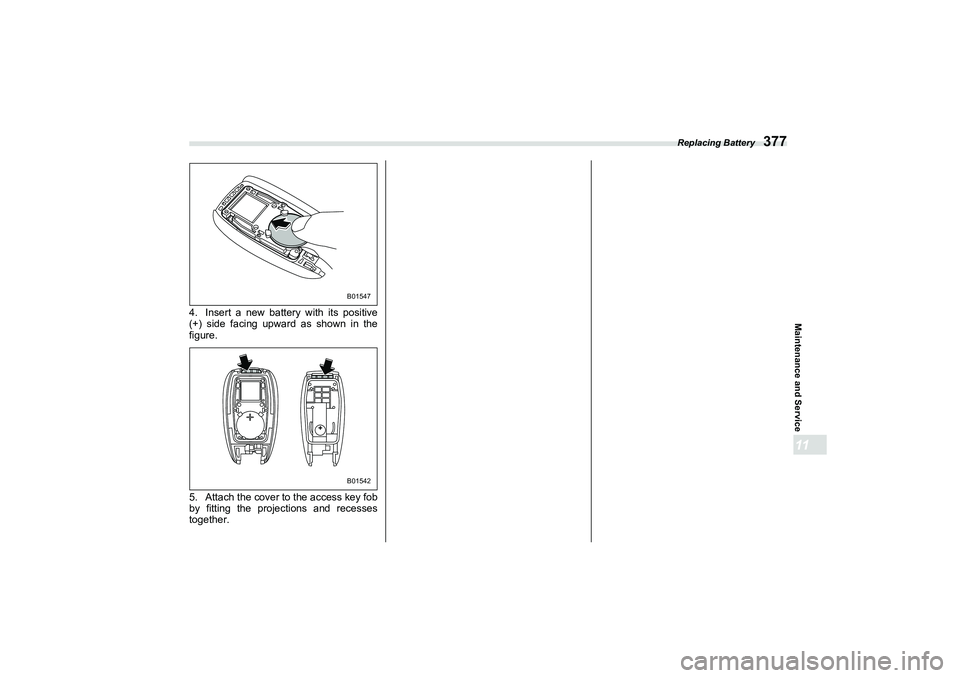

4. Insert a new battery with its positive
(+) side facing upward as shown in the
figure.
5. Attach the cover to the access key fob
by fitting the projections and recesses
together.
B01547B01542
