2022 SUBARU BRZ Owners Manual

Specifications12
Specifications
12-1. Specifications....................................................380
Dimensions ...................................................................380
Engine............................................................................380
Fuel ................................................................................381
Engine Oil ......................................................................381
Manual Transmission and Differential Gear Oil.........383
Fluids .............................................................................383
Engine Coolant .............................................................384
Electrical System ..........................................................385
Tires ...............................................................................385
Brake Pedal .............. .......................................... ...........385
Brake Disc ................ .......................................... ...........386
Brake Pad ........... ................................................... ........386
12-2. Bulb Chart ..........................................................387
Safety Precautions ...................................................... 387
Bulb Chart .................................................................... 388
12-3. Vehicle Identification ........................................390
12-4. Function Settings ..............................................391
Function Settings and Adjustments on the Center
Information Display ................................................... 391
Individual Settings an d Adjustments Excluding
Center Information Display and Combination
Meter Display (Color TFT) ......................................... 391
Function Settings and Adjustments Performed by a Dealer ................................................................. 391
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
38012-1. SpecificationsThese specifications are subject to change without notice.■
Dimensions
in (mm)
*1: Measured with vehicle emptyAT: Automatic transmission
MT: Manual transmission
RWD: Rear Wheel Drive■
Engine
Item Dimensions
Drive system RWD
Transmission type ATMT
Overall length 167.9 (4265)
Overall width 69.9 (1775)
Overall height 51.6 (1310)
Wheelbase 101.4 (2575)
Tread Front
59.8 (1520)
Rear 61.0 (1550)
Ground clearance*1
5.1 (130)
Engine model FA24 (2.4 L, DOHC, non-turbo)
Engine type Horizontally opposed, liquid cooled 4 cylinder,
4-stroke gasoline engine
Displacement cu-in (cc) 146 (2,387)
Bore × Stroke in (mm) 3.70 × 3.39 (94.0 × 86.0)
B5=B8.ERRN 30 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
381
Specifications12
– CONTINUED –
■
Fuel
*1: For details, refer to "Fuel" P223.■
Engine Oil
For the checking, adding and replacing procedure or other details, refer to "Engine Oil" P346.NOTEThe procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recom-
mended that you have this service performed by your SUBARU dealer.
▼
Approved engine oil
Always use the SUBARU approved engine oil. For fu rther details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
▼Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTE Each quantity indicated is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
 In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lower
viscosity provide better fuel economy. However, in hot weather, o il of higher viscosity is required to properly lubricate the
engine. The following table lists the recommended viscosities and applicable temperatures.Compression ratio 12.5 : 1
Firing order 1 – 3 – 2 – 4
Fuel requirement
*1
Unleaded gasoline with 93 AKI (98 RON) or higher
Fuel tank capacity 13.2 US gal (50 liters, 11 Imp gal)
Engine model
FA24 (2.4 L, DOHC, non-turbo)
B5=B8.ERRN 31 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
382When adding oil, different brands may be used together as long as they are the same AP I classification and SAE viscosity
as those recommended by SUBARU.
Oil grade SAE viscosity No. and
applicable temperature Engine oil capacity
API (American Petroleum Insti-
tute) classification SN with the
words “RESOURCE CON-
SERVING” or SN PLUS with the
words “RESOURCE CON-
SERVING” or
ILSAC (International Lubricant
Specification Advisory Commit-
tee) GF-5 , which can be identi-
fied with the ILSAC certification
mark (Starburst mark) 0W-20 synthetic oil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.
*: If 0W-20 synthetic oil is not avail-
able, 5W-30 conventional oil may
be used if you need to add oil.
However, you should change to
0W-20 synthetic oil at the next oil
change. Adding the oil from low level to full
level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
Changing the oil:
5.1 US qt (4.8 liters, 4.2 Imp qt)
Changing the oil and oil filter:
5.3 US qt (5.0 liters, 4.4 Imp qt)
ZOM0754
ZOM0293
ZOM0294
0W-20*
-30 -20 -10 0 10 20 30 40
-20 0 60
20 80 100
40
B5=B8.ERRN 32 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
383
Specifications12
– CONTINUED –
■
Manual Transmission and Differential Gear Oil
*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory.
*4: This type of manual transmission oil can be used. However, using this type of oil will increase fuel consumption.
If oil other than “Manual Transmission Gear Oil LV 75W” is used, the following may be experienced:
 The overall performance and function of the transmission may be adversely affected.
 Rattling noises may occur during id ling and fuel consumption may increase.
Never use different brands together.
*5: Using a differential gear oil other than “Differential Gear Oil LX” may cause noise, vibrations and increased fuel consumption. Never use different brands together.■
Fluids
Oil Manual transmission oil Differential gear oil
Oil grade 
Manual Transmission Gear Oil LV 75W*
3
API GL-4 SAE 75W
*4
Differential Gear Oil LX*
3
Other gear oil that meets API GL-5 SAE 75W-85 or GL-5 SAE 75W-
90 specifications*
5
Oil capacity*
1
2.3 US qt (2.2 liters, 1.9 Imp qt) 1.22 US qt (1.15 liters, 1.01 Imp qt)
Remarks*
2
"Manual Transmission Oil"  P353"Differential Gear Oil" P353
Fluid Fluid type
*1
Fluid capacity
*2
Remarks
*3
Automatic Transmission Fluid
(AT models) ATF WS
7.9 US qt (7.5 liters, 6.6 Imp qt)"Automatic Transmission
Fluid" 
P352
Brake fluid FMVSS No. 116, DOT 3 or
DOT 4 brake fluid
―
"Brake Fluid" P353
Clutch fluid (MT models) FMVSS No. 116, DOT 3 or
DOT 4 brake fluid
―"Clutch Fluid (MT models)"

P354
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
384*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors.
*3: For more details about maintenance and service, refer to the indicated section.■
Engine Coolant
The indicated coolant quantity is only a guideline. The necessa ry quantity for replacement may differ slightly depending on the
temperature and other factors. For more details abou t maintenance and service, refer to "Cooling System" P348.
Vehicle model Coolant capacity Coolant type
AT models 8.1 US qt (7.7 liters, 6.8 Imp qt)
SUBARU SUPER COOLANT
MT models 7.8 US qt (7.4 liters, 6.5 Imp qt)
B5=B8.ERRN 34 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
385
Specifications12
– CONTINUED –
■
Electrical System
■Tires
*1: If equipped
*2: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wh eel nut tightening
procedure, refer to "Changing a Flat Tire"  P303.■
Brake Pedal
in (mm)
*: Minimum value when pedal is operated with a force of 67.4 lbf (300 N, 30.6 kgf) while the engine is running.
Battery type
U.S. spec and Canada spec models
75D23L
Except U.S. spec and Canada spec models 55D23L
Alternator 12 V-150 A
Spark plugs ZXE27HBR8 (DENSO)
Tire size 215/45R17 87W215/40R18 85Y
Wheel size 17 × 7 1/2J18 × 7 1/2J
Pressure Front
35 psi (240 kPa, 2.4 kgf/cm
2)
Rear
Spare tire
*1
Size ―215/40R18 85Y
Pressure ―
35 psi (240 kPa, 2.4 kgf/cm
2)
Wheel nut tightening torque 88.5 lbf·ft (120 N·m, 12.2 kgf·m)
*2
Pedal clearance2.91 (74)*
Pedal free play 0.02 - 0.05 (0.5 - 1.5)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

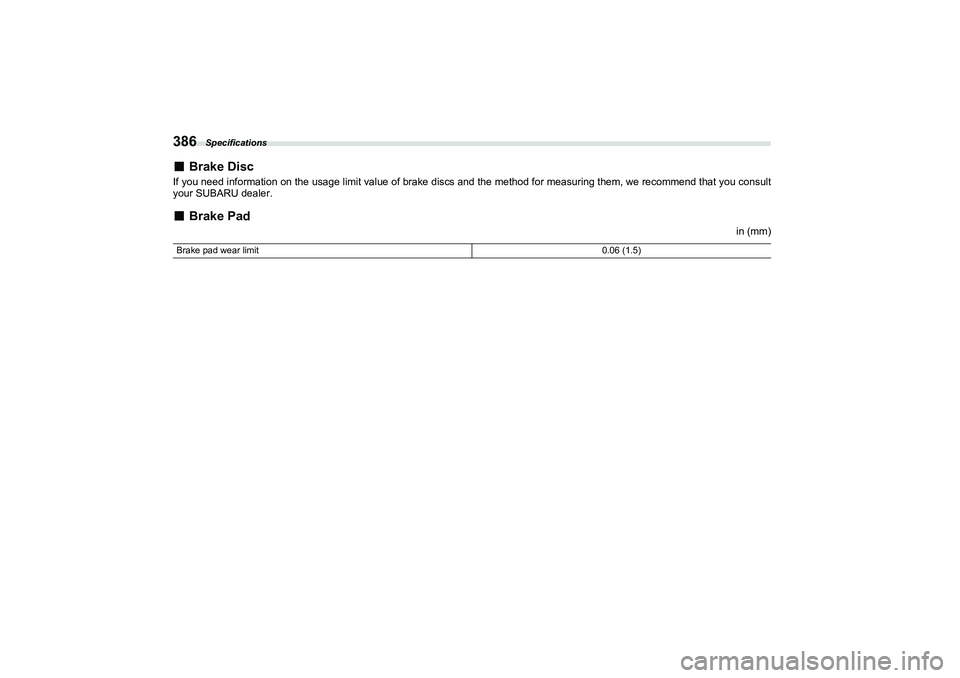

Specifications
386■
Brake Disc
If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consul t
your SUBARU dealer.■
Brake Pad
in (mm)
Brake pad wear limit 0.06 (1.5)B5=B8.ERRN 36 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
