WELCOME TO THE KIA FAMILY!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
USING THIS FEATURES & FUNCTIONS GUIDE
The information contained in this guide is a brief overview of the operation and features of your new Kia vehicle.
This Features & Functions Guide and the specific operational and safety information it provides are not a substitute for your Owner’s Manual. In the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read the Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance of or after the fact and assumes no liability in connection with such changes.
VIDEOS AND QR CODES
Kia provides a number of video resources to assist you with becoming familiar with the features and functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your mobile device using the built-in QR Code Reader or a downloaded QR Code Reader App.
After opening the QR Code Reader App on your mobile device, the app will utilize your device’s camera. Center the code in the camera viewing area — with some apps, as soon as the app recognizes the code, it will launch the corresponding video.
With other apps, you will have to snap or “take a picture” of the code. The app will then launch the corresponding video.
For operation specifics, refer to the instructions that come with the QR Code Reader App. You can also view the videos by visiting the following website: www.youtube.com/KiaFeatureVideos
If you’re having trouble scanning codes, check the following:
•
The code should be centered and focused in your mobile device’s camera screen
•
Consider moving your device closer to or far ther away from the code
•
The code should be well lit, without significant shadow
•Avoid scanning from a significant angle
•
Confirm that the device’s app suppor ts 2D QR Code scanning
•
Tr y another QR Code Reader App; not all apps are created equal
After scanning, you may experience a “connection error ” message or a “connecting” message with no subsequent response. These messages t ypically indicate that your device is having trouble connecting to the Internet
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Your New Kia Important Care Tips Video
QR CODES
Page 3 of 70
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Matte Paint Care VideoNavigation System Important Tips Video
Your New Kia Important Care Tips VideoVehicle Cameras Important Tips Video
QR CODESAs you get to know your new Kia, you can explore this booklet to better
understand how to operate its many features and systems. You can find the
complete Table of Contents on the next two pages, but first, be sure to review
the following to better understand some of your Kia’s most used features:
1 Smart Key with Remote Start / Remote Smart Parking Assist (RSPA) . . . 59
2 Power Adjustable Driver’s Seat / Front Seat Headrest Adjustment . . . . 56
3 Seat Warmers* / Ventilated Seats* . . . . . . . . . . . . . . . . . . . . . . . 55
4 Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
5 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6 Smart Cruise Control (SCC) . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7 Normal Maintenance Schedule . . . . . . . . . . . . . . . . . . . .Back Cover
8 Vehicle Settings - Infotainment System . . . . . . . . . . . . . . . . . . . . 11
9 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . 44-45
10 Kia Connect Activation / Kia Connect Assistance . . . . . . . . . . . . . . . 47
11 Kia Access App Download . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
12 Kia Access App Features Guide . . . . . . . . . . . . . . . . . . . . . . . . 48
13 Kia Connect with Smart Navigation . . . . . . . . . . . . . . . . . . . . . . 49
14 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . 46
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www.kia.com Consumer Affairs – Roadside Assistance†12: 1-800-333-4KIA (800-333-4542)Always check the Owner’s Manual for complete operating information and safety warnings.
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
GETTING STARTED
1
Page 4 of 70
2*IF EQUIPPEDEV6 FEATURES & FUNCTIONS GUIDE
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTEREV Instrument Cluster Overview ................. 03Distance to Empty (DTE) / Range ................ 03Indicators & Warning Lights ...................... 04Electric Vehicle (EV) Indicators ................... 05Energy Consumption ............................ 05Charge Warning Messages on Instrument Panel LCD ......................... 06Tire Pressure Monitoring System (TPMS) ......... 08Drive Mode Integrated Control System ........... 09
VEHICLE SETTINGSLCD Instrument Cluster Modes .................. 10Trip Modes / Trip Computer ...................... 10Vehicle Set tings – Infotainment System ........... 11Service Interval Mode ........................... 12
ELECTRIC VEHICLE (EV) FEATURESCharging Connector - Auto/Lock Mode. . . . . . . . . . . 13Scheduled Charging ............................. 13Charging Your EV ............................... 14EV Charge Transfer / Vehicle to Load (V2L) ....... 16EV Mode - Infotainment System ................. 17Regenerative Braking with Paddle Switches ...... 18
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Blind-Spot Collision-Avoidance Assist (BCA) ...... 20Rear Cross-Traffic Collision-Avoidance Assist ..... 21Lane Keeping Assist (LK A) ....................... 22Blind-Spot View Monitor (BVM)*. . . . . . . . . . . . . . . . . . 23Safe Exit Assist (SEA) ............................ 23Lane Following Assist (LFA) ...................... 24Intelligent Speed Limit Assist (ISL A) .............. 25Forward Collision-Avoidance Assist (FCA) ........ 26Highway Driving Assist (HDA) .................... 28Reverse/Forward* Parking Distance Warning (PDW) ............................... 29 Smar t Cruise Control (SCC) ...................... 30
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) c o n t i n u e dNavigation-based Smar t Cruise Control (NSCC) . . 31Driver At tention Warning (DAW) ................. 32Leading Vehicle Depar ture Aler t (LVDA) .......... 33Remote Smar t Parking Assist (RSPA)* ............34Rear View Monitor (RVM) ........................35Augmented Reality Head-Up Display (HUD)* .....363D Surround View Monitor (SVM)* ............... 37Reverse Parking Collision-Avoidance Assist (PCA)* 38
DRIVER’S PANELInstrument Cluster Illumination Control ........... 39Electronic Stability Control (ESC) ................. 39Hill-Star t Assist Control (HAC). . . . . . . . . . . . . . . . . . . . 39Power But ton ................................... 40Power Windows, Window Lock & Central Door Lock ........................... 41Electronic Child Safety Lock System* ............. 41Automatic Door Lock/Unlock .................... 41Power/Heated Outside Mirrors ................... 41Power Folding Outside Mirrors* .................. 41
STEERING WHEEL CONTROLSHeadlights & High Beams ........................ 42High Beam Assist (HBA) ......................... 42Turn Signals ..................................... 42Windshield Wipers & Washers .................... 43Tilt/Telescoping Steering Wheel .................. 43
INFOTAINMENT SYSTEMSBluetooth® Wireless Technology .................44Audio Controls ..................................45Android Auto™ / Apple CarPlay® Setup ...........46Kia Connect Activation .......................... 47Kia Connect Assistance* ......................... 47Kia Access App Download ....................... 48Kia Access App Features Guide .................. 48Kia Connect with Smar t Navigation .............. 49
CENTER PANELDigital Clock .................................... 50Multimedia USB Por ts & Power Outlets ........... 50USB-C Charger Por ts* ........................... 50Wireless Smar tphone Charging System .......... 51Automatic Climate Control ....................... 52Rotary Dial Shifter ............................... 53Heated Steering Wheel* ......................... 53Electronic Parking Brake (EPB) / Auto Hold ....... 54Seat Warmers / Ventilated Seats* ................ 55
SEATINGInfotainment System Seat Set tings* ..............55Front Seat Headrest Adjustment ................. 56Driver Position Memory System* .................56Power Adjustable Driver ’s Seat ................... 56Folding Rear Seats .............................. 57Rear Occupant Aler t (ROA) with Door Monitoring . 57
OTHER KEY FEATURESHood Release Lever and Latch ................... 58Sunvisor ........................................ 58Exterior Flush Door Handle Operation ............58Smar t Key with Remote Star t / Remote Smar t Parking Assist (RSPA)* .......... 59Double-Turn Lock/Unlock All .................... 59Smart Power Liftgate* ...........................60Manual Liftgate* / Liftgate Release But ton ........ 61Cargo Cover Storage ............................ 61Map/Room Lamps .............................. 62Sunroof Operation .............................. 62Child-Protector Rear Door Lock* .................63Tire Mobility Kit .................................63
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator ................ 64Seat Belts ....................................... 64
MAINTENANCE CHART ......... Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
TABLE OF CONTENTS
Page 5 of 70
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
EV Instrument Cluster Overview Video
EV Distance to Empty (DTE) Video
QR CODES
A POWER (PWR) - Energy consumption rate
B CHARGE (CHG) - Charge status of the regenerative brakes
C Battery State of Charge (SOC) gauge
D Speedometer
E Distance to Empty / Range
F Reduction gear shift indicator
G Odometer
H Regenerative braking level indicator
I EV energy economy
Distance to Empty (DTE) or Range E is the estimated distance an EV can be driven with the remaining electric energy until the battery reaches zero. DTE can vary depending on the selected drive mode, current driving conditions, traffic, driving patterns, air conditioner or heater use, and how much cargo you are carrying.
EV Instrument Cluster Overview
Distance to Empty (DTE) / Range
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 5 of the Owner ’s Manual.
Illustrations are for demonstration purposes only. Some indicators and warning lights may not appear in illustrations. On the vehicle, they may appear in the LCD.
3*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
REMINDERS:
•
If DTE displays “Zero Miles,” you need to charge the vehicle immediately
•
Most electric vehicles can drive an additional t wo to five miles depending on driving conditions
•
Distance to empt y may depend on many factors such as the charge amount of the high voltage bat ter y, weather, temperature, durabilit y of the bat ter y, geographical features, and driving st yle
•Operating the climate control system may reduce the Distance to Empt y
•When decelerating or driving downhill, regenerative braking charges the high voltage bat ter y which minimizes energy loss and increases the Distance to Empt y or Range
•When you set a destination via the on-board navigation system, DTE is calculated based on the route selected. By set ting a final destination, DTE accuracy improves. By knowing the final location, the vehicle can bet ter predict the amount of bat ter y energy it will need to reach that destination
•When operating the climate control, use the DRIVER ONLY function to conser ve energy
•In cold weather, use scheduled heating to reduce the amount of energy consumption
•In the EV Set tings, select WINTER MODE to increase the bat ter y temperature in cold weather
QUICK TIPS
CHG
PWR
EPB
１
00 kWh/ １00m6202 mABS0 20 4060
0mph
0 KMH
268m
268m
96%Lv １READY
P
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
F
HC
D
EAG
B
I
Page 6 of 70
4 *IF EQUIPPEDEV6 FEATURES & FUNCTIONS GUIDE

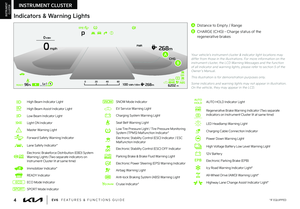

Indicators & Warning Lights
High Beam Indicator Light
AUTO ) J H I # F B N " T T J T U * O E J D B U P S - J H I U
- P X # F B N * O E J D B U P S - J H I U
- J H I U 0 / * O E J D B U P S
. B T U F S 8 B S O J O H - J H I U
' P S X B S E 4 B G F U Z 8 B S O J O H * O E J D B U P S
- B O F 4 B G F U Z * O E J D B U P S
& M F D U S P O J D # S B L F G P S D F % J T U S J C V U J P O & # %
4 Z T U F N 8 B S O J O H - J H I U T 5 X P T F Q B S B U F J O E J D B U P S T P O * O T U S V N F O U $ M V T U F S M J U B U T B N F U J N F
* N N P C J M J [ F S * O E J D B U P S
3 & " % : * O E J D B U P S
EC O & $ 0 . P E F * O E J D B U P S
SP O RT 4 1 0 3 5 . P E F * O E J D B U P S
SNOW 4 / 0 8 . P E F * O E J D B U P S
& 7 4 F S W J D F 8 B S O J O H - J H I U
$ I B S H J O H 4 Z T U F N 8 B S O J O H - J H I U
4 F B U # F M U 8 B S O J O H - J H I U
- P X 5 J S F 1 S F T T V S F - J H I U 5 J S F 1 S F T T V S F . P O J U P S J O H 4 Z T U F N 5 1 . 4
. B M G V O D U J P O * O E J D B U P S
& M F D U S P O J D 4 U B C J M J U Z $ P O U S P M & 4 $
* O E J D B U P S & 4 $ . B M G V O D U J P O * O E J D B U P S
& M F D U S P O J D 4 U B C J M J U Z $ P O U S P M & 4 $
0 ' ' * O E J D B U P S
1 B S L J O H # S B L F # S B L F ' M V J E 8 B S O J O H - J H I U
& M F D U S P O J D 1 P X F S 4 U F F S J O H & 1 4
8 B S O J O H * O E J D B U P S
" J S C B H 8 B S O J O H - J H I U
" O U J M P D L # S B L J O H 4 Z T U F N " # 4
8 B S O J O H - J H I U
$ S V J T F * O E J D B U P S
AUTOHOLDAUTO HOLD Indicator Light
(red color)
(yellow color)
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
LED Headlamp Warning Light
Charging Cable Connection Indicator
Power Down Warning Light
High Voltage Bat ter y Low Level Warning Light
12V Bat ter y
EPBElectronic Parking Brake (EPB)
Icy Road Warning Indicator Light*
All-Wheel Drive (AWD) Warning Light*
Highway Lane Change Assist Indicator Light*
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 5 of the Owner ’s Manual.
This illustration is for demonstration purposes only.
Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
CHG
PWR
EPB
１
00 kWh/ １00m6202 mABS0 20 4060
0mph
0 KMH
268m
268m
96%Lv １READY
P
A
B
A Distance to Empty / Range
B CHARGE (CHG) - Charge status of the regenerative brakes
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER
Page 7 of 70
5*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
EV Energy Consumption Video
Tips for Economical Driving Video
QR CODE
Ready indicator light – Illuminates when the vehicle is ready to drive. When the ready indicator light is blinking, a malfunction has occurred. Have an authorized Kia dealer address the concern as soon as possible.
EV Service warning light – Illuminates when there is a malfunction related to the electric vehicle control system. Have an authorized Kia dealer address the concern as soon as possible.
Power down warning light – Illuminates when the vehicle’s speed and per formance are limited for the safety of the electric vehicle.
Charging indicator light – Shows the charging status of the high-voltage battery. When charging, the green indicator turns on. The indicator turns off when not charging.
High-voltage battery low level warning light – Illuminates when the high-voltage battery charge level is insufficient.
Regenerative brake warning lights (when both indicators are lit) –
Illuminates when the regenerative brake system is not functioning correctly.
A State of Charge (SOC) gauge
The State of Charge gauge displays the high-voltage battery charge status.
B Power / Charge Gauge
The Power / Charge gauge provides information on the energy consumption rate of the vehicle and the charge status of the regenerative brakes.
•POWER – Shows the energy consumption rate of the vehicle
when driving uphill or accelerating. The more electric energy used, the higher the gauge level
•CHARGE – Shows the charging status of the battery when it is being charged by the regenerative brakes. The more electric energy charged, the lower the gauge level
C Distance to Empty (DTE)
DTE is the estimated distance the vehicle can be driven with the remaining high-voltage battery level. The DTE will vary according to the selected drive mode and Climate Control settings.
For more information, refer to the Owner ’s Manual.
Energy Consumption
There are several factors that contribute to your electric vehicle’s energy consumption, including maintenance of your vehicle, driving style, weather, durability of the battery and environmental conditions.
Below are tips to help reduce energy consumption:
•Use Scheduled Climate settings to preheat the vehicle before driving
•In EV Settings, select the Winter Mode charge settings
•Keep your vehicle in good condition with regular maintenance
•Don’t “ride” the brake pedal
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Use the climate control system less often. Use the Driver Only setting
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicle
•Ensure wheels are aligned correctly
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
For more information, refer to section 1 of the Owner ’s Manual.
Electric Vehicle (EV) Indicators
RE ADY
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
Page 8 of 70
6*IF EQUIPPEDEV6 FEATURES & FUNCTIONS GUIDE
Low Battery Warning – When the high-voltage battery level reaches 8% or less, this warning message appears on the LCD and the warning indicator light on the instrument cluster illuminates. Charge the high-voltage battery immediately.
Power limited due to low EV battery temperature. Charge battery – When the outside temperature is low and you turn the vehicle on or off, this warning message may appear on the LCD. If the battery level is low and the vehicle is parked outside for a long time, vehicle power may be limited. Charging battery before driving helps increase power.
Stop vehicle and check power supply – When there is a failure in the power supply system, this warning message appears on the LCD. Park the vehicle in a safe location and have it towed to the nearest Kia dealer for inspection.
EV Battery Overheated! Stop Vehicle – When the high-voltage battery temperature is too high, this warning message will appear on the LCD. Stop the vehicle and turn off the Power button so that the battery temperature decreases.
Charge immediately. Power limited – When the high-voltage battery level reaches 3% or less, this warning message appears on the LCD,
the warning indicator light on the instrument cluster illuminates and the power down warning light turns ON simultaneously.
The vehicle’s power will be reduced to minimize the energy consumption of the high-voltage battery. Charge the high-voltage battery immediately.
Power limited – This warning message appears when the vehicle’s power is limited for the following reasons:
1. When the high-voltage battery is below a
certain level, or voltage is decreasing
2. When the temperature of the motor or high-voltage battery is too high or too low
3. When there is a problem with the cooling system or a failure that may interrupt normal driving
Charge Warning Messages on Instrument Panel LCD
REMINDERS:
•
When these warning messages are displayed, do not accelerate or star t the vehicle suddenly
•
All stored driving information (except Odometer and Range) is reset if the bat ter y is disconnected
Low EV BatteryEV Battery Overheated!Stop Vehicle
Power limiteddue to low EV batterytemperature.Charge battery
Stop vehicle andcheck power supplyCharge immediately.Power limited
Power limited
Not all warnings and messages are displayed. These illustrations are for demonstration purposes only. Some messages may appear differently. See section 1 in the Owner ’s Manual for more information.
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER
