Driving your vehicle
6-92

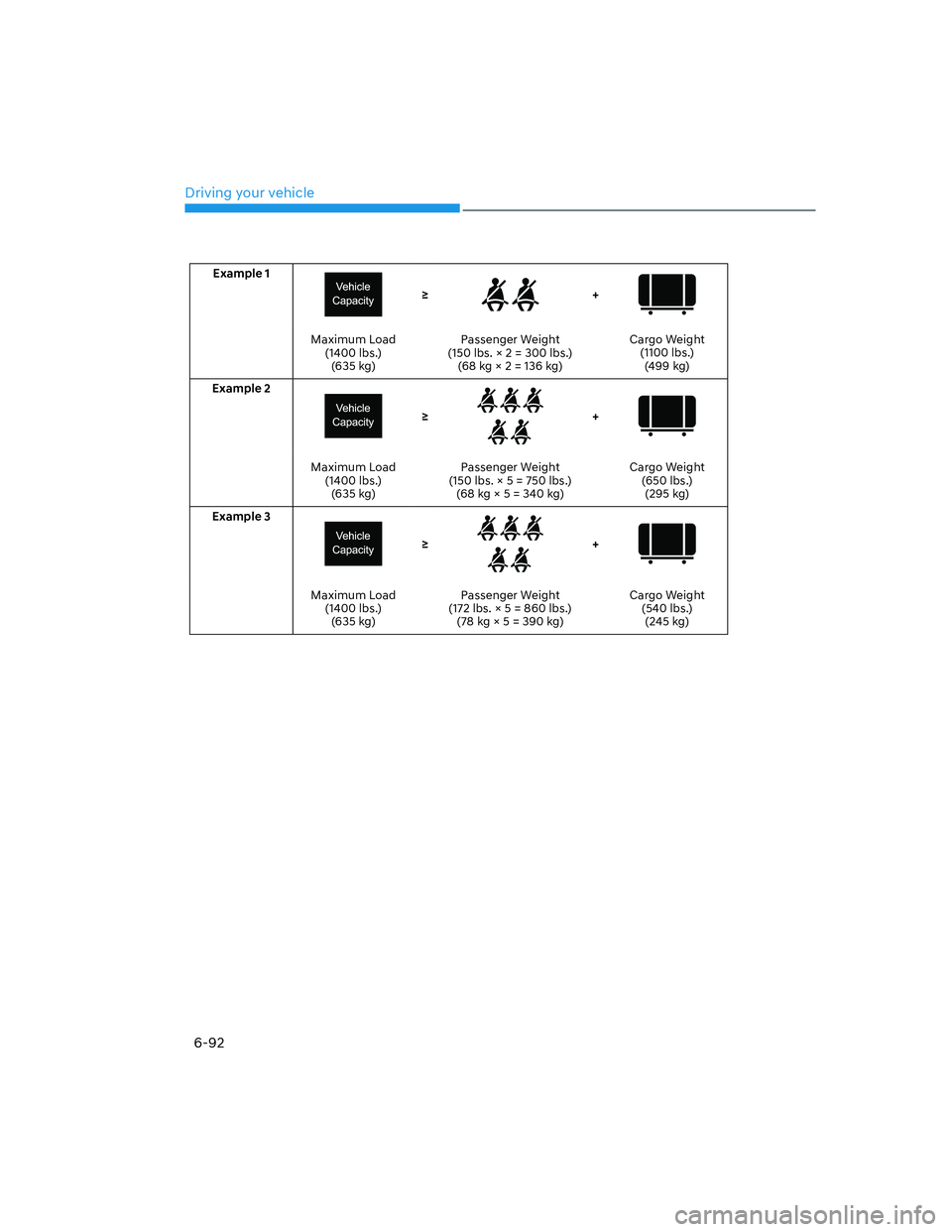

Example 1

g+
Maximum Load
(1400 lbs.)
(635 kg)Passenger Weight
(150 lbs. × 2 = 300 lbs.)
(68 kg × 2 = 136 kg)Cargo Weight
(1100 lbs.)
(499 kg)
Example 2

g+
Maximum Load
(1400 lbs.)
(635 kg)Passenger Weight
(150 lbs. × 5 = 750 lbs.)
(68 kg × 5 = 340 kg)Cargo Weight
(650 lbs.)
(295 kg)
Example 3

g+
Maximum Load
(1400 lbs.)
(635 kg)Passenger Weight
(172 lbs. × 5 = 860 lbs.)
(78 kg × 5 = 390 kg)Cargo Weight
(540 lbs.)
(245 kg)

06
6-93

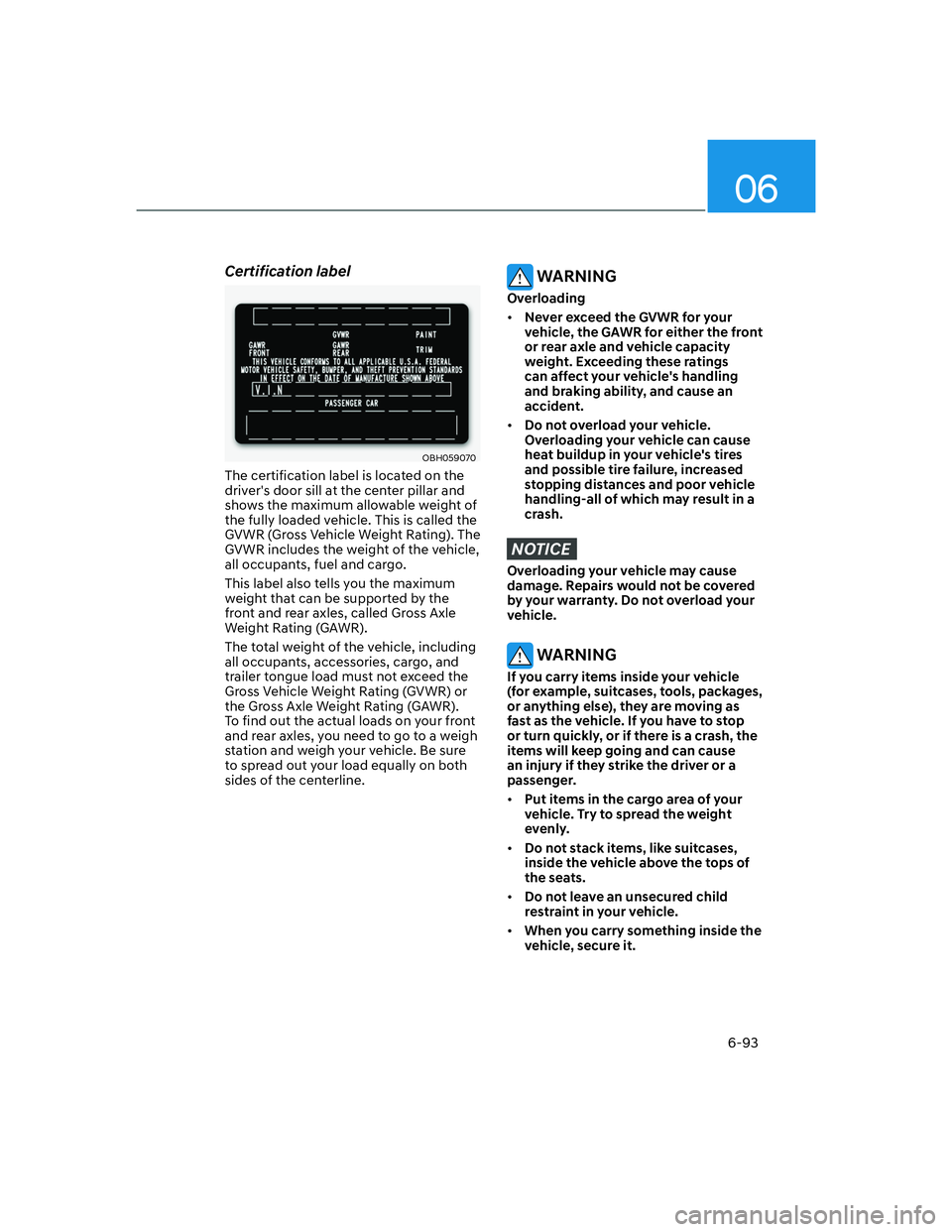

Certification label
OBH059070
The certification label is located on the
driver's door sill at the center pillar and
shows the maximum allowable weight of
the fully loaded vehicle. This is called the
GVWR (Gross Vehicle Weight Rating). The
GVWR includes the weight of the vehicle,
all occupants, fuel and cargo.
This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross Axle
Weight Rating (GAWR).
The total weight of the vehicle, including
all occupants, accessories, cargo, and
trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVWR) or
the Gross Axle Weight Rating (GAWR).
To find out the actual loads on your front
and rear axles, you need to go to a weigh
station and weigh your vehicle. Be sure
to spread out your load equally on both
sides of the centerline.
WARNING
Overloading

[Never exceed the GVWR for your
vehicle, the GAWR for either the front
or rear axle and vehicle capacity
weight. Exceeding these ratings
can affect your vehicle's handling
and braking ability, and cause an
accident.

[Do not overload your vehicle.
Overloading your vehicle can cause
heat buildup in your vehicle's tires
and possible tire failure, increased
stopping distances and poor vehicle
handling-all of which may result in a
crash.
NOTICE
Overloading your vehicle may cause
damage. Repairs would not be covered
by your warranty. Do not overload your
vehicle.
WARNING
If you carry items inside your vehicle
(for example, suitcases, tools, packages,
or anything else), they are moving as
fast as the vehicle. If you have to stop
or turn quickly, or if there is a crash, the
items will keep going and can cause
an injury if they strike the driver or a
passenger.

[Put items in the cargo area of your
vehicle. Try to spread the weight
evenly.

[Do not stack items, like suitcases,
inside the vehicle above the tops of
the seats.

[Do not leave an unsecured child
restraint in your vehicle.

[When you carry something inside the
vehicle, secure it.

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (Sensor fusion) .................................... 7-2
Lane Keeping Assist (LKA) .......................................................................................7-18
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-25
Safe Exit Assist (SEA) ............................................................................................... 7-39
Driver Attention Warning (DAW) ............................................................................ 7-45
Blind-Spot View Monitor (BVM) .............................................................................. 7-51
Driving ConvenienceSmart Cruise Control (SCC) .................................................................................... 7-53
Navigation-based Smart Cruise Control (NSCC) .................................................. 7-70
Lane Following Assist (LFA) ..................................................................................... 7-77
Highway Driving Assist (HDA) .................................................................................7-81
Parking Safety
Rear View Monitor (RVM) .......................................................................................7-88
Surround View Monitor (SVM) ............................................................................... 7-92
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ......................................... 7-97
Reverse Parking Distance Warning (PDW) .......................................................... 7-108
Forward/Reverse Parking Distance Warning (PDW) ............................................. 7-111
Reverse Parking Collision-Avoidance Assist (PCA) ...............................................7-115
Remote Smart Parking Assist (RSPA) .................................................................... 7-123
Declaration of conformity .....................................................................................7-136
7. Driver assistance system
007_TMa_HMA.indd7-12021-08-26 9:25:54

Driver assistance system
7-2

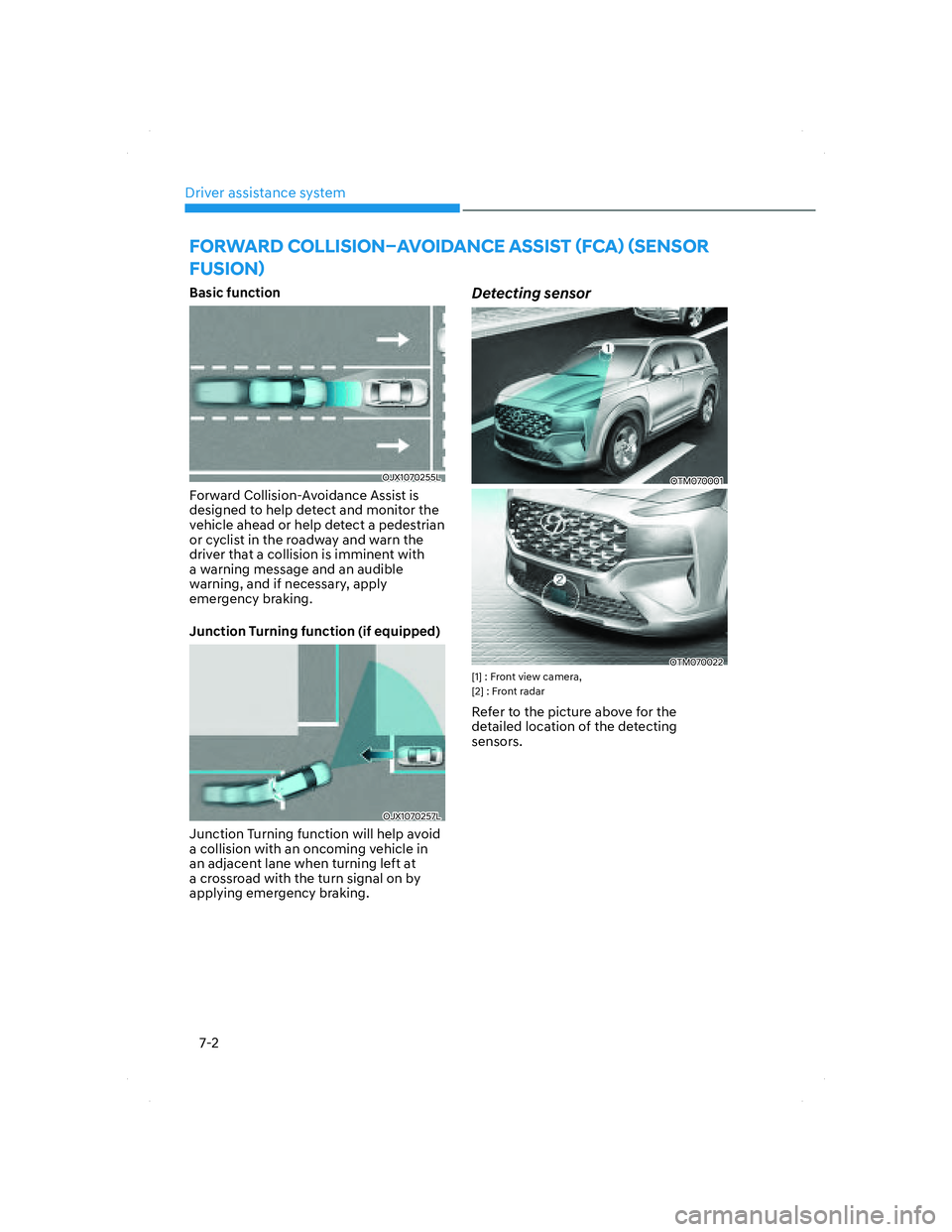

FORWARD COLLISION–AVOIDANCE ASSIST (FCA) (SENSOR
FUSION)
Basic function
OJX1070255LOJX1070255L
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a pedestrian
or cyclist in the roadway and warn the
driver that a collision is imminent with
a warning message and an audible
warning, and if necessary, apply
emergency braking.
Junction Turning function (if equipped)
OJX1070257LOJX1070257L
Junction Turning function will help avoid
a collision with an oncoming vehicle in
an adjacent lane when turning left at
a crossroad with the turn signal on by
applying emergency braking.
Detecting sensor
OTM070001OTM070001
OTM070022OTM070022[1] : Front view camera,
[2] : Front radar
Refer to the picture above for the
detailed location of the detecting
sensors.
007_TMa_HMA.indd 7-22021-08-26 9:25:59

07
7-3

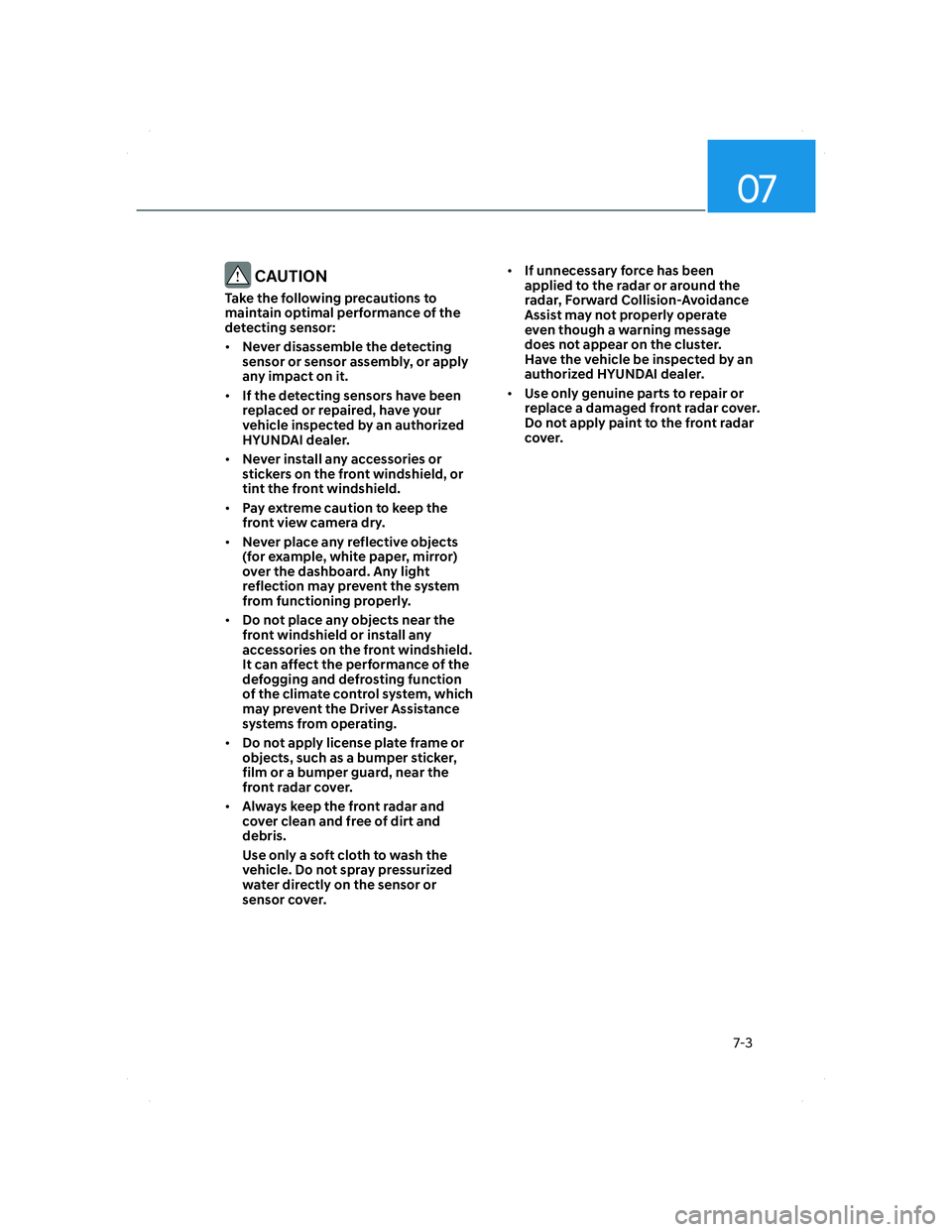

CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:
• Never disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.
• If the detecting sensors have been
replaced or repaired, have your
vehicle inspected by an authorized
HYUNDAI dealer.
• Never install any accessories or
stickers on the front windshield, or
tint the front windshield.
• Pay extreme caution to keep the
front view camera dry.
• Never place any reflective objects
(for example, white paper, mirror)
over the dashboard. Any light
reflection may prevent the system
from functioning properly.
• Do not place any objects near the
front windshield or install any
accessories on the front windshield.
It can affect the performance of the
defogging and defrosting function
of the climate control system, which
may prevent the Driver Assistance
systems from operating.
• Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.
• Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.• If unnecessary force has been
applied to the radar or around the
radar, Forward Collision-Avoidance
Assist may not properly operate
even though a warning message
does not appear on the cluster.
Have the vehicle be inspected by an
authorized HYUNDAI dealer.
• Use only genuine parts to repair or
replace a damaged front radar cover.
Do not apply paint to the front radar
cover.
007_TMa_HMA.indd 7-32021-08-26 9:26:00

Driver assistance system
7-4
System settings
Setting functions for the system
OTM070090NOTM070090N
Forward Safety
With the engine on, select ‘Driver
Assis
tance
Ÿ Forward Safety’ from the
Settings menu to set whether or not to
use each function.
- If ‘Active Assist’ is selected, the
system will warn the driver with a
warning message and an audible
warning depending on the collision
risk levels. Braking assist will be
applied depending on the collision
risk.
- If ‘Warning Only’ is selected, the
system will warn the driver with a
warning message and an audible
warning depending on the collision
risk levels. Braking will not be assisted.
- If ‘Off’ is selected, the system will
turn off. The
warning light will
illuminate on the cluster.
The driver can monitor Forward Collision-
Avoidance Assist ON/OFF status from
the Settings menu. If the
warning
light remains ON when the system is
ON, have the system be inspected by an
authorized HYUNDAI dealer.
WARNING
When the engine is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, if ‘Off’ is selected
after the engine is restarted, the
driver should always be aware of the
surroundings and drive safely.
CAUTION
• If ‘Warning Only’ is selected, braking
is not assisted.
• The settings for Forward Safety
include ‘Basic function’ and ‘Junction
Turning’ (if equipped).
Information
Forward Collision-Avoidance Assist
will turn off when ESC is turned off by
pressing and holding the ESC OFF button
for more than 3 seconds. The
warning
light will illuminate on the cluster.
007_TMa_HMA.indd 7-42021-08-26 9:26:00

07
7-5
OTM070140NOTM070140N

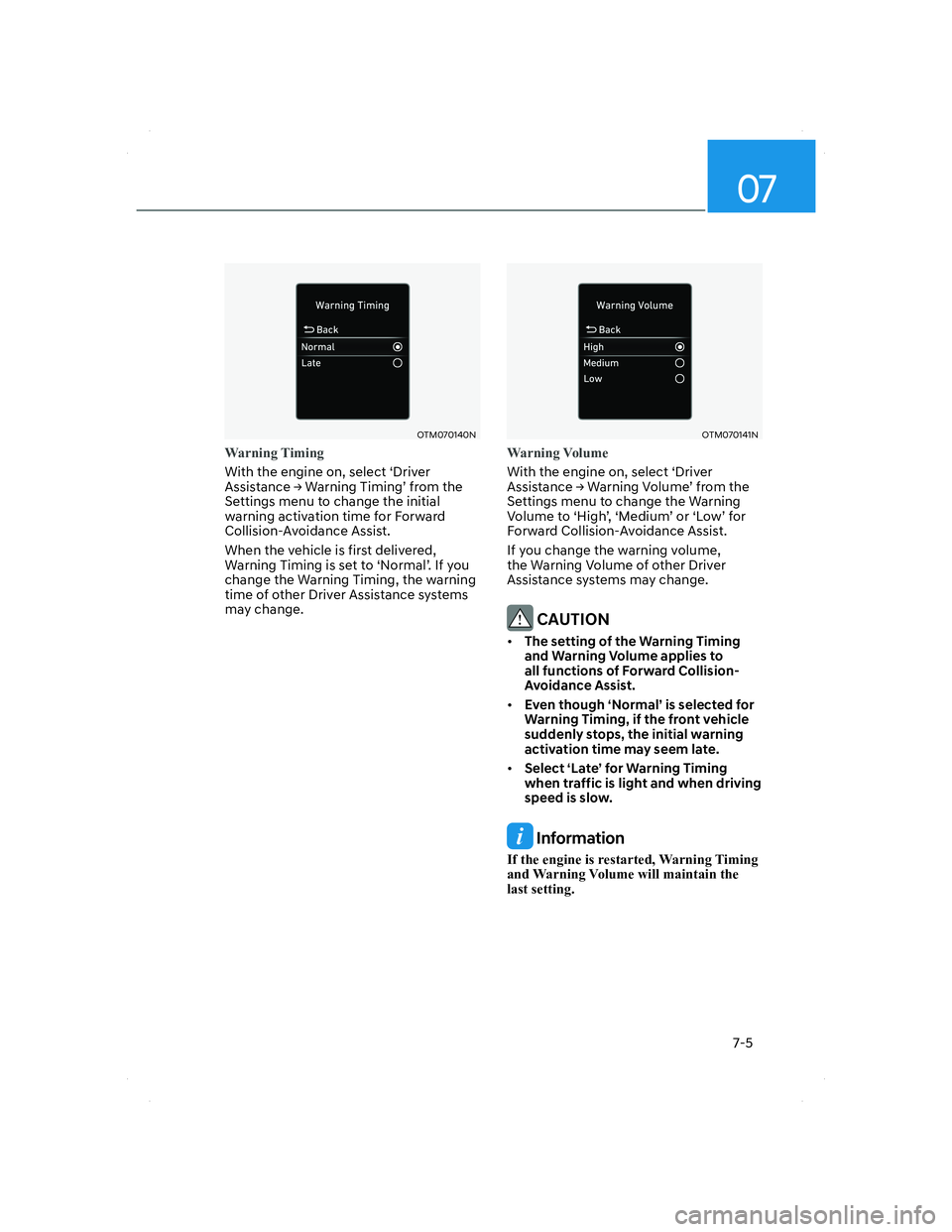

Warning Timing
With the engine on, select ‘Driver
Assistance
Ÿ Warning Timing’ from the
Settings menu to change the initial
warning activation time for Forward
Collision-Avoidance Assist.
When the vehicle is first delivered,
Warning Timing is set to ‘Normal’. If you
change the Warning Timing, the warning
time of other Driver Assistance systems
may change.
OTM070141NOTM070141N
Warning Volume
With the engine on, select ‘Driver
Assistance
Ÿ Warning Volume’ from the
Settings menu to change the Warning
Volume to ‘High’, ‘Medium’ or ‘Low’ for
Forward Collision-Avoidance Assist.
If you change the warning volume,
the Warning Volume of other Driver
Assistance systems may change.
CAUTION
• The setting of the Warning Timing
and Warning Volume applies to
all functions of Forward Collision-
Avoidance Assist.
• Even though ‘Normal’ is selected for
Warning Timing, if the front vehicle
suddenly stops, the initial warning
activation time may seem late.
• Select ‘Late’ for Warning Timing
when traffic is light and when driving
speed is slow.
Information
If the engine is restarted, Warning Timing
and Warning Volume will maintain the
last setting.
007_TMa_HMA.indd 7-52021-08-26 9:26:01

Driver assistance system
7-6

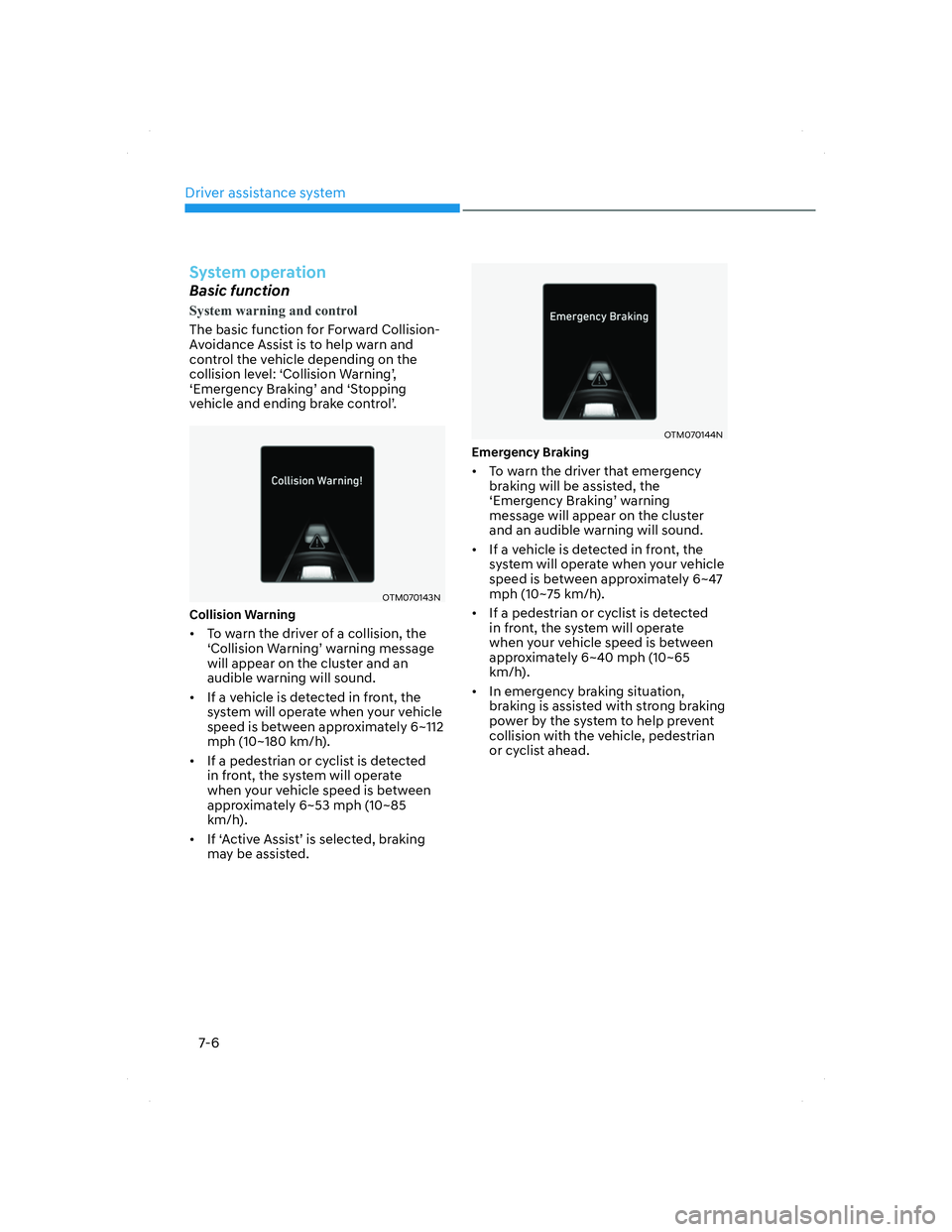

System operation
Basic function
System warning and control
The basic function for Forward Collision-
Avoidance Assist is to help warn and
control the vehicle depending on the
collision level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’.
OTM070143NOTM070143N
Collision Warning
• To warn the driver of a collision, the
‘Collision Warning’ warning message
will appear on the cluster and an
audible warning will sound.
• If a vehicle is detected in front, the
system will operate when your vehicle
speed is between approximately 6~112
mph (10~180 km/h).
• If a pedestrian or cyclist is detected
in front, the system will operate
when your vehicle speed is between
approximately 6~53 mph (10~85
km/h).
• If ‘Active Assist’ is selected, braking
may be assisted.
OTM070144NOTM070144N
Emergency Braking
• To warn the driver that emergency
braking will be assisted, the
‘Emergency Braking’ warning
message will appear on the cluster
and an audible warning will sound.
• If a vehicle is detected in front, the
system will operate when your vehicle
speed is between approximately 6~47
mph (10~75 km/h).
• If a pedestrian or cyclist is detected
in front, the system will operate
when your vehicle speed is between
approximately 6~40 mph (10~65
km/h).
• In emergency braking situation,
braking is assisted with strong braking
power by the system to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.
007_TMa_HMA.indd 7-62021-08-26 9:26:01
