2022 HYUNDAI SANTA FE Owners Manual

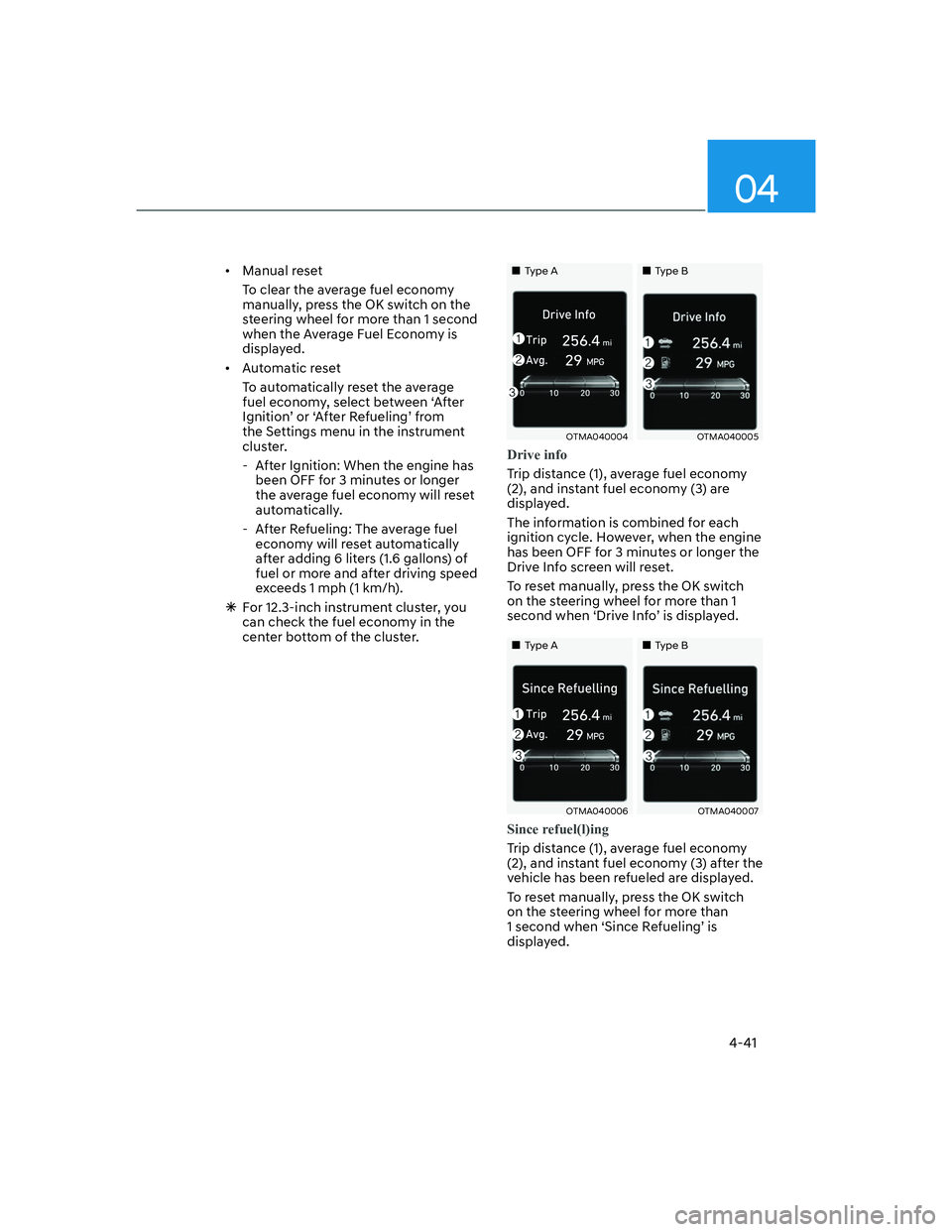

04
4-41

[Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel
economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
ÃFor 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.„Type A„Type B
OTMA040004OTMA040005
Drive info
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A„Type B
OTMA040006OTMA040007
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

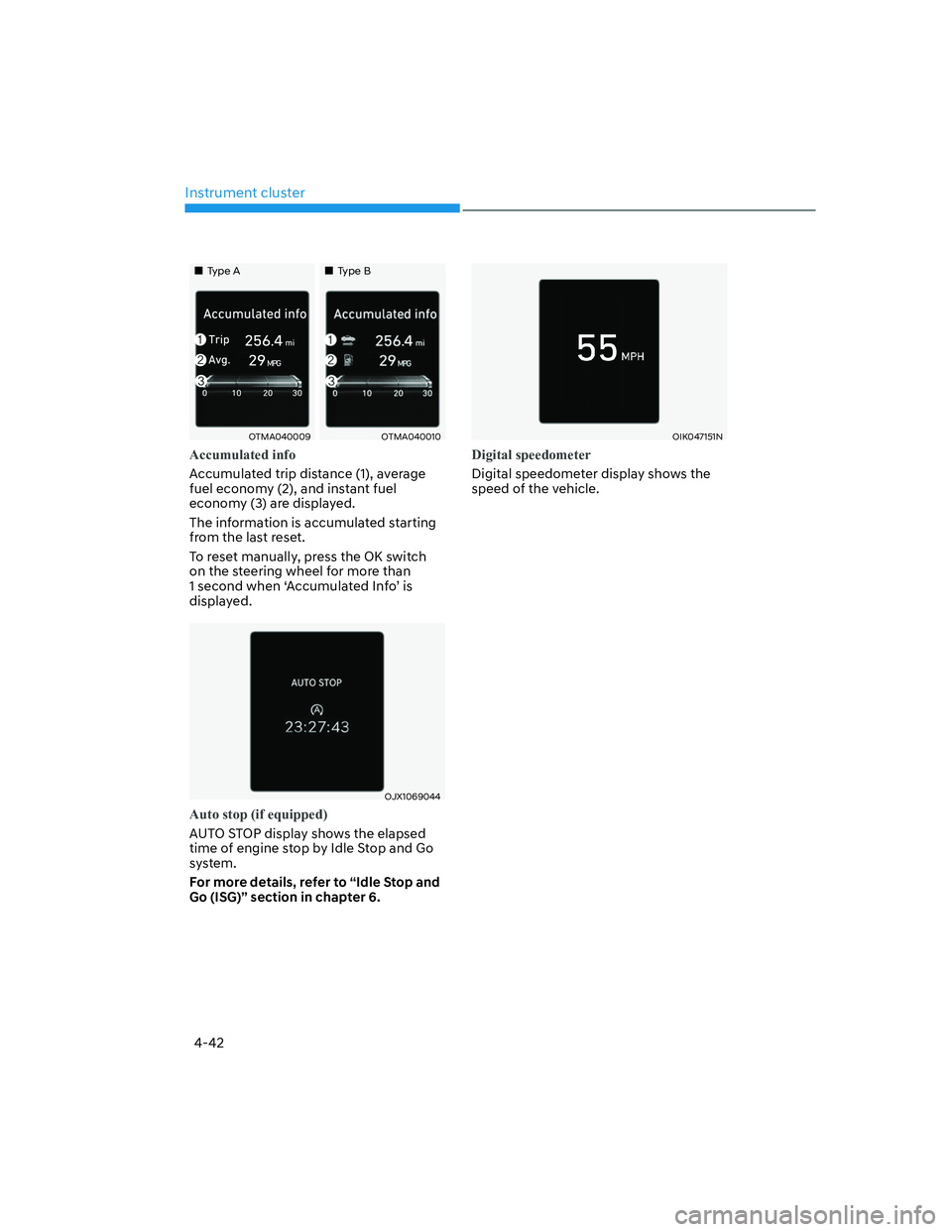

Instrument cluster
4-42
„Type A„Type B
OTMA040009OTMA040010
Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OJX1069044
Auto stop (if equipped)
AUTO STOP display shows the elapsed
time of engine stop by Idle Stop and Go
system.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.

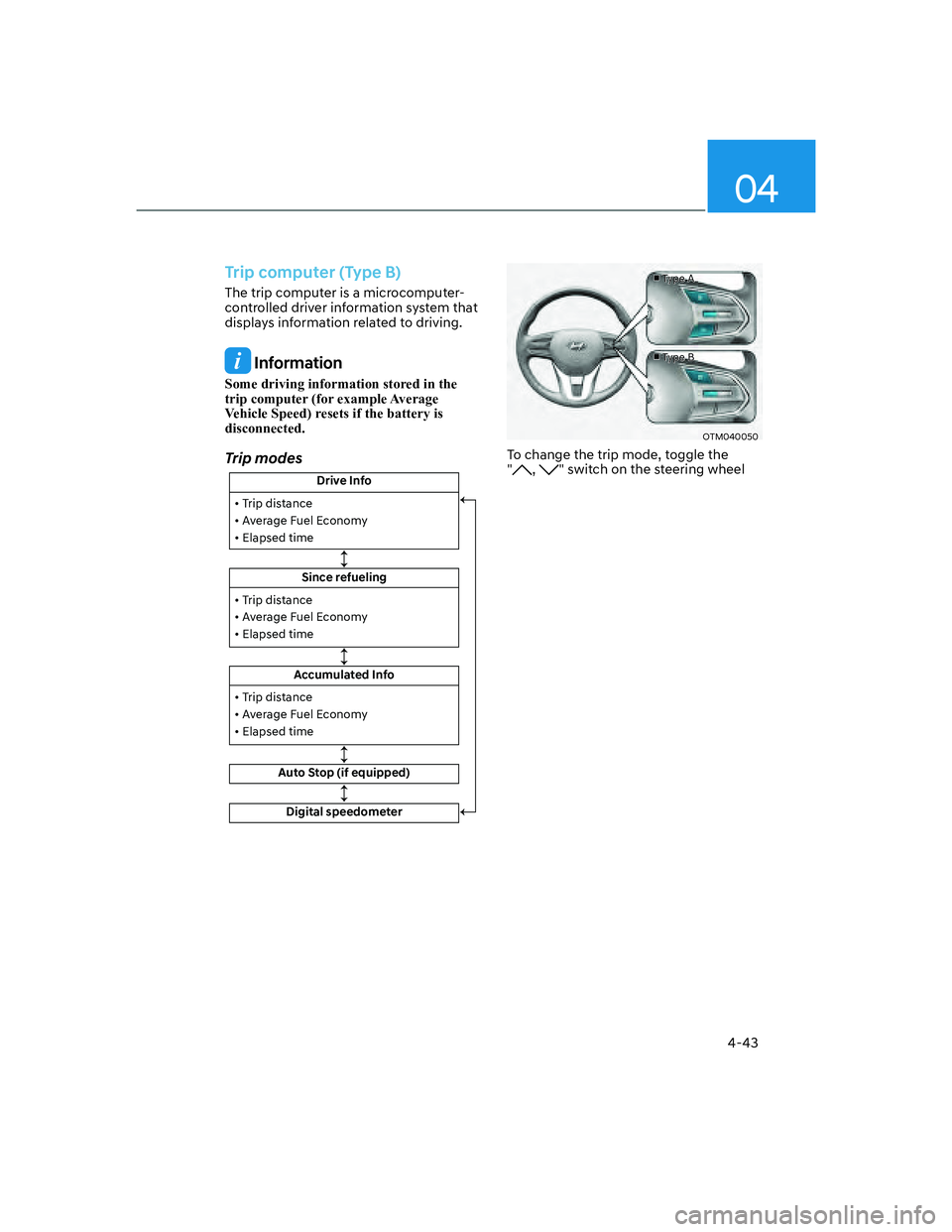

04
4-43
Trip computer (Type B)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Drive Info
Since refueling
Accumulated Info
Auto Stop (if equipped)
[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[(ODSVHGWLPH

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[(ODSVHGWLPH
Digital speedometer

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[(ODSVHGWLPH

v
Type A

v
Type B
OTM040050
To change the trip mode, toggle the
", " switch on the steering wheel

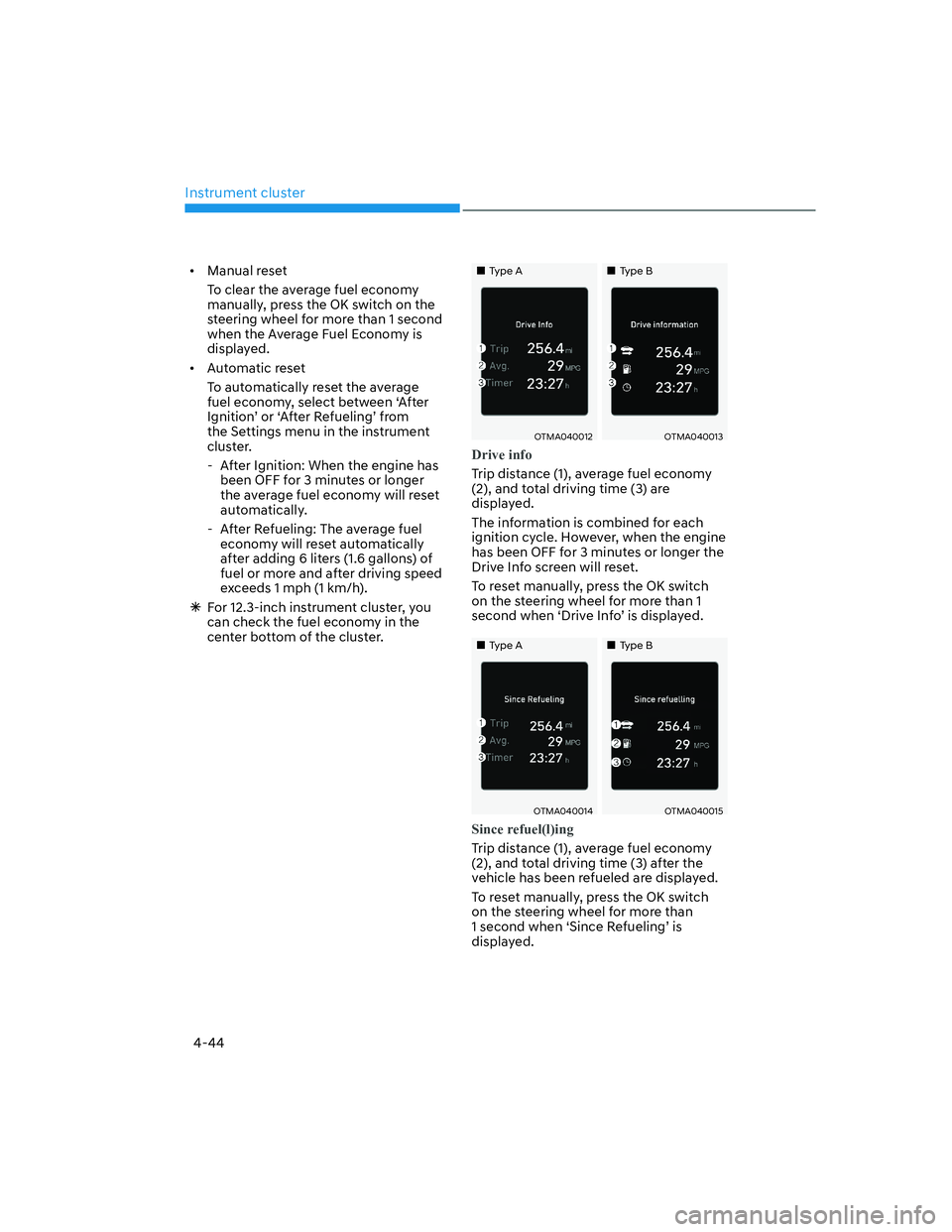

Instrument cluster
4-44

[Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel
economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
ÃFor 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.„Type A„Type B
OTMA040012OTMA040013
Drive info
Trip distance (1), average fuel economy
(2), and total driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A„Type B
OTMA040014OTMA040015
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and total driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

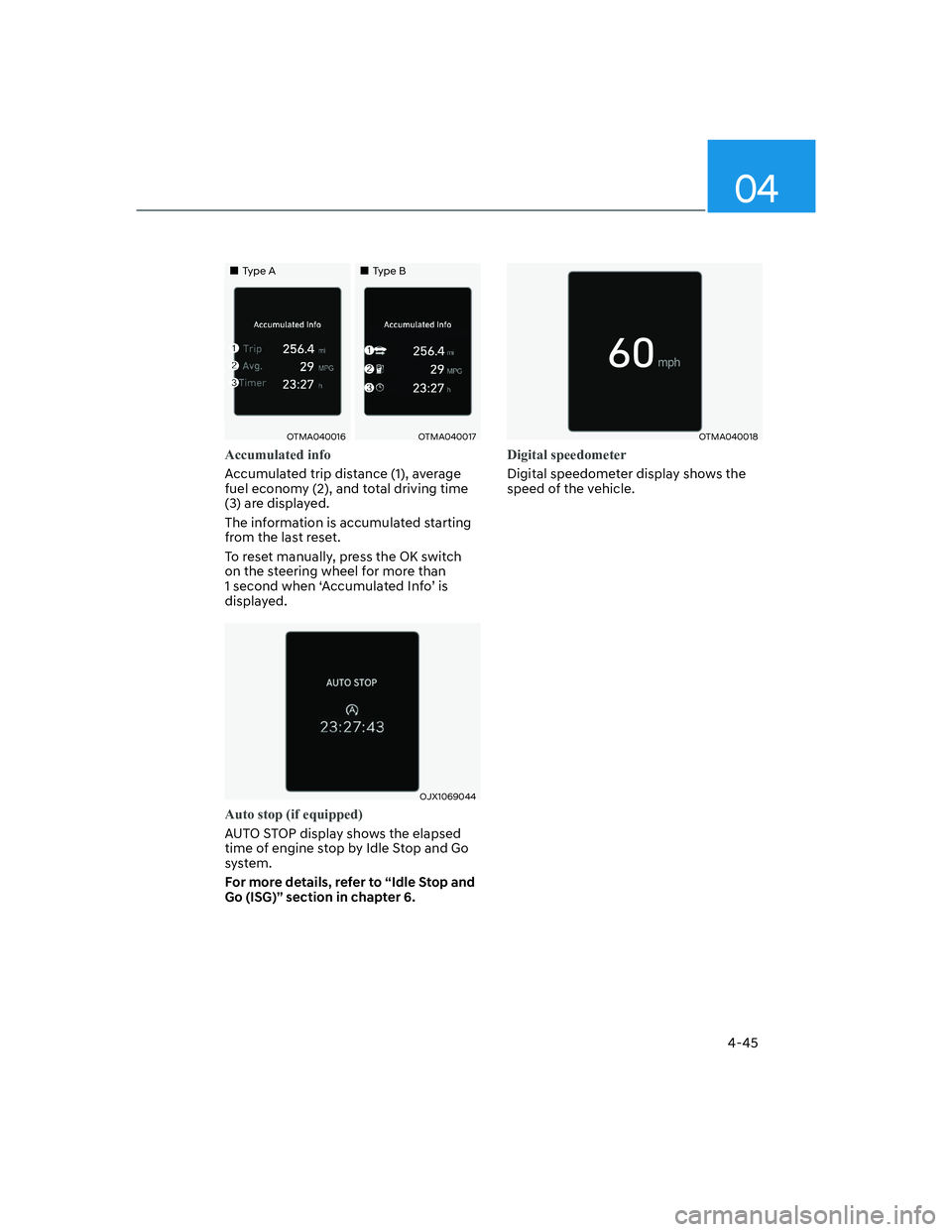

04
4-45
„Type A„Type B
OTMA040016OTMA040017
Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OJX1069044
Auto stop (if equipped)
AUTO STOP display shows the elapsed
time of engine stop by Idle Stop and Go
system.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.
OTMA040018
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.

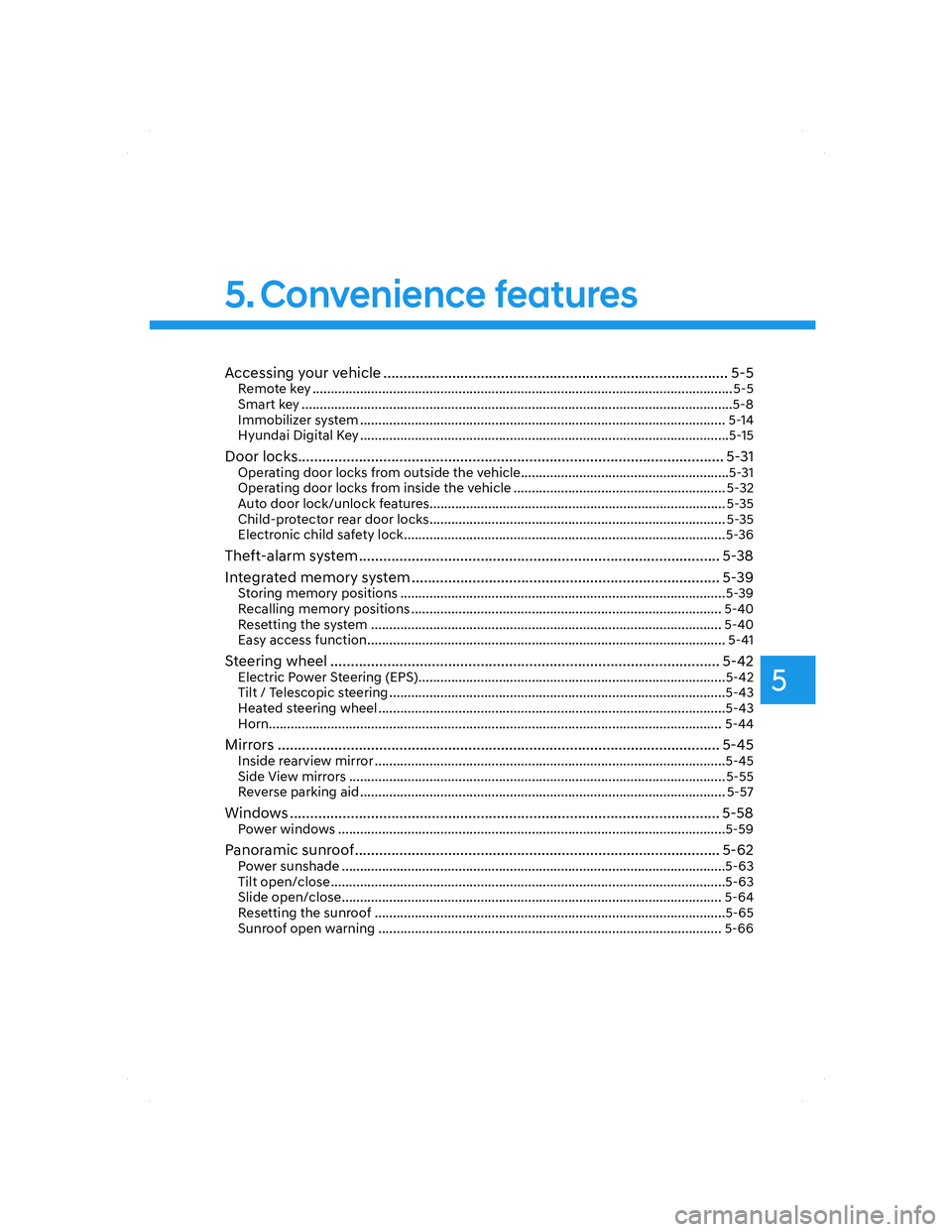

5
Accessing your vehicle ..................................................................................... 5-5Remote key ................................................................................................................... 5-5
Smart key ......................................................................................................................5-8
Immobilizer system .................................................................................................... 5-14
Hyundai Digital Key .....................................................................................................5-15
Door locks......................................................................................................... 5-31Operating door locks from outside the vehicle.........................................................5-31
Operating door locks from inside the vehicle .......................................................... 5-32
Auto door lock/unlock features................................................................................. 5-35
Child-protector rear door locks ................................................................................. 5-35
Electronic child safety lock ........................................................................................5-36
Theft-alarm system ......................................................................................... 5-38
Integrated memory system ............................................................................ 5-39
Storing memory positions .........................................................................................5-39
Recalling memory positions ..................................................................................... 5-40
Resetting the system ................................................................................................ 5-40
Easy access function .................................................................................................. 5-41
Steering wheel ................................................................................................ 5-42
Electric Power Steering (EPS) ....................................................................................5-42
Tilt / Telescopic steering ............................................................................................5-43
Heated steering wheel ...............................................................................................5-43
Horn............................................................................................................................ 5-44
Mirrors ............................................................................................................. 5-45
Inside rearview mirror ................................................................................................5-45
Side View mirrors ....................................................................................................... 5-55
Reverse parking aid .................................................................................................... 5-57
Windows .......................................................................................................... 5-58
Power windows ..........................................................................................................5-59
Panoramic sunroof .......................................................................................... 5-62Power sunshade .........................................................................................................5-63
Tilt open/close ............................................................................................................5-63
Slide open/close ........................................................................................................ 5-64
Resetting the sunroof ................................................................................................5-65
Sunroof open warning .............................................................................................. 5-66
5. Convenience features
005_TMa_HMA.indd5-12021-10-28 10:14:28

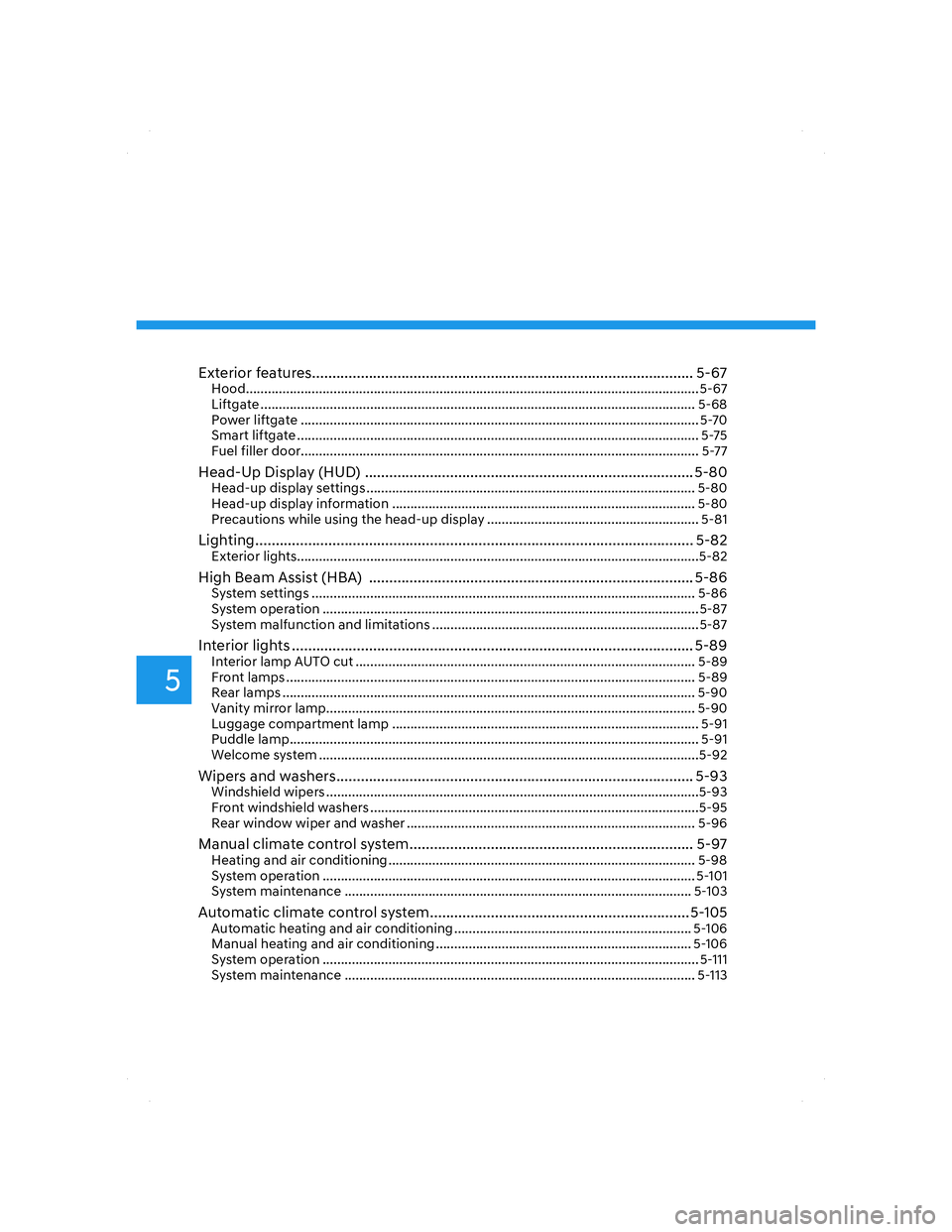

5
Exterior features .............................................................................................. 5-67Hood ............................................................................................................................ 5-67
Liftgate ....................................................................................................................... 5-68
Power liftgate ............................................................................................................. 5-70
Smart liftgate .............................................................................................................. 5-75
Fuel filler door............................................................................................................. 5-77
Head-Up Display (HUD) ................................................................................. 5-80Head-up display settings .......................................................................................... 5-80
Head-up display information ................................................................................... 5-80
Precautions while using the head-up display .......................................................... 5-81
Lighting ............................................................................................................ 5-82Exterior lights..............................................................................................................5-82
High Beam Assist (HBA) ................................................................................ 5-86
System settings ......................................................................................................... 5-86
System operation ....................................................................................................... 5-87
System malfunction and limitations ......................................................................... 5-87
Interior lights ................................................................................................... 5-89Interior lamp AUTO cut ............................................................................................. 5-89
Front lamps ................................................................................................................ 5-89
Rear lamps ................................................................................................................. 5-90
Vanity mirror lamp ..................................................................................................... 5-90
Luggage compartment lamp .................................................................................... 5-91
Puddle lamp ................................................................................................................ 5-91
Welcome system ........................................................................................................5-92
Wipers and washers ........................................................................................ 5-93Windshield wipers ......................................................................................................5-93
Front windshield washers ..........................................................................................5-95
Rear window wiper and washer ............................................................................... 5-96
Manual climate control system ...................................................................... 5-97Heating and air conditioning .................................................................................... 5-98
System operation ...................................................................................................... 5-101
System maintenance ............................................................................................... 5-103
Automatic climate control system ................................................................ 5-105Automatic heating and air conditioning ................................................................. 5-106
Manual heating and air conditioning ...................................................................... 5-106
System operation ....................................................................................................... 5-111
System maintenance ................................................................................................ 5-113
005_TMa_HMA.indd 5-22021-10-28 10:14:47

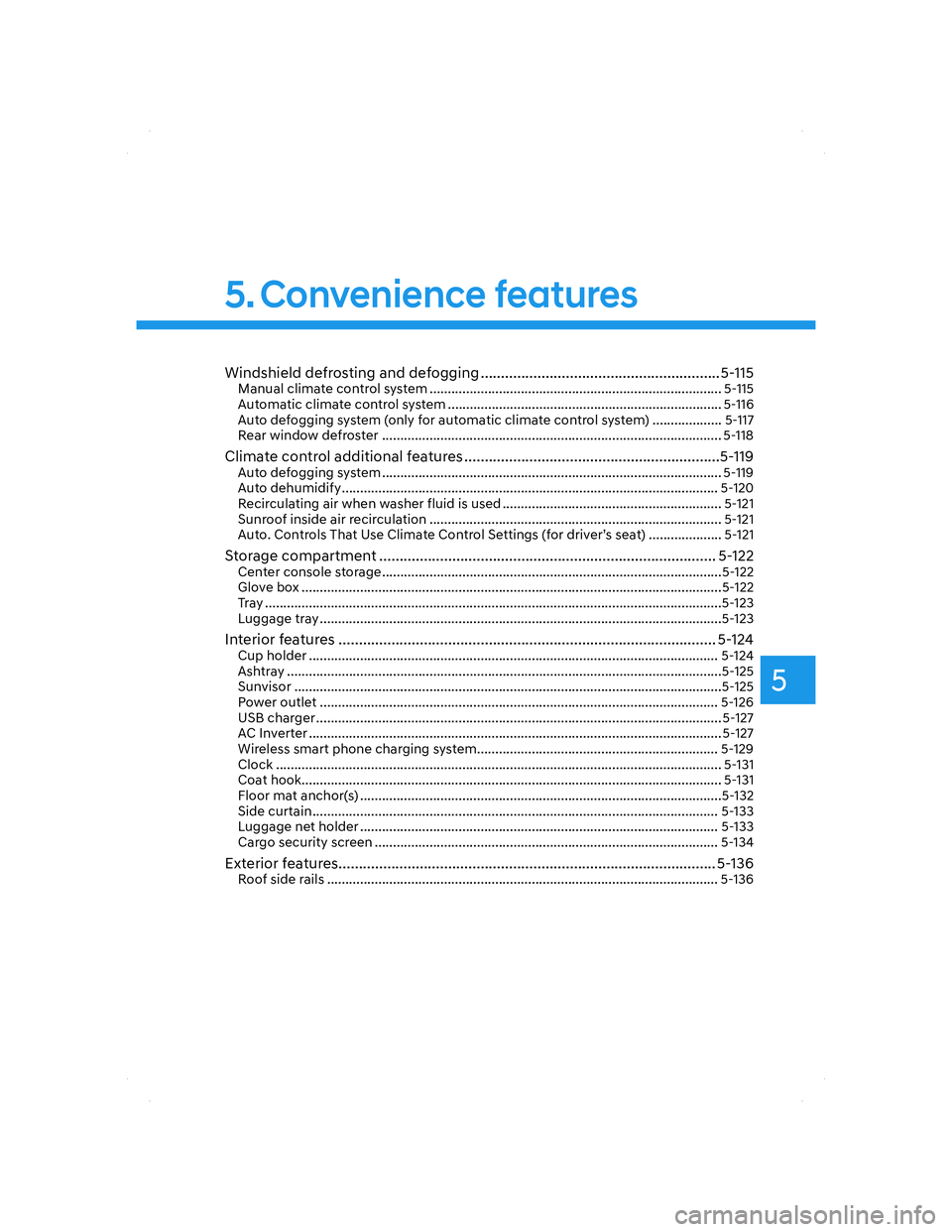

5
Windshield defrosting and defogging ...........................................................5-115Manual climate control system ................................................................................ 5-115
Automatic climate control system ........................................................................... 5-116
Auto defogging system (only for automatic climate control system) ................... 5-117
Rear window defroster ............................................................................................. 5-118
Climate control additional features ...............................................................5-119Auto defogging system ............................................................................................. 5-119
Auto dehumidify ....................................................................................................... 5-120
Recirculating air when washer fluid is used ............................................................ 5-121
Sunroof inside air recirculation ................................................................................ 5-121
Auto. Controls That Use Climate Control Settings (for driver’s seat) .................... 5-121
Storage compartment ................................................................................... 5-122Center console storage .............................................................................................5-122
Glove box ...................................................................................................................5-122
Tray .............................................................................................................................5-123
Luggage tray ..............................................................................................................5-123
Interior features ............................................................................................. 5-124Cup holder ................................................................................................................ 5-124
Ashtray .......................................................................................................................5-125
Sunvisor .....................................................................................................................5-125
Power outlet ............................................................................................................. 5-126
USB charger ............................................................................................................... 5-127
AC Inverter ................................................................................................................. 5-127
Wireless smart phone charging system .................................................................. 5-129
Clock .......................................................................................................................... 5-131
Coat hook ................................................................................................................... 5-131
Floor mat anchor(s) ...................................................................................................5-132
Side curtain ............................................................................................................... 5-133
Luggage net holder .................................................................................................. 5-133
Cargo security screen .............................................................................................. 5-134
Exterior features ............................................................................................. 5-136Roof side rails ........................................................................................................... 5-136
5. Convenience features
005_TMa_HMA.indd 5-32021-10-28 10:14:47
