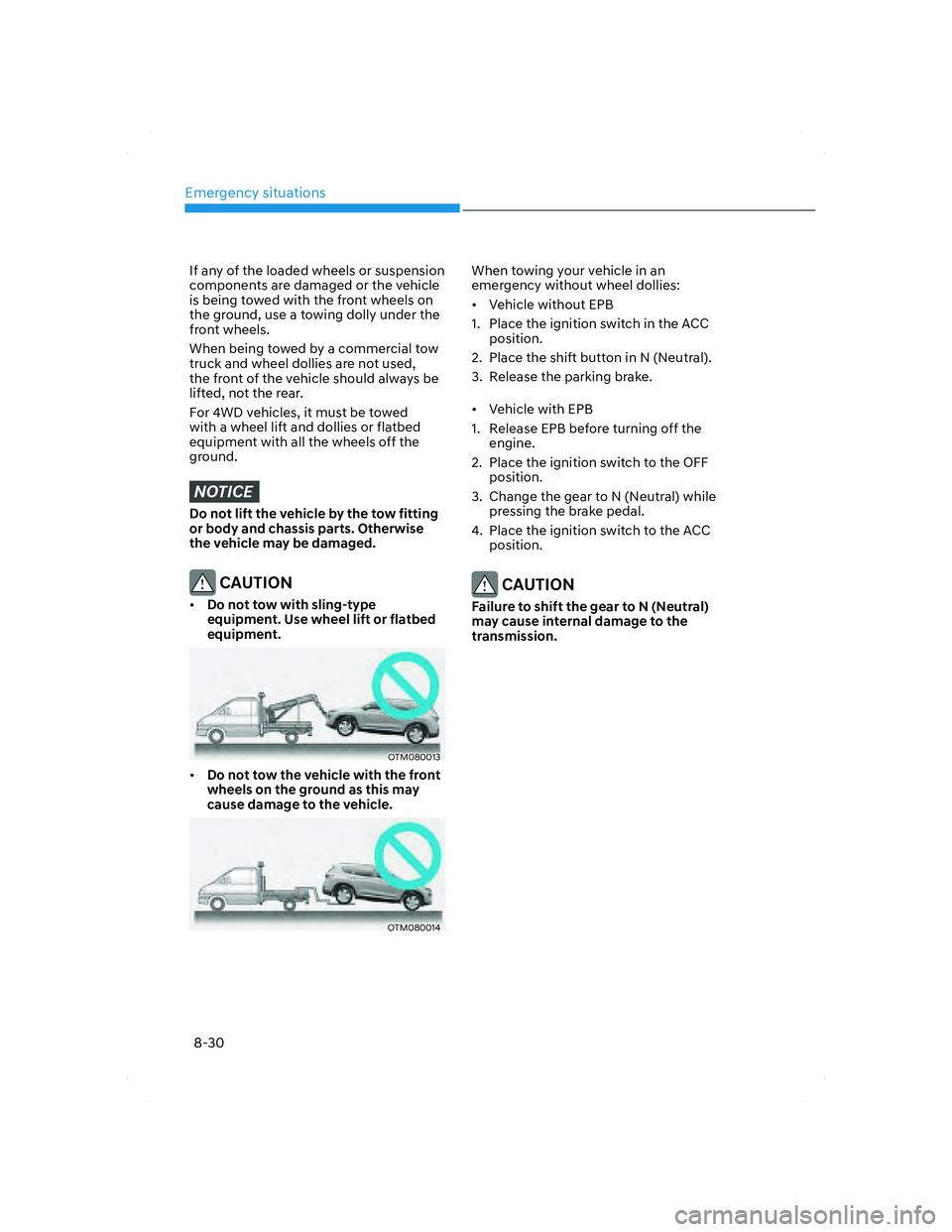

Emergency situations
8-30
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the front wheels on
the ground, use a towing dolly under the
front wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
For 4WD vehicles, it must be towed
with a wheel lift and dollies or flatbed
equipment with all the wheels off the
ground.
NOTICE
Do not lift the vehicle by the tow fitting
or body and chassis parts. Otherwise
the vehicle may be damaged.
CAUTION
• Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
OTM080013OTM080013
• Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
OTM080014OTM080014
When towing your vehicle in an
emergency without wheel dollies:
• Vehicle without EPB
1. Place the ignition switch in the ACC
position.
2. Place the shift button in N (Neutral).
3. Release the parking brake.
• Vehicle with EPB
1. Release EPB before turning off the
engine.
2. Place the ignition switch to the OFF
position.
3. Change the gear to N (Neutral) while
pressing the brake pedal.
4. Place the ignition switch to the ACC
position.
CAUTION
Failure to shift the gear to N (Neutral)
may cause internal damage to the
transmission.
008_TMa_HMA.indd 8-302021-08-27 1:44:14

9
9. Maintenance
Engine compartment ........................................................................................ 9-3
Maintenance services
....................................................................................... 9-4
Owner’s responsibility ................................................................................................ 9-4
Owner maintenance precautions............................................................................... 9-4
Owner maintenance ......................................................................................... 9-5Owner maintenance schedule ................................................................................... 9-6
Scheduled maintenance services .....................................................................9-7
Normal maintenance schedule .................................................................................. 9-8
Maintenance under severe usage conditions
.......................................................... 9-12
Explanation of scheduled maintenance items .............................................. 9-14Fuel filter (for gasoline engine) ................................................................................. 9-14
Parking brake
.............................................................................................................. 9-15
Engine oil ..........................................................................................................9-16Checking the engine oil level .................................................................................... 9-16
Checking the engine oil and filter
............................................................................. 9-18
Engine coolant /Liquid-cooled intercooler coolant ......................................9-19
Checking the coolant level ........................................................................................ 9-19
Changing coolant
....................................................................................................... 9-21
Brake fluid ....................................................................................................... 9-22Checking the brake fluid level ................................................................................... 9-22
Washer fluid .................................................................................................... 9-23Checking the washer fluid level ................................................................................ 9-23
Air cleaner ....................................................................................................... 9-24Filter replacement ......................................................................................................9-24
Cabin air filter .................................................................................................. 9-25Filter inspection .......................................................................................................... 9-25
Filter replacement
...................................................................................................... 9-25
Wiper blades ................................................................................................... 9-26Blade inspection .........................................................................................................9-26
Blade replacement
.....................................................................................................9-26
Battery ............................................................................................................. 9-29
For best battery service ............................................................................................ 9-30
Battery capacity label
................................................................................................ 9-31
Battery recharging
..................................................................................................... 9-31
Reset items
................................................................................................................. 9-32

9
Tires and wheels ............................................................................................. 9-33Tire care ......................................................................................................................9-33
Recommended cold tire inflation pressures
............................................................9-33
Check tire inflation pressure
.....................................................................................9-34
Tire rotation
................................................................................................................9-35
Wheel alignment and tire balance
............................................................................9-36
Tire replacement
........................................................................................................9-36
Wheel replacement
.................................................................................................... 9-37
Tire traction
................................................................................................................ 9-37
Tire maintenance
....................................................................................................... 9-37
Tire sidewall labeling
................................................................................................. 9-38
Tire Terminology and Definitions Air Pressure
........................................................ 9-41
All Season Tires
.......................................................................................................... 9-44
Snow Tires.................................................................................................................. 9-44
Radial-Ply Tires
.......................................................................................................... 9-44
Low aspect ratio tires
................................................................................................ 9-45
Fuses ................................................................................................................ 9-47Instrument panel fuse replacement ........................................................................ 9-48
Engine compartment panel fuse replacement
....................................................... 9-49
Fuse/relay panel description
.................................................................................... 9-50
Light bulbs ....................................................................................................... 9-57Headlamp, position lamp, turn signal lamp, Daytime Running Light (DRL)
replacement
.............................................................................................................. 9-58
Side repeater lamp replacement
............................................................................. 9-60
Rear combination lamp replacement
...................................................................... 9-60
High mounted stop lamp replacement
................................................................... 9-63
License plate lamp replacement
.............................................................................. 9-64
Interior light replacement
......................................................................................... 9-64
Appearance care .............................................................................................9-66
Exterior care .............................................................................................................. 9-66
Interior care
................................................................................................................ 9-72
Emission control system..................................................................................9-75Gasoline Particulate Filter (GPF) ............................................................................... 9-77
California perchlorate notice ......................................................................... 9-78

9-3
09
„Smartstream G2.5 GDI
„Smartstream G2.5 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OTMA090001/OTMA090015
1. Engine oil filler cap
2. Engine oil dipstick
3. Engine coolant reservoir
4. Windshield washer fluid reservoir5. Brake fluid reservoir
6. Battery terminal [+]
7. Battery terminal [-]
8. Air cleaner
9. Fuse box
ENGINE COMPARTMENT

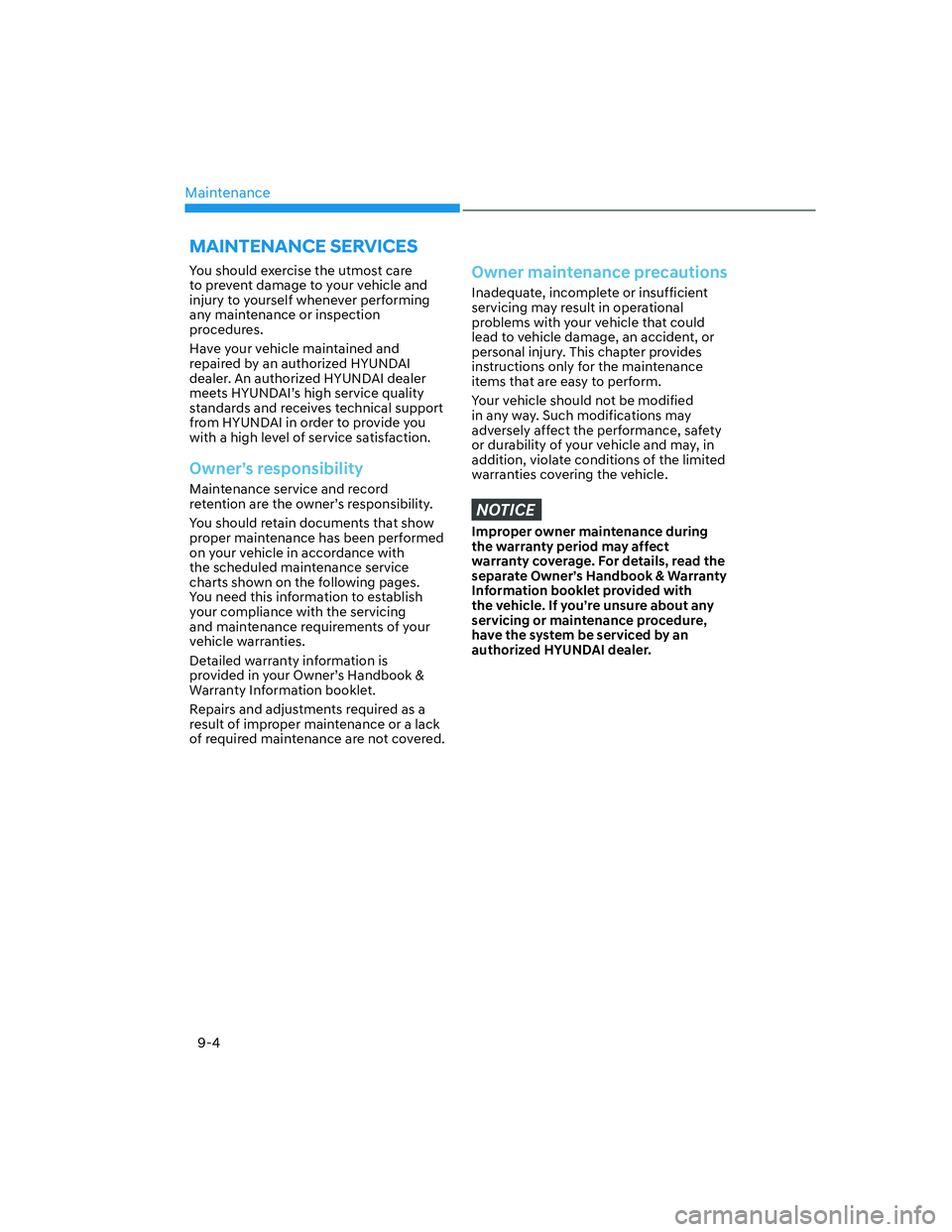

Maintenance
9-4
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
Have your vehicle maintained and
repaired by an authorized HYUNDAI
dealer. An authorized HYUNDAI dealer
meets HYUNDAI’s high service quality
standards and receives technical support
from HYUNDAI in order to provide you
with a high level of service satisfaction.
Owner’s responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with
the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing
and maintenance requirements of your
vehicle warranties.
Detailed warranty information is
provided in your Owner’s Handbook &
Warranty Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
Owner maintenance precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance, safety
or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
NOTICE
Improper owner maintenance during
the warranty period may affect
warranty coverage. For details, read the
separate Owner’s Handbook & Warranty
Information booklet provided with
the vehicle. If you’re unsure about any
servicing or maintenance procedure,
have the system be serviced by an
authorized HYUNDAI dealer.
MAINTENANCE SERVICES

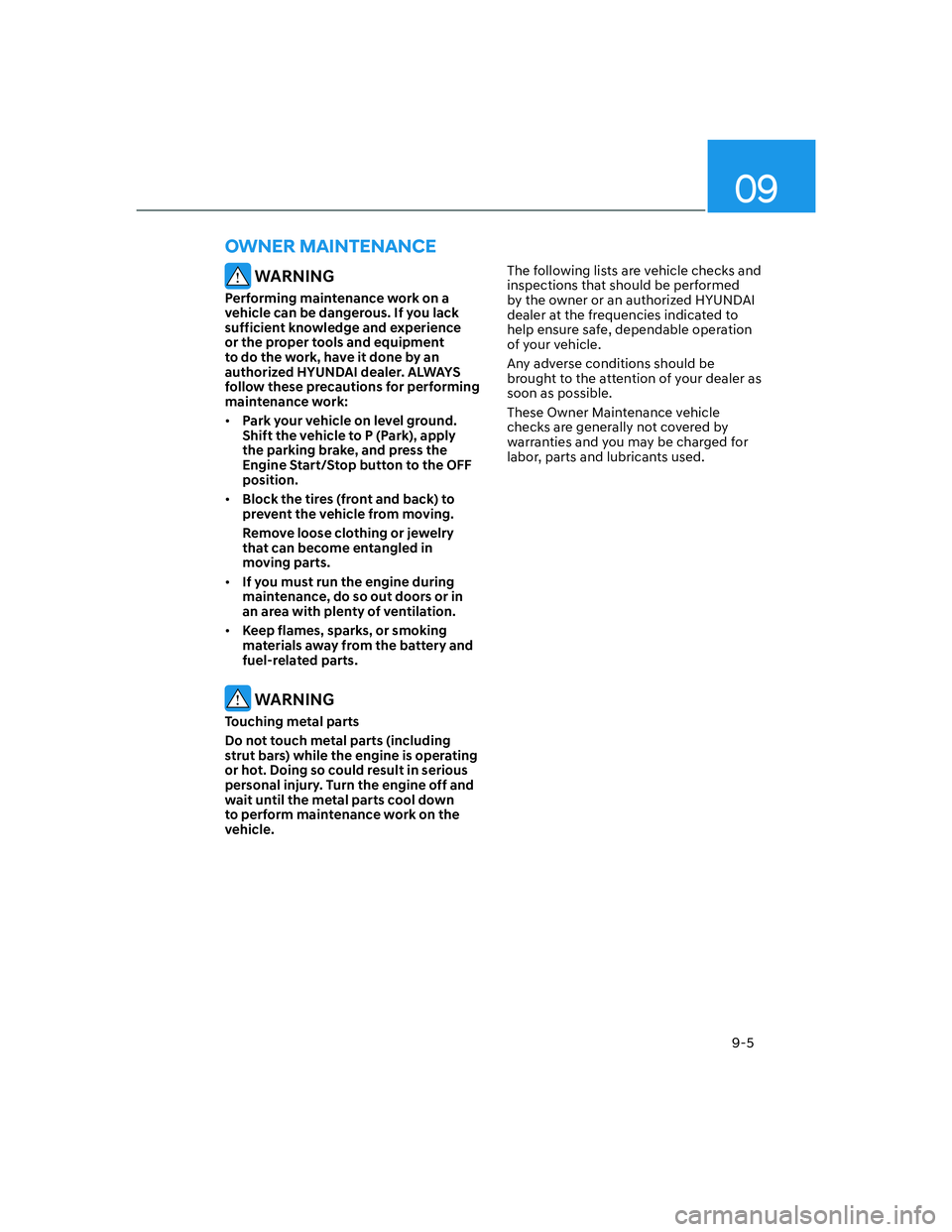

09
9-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience
or the proper tools and equipment
to do the work, have it done by an
authorized HYUNDAI dealer. ALWAYS
follow these precautions for performing
maintenance work:

[Park your vehicle on level ground.
Shift the vehicle to P (Park), apply
the parking brake, and press the
Engine Start/Stop button to the OFF
position.

[Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.

[Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts (including
strut bars) while the engine is operating
or hot. Doing so could result in serious
personal injury. Turn the engine off and
wait until the metal parts cool down
to perform maintenance work on the
vehicle.The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
OWNER MAINTENANCE

Maintenance
9-6
Owner maintenance schedule
When you stop for fuel:

[Check the coolant level in the engine
coolant reservoir or the water-cooled
intercooler coolant reservoir.

[Check the windshield washer fluid
level.

[Check for low or under-inflated tires.
WARNING
Be careful when checking your coolant
level when the engine is hot. This may
result in coolant being blown out of the
opening and cause serious burns and
other injuries.
While operating your vehicle:

[Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[When stopping, listen and check for
unusual sounds, pulling to one side,

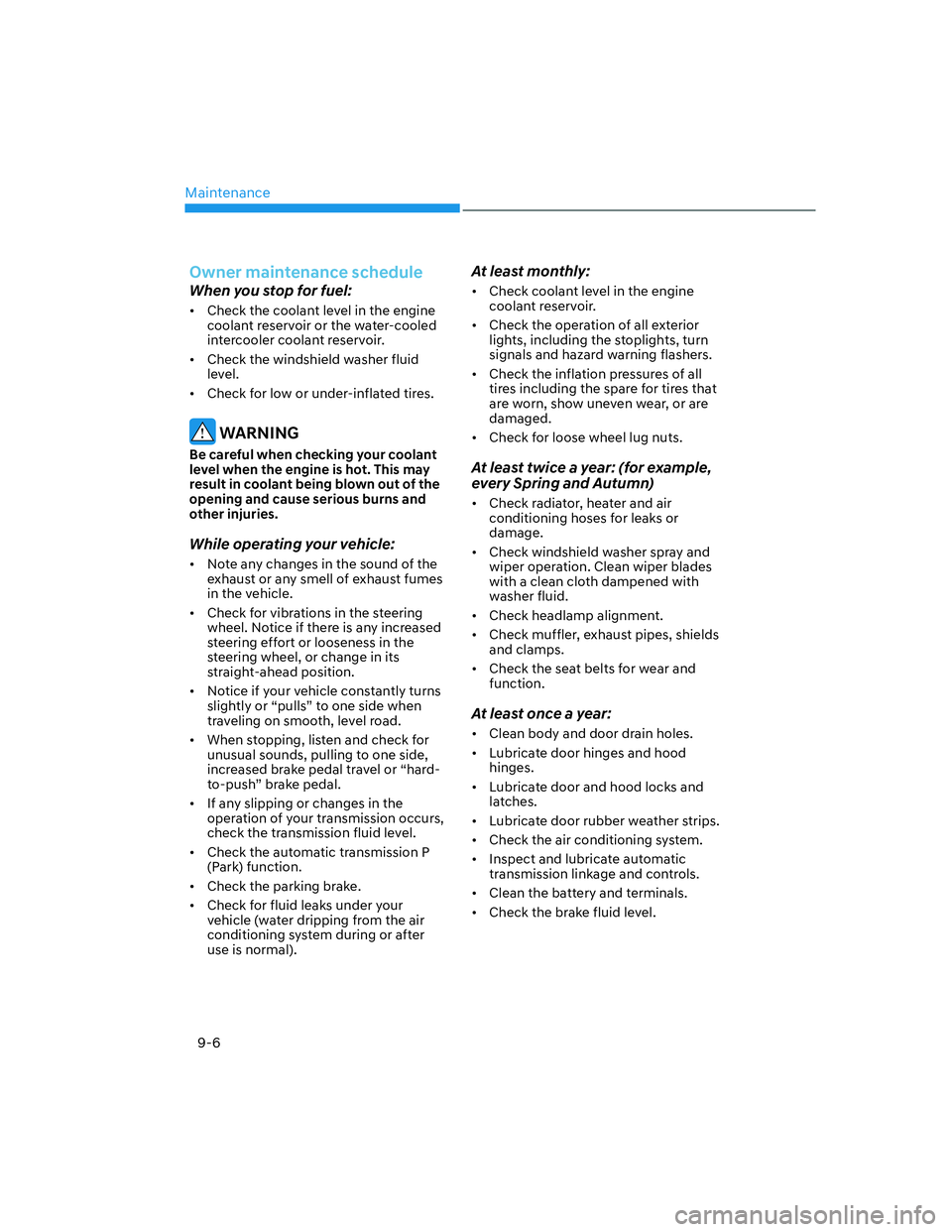

increased brake pedal travel or “hard-
to-push” brake pedal.

[If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[Check the automatic transmission P
(Park) function.

[Check the parking brake.

[Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.

[Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[Check for loose wheel lug nuts.
At least twice a year: (for example,
every Spring and Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.

[Check headlamp alignment.

[Check muffler, exhaust pipes, shields
and clamps.

[Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[Lubricate door hinges and hood
hinges.

[Lubricate door and hood locks and
latches.

[Lubricate door rubber weather strips.

[Check the air conditioning system.

[Inspect and lubricate automatic
transmission linkage and controls.

[Clean the battery and terminals.

[Check the brake fluid level.

09
9-7

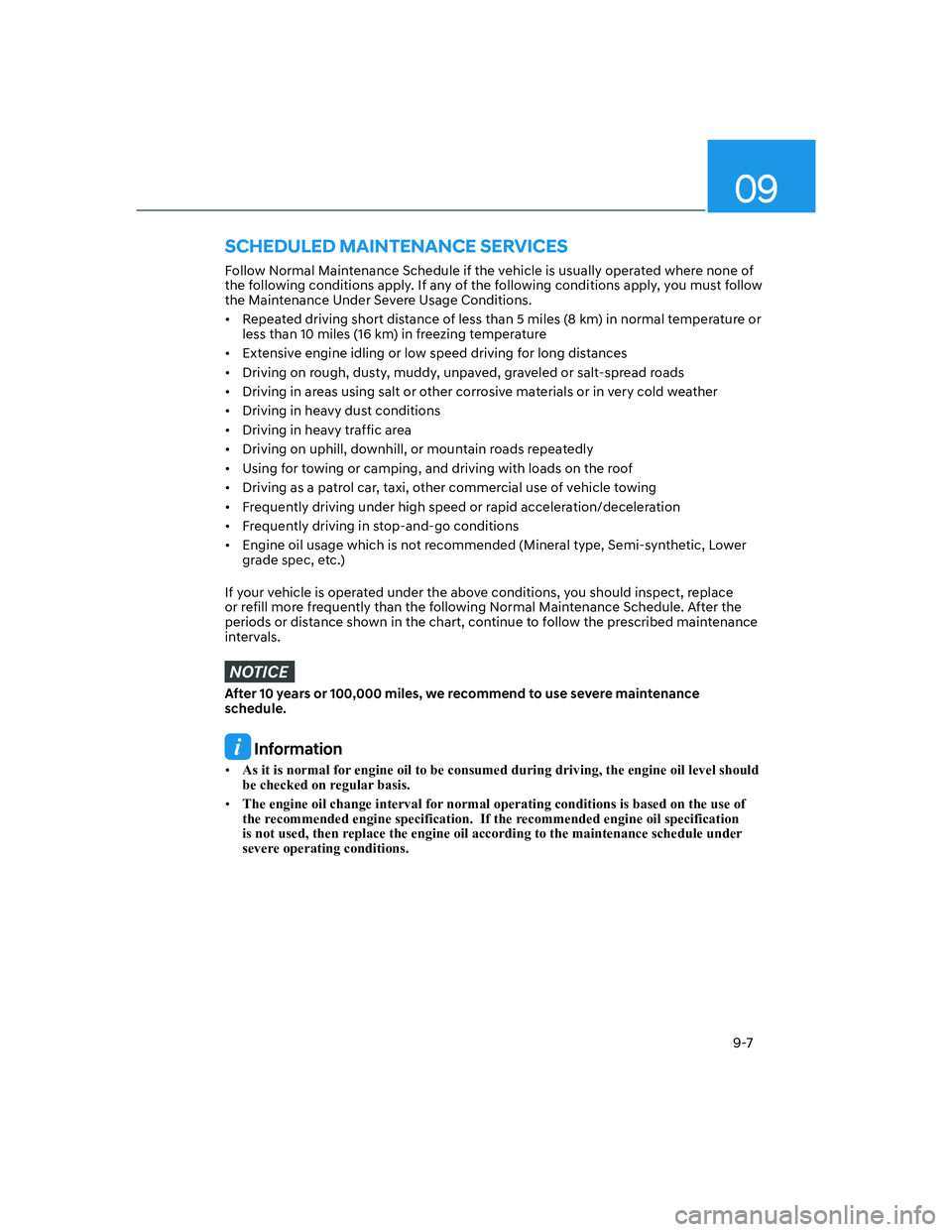

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.

[Repeated driving short distance of less than 5 miles (8 km) in normal temperature or
less than 10 miles (16 km) in freezing temperature

[Extensive engine idling or low speed driving for long distances

[Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

[Driving in areas using salt or other corrosive materials or in very cold weather

[Driving in heavy dust conditions

[Driving in heavy traffic area

[Driving on uphill, downhill, or mountain roads repeatedly

[Using for towing or camping, and driving with loads on the roof

[Driving as a patrol car, taxi, other commercial use of vehicle towing

[Frequently driving under high speed or rapid acceleration/deceleration

[Frequently driving in stop-and-go conditions

[Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace
or refill more frequently than the following Normal Maintenance Schedule. After the
periods or distance shown in the chart, continue to follow the prescribed maintenance
intervals.
NOTICE
After 10 years or 100,000 miles, we recommend to use severe maintenance
schedule.
Information

[As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification. If the recommended engine oil specification
is not used, then replace the engine oil according to the maintenance schedule under
severe operating conditions.
SCHEDULED MAINTENANCE SERVICES
