2022 HYUNDAI SANTA FE Owners Manual

2-5
02

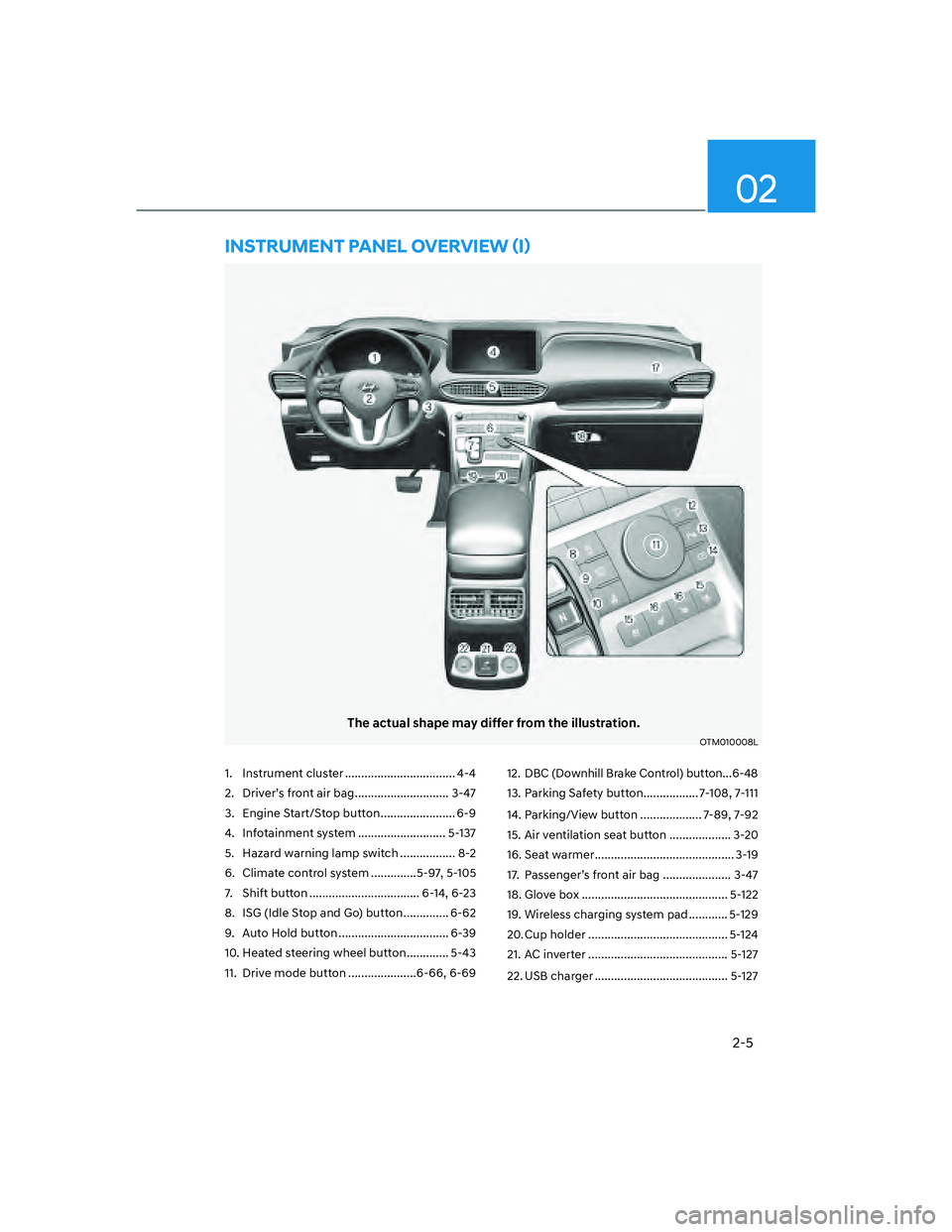

1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-47
3. Engine Start/Stop button ....................... 6-9
4. Infotainment system ........................... 5-137
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ..............5-97, 5-105
7. Shift button .................................. 6-14, 6-23
8. ISG (Idle Stop and Go) button .............. 6-62
9. Auto Hold button .................................. 6-39
10. Heated steering wheel button ............. 5-43
11. Drive mode button .....................6-66, 6-6912. DBC (Downhill Brake Control) button ...6-48
13. Parking Safety button ................. 7-108, 7-111
14. Parking/View button ................... 7-89, 7-92
15. Air ventilation seat button ................... 3-20
16. Seat warmer ........................................... 3-19
17. Passenger’s front air bag ..................... 3-47
18. Glove box ............................................. 5-122
19. Wireless charging system pad ............ 5-129
20. Cup holder ........................................... 5-124
21. AC inverter ........................................... 5-127
22. USB charger ......................................... 5-127
The actual shape may differ from the illustration.
OTM010008L
,167580(173$1(/29(59,(:

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
OTM010005
1. Lighting control lever ........................... 5-82
2. Wiper and washer control lever........... 5-93
3. Voice recognition button .................... 5-138
4. Bluetooth® hands-free phone button .... 5-1395. LCD display control .............................. 4-29
6. Driving Assist button .............................7-54
7. Smart cruise control Vehicle Distance
button .....................................................7-54
,167580(173$1(/29(59,(:

2-7
02
„Smartstream G2.5 GDI
„Smartstream G2.5 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OTMA090001/OTMA090015
1. Engine oil filler cap ................................ 9-17
2. Engine oil dipstick ................................. 9-16
3. Engine coolant reservoir .......................9-18
4. Windshield washer fluid reservoir ....... 9-22
5. Brake fluid reservoir .............................. 9-216. Battery terminal [+] .............................. 9-29
7. Battery terminal [-] ............................... 9-29
8. Air cleaner ............................................. 9-23
9. Fuse box ................................................ 9-48
ENGINE COMPARTMENT

Vehicle Information, Consumer Information and Reporting Safety Defects
2-8

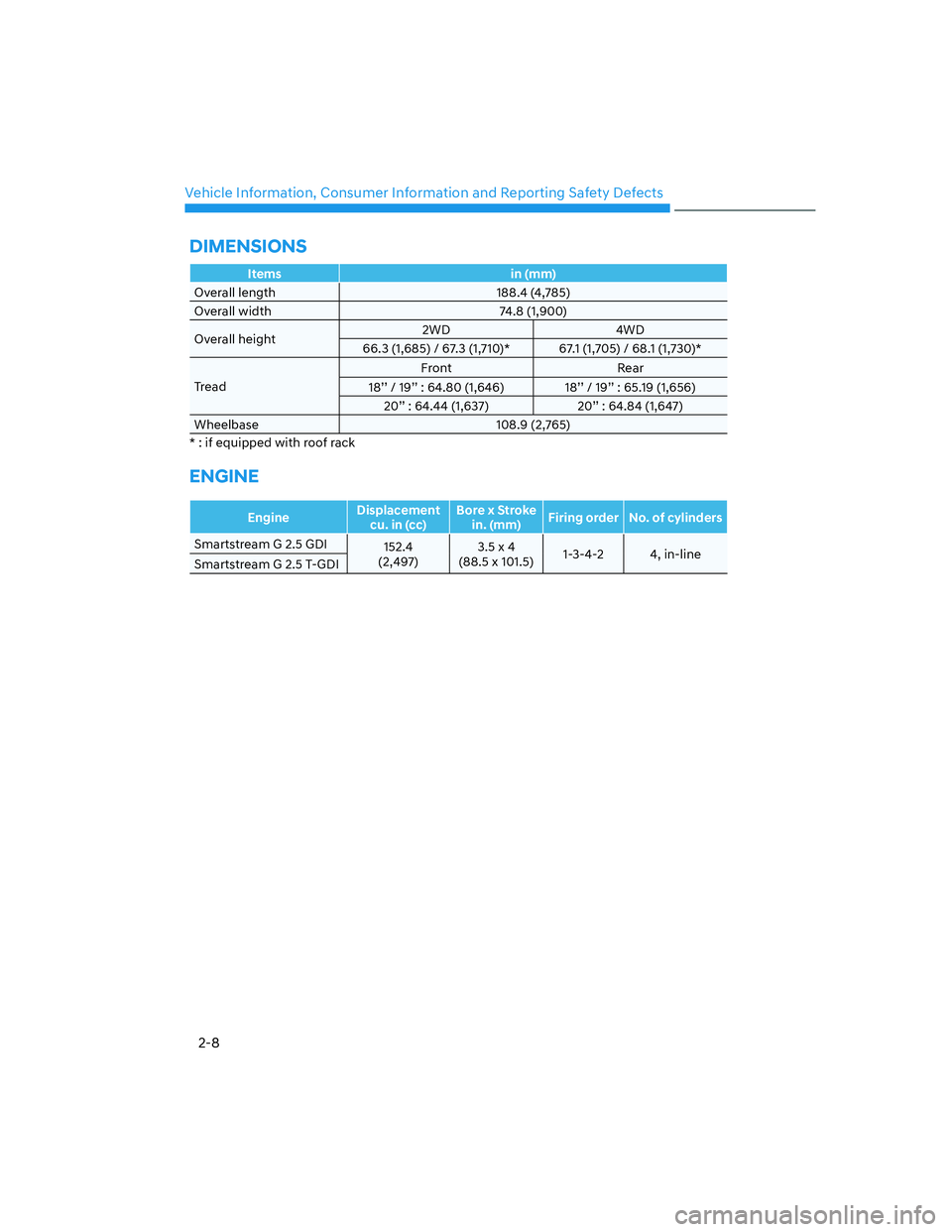

Items in (mm)
Overall length 188.4 (4,785)
Overall width 74.8 (1,900)
Overall height2WD 4WD
66.3 (1,685) / 67.3 (1,710)* 67.1 (1,705) / 68.1 (1,730)*
TreadFront Rear
18’’ / 19’’ : 64.80 (1,646) 18’’ / 19’’ : 65.19 (1,656)
20’’ : 64.44 (1,637) 20’’ : 64.84 (1,647)
Wheelbase 108.9 (2,765)
* : if equipped with roof rack
ENGINE
EngineDisplacement
cu. in (cc)Bore x Stroke
in. (mm)Firing order No. of cylinders
Smartstream G 2.5 GDI
152.4
(2,497)3.5 x 4
(88.5 x 101.5)1-3-4-2 4, in-line
Smartstream G 2.5 T-GDI
DIMENSIONS

02
2-9

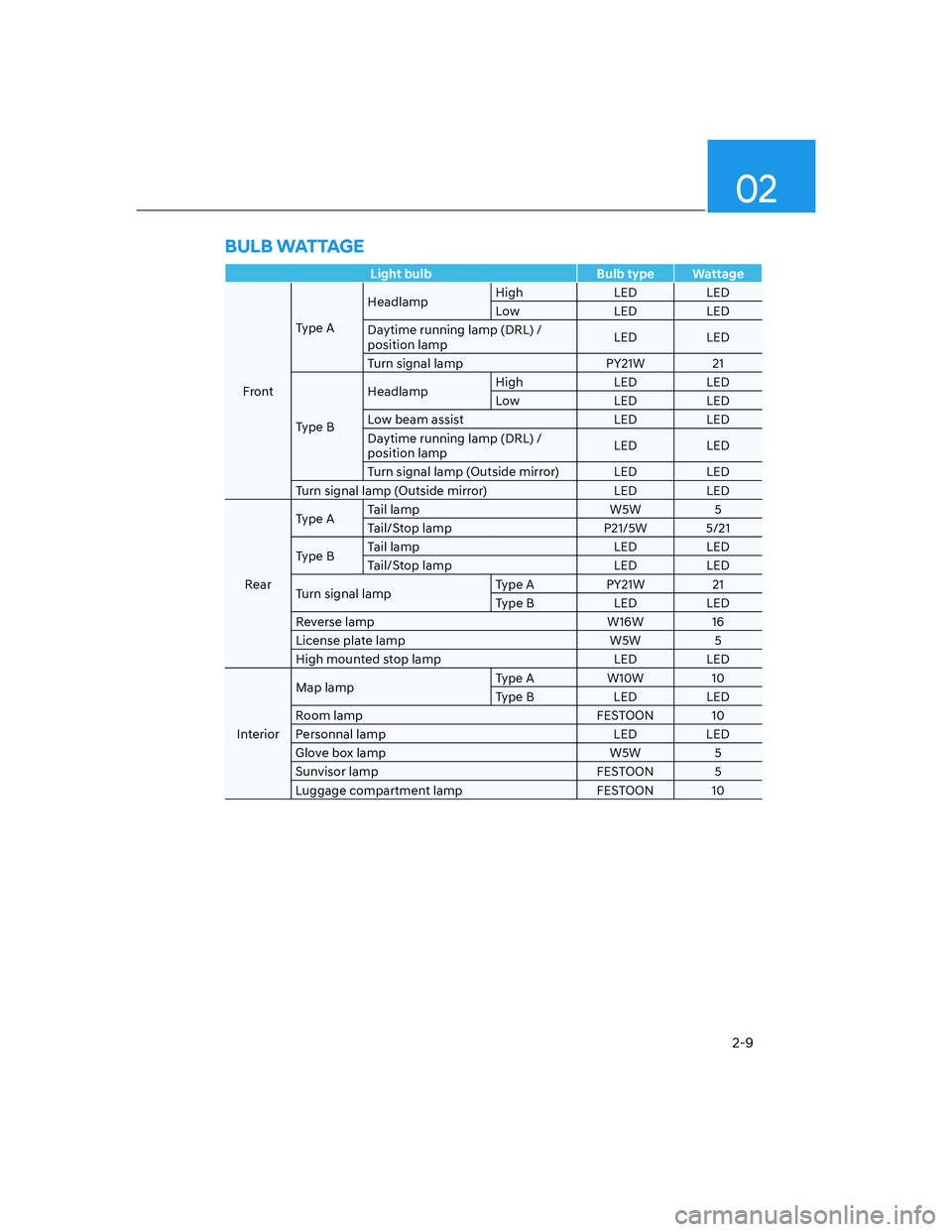

Light bulb Bulb type Wattage
FrontType AHeadlampHigh LED LED
Low LED LED
Daytime running lamp (DRL) /
position lampLED LED
Turn signal lamp PY21W 21
Type BHeadlampHigh LED LED
Low LED LED
Low beam assist LED LED
Daytime running lamp (DRL) /
position lampLED LED
Turn signal lamp (Outside mirror) LED LED
Turn signal lamp (Outside mirror) LED LED
RearType ATail lamp W5W 5
Tail/Stop lamp P21/5W 5/21
Type BTail lamp LED LED
Tail/Stop lamp LED LED
Turn signal lampType A PY21W 21
Type B LED LED
Reverse lamp W16W 16
License plate lamp W5W 5
High mounted stop lamp LED LED
InteriorMap lampType A W10W 10
Type B LED LED
Room lamp FESTOON 10
Personnal lamp LED LED
Glove box lamp W5W 5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10

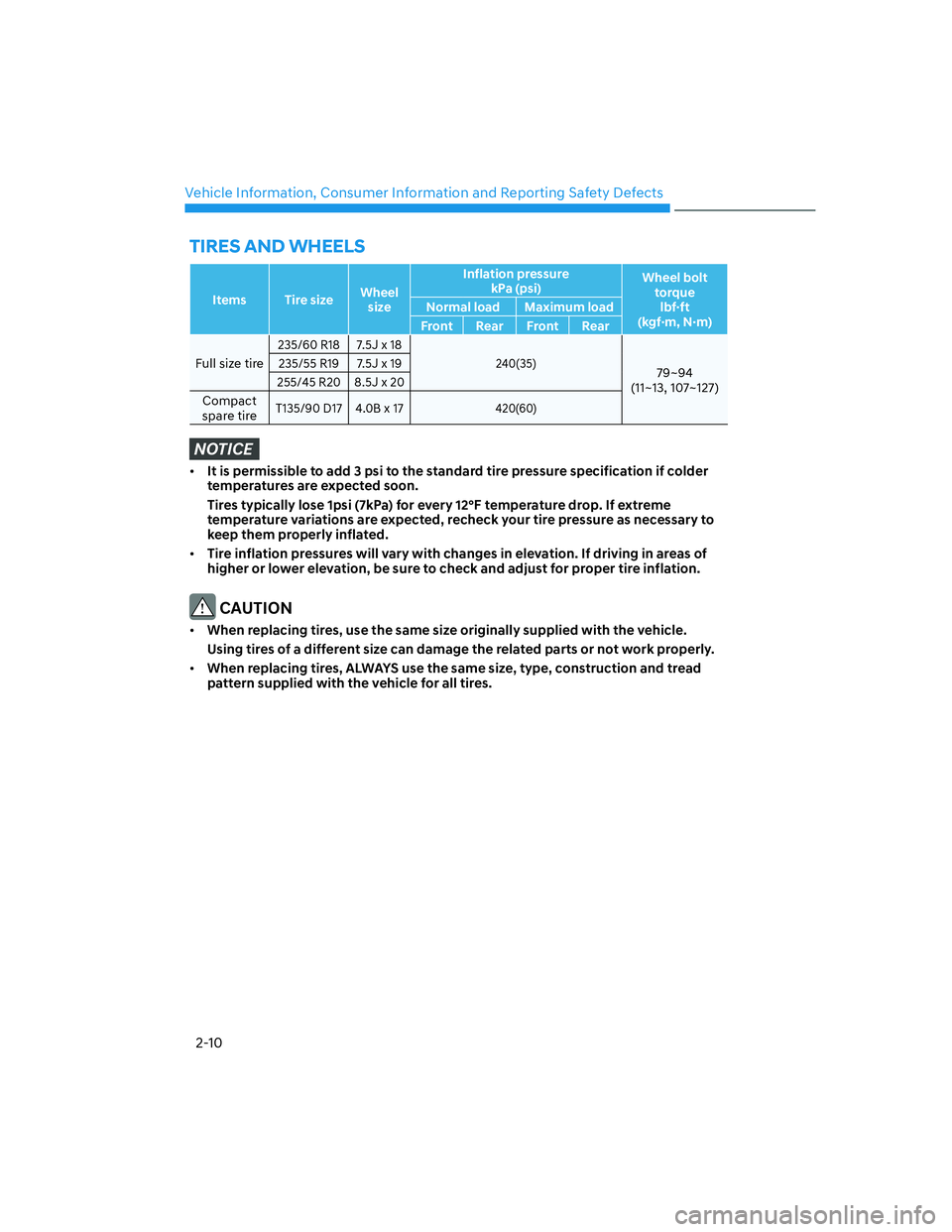

Items Tire sizeWheel
sizeInflation pressure
kPa (psi)Wheel bolt
torque
lbf·ft
(kgf·m, N·m) Normal load Maximum load
Front Rear Front Rear
Full size tire
235/60 R18 7.5J x 18
240(35)79~94
(11~13, 107~127)235/55 R19 7.5J x 19
255/45 R20 8.5J x 20
Compact
spare tireT135/90 D17 4.0B x 17420(60)
NOTICE

[It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
TIRES AND WHEELS

02
2-11

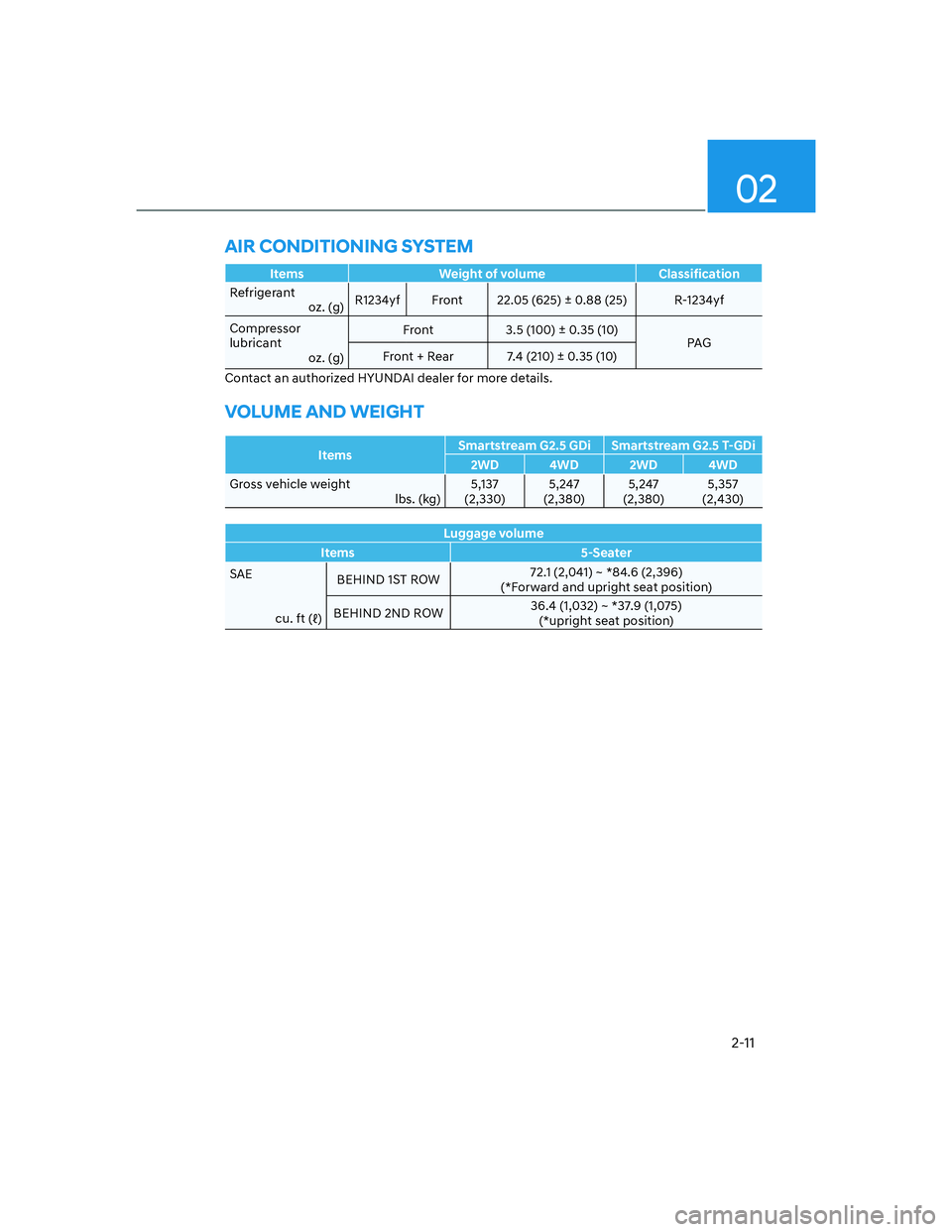

Items Weight of volume Classification
Refrigerant
oz. (g)R1234yf Front 22.05 (625) ± 0.88 (25) R-1234yf
Compressor
lubricant
oz. (g)Front 3.5 (100) ± 0.35 (10)
PAG
Front + Rear 7.4 (210) ± 0.35 (10)
Contact an authorized HYUNDAI dealer for more details.
VOLUME AND WEIGHT
ItemsSmartstream G2.5 GDi Smartstream G2.5 T-GDi
2WD 4WD 2WD 4WD
Gross vehicle weight
lbs. (kg)5,137
(2,330)5,247
(2,380)5,247
(2,380)5,357
(2,430)
Luggage volume
Items 5-Seater
SAE
FXIW
bBEHIND 1ST ROW72.1 (2,041) ~ *84.6 (2,396)
(*Forward and upright seat position)
BEHIND 2ND ROW36.4 (1,032) ~ *37.9 (1,075)
(*upright seat position)
AIR CONDITIONING SYSTEM

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12

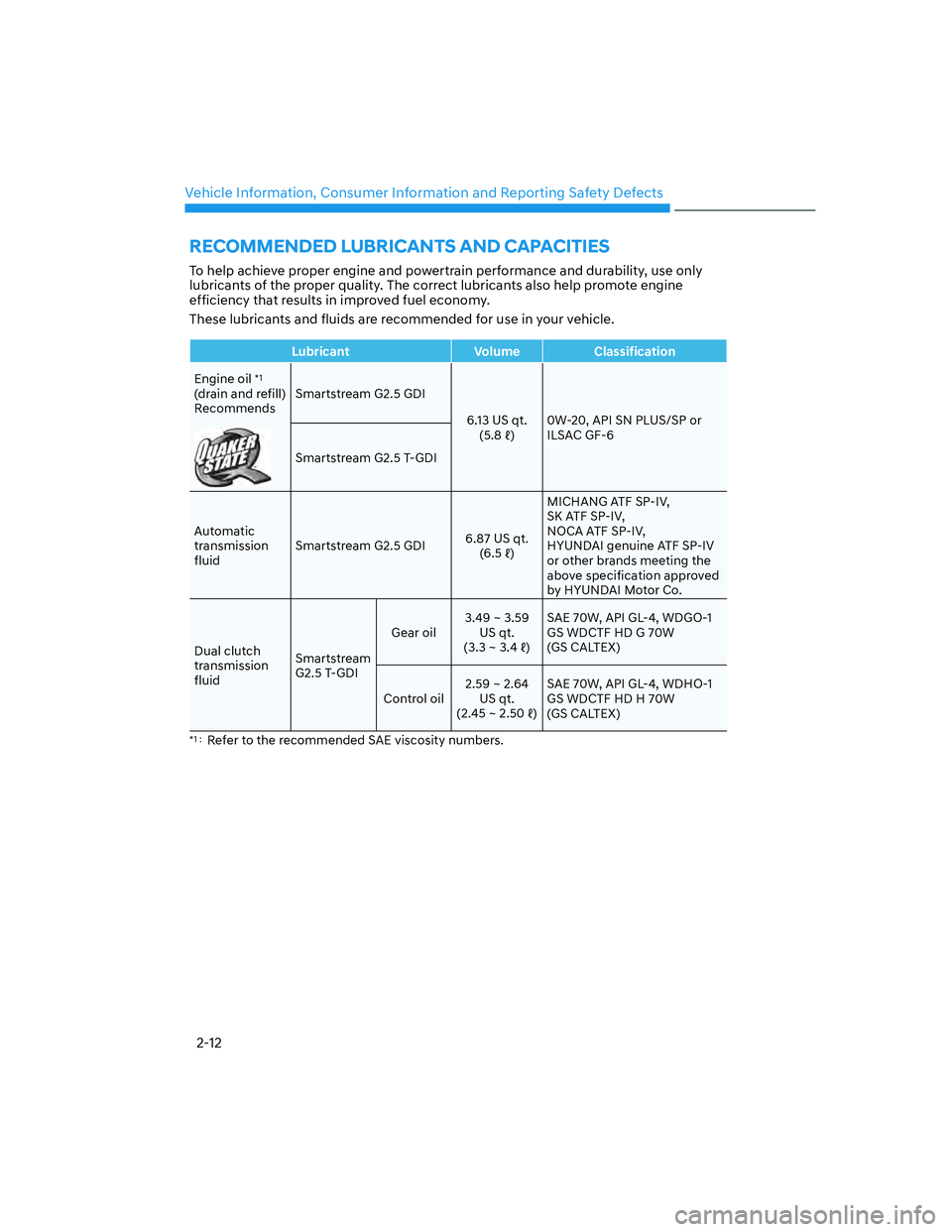

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1
(drain and refill)
RecommendsSmartstream G2.5 GDI
6.13 US qt.

b0W-20, API SN PLUS/SP or
ILSAC GF-6
Smartstream G2.5 T-GDI
Automatic
transmission
fluidSmartstream G2.5 GDI6.87 US qt.

bMICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
or other brands meeting the
above specification approved
by HYUNDAI Motor Co.
Dual clutch
transmission
fluidSmartstream
G2.5 T-GDIGear oil3.49 ~ 3.59
US qt.
a
bSAE 70W, API GL-4, WDGO-1
GS WDCTF HD G 70W
(GS CALTEX)
Control oil2.59 ~ 2.64
US qt.
a
bSAE 70W, API GL-4, WDHO-1
GS WDCTF HD H 70W
(GS CALTEX)
*1 : Refer to the recommended SAE viscosity numbers.
