2022 HYUNDAI SANTA FE Owners Manual

01
1-5

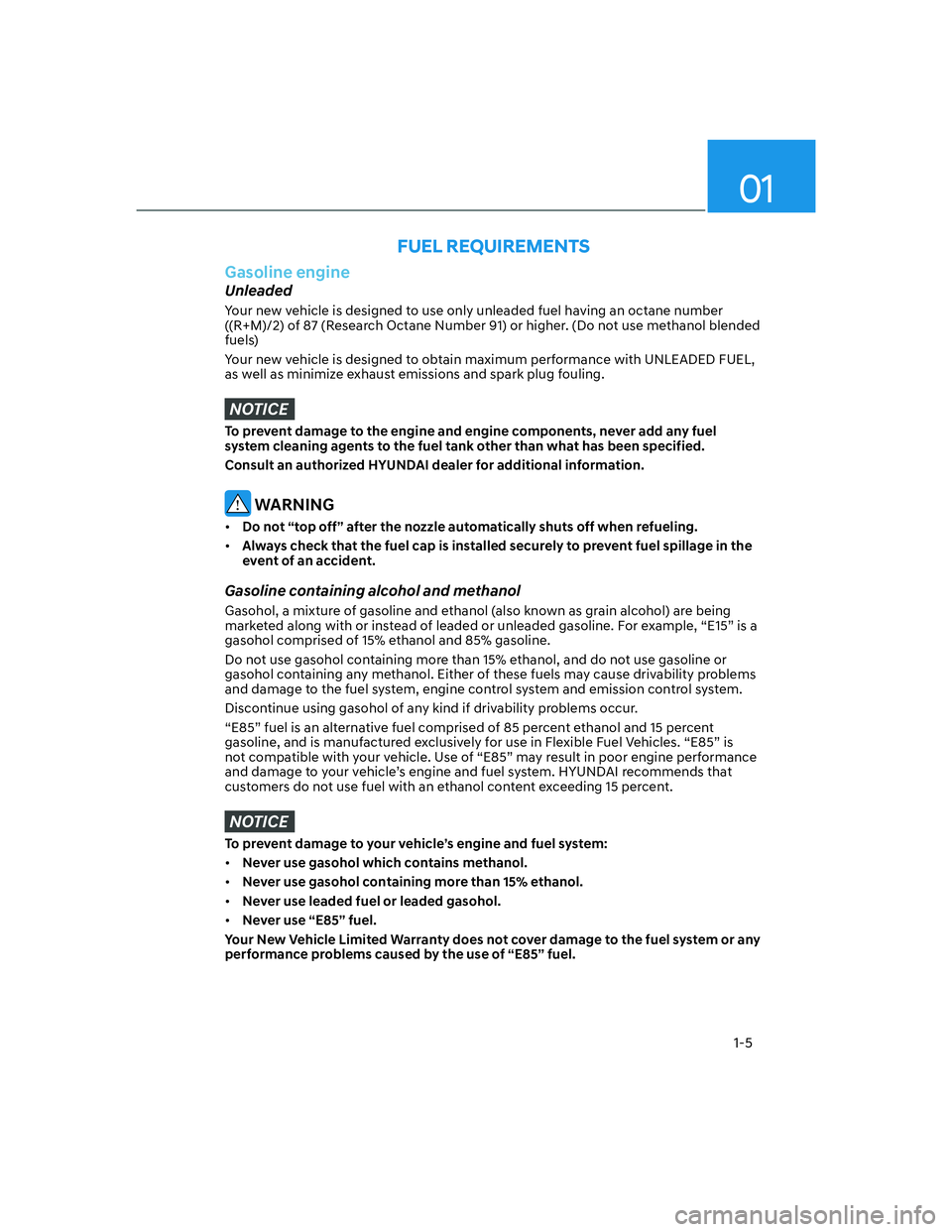

Gasoline engine
Unleaded
Your new vehicle is designed to use only unleaded fuel having an octane number
((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol blended
fuels)
Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL,
as well as minimize exhaust emissions and spark plug fouling.
NOTICE
To prevent damage to the engine and engine components, never add any fuel
system cleaning agents to the fuel tank other than what has been specified.
Consult an authorized HYUNDAI dealer for additional information.
WARNING

[Do not “top off” after the nozzle automatically shuts off when refueling.

[Always check that the fuel cap is installed securely to prevent fuel spillage in the
event of an accident.
Gasoline containing alcohol and methanol
Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being
marketed along with or instead of leaded or unleaded gasoline. For example, “E15” is a
gasohol comprised of 15% ethanol and 85% gasoline.
Do not use gasohol containing more than 15% ethanol, and do not use gasoline or
gasohol containing any methanol. Either of these fuels may cause drivability problems
and damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
“E85” fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent
gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is
not compatible with your vehicle. Use of “E85” may result in poor engine performance
and damage to your vehicle’s engine and fuel system. HYUNDAI recommends that
customers do not use fuel with an ethanol content exceeding 15 percent.
NOTICE
To prevent damage to your vehicle’s engine and fuel system:

[Never use gasohol which contains methanol.

[Never use gasohol containing more than 15% ethanol.

[Never use leaded fuel or leaded gasohol.

[Never use “E85” fuel.
Your New Vehicle Limited Warranty does not cover damage to the fuel system or any
performance problems caused by the use of “E85” fuel.
FUEL REQUIREMENTS

Introduction
1-6

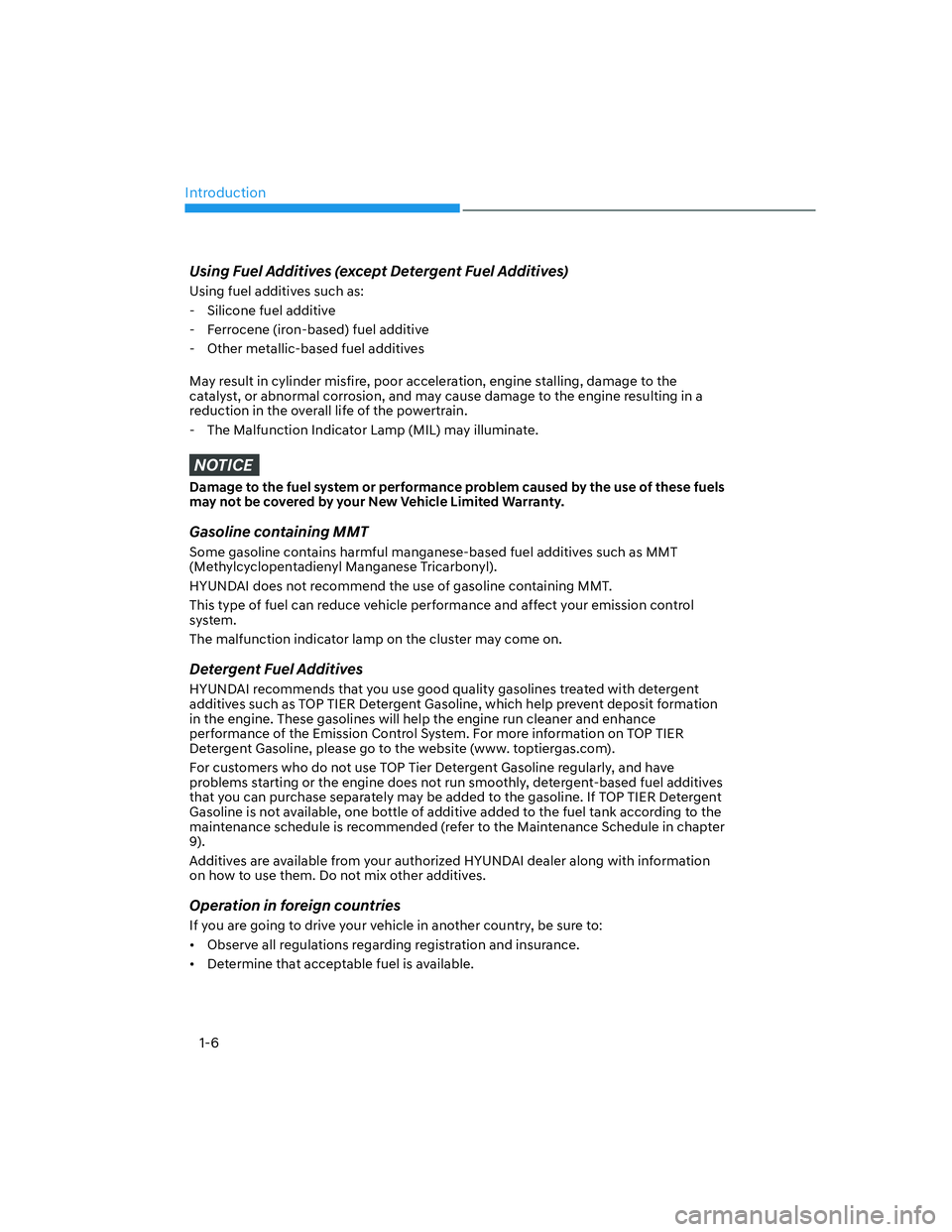

Using Fuel Additives (except Detergent Fuel Additives)
Using fuel additives such as:
- Silicone fuel additive
- Ferrocene (iron-based) fuel additive
- Other metallic-based fuel additives
May result in cylinder misfire, poor acceleration, engine stalling, damage to the
catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a
reduction in the overall life of the powertrain.
- The Malfunction Indicator Lamp (MIL) may illuminate.
NOTICE
Damage to the fuel system or performance problem caused by the use of these fuels
may not be covered by your New Vehicle Limited Warranty.
Gasoline containing MMT
Some gasoline contains harmful manganese-based fuel additives such as MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
HYUNDAI does not recommend the use of gasoline containing MMT.
This type of fuel can reduce vehicle performance and affect your emission control
system.
The malfunction indicator lamp on the cluster may come on.
Detergent Fuel Additives
HYUNDAI recommends that you use good quality gasolines treated with detergent
additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation
in the engine. These gasolines will help the engine run cleaner and enhance
performance of the Emission Control System. For more information on TOP TIER
Detergent Gasoline, please go to the website (www. toptiergas.com).
For customers who do not use TOP Tier Detergent Gasoline regularly, and have
problems starting or the engine does not run smoothly, detergent-based fuel additives
that you can purchase separately may be added to the gasoline. If TOP TIER Detergent
Gasoline is not available, one bottle of additive added to the fuel tank according to the
maintenance schedule is recommended (refer to the Maintenance Schedule in chapter
9).
Additives are available from your authorized HYUNDAI dealer along with information
on how to use them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in another country, be sure to:

[Observe all regulations regarding registration and insurance.

[Determine that acceptable fuel is available.

01
1-7

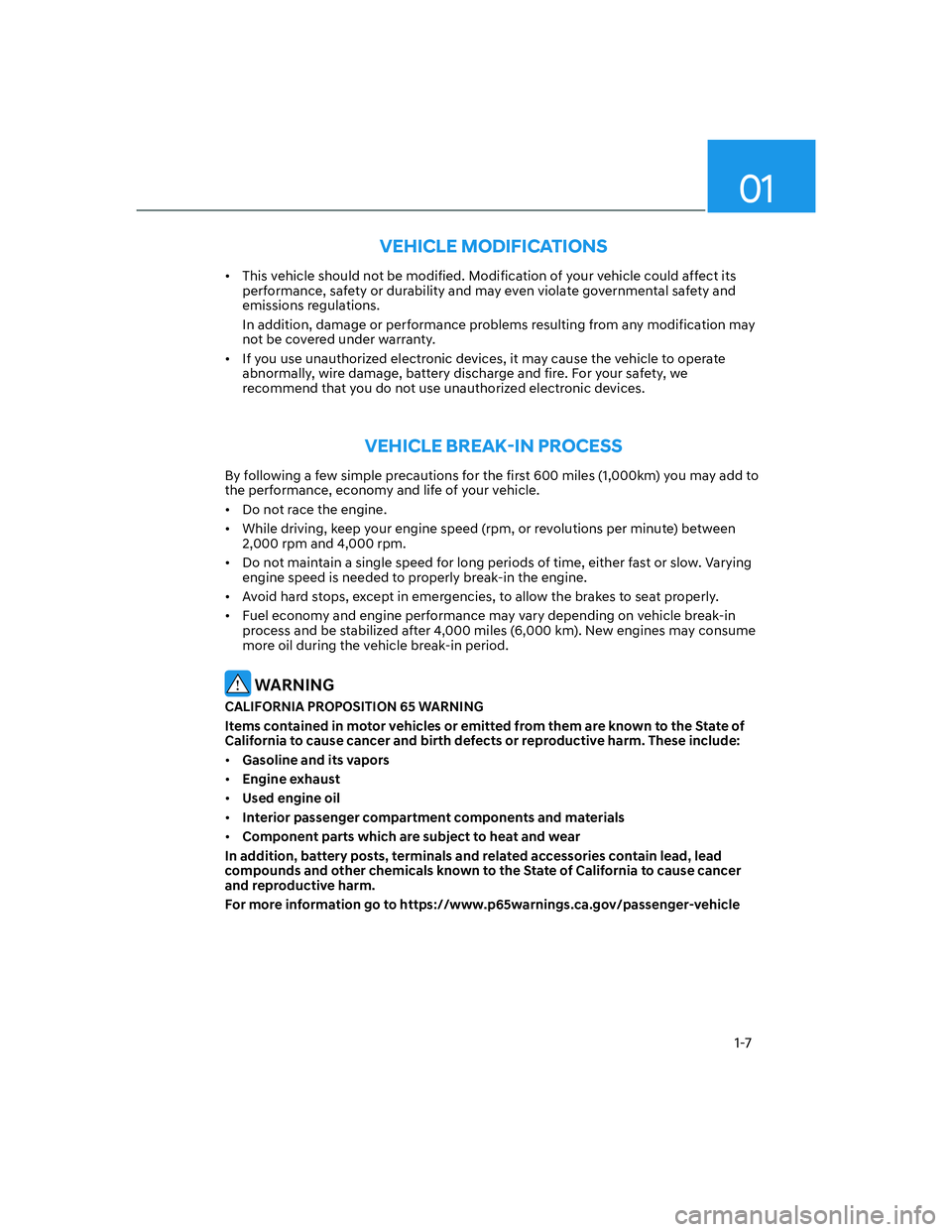

VEHICLE MODIFICATIONS

[This vehicle should not be modified. Modification of your vehicle could affect its
performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may
not be covered under warranty.

[If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge and fire. For your safety, we
recommend that you do not use unauthorized electronic devices.
9(+,&/(%5($.

Introduction
1-8

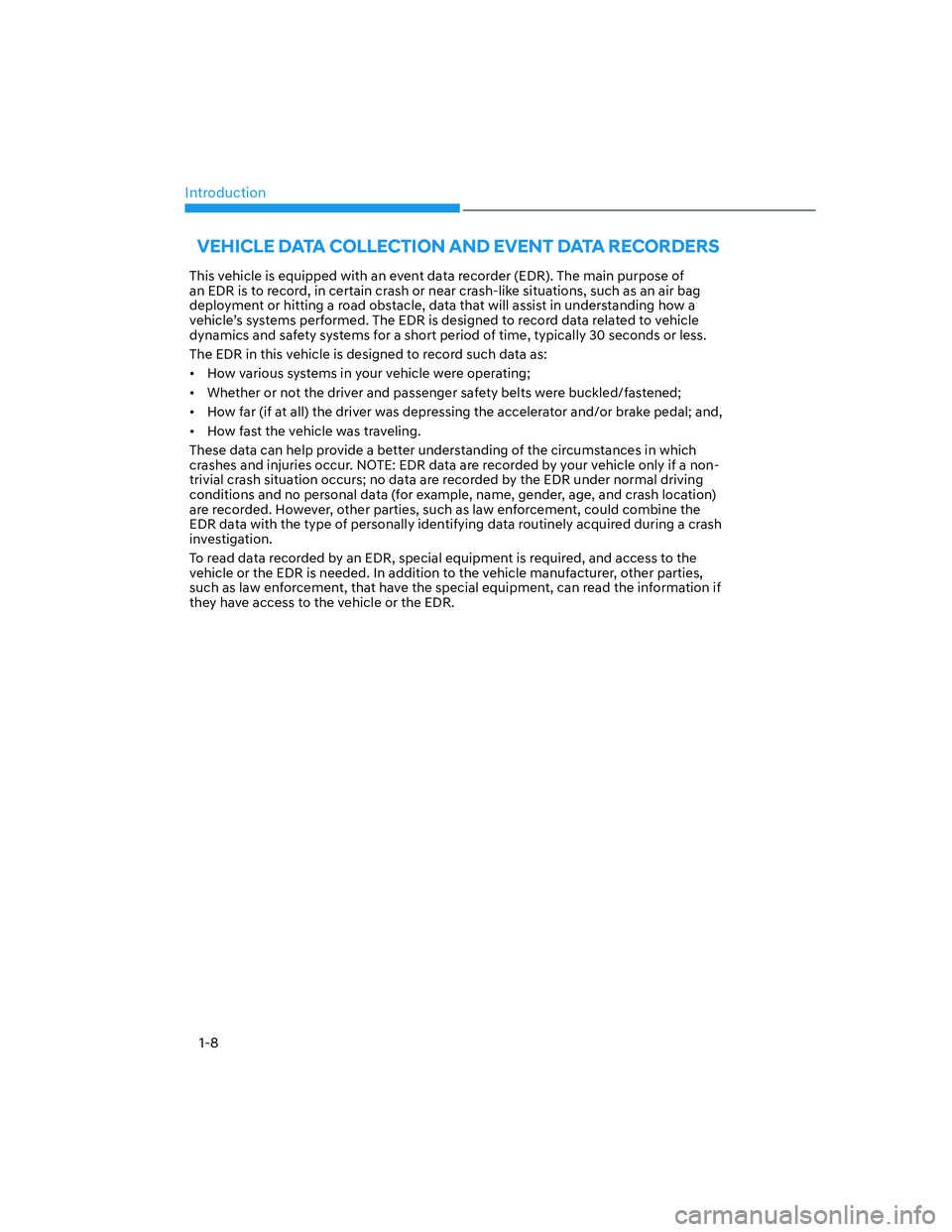

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:

[How various systems in your vehicle were operating;

[Whether or not the driver and passenger safety belts were buckled/fastened;

[How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

[How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-
trivial crash situation occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (for example, name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the
EDR data with the type of personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if
they have access to the vehicle or the EDR.

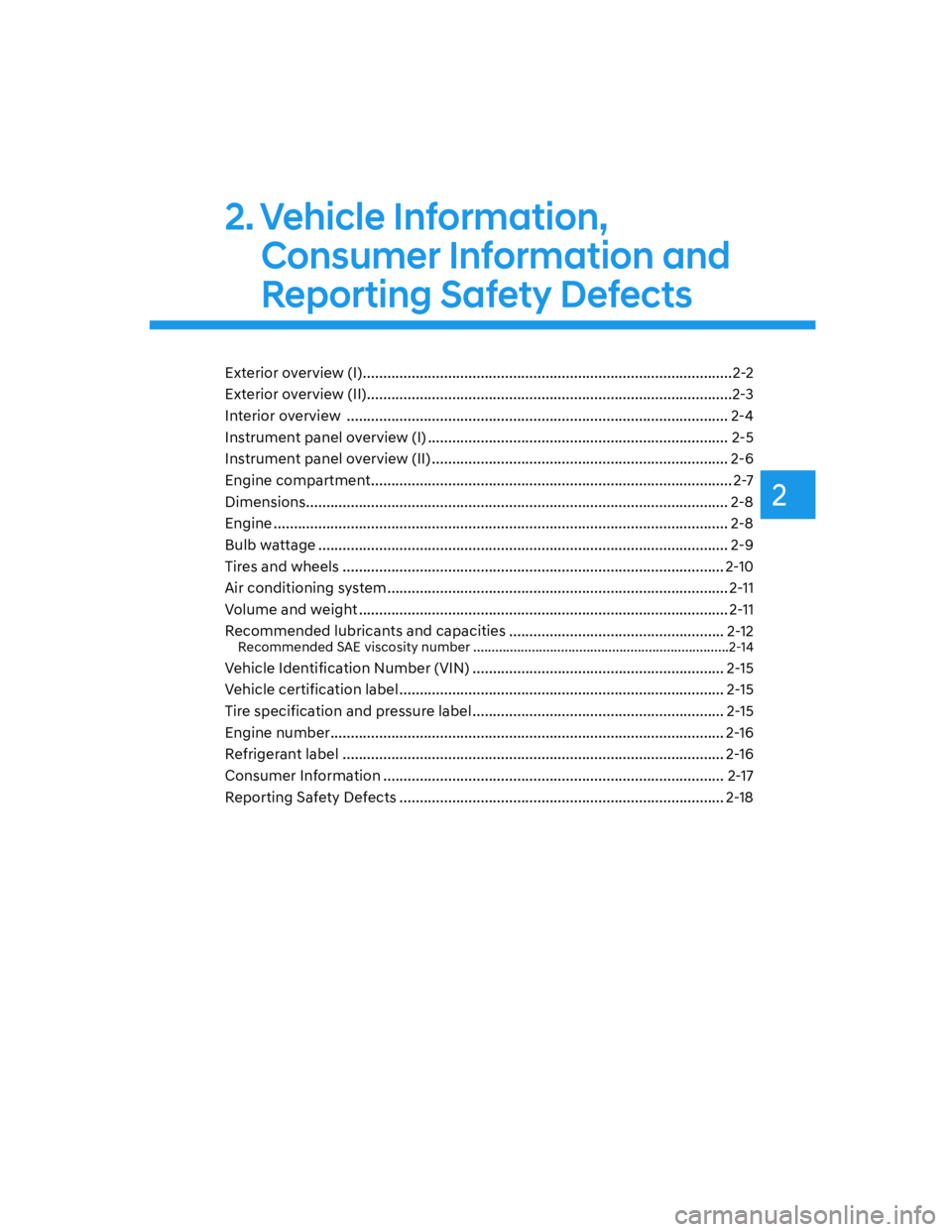

2
2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior overview (I) ...........................................................................................2-2
Exterior overview (II)
..........................................................................................2-3
Interior overview
.............................................................................................. 2-4
Instrument panel overview (I)
.......................................................................... 2-5
Instrument panel overview (II)
......................................................................... 2-6
Engine compartment
......................................................................................... 2-7
Dimensions
........................................................................................................ 2-8
Engine
................................................................................................................ 2-8
Bulb wattage
..................................................................................................... 2-9
Tires and wheels
.............................................................................................. 2-10
Air conditioning system
.................................................................................... 2-11
Volume and weight
........................................................................................... 2-11
Recommended lubricants and capacities
..................................................... 2-12
Recommended SAE viscosity number ......................................................................2-14
Vehicle Identification Number (VIN) .............................................................. 2-15
Vehicle certification label
................................................................................ 2-15
Tire specification and pressure label
.............................................................. 2-15
Engine number
................................................................................................. 2-16
Refrigerant label
.............................................................................................. 2-16
Consumer Information
.................................................................................... 2-17
Reporting Safety Defects
................................................................................ 2-18

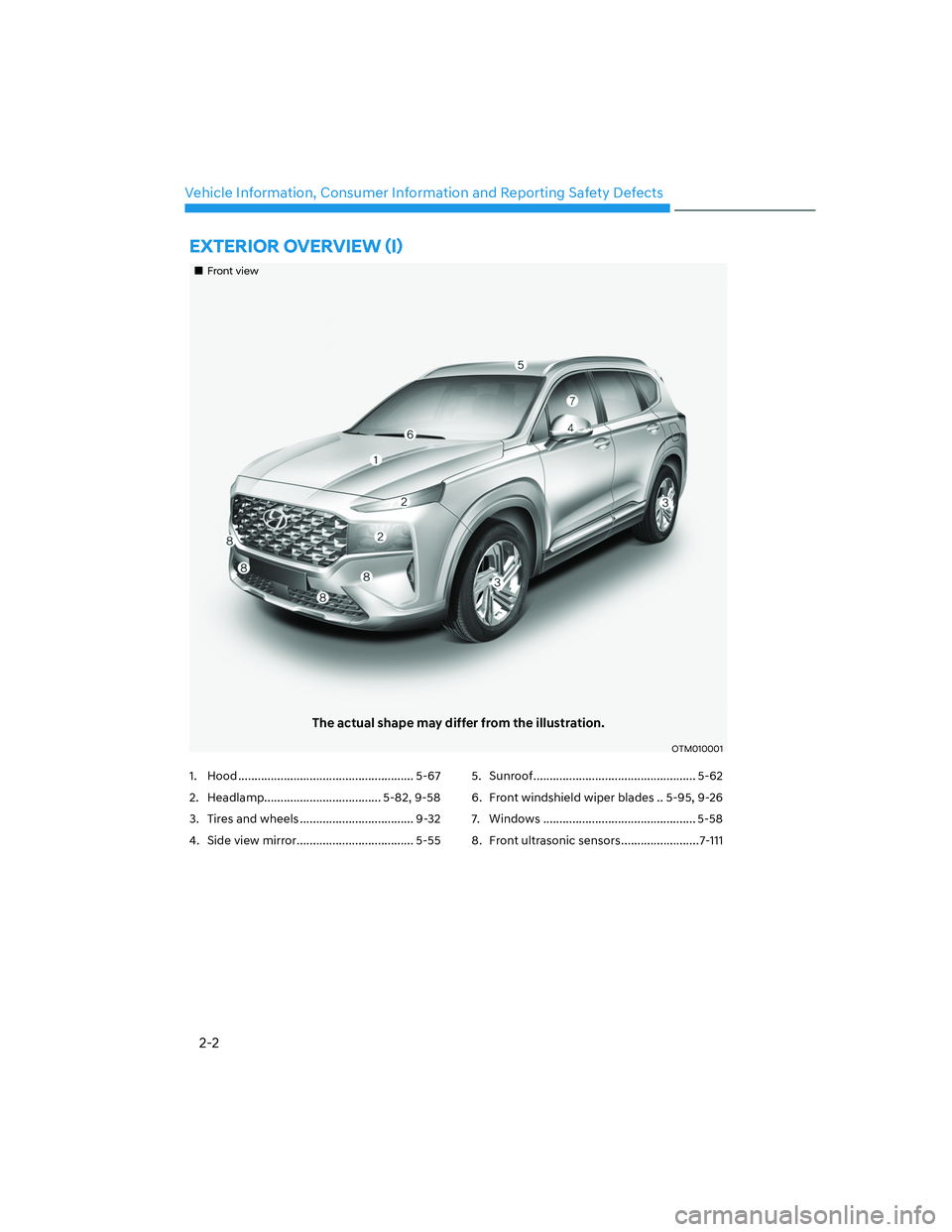

2-2
Vehicle Information, Consumer Information and Reporting Safety Defects
(;7(5,2529(59,(:

2-3
02

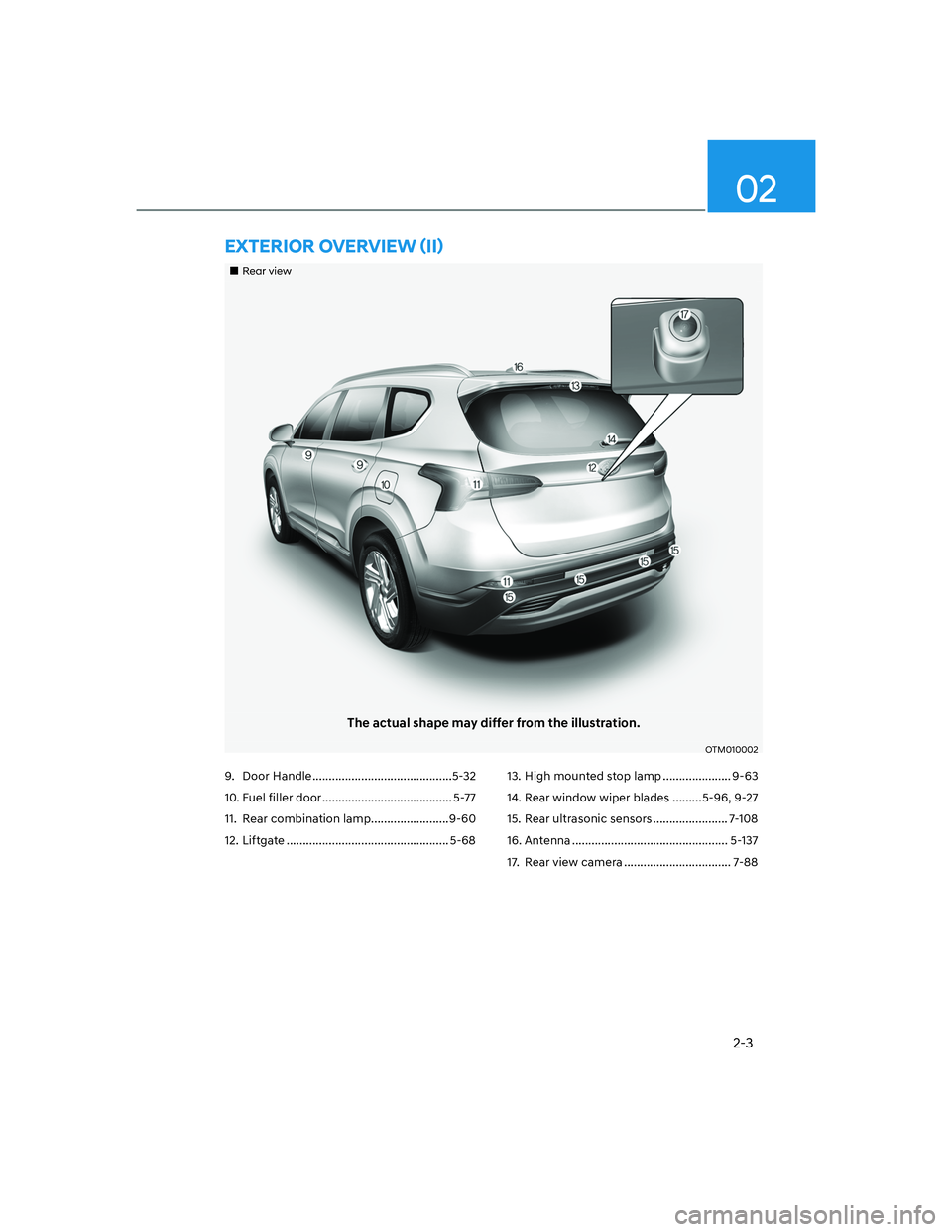

„Rear view
The actual shape may differ from the illustration.
OTM010002
(;7(5,2529(59,(:

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Inside door handle .................................5-32
2. Power window switches ...................... 5-58
3. Power window lock button / ............... 5-60
Electronic child safety lock button
...... 5-36
4. Side view mirror folding button .................5-56
5. Side view mirror control switch .................5-56
6. Central door lock switch ...................... 5-33
7. Instrument panel illumination control
switch ...................................................... 4-5
8. Lane Safety button ................................ 7-19
9. Power Liftgate open/close button ...... 5-7010. ESC (Electronic Stability Control) OFF
button .................................................... 6-44
11. EPB (Electronic Parking Brake)
switch .................................................... 6-35
12. Steering wheel ...................................... 5-42
13. Steering wheel tilt/telescopic switch.. 5-43
14. Fuse box ................................................ 9-48
15. Hood release lever ................................ 5-67
16. Seat .......................................................... 3-3
INTERIOR OVERVIEW
The actual shape may differ from the illustration.
OTMA020001C
