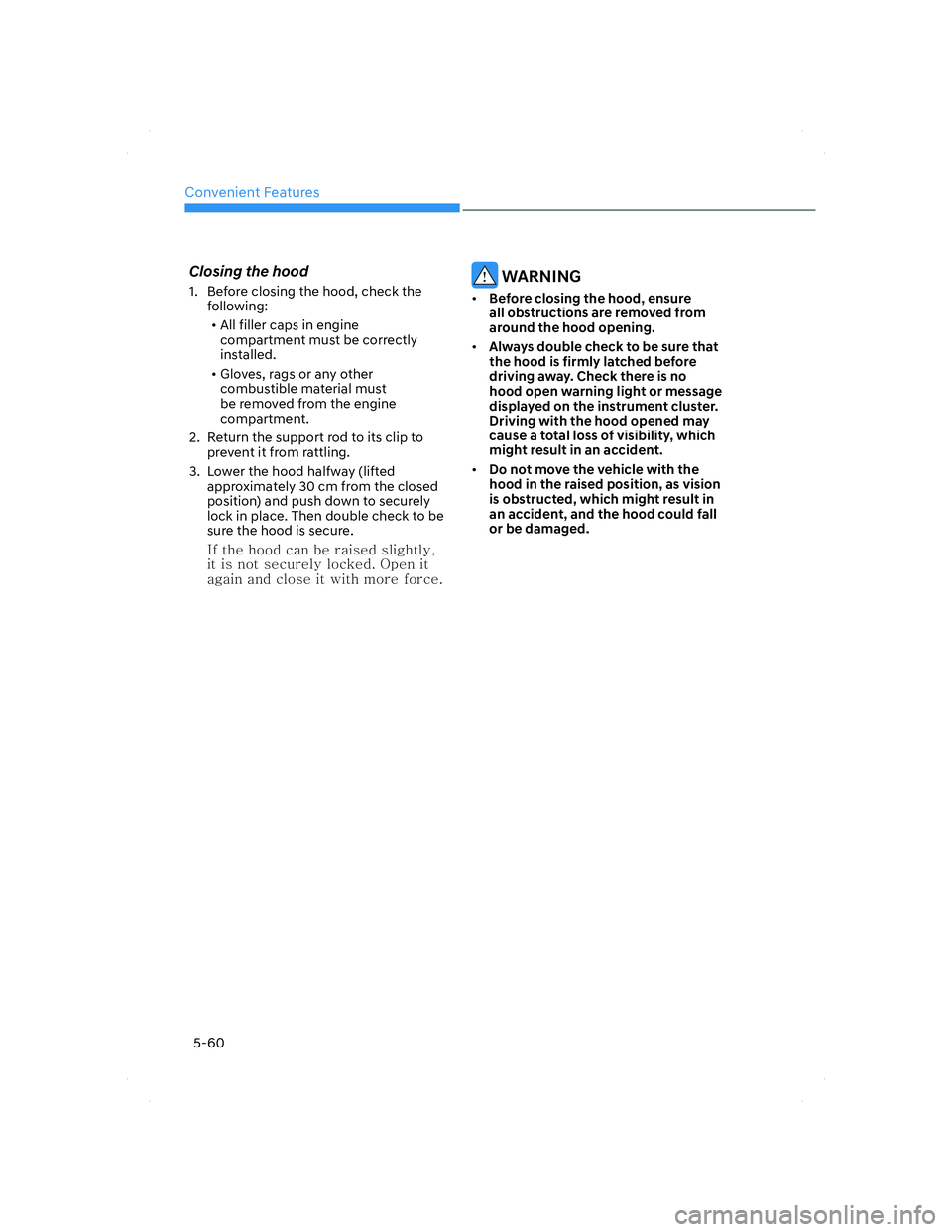

Convenient Features
5-60
Closing the hood
1. Before closing the hood, check the
following:
• All filler caps in engine
compartment must be correctly
installed.
• Gloves, rags or any other
combustible material must
be removed from the engine
compartment.
2. Return the support rod to its clip to
prevent it from rattling.
3. Lower the hood halfway (lifted
approximately 30 cm from the closed
position) and push down to securely
lock in place. Then double check to be
sure the hood is secure.
* G U I F I P P E D B O C F S B J T F E T M J H I U M Z
J U J T O P U T F D V S F M Z M P D L F E 0 Q F O J U
B H B J O B O E D M P T F J U X J U I N P S F G P S D F WARNING
• Before closing the hood, ensure
all obstructions are removed from
around the hood opening.
• Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.
• Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
CN7 HMA 5.indd 5-602020-12-03 9:20:54
Page 202 of 584
Convenient Features
5-66
FUEL FILLER DOOR
Opening the fuel filler door
OCN7050042OCN7050042
The fuel filler door must be opened from
inside the vehicle by pulling up the fuel
filler door opener.
1. Turn the engine off.
2. Pull up the fuel filler door opener.
OCN7050043OCN7050043
3. Pull the fuel filler door (1) out to fully
open.
4. To remove the fuel tank cap (2), turn
it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
5. Place the cap on the fuel filler door.
Information
2 S H Q D Q G F O R V H W K H U H V H U Y R L U F D S E \ X V L Q J
W K H K D Q G O H R Q W K H F D S F R Y H U I R U V D I H W \
Information
, I W K H I X H O I L O O H U G R R U G R H V Q R W R S H Q
E H F D X V H L F H K D V I R U P H G D U R X Q G L W W D S
O L J K W O \ R U S X V K R Q W K H G R R U W R E U H D N W K H
L F H D Q G U H O H D V H W K H G R R U ' R Q R W S U \ R Q W K H
G R R U , I Q H F H V V D U \ V S U D \ D U R X Q G W K H G R R U
Z L W K D Q D S S U R Y H G G H L F H U I O X L G G R Q R W X V H
U D G L D W R U D Q W L I U H H ] H R U P R Y H W K H Y H K L F O H W R
D Z D U P S O D F H D Q G D O O R Z W K H L F H W R P H O W
Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “Clicks”.
2. Close the fuel filler door until it is
latched securely.
WARNING
Gasoline is highly flammable and
explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:
• Read and follow all warnings posted
at the gas station.
• Before refueling, note the location of
the Emergency Gasoline Shut-Off, if
available, at the gas station.
• Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.
• Do not use cellular phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.
CN7 HMA 5.indd 5-662020-12-03 9:20:56
Page 203 of 584

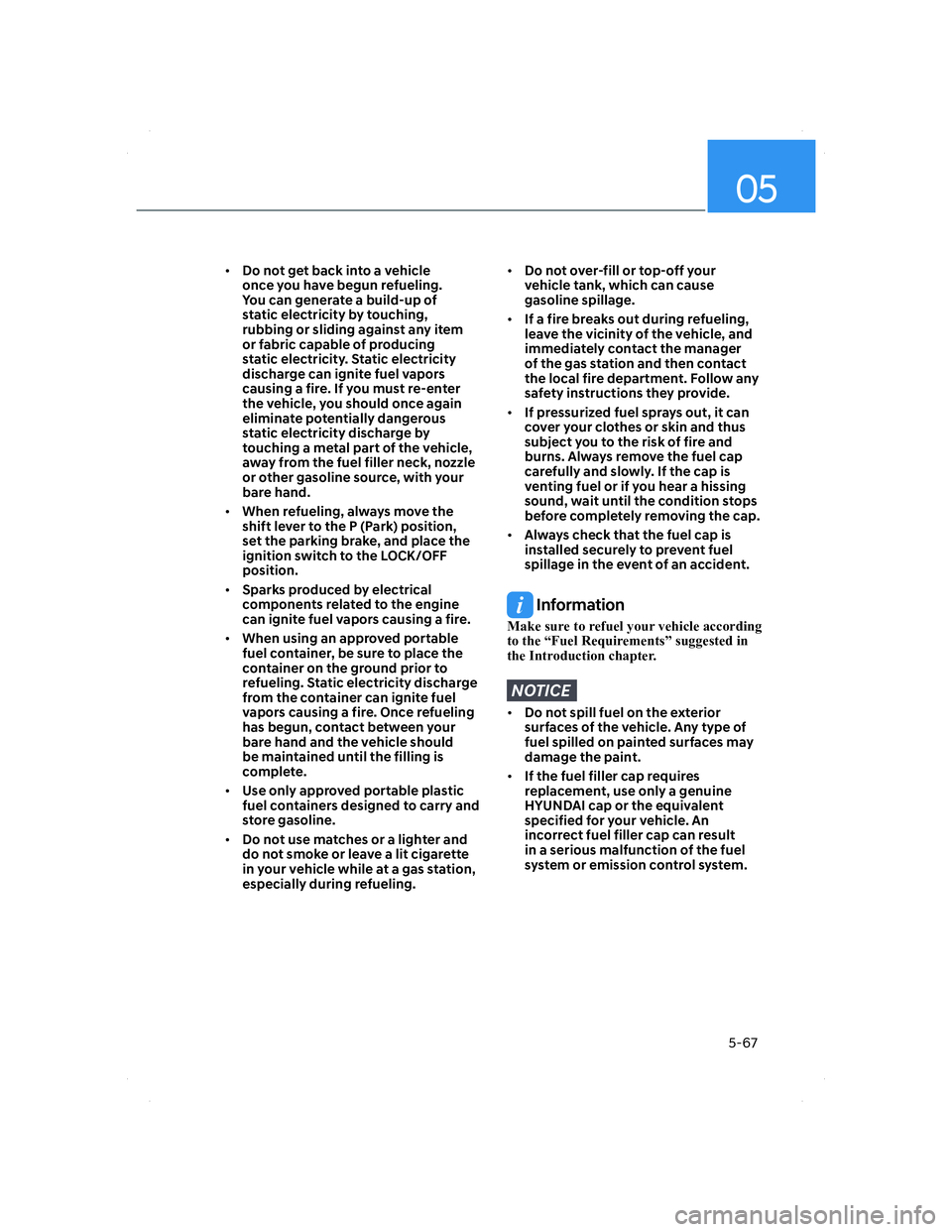

05
5-67
• Do not get back into a vehicle
once you have begun refueling.
You can generate a build-up of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other gasoline source, with your
bare hand.
• When refueling, always move the
shift lever to the P (Park) position,
set the parking brake, and place the
ignition switch to the LOCK/OFF
position.
• Sparks produced by electrical
components related to the engine
can ignite fuel vapors causing a fire.
• When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire. Once refueling
has begun, contact between your
bare hand and the vehicle should
be maintained until the filling is
complete.
• Use only approved portable plastic
fuel containers designed to carry and
store gasoline.
• Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.• Do not over-fill or top-off your
vehicle tank, which can cause
gasoline spillage.
• If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.
• If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.
• Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
0 D N H V X U H W R U H I X H O \ R X U Y H K L F O H D F F R U G L Q J
W R W K H
Page 207 of 584
05
5-71
Battery saver function
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the parking lamp when the
driver turns the vehicle off and opens the
driver-side door.
With this feature, the parking lamps will
turn off automatically if the driver parks
on the side of road at night.
If necessary, to keep the lamps on when
the vehicle is turned off, perform the
following:
(1) Open the driver-side door.
(2) Turn the parking lamps OFF and ON
again using the headlamp switch on
the steering column.
Headlamp delay function
(if equipped)
If you place the ignition switch in the
ACC or OFF position with the headlamps
ON, the headlamps (and/or parking
lamps) remain on for about 5 minutes.
However, with the engine off if the
driver’s door is opened and closed, the
headlamps (and/or parking lamps) are
turned off after 15 seconds.
The headlamps (and/or parking lamps)
can be turned off by pressing the lock
button on the remote key or smart key
twice or turning the light switch to the
OFF or AUTO position. However, if you
turn the light switch to the AUTO position
when it is dark outside, the headlamps
will not be turned off.
You can activate or deactivate the
Headlamp Delay function from the User
Settings Mode in the LCD display.
For more details, refer to “LCD Display
Modes” in chapter 4. If your vehicle is
equipped with additional navigation,
please refer to the infotainment system
manual separately supplied.
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlamp
delay function does not turn OFF
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
turn OFF the headlamps manually from
the headlamp switch before exiting the
vehicle.
CN7 HMA 5.indd 5-712020-12-03 9:21:00
Page 208 of 584
Convenient Features
5-72
HIGH BEAM ASSIST ãHBAä ãIF EQUIPPEDä
OCN7050141NOCN7050141N
High Beam Assist will automatically
adjust the headlamp range (switches
between high beam and low beam)
depending on the brightness of detected
vehicles and certain road conditions.
Detecting sensor (Front view
camera)
OCN7060030OCN7060030 < > ' S P O U W J F X D B N F S B
The front view camera is used as a
detecting sensor to help detect ambient
light and brightness while driving.
Refer to the picture above for the
detailed location of the detecting sensor.
NOTICE
Always keep the front view camera in
good condition to maintain optimal
performance of High Beam Assist.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Function settings
With the engine on, select ‘Lights Ÿ High
Beam Assist (or HBA (High Beam Assist))’
from the Settings menu to turn on High
Beam Assist and deselect to turn off the
system.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe
location.
CN7 HMA 5.indd 5-722020-12-03 9:21:00
Page 211 of 584

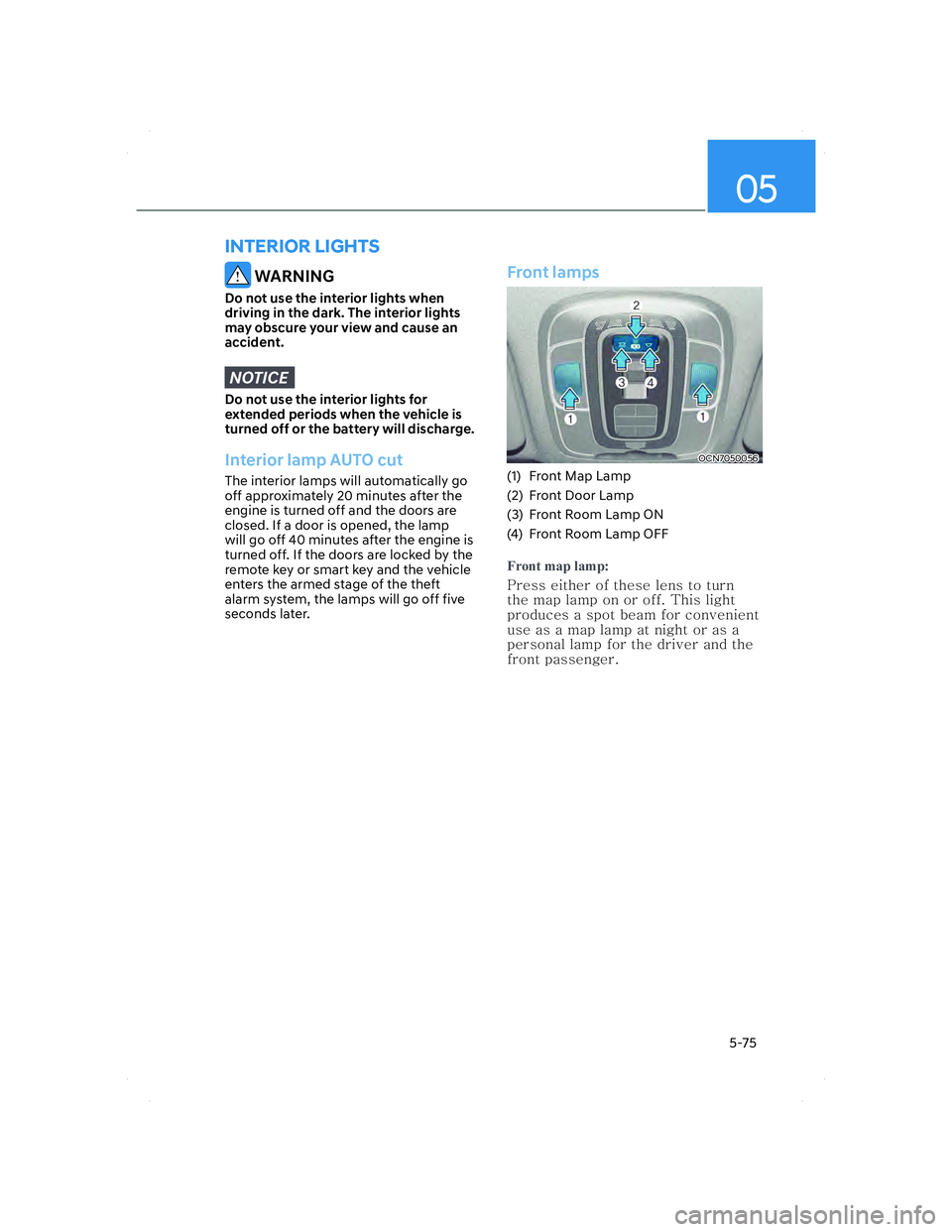

05
5-75
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior lamp AUTO cut
The interior lamps will automatically go
off approximately 20 minutes after the
engine is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the engine is
turned off. If the doors are locked by the
remote key or smart key and the vehicle
enters the armed stage of the theft
alarm system, the lamps will go off five
seconds later.
Front lamps
OCN7050056OCN7050056
(1) Front Map Lamp
(2) Front Door Lamp
(3) Front Room Lamp ON
(4) Front Room Lamp OFF
) U R Q W P D S O D P S
1 S F T T F J U I F S P G U I F T F M F O T U P U V S O
U I F N B Q M B N Q P O P S P G G 5 I J T M J H I U
Q S P E V D F T B T Q P U C F B N G P S D P O W F O J F O U
V T F B T B N B Q M B N Q B U O J H I U P S B T B
Q F S T P O B M M B N Q G P S U I F E S J W F S B O E U I F
G S P O U Q B T T F O H F S
INTERIOR LIGHTS
CN7 HMA 5.indd 5-752020-12-03 9:21:01
Page 212 of 584
Convenient Features
5-76
Front Door Lamp ():
5 I F G S P O U P S S F B S S P P N M B N Q T D P N F
P O X I F O U I F G S P O U P S S F B S E P P S T B S F
P Q F O F E J G U I F F O H J O F J T S V O O J O H P S
O P U 8 I F O E P P S T B S F V O M P D L F E C Z
U I F S F N P U F L F Z P S T N B S U L F Z
U I F
G S P O U B O E S F B S M B N Q T D P N F P O G P S
B Q Q S P Y J N B U F M Z T F D P O E T B T M P O H
B T B O Z E P P S J T O P U P Q F O F E 5 I F G S P O U
B O E S F B S S P P N M B N Q T H P P V U H S B E V B M M Z
B G U F S B Q Q S P Y J N B U F M Z T F D P O E T J G
U I F E P P S J T D M P T F E ) P X F W F S
J G U I F
J H O J U J P O T X J U D I J T J O U I F 0 / Q P T J U J P O
P S B M M E P P S T B S F M P D L F E
U I F G S P O U B O E
S F B S M B N Q T X J M M U V S O P G G * G B E P P S J T
P Q F O F E X J U I U I F J H O J U J P O T X J U D I J O U I F
" $ $ Q P T J U J P O P S U I F 0 ' ' Q P T J U J P O
U I F G S P O U B O E S F B S M B N Q T T U B Z P O G P S
B C P V U N J O V U F T
Front room lamp
!Ÿ
1 S F T T U I F C V U U P O U P U V S O 0 / U I F
S P P N M B N Q G P S U I F G S P O U S F B S
T F B U T
!Ÿ
1 S F T T U I F C V U U P O U P U V S O 0 ' '
U I F S P P N M B N Q G P S U I F G S P O U S F B S
T F B U T

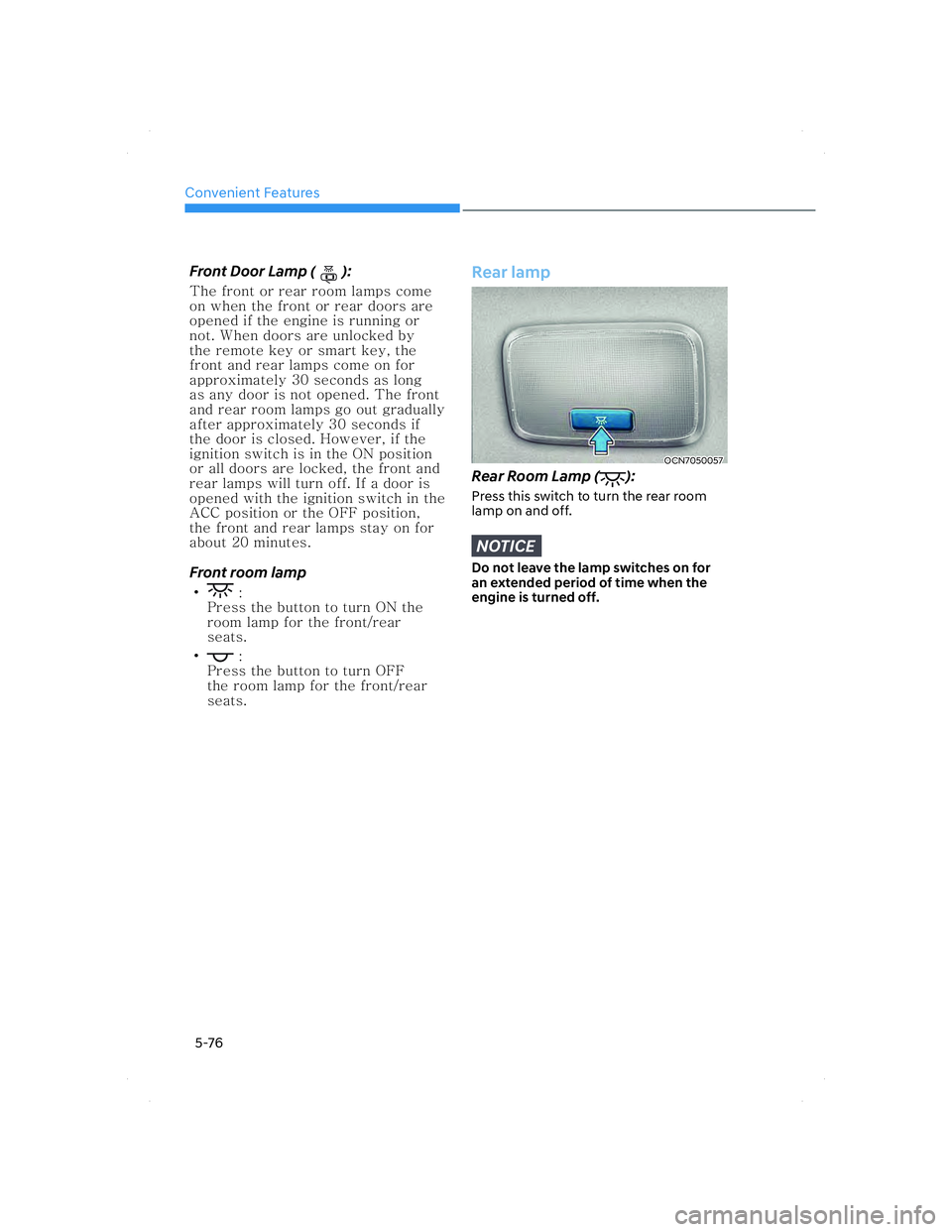

Rear lamp
OCN7050057OCN7050057
Rear Room Lamp ():
Press this switch to turn the rear room
lamp on and off.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
CN7 HMA 5.indd 5-762020-12-03 9:21:01
Page 218 of 584
Convenient Features
5-82
Heating and Air Conditioning
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode or recirculation mode position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
When starting the vehicle in cold weather
a more efficient way to heat the passen-
ger compartment is to do the following.
- Turn off or lower the blower, right
after starting the engine.
• Engine temperature is still low and the
air flow from the heater is still cold.
- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting towards hot.
CN7 HMA 5.indd 5-822020-12-03 9:21:02
