Convenient Features
5-26

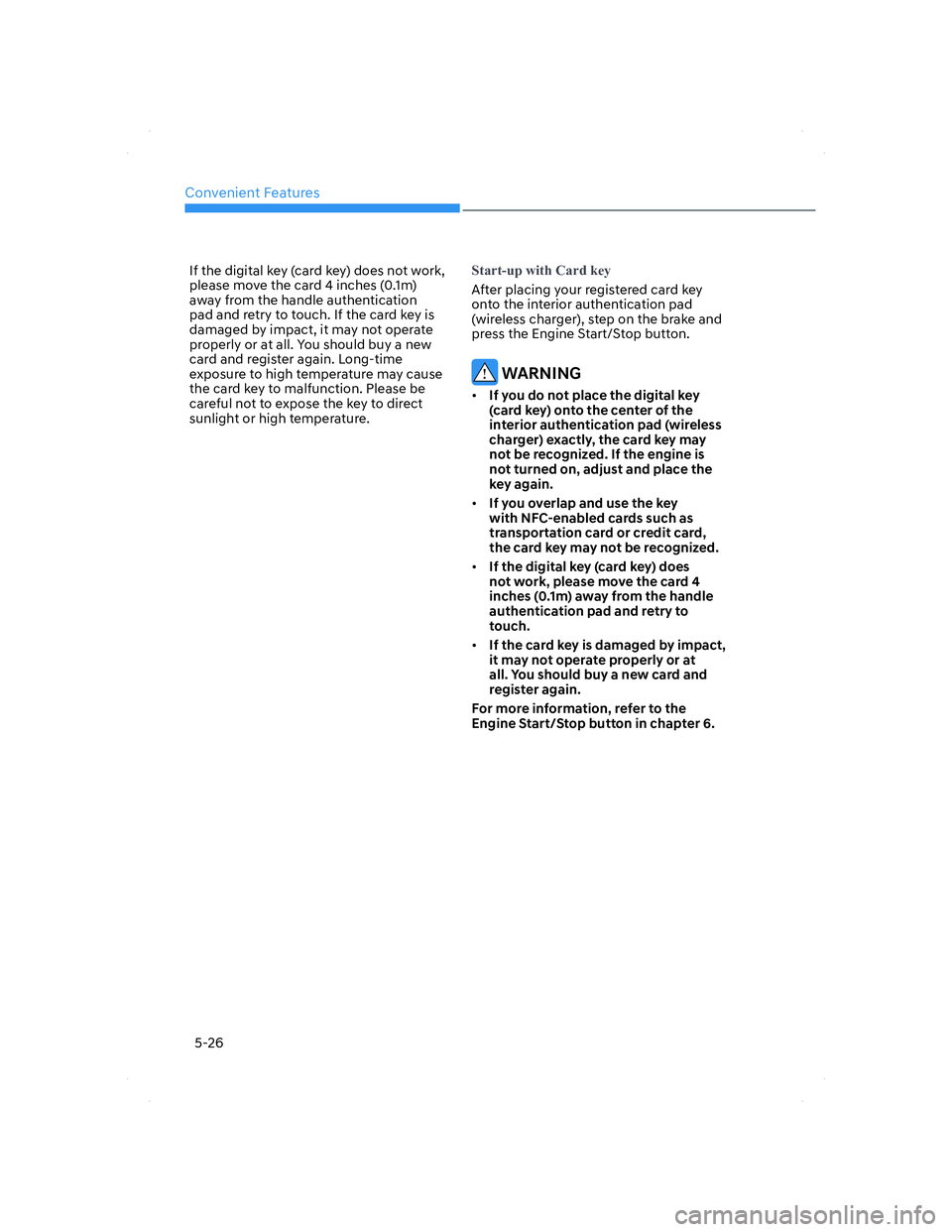

If the digital key (card key) does not work,
please move the card 4 inches (0.1m)
away from the handle authentication
pad and retry to touch. If the card key is
damaged by impact, it may not operate
properly or at all. You should buy a new
card and register again. Long-time
exposure to high temperature may cause
the card key to malfunction. Please be
careful not to expose the key to direct
sunlight or high temperature. 6 W D U W X S Z L W K & D U G N H \
After placing your registered card key
onto the interior authentication pad
(wireless charger), step on the brake and
press the Engine Start/Stop button.
WARNING
• If you do not place the digital key
(card key) onto the center of the
interior authentication pad (wireless
charger) exactly, the card key may
not be recognized. If the engine is
not turned on, adjust and place the
key again.
• If you overlap and use the key
with NFC-enabled cards such as
transportation card or credit card,
the card key may not be recognized.
• If the digital key (card key) does
not work, please move the card 4
inches (0.1m) away from the handle
authentication pad and retry to
touch.
• If the card key is damaged by impact,
it may not operate properly or at
all. You should buy a new card and
register again.
For more information, refer to the
Engine Start/Stop button in chapter 6.
CN7 HMA 5.indd 5-262020-12-03 9:20:45
Page 172 of 584
Convenient Features
5-36
Rear Occupant Alert (ROA)
System
This function helps prevent the driver
from leaving a passenger in the rear
seats.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
OCN7050135LOCN7050135L
NOTICE
When the driver turns off the engine
and opens the driver’s door after
opening and closing a rear door, a
warning message “Check rear seats”
appears.
WARNING
The rear seat passenger alarm system
provides information to the driver to
check the rear seats but it does not
detect whether there is an object or
passenger in the back seats. Please
check the rear seats always when
leaving the vehicle.
CAUTION
The door open and close history is
initialized if the driver turns off the
engine and lock the vehicle door. Even
though the rear door is not opened
again, the alarm may sound if there is
the previous record. For example, if the
driver does not lock the vehicle door
and opens the door to get off after the
alarm sounds, the alarm may go off.
CN7 HMA 5.indd 5-362020-12-03 9:20:47
Page 173 of 584
05
5-37

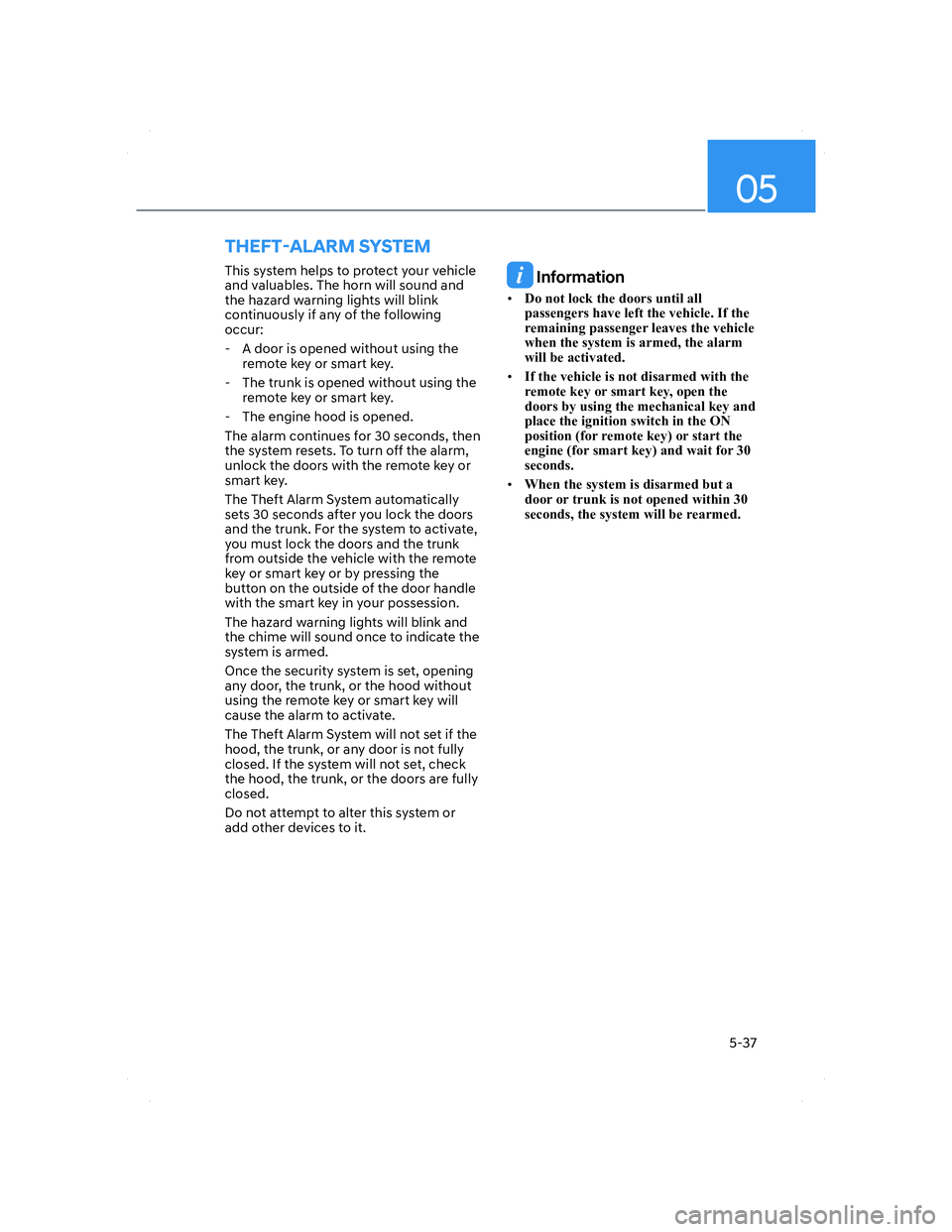

THEFT-ALARM SYSTEM
This system helps to protect your vehicle
and valuables. The horn will sound and
the hazard warning lights will blink
continuously if any of the following
occur:
- A door is opened without using the
remote key or smart key.
- The trunk is opened without using the
remote key or smart key.
- The engine hood is opened.
The alarm continues for 30 seconds, then
the system resets. To turn off the alarm,
unlock the doors with the remote key or
smart key.
The Theft Alarm System automatically
sets 30 seconds after you lock the doors
and the trunk. For the system to activate,
you must lock the doors and the trunk
from outside the vehicle with the remote
key or smart key or by pressing the
button on the outside of the door handle
with the smart key in your possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the trunk, or the hood without
using the remote key or smart key will
cause the alarm to activate.
The Theft Alarm System will not set if the
hood, the trunk, or any door is not fully
closed. If the system will not set, check
the hood, the trunk, or the doors are fully
closed.
Do not attempt to alter this system or
add other devices to it. Information
• ' R Q R W O R F N W K H G R R U V X Q W L O D O O
S D V V H Q J H U V K D Y H O H I W W K H Y H K L F O H , I W K H
U H P D L Q L Q J S D V V H Q J H U O H D Y H V W K H Y H K L F O H
Z K H Q W K H V \ V W H P L V D U P H G W K H D O D U P
Z L O O E H D F W L Y D W H G
• , I W K H Y H K L F O H L V Q R W G L V D U P H G Z L W K W K H
U H P R W H N H \ R U V P D U W N H \ R S H Q W K H
G R R U V E \ X V L Q J W K H P H F K D Q L F D O N H \ D Q G
S O D F H W K H L J Q L W L R Q V Z L W F K L Q W K H 2 1
S R V L W L R Q I R U U H P R W H N H \ R U V W D U W W K H
H Q J L Q H I R U V P D U W N H \ D Q G Z D L W I R U
V H F R Q G V
• : K H Q W K H V \ V W H P L V G L V D U P H G E X W D
G R R U R U W U X Q N L V Q R W R S H Q H G Z L W K L Q
V H F R Q G V W K H V \ V W H P Z L O O E H U H D U P H G
CN7 HMA 5.indd 5-372020-12-03 9:20:47
Page 179 of 584
05
5-43
WARNING
Before programing HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
use the HomeLink® with any garage
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
3 U R J U D P L Q J + R P H / L Q N Š
Please note the following:
• When programing a garage door
opener, it is advised to park the
vehicle outside of the garage.
• It is recommended that a new battery
be placed in the hand-held transmitter
of the device being programed to
HomeLink® for quicker training and
accurate transmission of the radio-
frequency signal.
• Some vehicles may require the
Engine Start/Stop button to be in
the ACC (or “Accessories”) position
for programing and/or operation of
HomeLink®.
• In the event that there are still
programing difficulties or questions
after following the programing steps
listed below, contact HomeLink® at:
www.homelink.com, www.youtube.
com/HomeLinkGentex or by calling
1-800-355-3515.
3 U R J U D P L Q J
To program most devices, follow these
instructions:
OCN7050085NOCN7050085N
1. Press and release (1), (2) or (3) button.
• If the indicator (4) is turned ON in
Orange, go to Step 3) since it is a
new programing.
• If the indicator (4) is continuously
turned ON or flashes in Green rapidly
several times, go to Step 2) since it is
a programed button.
2. Press and hold the button you wish
to program for approximately 15-
25 seconds until the LED flashes in
Orange for several times.
3. Hold the Garage Door Opener Original
Transmitter near the HomeLink Mirror.
CN7 HMA 5.indd 5-432020-12-03 9:20:48
Page 190 of 584
Convenient Features
5-54
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
Power window lock switch
OCN7050027OCN7050027
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock switch.
When the power window lock switch is
pressed:
• The rear passenger control will not
be able to operate the rear passenger
power window
• Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING
• NEVER leave the keys in your vehicle
with unsupervised children, when
the engine is running.
• NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselve s in
the windows, or otherwise injure
themselves or others.
• Always double check to make
sure arms, hands, head and other
obstructions are safely out of the
way before closing a window.
• Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in
the LOCK position (pressed). Serious
injury can result from unintentional
window operation by the child.
• Do not extend your head, arms or
body outside the windows while
driving.
CN7 HMA 5.indd 5-542020-12-03 9:20:51
Page 191 of 584
05
5-55

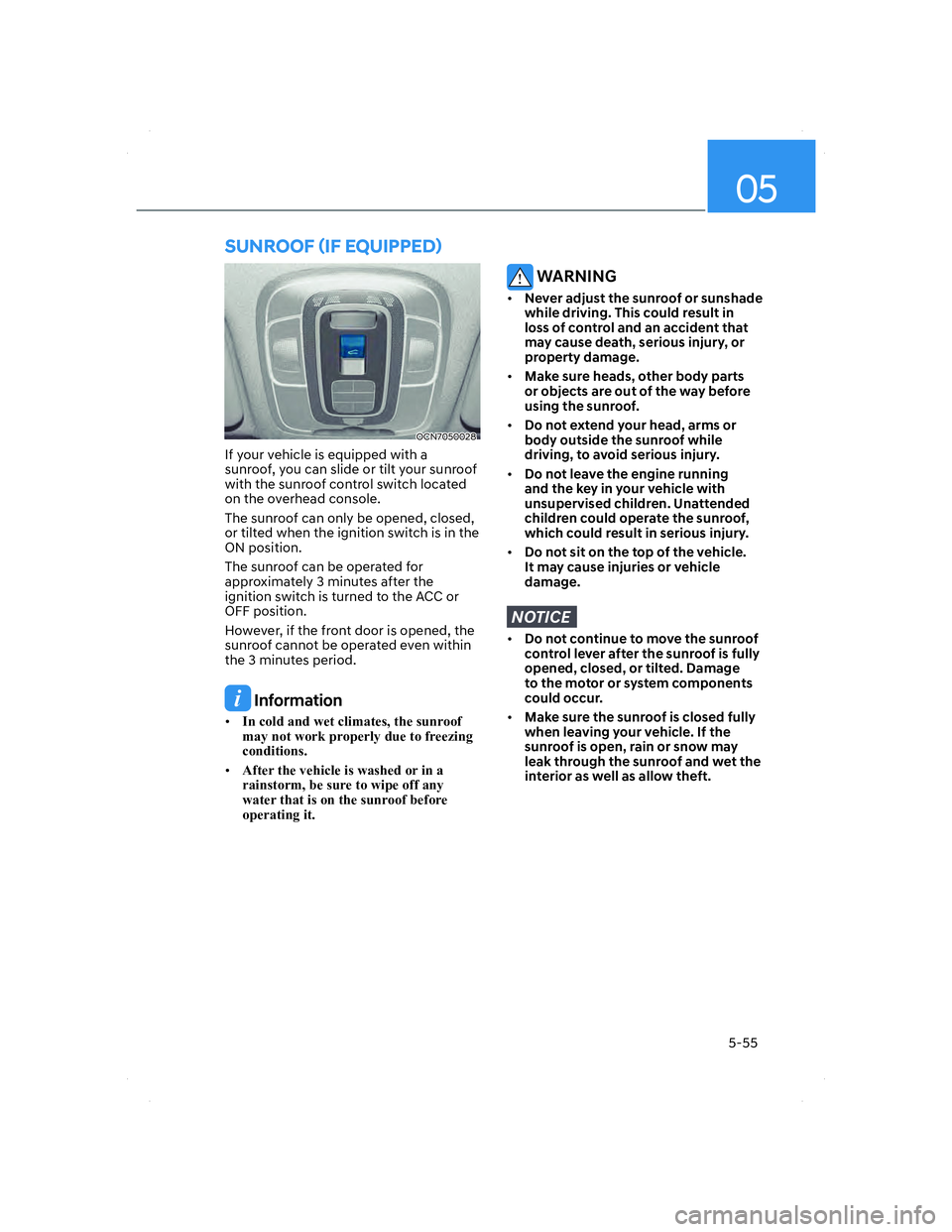

SUNROOF ãIF EQUIPPEDä
OCN7050028OCN7050028
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof control switch located
on the overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in the
ON position.
The sunroof can be operated for
approximately 3 minutes after the
ignition switch is turned to the ACC or
OFF position.
However, if the front door is opened, the
sunroof cannot be operated even within
the 3 minutes period.
Information
• , Q F R O G D Q G Z H W F O L P D W H V W K H V X Q U R R I
P D \ Q R W Z R U N S U R S H U O \ G X H W R I U H H ] L Q J
F R Q G L W L R Q V
• $ I W H U W K H Y H K L F O H L V Z D V K H G R U L Q D
U D L Q V W R U P E H V X U H W R Z L S H R I I D Q \
Z D W H U W K D W L V R Q W K H V X Q U R R I E H I R U H
R S H U D W L Q J L W
WARNING
• Never adjust the sunroof or sunshade
while driving. This could result in
loss of control and an accident that
may cause death, serious injury, or
property damage.
• Make sure heads, other body parts
or objects are out of the way before
using the sunroof.
• Do not extend your head, arms or
body outside the sunroof while
driving, to avoid serious injury.
• Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle.
It may cause injuries or vehicle
damage.
NOTICE
• Do not continue to move the sunroof
control lever after the sunroof is fully
opened, closed, or tilted. Damage
to the motor or system components
could occur.
• Make sure the sunroof is closed fully
when leaving your vehicle. If the
sunroof is open, rain or snow may
leak through the sunroof and wet the
interior as well as allow theft.
CN7 HMA 5.indd 5-552020-12-03 9:20:51
Page 194 of 584
Convenient Features
5-58
Resetting the sunroof
The sunroof may need to be reset if the
following conditions occur:
- The battery is discharged or
disconnected or the sunroof fuse has
been replaced or disconnected.
- The sunroof control lever is not
operating correctly.
1. Turn the ignition switch to the ON
position or start the engine. We
recommend resetting the sunroof
while the engine is running.
2. Close the sunroof completely if
opened.
3. Release the sunroof control lever.
4. Move the sunroof control lever
forward in the direction of close
until the sunroof moves tilt up. Then,
release the lever.
5. Move the sunroof control lever
forward in the direction of close, until
the sunroof operates as follow again:
Tilt down Ÿ Slide Open Ÿ Slide Close
NOTICE
Do not release the lever until the
operation is completed. If you release
the lever during operation, try again
from step 2.
6. Release the sunroof control lever after
all operation has completed. (The
sunroof system has been reset.)
Information
• , I W K H V X Q U R R I G R H V Q R W U H V H W Z K H Q
W K H Y H K L F O H E D W W H U \ L V G L V F R Q Q H F W H G R U
G L V F K D U J H G R U U H O D W H G I X V H L V E O R Z Q W K H
V X Q U R R I P D \ Q R W R S H U D W H Q R U P D O O \
• ) R U P R U H G H W D L O H G L Q I R U P D W L R Q Z H
U H F R P P H Q G W K D W \ R X F R Q W D F W D Q
D X W K R U L ] H G + < 8 1 ' $ , G H D O H U
Sunroof open warning
(if equipped)
• If the driver removes the ignition
key(smart key : turns off the engine)
when the sunroof is not fully closed,
the warning chime will sound for a
few seconds and a warning image will
appear in the LCD window.
Close the sunroof securely when
leaving your vehicle.
OCN7040018OCN7040018
CN7 HMA 5.indd 5-582020-12-03 9:20:52
Page 195 of 584
05
5-59

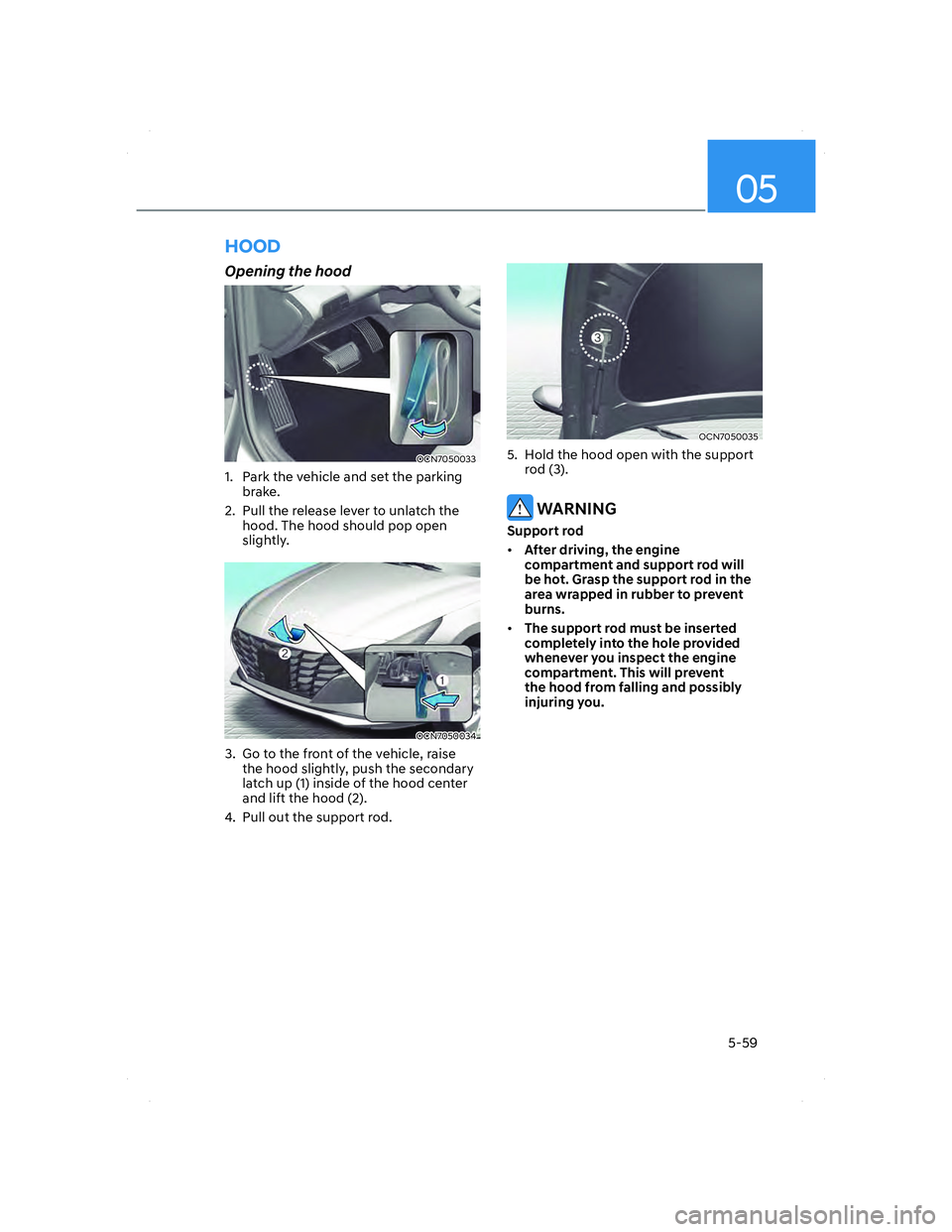

HOOD
Opening the hood
OCN7050033OCN7050033
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
OCN7050034 OCN7050034
3. Go to the front of the vehicle, raise
the hood slightly, push the secondary
latch up (1) inside of the hood center
and lift the hood (2).
4. Pull out the support rod.
OCN7050035OCN7050035
5. Hold the hood open with the support
rod (3).
WARNING
Support rod
• After driving, the engine
compartment and support rod will
be hot. Grasp the support rod in the
area wrapped in rubber to prevent
burns.
• The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent
the hood from falling and possibly
injuring you.
CN7 HMA 5.indd 5-592020-12-03 9:20:52
