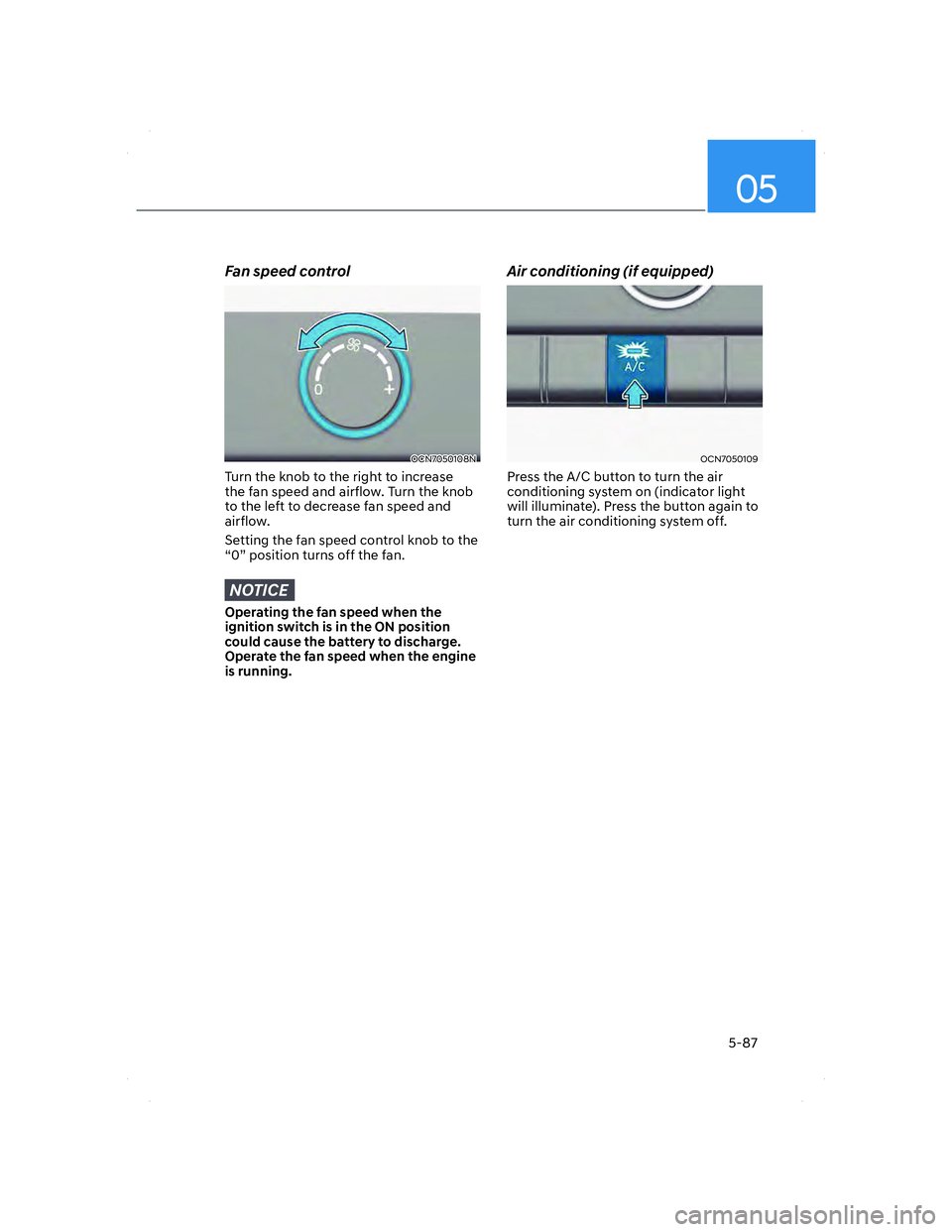

05
5-87
Fan speed control
OCN7050108NOCN7050108N
Turn the knob to the right to increase
the fan speed and airflow. Turn the knob
to the left to decrease fan speed and
airflow.
Setting the fan speed control knob to the
“0” position turns off the fan.
NOTICE
Operating the fan speed when the
ignition switch is in the ON position
could cause the battery to discharge.
Operate the fan speed when the engine
is running.
Air conditioning (if equipped)
OCN7050109OCN7050109
Press the A/C button to turn the air
conditioning system on (indicator light
will illuminate). Press the button again to
turn the air conditioning system off.
CN7 HMA 5.indd 5-872020-12-03 9:21:04
Page 226 of 584
Convenient Features
5-90
$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-902020-12-03 9:21:05
Page 230 of 584
Convenient Features
5-94
OCN7050133OCN7050133
Information
1 H Y H U S O D F H D Q \ W K L Q J Q H D U W K H V H Q V R U W R
H Q V X U H E H W W H U F R Q W U R O R I W K H K H D W L Q J D Q G
F R R O L Q J V \ V W H P
Manual heating and air
conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected. When
pressing any button except the AUTO
button while using automatic operation,
the functions not selected will be
controlled automatically.
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button in order to
convert to full automatic control of
the system.
CN7 HMA 5.indd 5-942020-12-03 9:21:06
Page 235 of 584
05
5-99
Information
2 S H U D W L Q J W K H V \ V W H P S U L P D U L O \ L Q ) U H V K
P R G H L V U H F R P P H Q G H G 8 V H 5 H F L U F X O D W L R Q
P R G H W H P S R U D U L O \ R Q O \ Z K H Q Q H H G H G
3 U R O R Q J H G R S H U D W L R Q R I W K H K H D W H U L Q
5 H F L U F X O D W L R Q P R G H D Q G Z L W K R X W W K H $ &
2 1 F D Q F D X V H I R J J L Q J R I W K H Z L Q G V K L H O G
, Q D G G L W L R Q S U R O R Q J H G X V H R I W K H $ &
2 1 L Q 5 H F L U F X O D W L R Q P R G H P D \ U H V X O W L Q
H [ F H V V L Y H O \ G U \ G H K X P L G L I L H G D L U L Q W K H
F D E L Q D Q G P D \ S U R P R W H I R U P D W L R Q R I
P X V W \ Y H Q W R G R U G X H W R V W D J Q D Q W D L U
WARNING
• Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.
• Continued use of the climate control
system operation in Recirculation
mode with the A/C OFF may allow
humidity to increase inside the cabin.
This may cause condensation to
accumulate on the windshield and
obscure visibility.
• Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.
Fan speed control
OCN7050118OCN7050118
The fan speed can be set to the desired
speed by using the fan speed control
toggle switch.
More air is delivered with higher fan
speeds.
Pressing the OFF button turns off the fan.
NOTICE
Operating the fan speed when the
ignition switch is in the ON position
could cause the battery to discharge.
Operate the fan speed when the engine
is running.
CN7 HMA 5.indd 5-992020-12-03 9:21:08
Page 238 of 584
Convenient Features
5-102
$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-1022020-12-03 9:21:09
Page 245 of 584
05
5-109
Sunroof inside air recirculation
(if equipped)
When the sunroof is opened, outside
(fresh) air will be automatically selected.
At this time, if you press the air intake
control button, recirculated air position
will be selected but will change back
to outside (fresh) air after 3 minutes.
When the sunroof is closed, the air
intake position will return to the original
position that was selected.
Auto comfort control (for driver’s
seat) (if equipped)
The temperature of the driver’s seat
warmer, air ventilation seat and
heated steering wheel is automatically
controlled depending on the inside and
outside temperature of the vehicle when
the engine is running.
To use this function, it must be
activated from the Settings menu in the
Infotainment system screen. Select:
- All menus Ÿ Setup Ÿ Vehicle Ÿ Heated
/ Ventilated Features
For more details on Auto Comfort
Control, refer to “Seat warmers and
air ventilation seat” in chapter 3, and
“Heated steering wheel” in chapter 5
Automatic ventilation (if
equipped)
The system automatically selects the
fresh mode when the climate control
system operates over a certain period of
time (approximately 30 minutes) in low
temperature with the recirculation mode
selected.
To cancel or reactivate the
Automatic Ventilation
When the air conditioning system is on,
select Face Level mode and press the
air recirculation mode button at least 5
times within 3 seconds while pressing
the A/C button.
When the automatic ventilation is
canceled, the indicator blinks 3 times.
When the automatic ventilation is
activated, the indicator blinks 6 times.
CLIMATE CONTROL ADDITIONAL FEATURES
CN7 HMA 5.indd 5-1092020-12-03 9:21:11
Page 248 of 584
Convenient Features
5-112
Sunvisor
OIG046437OIG046437
To use a sunvisor, pull it downward.
To use a sunvisor for a side window, pull
it downward, unsnap it from the bracket
(1) and swing it to the side (2).
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4, if equipped) as needed.
Use the ticket holder (5) to hold tickets.
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
NOTICE
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
Do not put several tickets in the ticket
holder at one time. This could cause
damage to the ticket holder.
Power Outlet
OCN7050068OCN7050068
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 W with the engine
running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
CN7 HMA 5.indd 5-1122020-12-03 9:21:13
Page 249 of 584
05
5-113
NOTICE
To prevent damage to the Power
Outlets:
• Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.
• Only use 12V electric accessories
which are less than 180 W in electric
capacity.
• Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.
• Close the cover when not in use.
• Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.
• Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.
• Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
USB Charger
OCN7050069OCN7050069Insert the USB charger into the USB port,
and re-charge a smart phone or a tablet
PC.
• A charging status/charging
completion message is displayed on
a screen of a smart phone or a tablet
PC.
• A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.
• A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.
• The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media on the
infotainment system.
CN7 HMA 5.indd 5-1132020-12-03 9:21:13
