2022 HYUNDAI ELANTRA engine

06
6-9

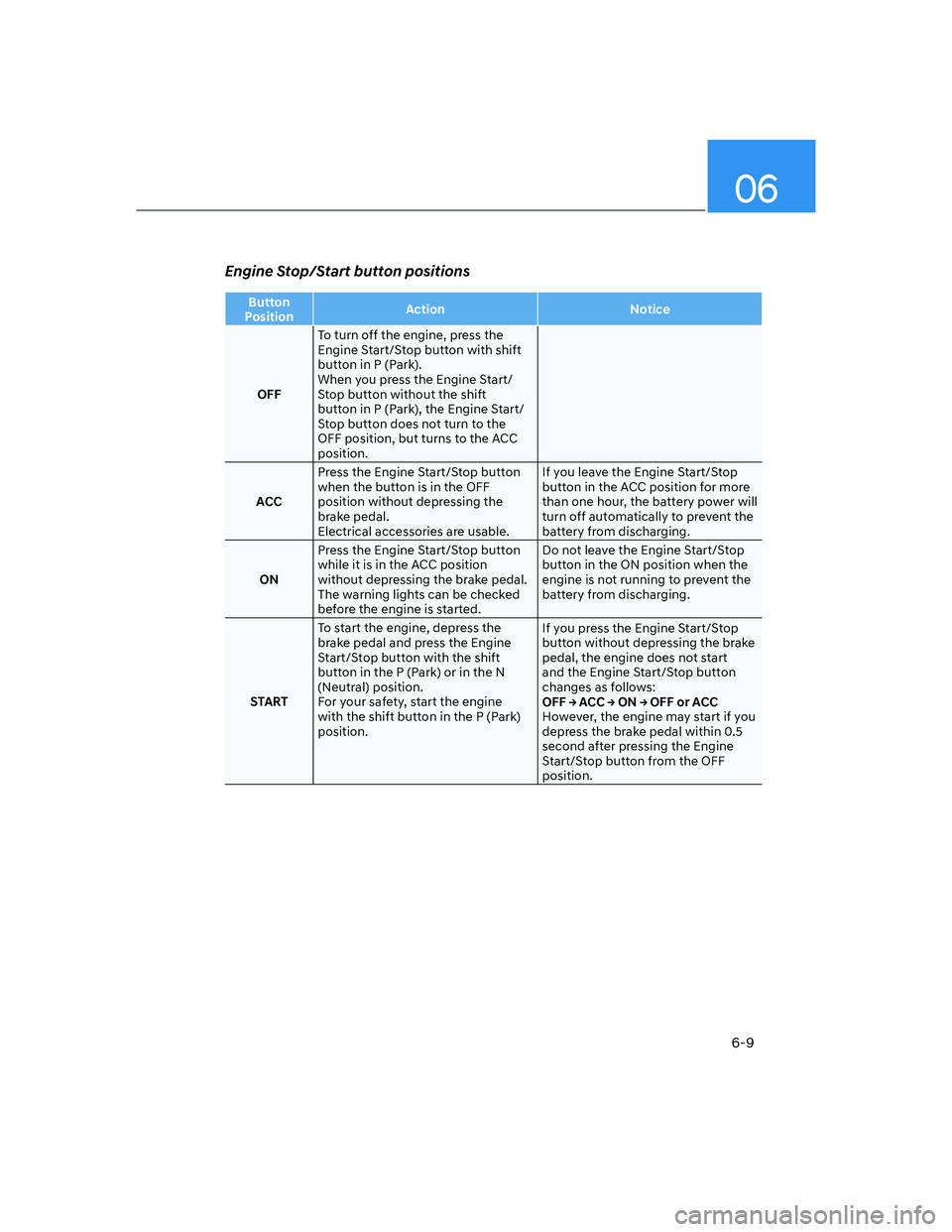

Engine Stop/Start button positions
Button
PositionAction Notice
OFFTo turn off the engine, press the
Engine Start/Stop button with shift
button in P (Park).
When you press the Engine Start/
Stop button without the shift
button in P (Park), the Engine Start/
Stop button does not turn to the
OFF position, but turns to the ACC
position.
ACCPress the Engine Start/Stop button
when the button is in the OFF
position without depressing the
brake pedal.
Electrical accessories are usable.If you leave the Engine Start/Stop
button in the ACC position for more
than one hour, the battery power will
turn off automatically to prevent the
battery from discharging.
ONPress the Engine Start/Stop button
while it is in the ACC position
without depressing the brake pedal.
The warning lights can be checked
before the engine is started.Do not leave the Engine Start/Stop
button in the ON position when the
engine is not running to prevent the
battery from discharging.
STARTTo start the engine, depress the
brake pedal and press the Engine
Start/Stop button with the shift
button in the P (Park) or in the N
(Neutral) position.
For your safety, start the engine
with the shift button in the P (Park)
position.If you press the Engine Start/Stop
button without depressing the brake
pedal, the engine does not start
and the Engine Start/Stop button
changes as follows:
2))

While Driving
6-10
Starting the engine
WARNING

[Always wear appropriate shoes when
operating your vehicle.
Unsuitable shoes, such as high heels,
ski boots, sandals, flip-flops, etc.,
may interfere with your ability to use
the brake and accelerator pedals.

[Do not start the vehicle with the
accelerator pedal depressed. The
vehicle can move and lead to an
accident.

[Wait until the engine rpm is normal.
The vehicle may suddenly move if
the brake pedal is released when the
rpm is high.
Information

[The engine will start by pressing the
Engine Start/Stop button, only when
the smart key is in the vehicle.

[Even if the smart key is in the vehicle,
if it is far away from the driver, the
engine may not start.

[When the Engine Start/Stop button
is in the ACC or ON position, if any
door is open, the system checks for the
smart key. If the smart key is not in the
vehicle, the “
” indicator will blink
and the warning "Key not in vehicle"
will come on and if all doors are closed,
the chime will also sound for about
5 seconds. Keep the smart key in the
vehicle when using the ACC position or
if the vehicle engine is ON.Vehicle with manual transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
3. Make sure the shift lever is in neutral.
4. Depress the clutch and brake pedals.
5. Press the Engine Start/Stop button.
Information
Depress the brake pedal and clutch pedal
until the engine starts.
Vehicle with intelligent variable
transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button.
Information

[Do not wait for the engine to warm up
while the vehicle remains stationary.
Start driving at moderate engine
speeds. (Aggressive accelerating and
decelerating should be avoided.)

[Always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not rev the engine while warming
it up.

06
6-11

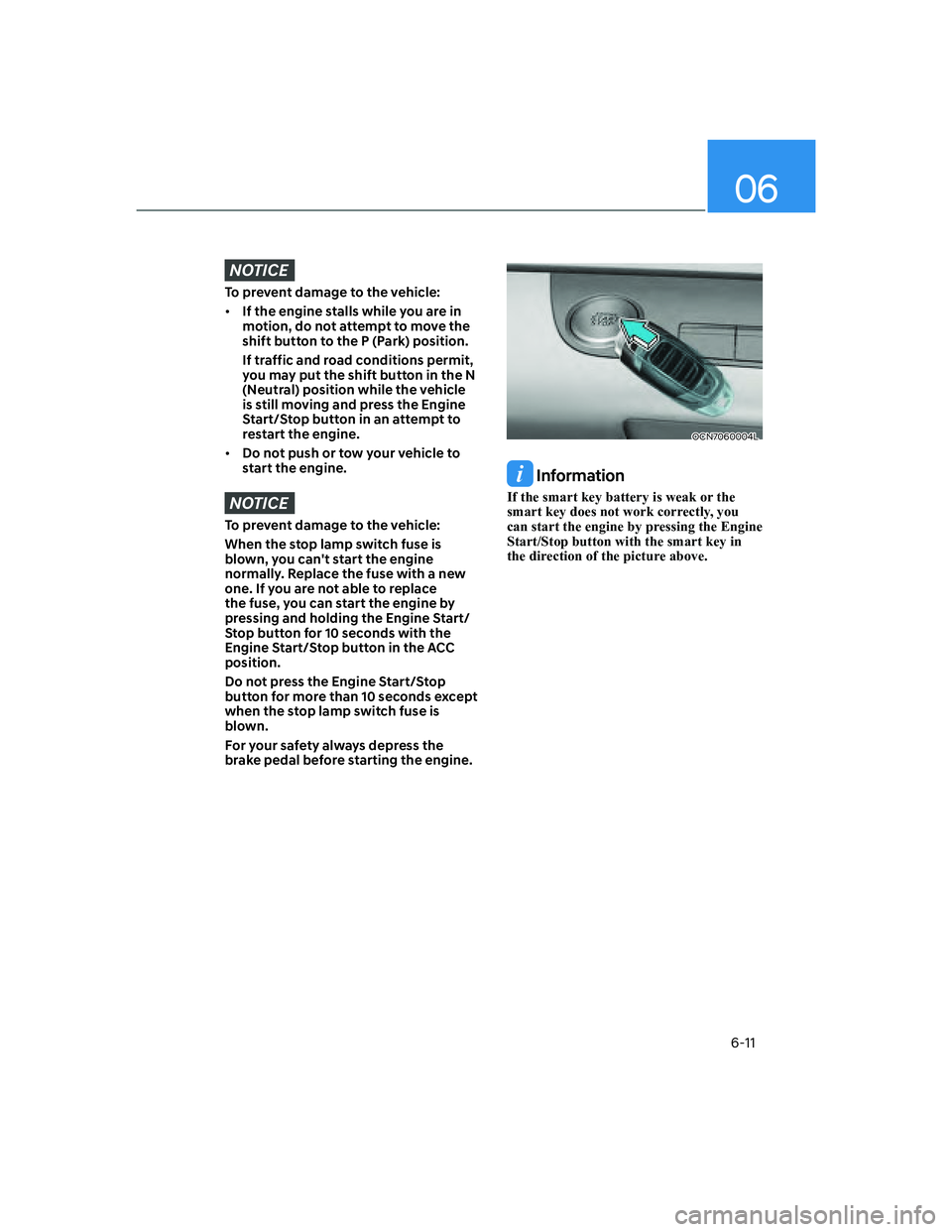

NOTICE
To prevent damage to the vehicle:

[If the engine stalls while you are in
motion, do not attempt to move the
shift button to the P (Park) position.
If traffic and road conditions permit,
you may put the shift button in the N
(Neutral) position while the vehicle
is still moving and press the Engine
Start/Stop button in an attempt to
restart the engine.

[Do not push or tow your vehicle to
start the engine.
NOTICE
To prevent damage to the vehicle:
When the stop lamp switch fuse is
blown, you can't start the engine
normally. Replace the fuse with a new
one. If you are not able to replace
the fuse, you can start the engine by
pressing and holding the Engine Start/
Stop button for 10 seconds with the
Engine Start/Stop button in the ACC
position.
Do not press the Engine Start/Stop
button for more than 10 seconds except
when the stop lamp switch fuse is
blown.
For your safety always depress the
brake pedal before starting the engine.
OCN7060004L
Information
If the smart key battery is weak or the
smart key does not work correctly, you
can start the engine by pressing the Engine
Start/Stop button with the smart key in
the direction of the picture above.

While Driving
6-12
Auto shut-off system (if equipped)
To prevent accidents caused by carbon
dioxide poisoning, the engine is turned
off automatically 60 minutes later when
the following conditions are satisfied.
The timer appears on the instrument
cluster 30 minutes before it turns off
automatically.
Operating conditions

[The driver does not fasten a seat belt

[No one in the passenger's seat

[Stop the vehicle and the speed is
under 1.86mph and the gear shift is
in P

[While the brake or accelerator is not
working

[When AVN update is performing
Cluster timer reset conditions

[Release the accelerator or brake after
completing operation

[Press the OK button on the steering
wheel while the timer appears on the
instrument cluster
Off conditions

[The driver fastened the seat belt

[A passenger is in the pasenger's seat

[Driving over 1.86mph

[Shifting the gear in R, N or D
CAUTION
Please do not leave a passenger or a pet
in the vehicle since the air conditioning
system stops when the engine is off.

6-13
06

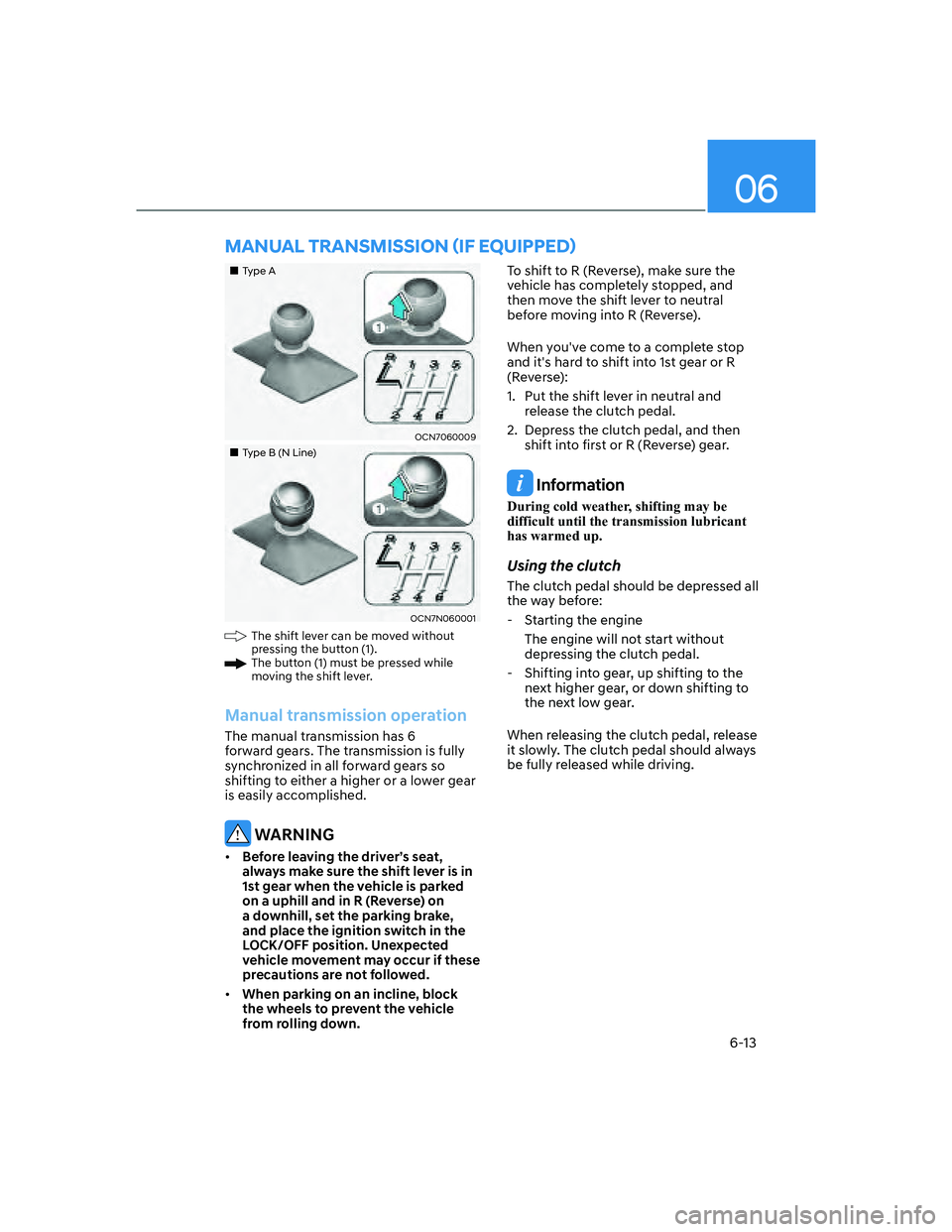

„Type A
OCN7060009
„Type B (N Line)
OCN7N060001
The shift lever can be moved without
pressing the button (1).
The button (1) must be pressed while
moving the shift lever.
Manual transmission operation
The manual transmission has 6
forward gears. The transmission is fully
synchronized in all forward gears so
shifting to either a higher or a lower gear
is easily accomplished.
WARNING

[Before leaving the driver’s seat,
always make sure the shift lever is in
1st gear when the vehicle is parked
on a uphill and in R (Reverse) on
a downhill, set the parking brake,
and place the ignition switch in the
LOCK/OFF position. Unexpected
vehicle movement may occur if these
precautions are not followed.

[When parking on an incline, block
the wheels to prevent the vehicle
from rolling down.To shift to R (Reverse), make sure the
vehicle has completely stopped, and
then move the shift lever to neutral
before moving into R (Reverse).
When you've come to a complete stop
and it's hard to shift into 1st gear or R
(Reverse):
1. Put the shift lever in neutral and
release the clutch pedal.
2. Depress the clutch pedal, and then
shift into first or R (Reverse) gear.
Information
During cold weather, shifting may be
difficult until the transmission lubricant
has warmed up.
Using the clutch
The clutch pedal should be depressed all
the way before:
- Starting the engine
The engine will not start without
depressing the clutch pedal.
- Shifting into gear, up shifting to the
next higher gear, or down shifting to
the next low gear.
When releasing the clutch pedal, release
it slowly. The clutch pedal should always
be fully released while driving.
MANUAL TRANSMISSION
ãIF EQUIPPED
ä

While Driving
6-14
NOTICE
To prevent unnecessary wear or
damage to the clutch:

[Do not rest your foot on the clutch
pedal while driving.

[Do not hold the vehicle with the
clutch on an incline, while waiting for
the traffic light, etc.

[Always depress the clutch pedal
down fully to prevent noise or
damage.

[Do not start with the 2nd (second)
gear engaged except when you start
on a slippery road.

[Do not drive with cargo loaded more
than the recommended loading
capacity.

[Make sure to depress the clutch
pedal until the engine starts
completely. If you release the clutch
pedal before the engine starts
completely, the engine may stop.
Downshifting
Down shift to a lower gear when slowing
down in heavy traffic or driving up a
steep hill to prevent high engine loads.
Also, downshifting reduces the chance
of stalling and helps to reaccelerate the
vehicle when you need to increase your
speed.
When the vehicle is going downhill,
downshifting helps maintain safe speed
by providing a load from the engine and
results in less wear on the brakes.
NOTICE
To prevent damage to the engine,
clutch and transmission:

[When downshifting from 5th
gear to 4th gear, be careful not to
inadvertently push the shift lever
sideways engaging the 2nd gear.
A drastic downshift may cause the
engine speed to increase to the point
the tachometer will enter the red-
zone and may cause engine damage.

[Do not downshift more than two
gears at a time or downshift the
gear when the engine is running at
high speed (5,000 RPM or higher).
Such downshifting may damage the
engine, clutch and the transmission.

06
6-15
Good driving practices

[Never take the vehicle out of gear and
coast down a hill. This is extremely
dangerous.

[Don't "ride" the brakes. This can
cause the brakes and related parts to
overheat and malfunction.

[When you are driving down a long hill,
slow down and shift to a lower gear.
Engine braking will help slow down
the vehicle.

[Slow down before shifting to a lower
gear. This will help avoid over-revving
the engine, which can cause damage.

[Slow down when you encounter cross
winds. This gives you much better
control of your vehicle.

[Be sure the vehicle is completely
stopped before you shift into R
(Reverse) to prevent damage to the
transmission.

[Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident. WARNING
Do not use the engine brake (shifting
from a higher gear to lower gear)
rapidly on slippery roads. The vehicle
may slip causing an accident.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[Avoid high speeds when cornering or
turning.

[Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.

[HYUNDAI recommends you follow all
posted speed limits.

06

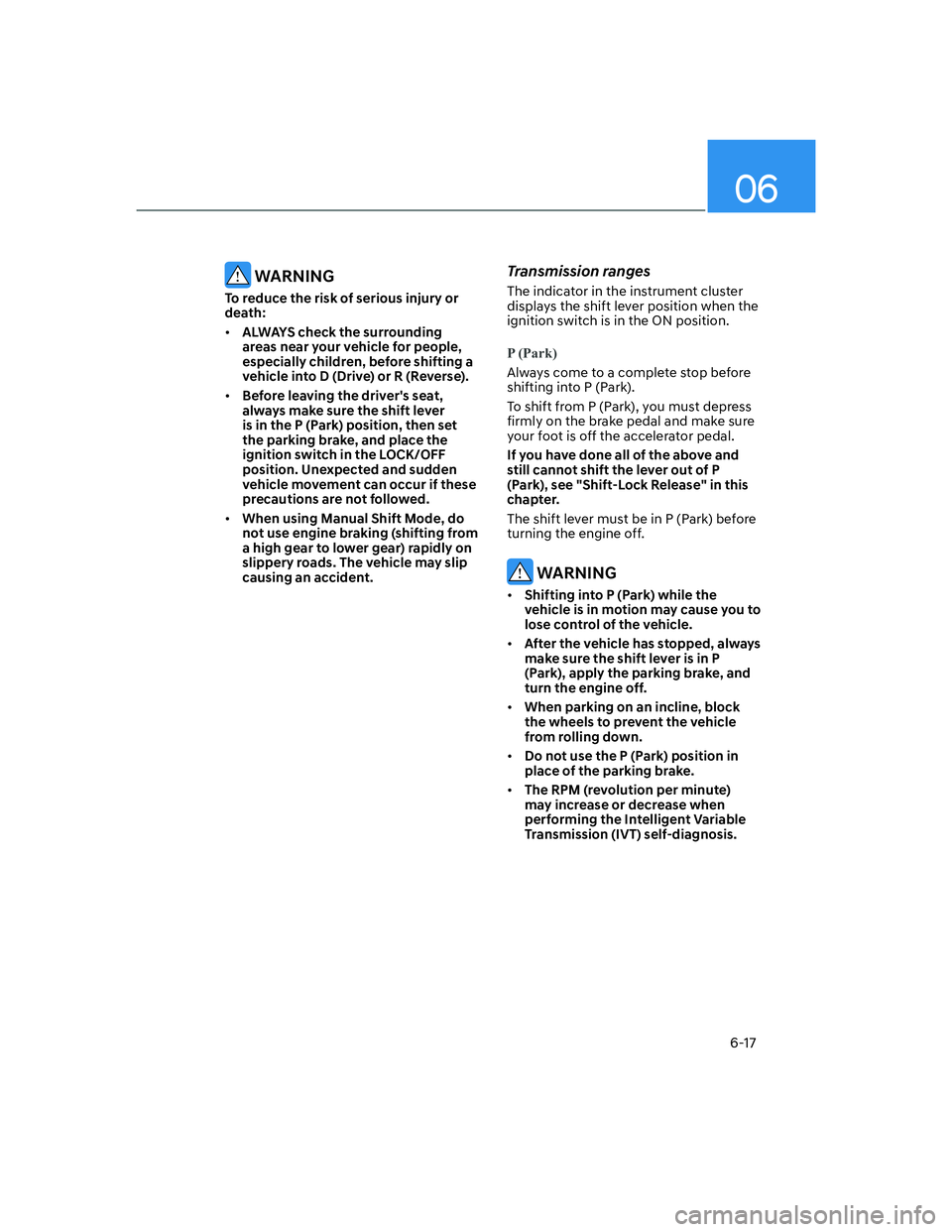

6-17
WARNING
To reduce the risk of serious injury or
death:

[ALWAYS check the surrounding
areas near your vehicle for people,
especially children, before shifting a
vehicle into D (Drive) or R (Reverse).

[Before leaving the driver's seat,
always make sure the shift lever
is in the P (Park) position, then set
the parking brake, and place the
ignition switch in the LOCK/OFF
position. Unexpected and sudden
vehicle movement can occur if these
precautions are not followed.

[When using Manual Shift Mode, do
not use engine braking (shifting from
a high gear to lower gear) rapidly on
slippery roads. The vehicle may slip
causing an accident.
Transmission ranges
The indicator in the instrument cluster
displays the shift lever position when the
ignition switch is in the ON position.
P (Park)
Always come to a complete stop before
shifting into P (Park).
To shift from P (Park), you must depress
firmly on the brake pedal and make sure
your foot is off the accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see "Shift-Lock Release" in this
chapter.
The shift lever must be in P (Park) before
turning the engine off.
WARNING

[Shifting into P (Park) while the
vehicle is in motion may cause you to
lose control of the vehicle.

[After the vehicle has stopped, always
make sure the shift lever is in P
(Park), apply the parking brake, and
turn the engine off.

[When parking on an incline, block
the wheels to prevent the vehicle
from rolling down.

[Do not use the P (Park) position in
place of the parking brake.

[The RPM (revolution per minute)
may increase or decrease when
performing the Intelligent Variable
Transmission (IVT) self-diagnosis.
