WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
NOTICE
• Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.
• Be careful when washing the side
windows of your vehicle.
Especially, with high-pressure water,
water may leak through the windows
and wet the interior.
• To prevent damage to the plastic
parts, do not clean with chemical
solvents or strong detergents.ODN8A089039ODN8A089039
NOTICE
• Water washing in the engine
compartment including high
pressure water washing may cause
the failure of electrical circuits
located in the engine compartment.
• Never allow water or other liquids
to come in contact with electrical/
electronic components inside the
vehicle as this may damage them.
NOTICE
Matte paint finish vehicle (if equipped)
Automatic car wash which uses rotating
brushes should not be used as this can
damage the surface of your vehicle. A
steam cleaner which washes the vehicle
surface at high temperature may cause
oil to adhere and leave stains that is
difficult to remove.
Use a soft cloth (e.g. microfiber towel
or sponge) when washing your vehicle
and dry with a microfiber towel. When
you hand wash your vehicle, you should
not use a cleaner that finishes with wax.
If the vehicle surface is too dirty (sand,
dirt, dust, contaminant, etc.), clean the
surface with water before washing the
car.
CN7 HMA 9.indd 9-632020-12-03 9:42:37

09
9-71
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Owner’s
Handbook & Warranty Information
booklet in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations. There
are three emission control systems, as
follows.
(1) Crankcase emission control system
(2) Evaporative emission control system
(3) Exhaust emission control system
In order to ensure the proper function
of the emission control systems, it
is recommended that you have your
vehicle inspected and maintained
by an authorized HYUNDAI dealer in
accordance with the maintenance
schedule in this manual.
NOTICE
For the Inspection and Maintenance
Test (with Electronic Stability Control
(ESC) system)
• To prevent the vehicle from misfiring
during dynamometer testing, turn
the Electronic Stability Control
(ESC) system off by pressing the ESC
switch (ESC OFF light illuminated).
• After dynamometer testing is
completed, turn the ESC system back
on by pressing the ESC switch again.
1. Crankcase Emission Control
System
The positive crankcase ventilation system
is employed to prevent air pollution
caused by blow-by gases being emitted
from the crankcase. This system supplies
fresh filtered air to the crankcase through
the air intake hose. Inside the crankcase,
the fresh air mixes with blow-by gases,
which then pass through the PCV valve
into the induction system.
2. Evaporative Emission Control
System Including Onboard
Refueling Vapor Recovery
(ORVR)
The Evaporative Emission Control System
is designed to prevent fuel vapors from
escaping into the atmosphere. The
ORVR system is designed to allow the
vapors from the fuel tank to be loaded
into a canister while refueling at the gas
station, preventing the escape of fuel
vapors into the atmosphere.
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in the
canister are drawn into the surge tank
through the purge control solenoid valve.
Purge Control Solenoid Valve (PCSV)
The purge control solenoid valve
is controlled by the Engine Control
Module (ECM); when the engine coolant
temperature is low during idling, the
PCSV closes so that evaporated fuel
is not taken into the engine. After the
engine warms-up during ordinary
driving, the PCSV opens to introduce
evaporated fuel to the engine.
EMISSION CONTROL SYSTEM
CN7 HMA 9.indd 9-712020-12-03 9:42:38

Maintenance
9-72

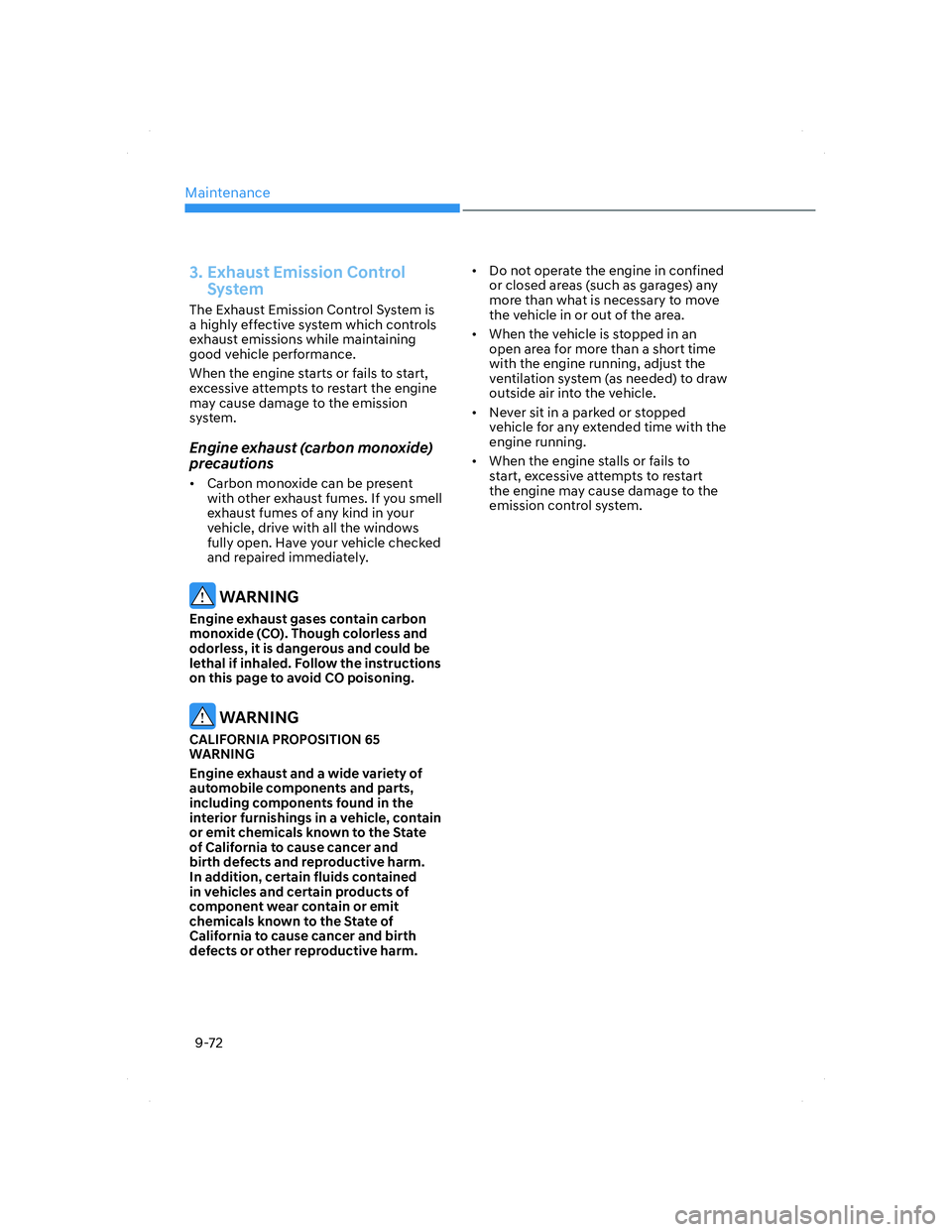

3. Exhaust Emission Control
System
The Exhaust Emission Control System is
a highly effective system which controls
exhaust emissions while maintaining
good vehicle performance.
When the engine starts or fails to start,
excessive attempts to restart the engine
may cause damage to the emission
system.
Engine exhaust (carbon monoxide)
precautions
• Carbon monoxide can be present
with other exhaust fumes. If you smell
exhaust fumes of any kind in your
vehicle, drive with all the windows
fully open. Have your vehicle checked
and repaired immediately.
WARNING
Engine exhaust gases contain carbon
monoxide (CO). Though colorless and
odorless, it is dangerous and could be
lethal if inhaled. Follow the instructions
on this page to avoid CO poisoning.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide variety of
automobile components and parts,
including components found in the
interior furnishings in a vehicle, contain
or emit chemicals known to the State
of California to cause cancer and
birth defects and reproductive harm.
In addition, certain fluids contained
in vehicles and certain products of
component wear contain or emit
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.• Do not operate the engine in confined
or closed areas (such as garages) any
more than what is necessary to move
the vehicle in or out of the area.
• When the vehicle is stopped in an
open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to draw
outside air into the vehicle.
• Never sit in a parked or stopped
vehicle for any extended time with the
engine running.
• When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to the
emission control system.
CN7 HMA 9.indd 9-722020-12-03 9:42:38

09
9-73

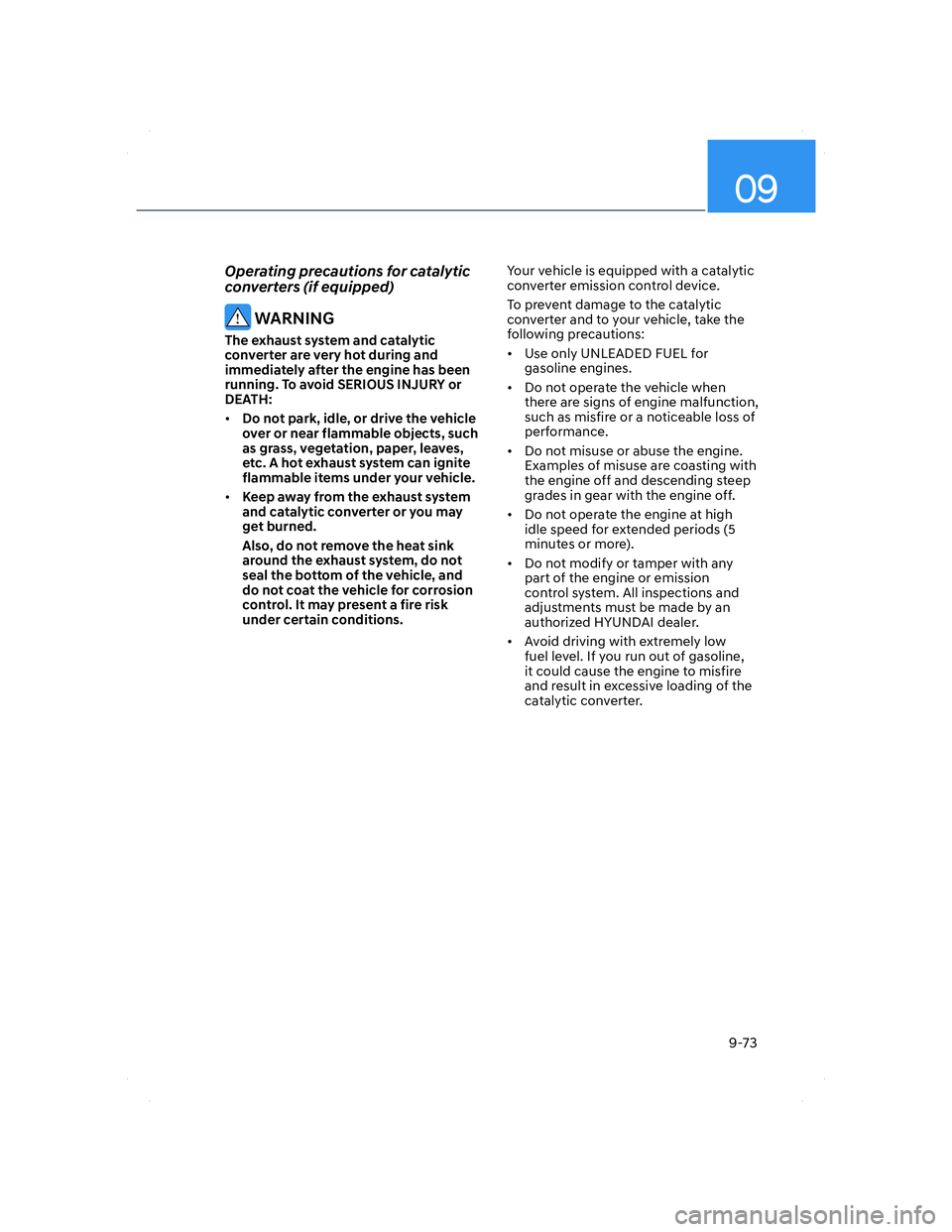

Operating precautions for catalytic
converters (if equipped)
WARNING
The exhaust system and catalytic
converter are very hot during and
immediately after the engine has been
running. To avoid SERIOUS INJURY or
DEATH:
• Do not park, idle, or drive the vehicle
over or near flammable objects, such
as grass, vegetation, paper, leaves,
etc. A hot exhaust system can ignite
flammable items under your vehicle.
• Keep away from the exhaust system
and catalytic converter or you may
get burned.
Also, do not remove the heat sink
around the exhaust system, do not
seal the bottom of the vehicle, and
do not coat the vehicle for corrosion
control. It may present a fire risk
under certain conditions.Your vehicle is equipped with a catalytic
converter emission control device.
To prevent damage to the catalytic
converter and to your vehicle, take the
following precautions:
• Use only UNLEADED FUEL for
gasoline engines.
• Do not operate the vehicle when
there are signs of engine malfunction,
such as misfire or a noticeable loss of
performance.
• Do not misuse or abuse the engine.
Examples of misuse are coasting with
the engine off and descending steep
grades in gear with the engine off.
• Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
• Do not modify or tamper with any
part of the engine or emission
control system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
• Avoid driving with extremely low
fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of the
catalytic converter.
CN7 HMA 9.indd 9-732020-12-03 9:42:38

I
I-5
E
Emission Control System .................................................................................... 9-71
Engine Compartment ..................................................................................... 2-8/ 9-3
Engine Coolant .................................................................................................... 9-17
Changing Engine Coolant ................................................................................ 9-19
Checking the Engine Coolant Level................................................................. 9-17
Engine Number .................................................................................................... 2-16
Engine Oil ............................................................................................................ 9-15
Checking the Engine Oil and Filter .................................................................. 9-16
Checking the Engine Oil Level ........................................................................ 9-15
Engine specification............................................................................................... 2-9
Explanation of Scheduled Maintenance Items .................................................... 9-13
Dual clutch transmission fluid ......................................................................... 9-14
Exterior Lights ..................................................................................................... 5-68
Battery saver function ...................................................................................... 5-71
Headlamp delay function ................................................................................. 5-71
High beam operation ........................................................................................ 5-69
Lighting control ................................................................................................ 5-68
Turn signals and lane change signals ............................................................... 5-70
Exterior Overview ................................................................................................. 2-2
F
Forward Collision–Avoidance Assist (FCA) (front view camera only) ............... 7-2
Function malfunction and limitations ................................................................ 7-7
Function operation.............................................................................................. 7-5
Function settings ................................................................................................ 7-3
Forward Collision–Avoidance Assist (FCA) (sensor fusion) ............................. 7-14
Function malfunction and limitations .............................................................. 7-22
Function operation............................................................................................ 7-18
Function settings .............................................................................................. 7-16
Fuel filler door ..................................................................................................... 5-66
Fuel Requirements ................................................................................................. 1-5
Detergent Fuel Additives.................................................................................... 1-7
Gasoline containing alcohol or methanol ........................................................... 1-6
Gasoline containing MMT ................................................................................. 1-6
Operation in foreign countries............................................................................ 1-7
Using Fuel Additives (except Detergent Fuel Additives)................................... 1-6

Index
I-6
Fuses .................................................................................................................... 9-43
Engine Compartment Panel Fuse Replacement ............................................... 9-45
Fuse/Relay Panel Description .......................................................................... 9-46
Instrument Panel Fuse Replacement ................................................................ 9-44
G
Guide to Hyundai Genuine Parts ........................................................................... 1-3
H
Hazard Warning Flasher ........................................................................................ 8-2
High Beam Assist (HBA) ................................................................................... 5-72
Detecting sensor (Front view camera) ............................................................. 5-72
Function malfunction and limitations .............................................................. 5-73
Function operation............................................................................................ 5-73
Function settings .............................................................................................. 5-72
Highway Driving Assist (HDA) ........................................................................ 7-106
Function malfunction and limitations ............................................................ 7-110
Function operation.......................................................................................... 7-108
Function settings ............................................................................................ 7-107
Hood .................................................................................................................... 5-59
How to Use This Manual ....................................................................................... 1-4
Hyundai Motor America ........................................................................................ 1-2
I
If the engine overheats........................................................................................... 8-6
If the Engine Will not Start .................................................................................... 8-3
If the Engine Doesn’t Turn Over or Turns Over Slowly .................................... 8-3
If the Engine Turns Over Normally but Doesn’t Start ....................................... 8-3
If you Have a Flat Tire (With spare tire) ............................................................. 8-14
Changing Tires ................................................................................................. 8-15
Jack and Tools .................................................................................................. 8-14
Ignition Switch ...................................................................................................... 6-5
Engine Start/Stop Button.................................................................................... 6-8
Key Ignition Switch ........................................................................................... 6-5

I
I-7
Important Safety Precautions................................................................................. 3-2
Air Bag Hazards ................................................................................................. 3-2
Always Wear Your Seat Belt .............................................................................. 3-2
Control Your Speed ............................................................................................ 3-2
Driver Distraction............................................................................................... 3-2
Keep Your Vehicle in Safe Condition................................................................. 3-2
Restrain All Children.......................................................................................... 3-2
In Case of an Emergency While Driving ............................................................... 8-2
If the Engine Stalls at a Crossroad or Crossing.................................................. 8-2
If the Engine Stalls While Driving ..................................................................... 8-2
If you Have a Flat Tire While Driving ............................................................... 8-3
Infotainment System .......................................................................................... 5-117
Antenna .......................................................................................................... 5-118
Bluetooth
® Wireless Technology hands-free .................................................. 5-120
How vehicle radio works................................................................................ 5-121
Infotainment system ....................................................................................... 5-120
Steering wheel audio control .......................................................................... 5-119
USB Port ........................................................................................................ 5-117
Voice recognition............................................................................................ 5-120
Instrument Cluster ................................................................................................. 4-4
Gauges and Meters ............................................................................................. 4-5
Instrument Cluster Control ................................................................................. 4-5
LCD Display Messages .................................................................................... 4-19
Transmission shift indicator ............................................................................... 4-9
Warning and Indicator Lights ........................................................................... 4-10
Instrument Panel Overview ................................................................................... 2-7
Intelligent variable transmission.......................................................................... 6-16
Good driving practices ..................................................................................... 6-22
Intelligent variable transmission operation ...................................................... 6-16
Parking ............................................................................................................. 6-21
Interior Features................................................................................................. 5-111
Clock .............................................................................................................. 5-116
Clothes Hanger ............................................................................................... 5-116
Cup Holder ..................................................................................................... 5-111
Power Outlet................................................................................................... 5-112
Sunvisor.......................................................................................................... 5-112
USB Charger .................................................................................................. 5-113
Wireless Cellular Phone Charging System..................................................... 5-114
