WIPERS AND WASHERS

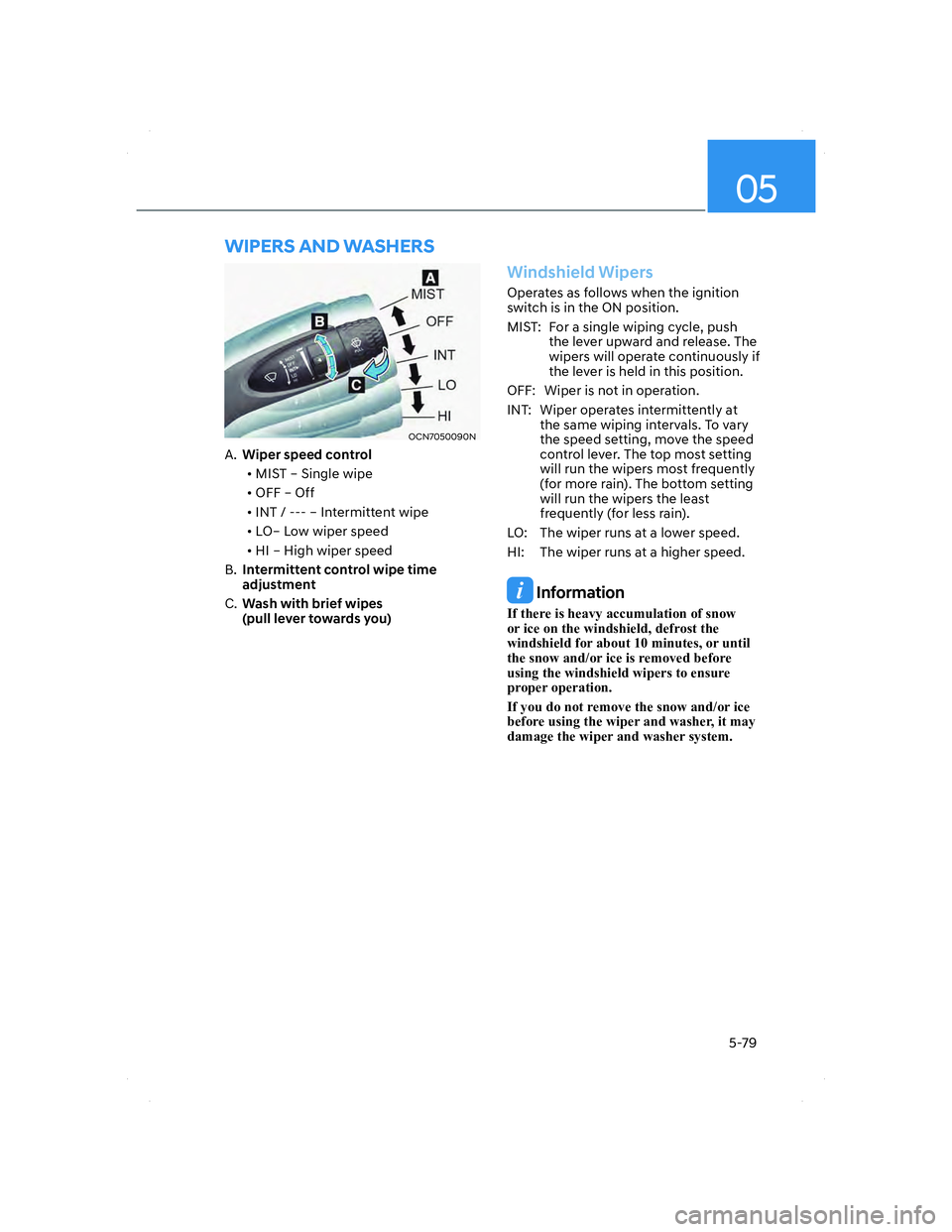

OCN7050090NOCN7050090N
A. Wiper speed control
• MIST – Single wipe
• OFF – Off
• INT / --- – Intermittent wipe
• LO– Low wiper speed
• HI – High wiper speed
B. Intermittent control wipe time
adjustment
C. Wash with brief wipes
(pull lever towards you)
Windshield Wipers
Operates as follows when the ignition
switch is in the ON position.
MIST: For a single wiping cycle, push
the lever upward and release. The
wipers will operate continuously if
the lever is held in this position.
OFF: Wiper is not in operation.
INT: Wiper operates intermittently at
the same wiping intervals. To vary
the speed setting, move the speed
control lever. The top most setting
will run the wipers most frequently
(for more rain). The bottom setting
will run the wipers the least
frequently (for less rain).
LO: The wiper runs at a lower speed.
HI: The wiper runs at a higher speed.
Information
, I W K H U H L V K H D Y \ D F F X P X O D W L R Q R I V Q R Z
R U L F H R Q W K H Z L Q G V K L H O G G H I U R V W W K H
Z L Q G V K L H O G I R U D E R X W P L Q X W H V R U X Q W L O
W K H V Q R Z D Q G R U L F H L V U H P R Y H G E H I R U H
X V L Q J W K H Z L Q G V K L H O G Z L S H U V W R H Q V X U H
S U R S H U R S H U D W L R Q
, I \ R X G R Q R W U H P R Y H W K H V Q R Z D Q G R U L F H
E H I R U H X V L Q J W K H Z L S H U D Q G Z D V K H U L W P D \
G D P D J H W K H Z L S H U D Q G Z D V K H U V \ V W H P
CN7 HMA 5.indd 5-792020-12-03 9:21:02
Page 216 of 584
Convenient Features
5-80

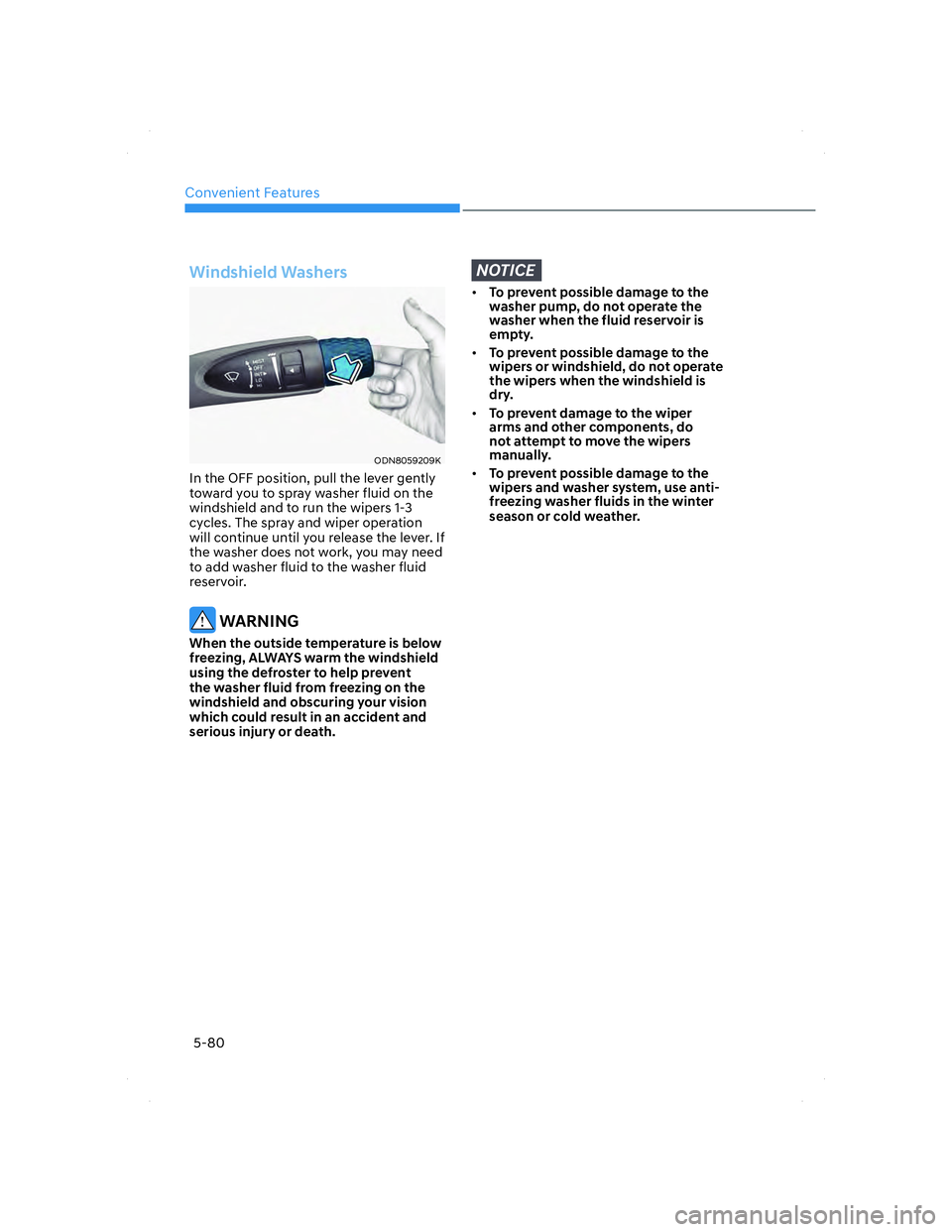

Windshield Washers
ODN8059209KODN8059209K
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
• To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
• To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.
• To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
• To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
CN7 HMA 5.indd 5-802020-12-03 9:21:02
Page 522 of 584
09
9-25

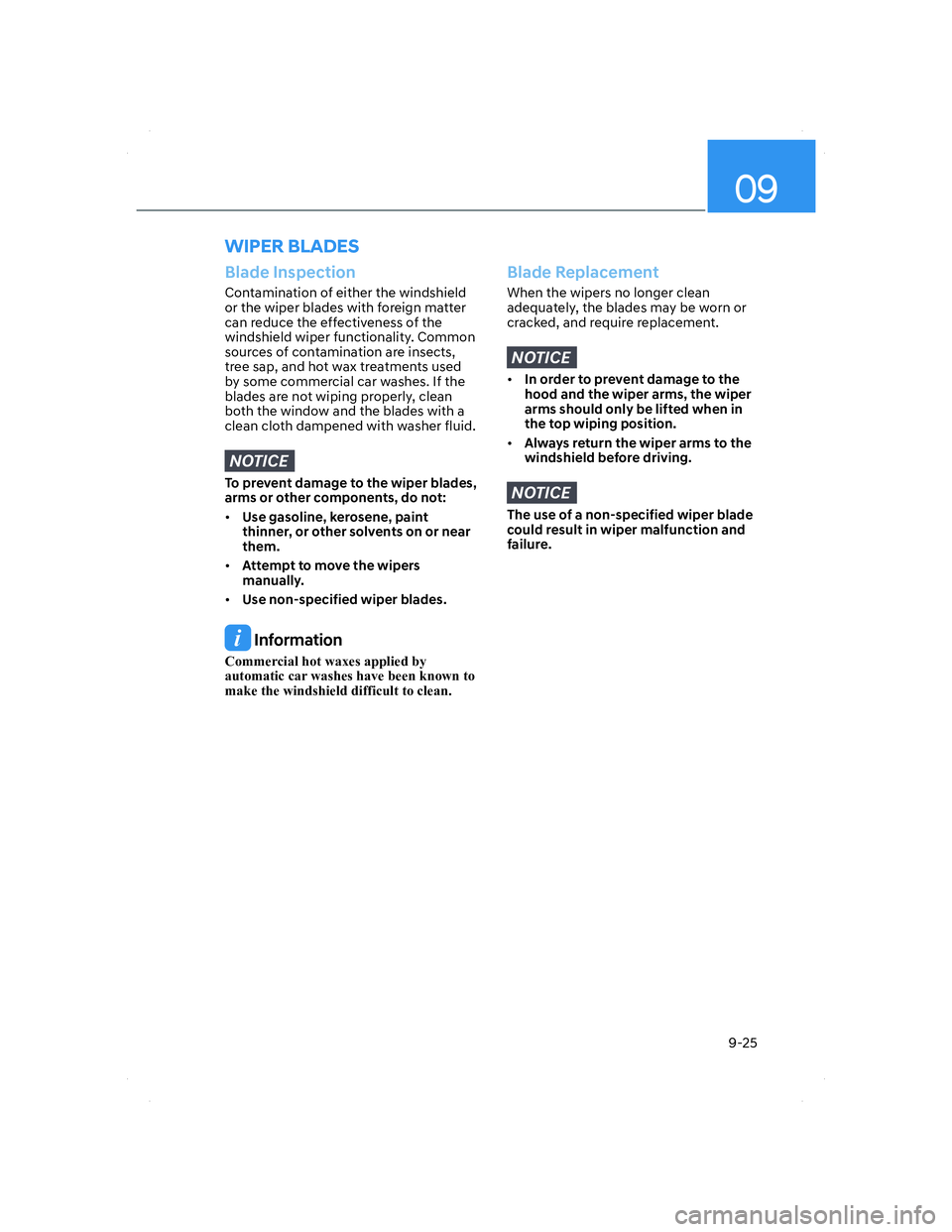

Blade Inspection
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wiper functionality. Common
sources of contamination are insects,
tree sap, and hot wax treatments used
by some commercial car washes. If the
blades are not wiping properly, clean
both the window and the blades with a
clean cloth dampened with washer fluid.
NOTICE
To prevent damage to the wiper blades,
arms or other components, do not:
• Use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
• Attempt to move the wipers
manually.
• Use non-specified wiper blades.
Information
& R P P H U F L D O K R W Z D [ H V D S S O L H G E \
D X W R P D W L F F D U Z D V K H V K D Y H E H H Q N Q R Z Q W R
P D N H W K H Z L Q G V K L H O G G L I I L F X O W W R F O H D Q
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn or
cracked, and require replacement.
NOTICE
• In order to prevent damage to the
hood and the wiper arms, the wiper
arms should only be lifted when in
the top wiping position.
• Always return the wiper arms to the
windshield before driving.
NOTICE
The use of a non-specified wiper blade
could result in wiper malfunction and
failure.
WIPER BLADES
CN7 HMA 9.indd 9-252020-12-03 9:42:24
Page 523 of 584
Maintenance
9-26

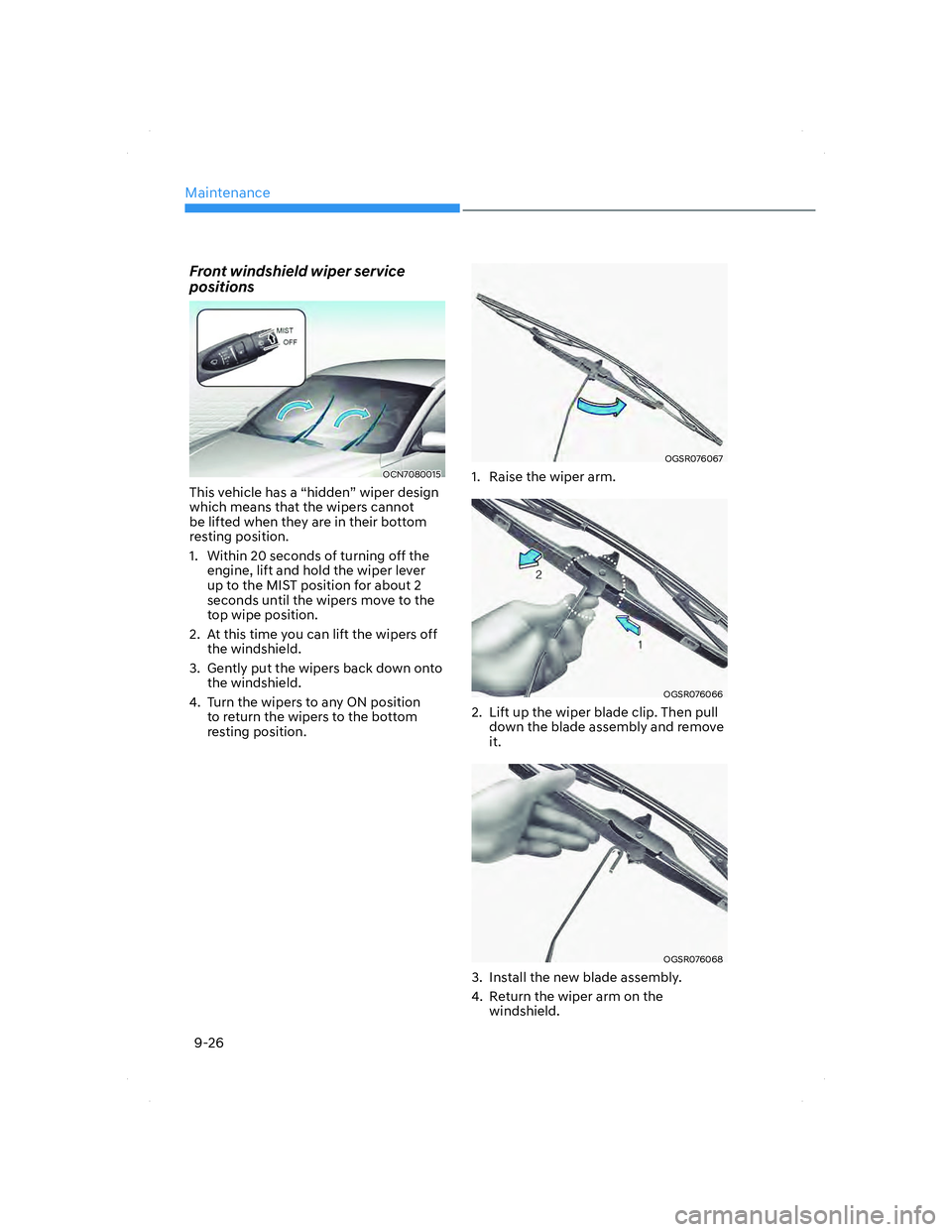

Front windshield wiper service
positions
OCN7080015OCN7080015
This vehicle has a “hidden” wiper design
which means that the wipers cannot
be lifted when they are in their bottom
resting position.
1. Within 20 seconds of turning off the
engine, lift and hold the wiper lever
up to the MIST position for about 2
seconds until the wipers move to the
top wipe position.
2. At this time you can lift the wipers off
the windshield.
3. Gently put the wipers back down onto
the windshield.
4. Turn the wipers to any ON position
to return the wipers to the bottom
resting position.
OGSR076067OGSR076067
1. Raise the wiper arm.
OGSR076066OGSR076066
2. Lift up the wiper blade clip. Then pull
down the blade assembly and remove
it.
OGSR076068OGSR076068
3. Install the new blade assembly.
4. Return the wiper arm on the
windshield.
CN7 HMA 9.indd 9-262020-12-03 9:42:24
