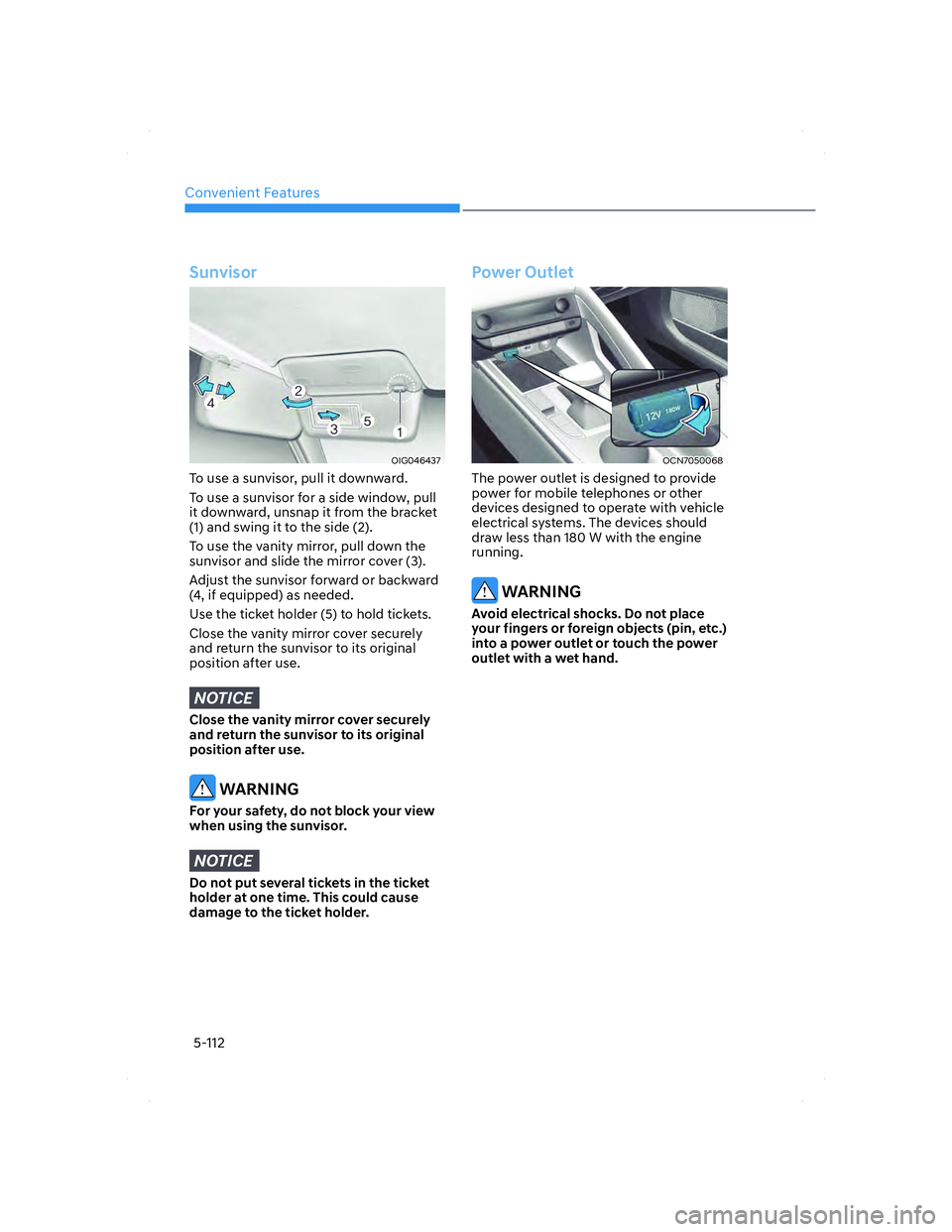

Sunvisor
OIG046437OIG046437
To use a sunvisor, pull it downward.
To use a sunvisor for a side window, pull
it downward, unsnap it from the bracket
(1) and swing it to the side (2).
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4, if equipped) as needed.
Use the ticket holder (5) to hold tickets.
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
NOTICE
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
Do not put several tickets in the ticket
holder at one time. This could cause
damage to the ticket holder.
Power Outlet
OCN7050068OCN7050068
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 W with the engine
running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
CN7 HMA 5.indd 5-1122020-12-03 9:21:13

05
5-113
NOTICE
To prevent damage to the Power
Outlets:
• Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.
• Only use 12V electric accessories
which are less than 180 W in electric
capacity.
• Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.
• Close the cover when not in use.
• Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.
• Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.
• Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
USB Charger
OCN7050069OCN7050069Insert the USB charger into the USB port,
and re-charge a smart phone or a tablet
PC.
• A charging status/charging
completion message is displayed on
a screen of a smart phone or a tablet
PC.
• A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.
• A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.
• The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media on the
infotainment system.
CN7 HMA 5.indd 5-1132020-12-03 9:21:13

Maintenance
9-50
(QJLQHFRPSDUWPHQWIXVHSDQHO
Type Fuse NameFuse Rating Circuit Protected
MULTI
FUSE-3ALT150A
180A[Smartstream G 2.0 Atkinson with AMS2]
Alternator, (Fuse - ABS1, ABS2, EOP1, POWER
OUTLET1)
[Smartstream G 2.0 Atkinson & Smartstream
G1.6 T-GDi without AMS2] Alternator, (Fuse -
ABS1, ABS2, POWER OUTLET1)
MDPS180A MDPS Unit
MULTI
FUSE-2COOLING
FAN260A [G4FP] Cooling Fan Controller
DCT340A [G4FP] SGA
MULTI
FUSE-1B+560APCB Block (Engine Control Relay, Fuse -
ECU3, ECU4, HORN, WIPER, A/C)
B+160AICU Junction Block (IPS2/IPS5/IPS6/IPS7/
IPS14)
B+260AICU Junction Block (IPS1/IPS4/IPS8/IPS9/
IPS10)
B+350AICU Junction Block (Fuse - TRUNK, AMP,
SAFETY P/WINDOW DRV, P/SEAT DRV, P/
SEAT PASS, S/HEATER FRT, S/HEATER RR,
Long Term Load Latch Relay)
EPB60A ESC Control Module
PTC HEATER50A PTC HEATER
BLOWER40A BLOWER, Multipurpose Check Connector
IG140AE/R Junction Block (PDM (IG1/ACC) Relay),
Ignition Switch
IG240AE/R Junction Block (PDM (IG2) Relay, Start
Relay), Ignition Switch
CN7 HMA 9.indd 9-502020-12-03 9:42:31

09
9-51
(QJLQHFRPSDUWPHQWIXVHSDQHO
Type Fuse NameFuse Rating Circuit Protected
FUSEPOWER
OUTLET220A
Front Power Outlet
POWER
OUTLET320A Not Used
COOLING
FAN140ACooling Fan (Smartstream G 2.0 Atkinson
only)
DCT140A [G4FP] TCM
DCT240A [G4FP] TCM
REAR
HEATED40A Rear glass heated
B+440AICU Junction Block (Fuse - AIR BAG2,
IBU1, BRAKE SWITCH, DOOR LOCK, IAU,
MODULE1, SUNROOF,Power Window Relay)
AMS10A Battery Sensor
TCU110A [DCT] TCM, [M/T] Ignition Lock
FUEL PUMP20AFuel Pump Control Module (T-GDI), Fuel
Pump Motor (NU MPI AKS)
CVVD40A [G4FP] CVVD Actuator
ABS140AABS Control Module, ESC Control Module,
Multipurpose Check Connector
ABS230AABS Control Module, ESC Control Module,
Multipurpose Check Connector
EOP130AElectronic Oil Pump (Smartstream G 2.0
Atkinson ISG only)
POWER
OUTLET140A P/OUTLET FRT
