2021 TOYOTA PRIUS Accessories, Audio & Navigation (in English)

137
1. VOICE COMMAND SYSTEM OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
VOICE COMMAND SYSTEM
4
1Press the talk switch.
2Say “Call types>” .
A confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “ ber>” or select the number.
VOICE COMMAND EXAMPLE:
CALL NAMEINFORMATION
●In the same manner as it is displayed on
the screen, “Call types>”, after saying “Call a contact”
say the name, or the name and type of
phone, of a contact.
For example: “Call a contact” , “John
Smith” or “Call a contact” , “Mary
Davis” , “Mobile”
● There are 4 types of phones: Home,
Mobile, Work and Other.
● Short or abbreviated names in the con-
tacts list may not be recognized. Change
names in the contacts list to full names.
● Sometimes a voice recognition result
confirmation screen will be displayed.
After confirming the result, say “Yes” or
“No” .
● When the system recognizes multiple
names from the contacts list, a name
candidate list will be displayed on the
screen. If the desired name is not dis-
played on the top of the screen, say or
select the number of the name from the
candidate list (number 1, number 2, etc.)
to select a name from the candidate list.
● When a contact has multiple phone
numbers registered in the contacts list, a
candidate list will be displayed. If the
desired phone number is not displayed
on the top of the screen, say or select
the number of the desired phone num-
ber from the candidate list (number 1,
number 2, etc.) to select a phone num-
ber from the candidate list.

138
1. VOICE COMMAND SYSTEM OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1Press the talk switch.
2Say the phone number.
In the same manner as it is displayed on
the screen, “Dial ”, after saying
“Dial a number” say the phone number.
 Say the phone number one digit at a time.
For example, if the phone number is
2345678:
Say “two three four five six seven
eight”
Do not say “twenty three forty five sixty
seven eight”
 Calling to the following phone numbers
• 3 digit numbers (911, 411, 611)
• 7 digit numbers (Local phone numbers)
• 10 digit numbers (Area code + Local
phone number)
• 11 digit phone numbers (1 + Area code + Local phone number)
 As the system cannot recognize additional
numbers, say the complete number with-
out stopping.
Calling to other phone numbers
3Say “Call” or press the switch on
the steering wheel.
VOICE COMMAND EXAMPLE:
DIAL NUMBER When the system recognizes multiple
phone numbers, a phone number candi-
date list will be displayed on the screen.
Pressing the
switch on the steer-
ing wheel makes a call to the top entry
on the list. If the desired phone number
is not displayed on the top of the screen,
say the number of the desired phone
number from the candidate list to select
a phone number from the candidate list.

139
1. VOICE COMMAND SYSTEM OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
VOICE COMMAND SYSTEM
4
2. CASUAL SPEECH RECOGNIZATION
*: Only for external music device
Due to natural language speech recog-
nition technology, this system enables
recognition of a command when spo-
ken naturally. However, the system
cannot recognize every variation of
each command. In some situations, it
is possible to omit the command for the
procedure and directly state the de-
sired operation. Not all voice com-
mands are displayed in the function
menu.
INFORMATION
●If the command cannot be recognized
completely, the command input screen
will be displayed. (Search results will be
shown based on the part of the com-
mand that was recognized.)
EXPRESSION EXAMPLES FOR
EACH FUNCTION
CommandExpression examples
“Go Home”Navigate to my house.
Take me home.
“Enter an
Address”I need directions to an
address.
Give me a street.
“Find Nearby
”
Search for a rants> around here.
Find a
nearby.
“Call
”Get me Brown>.
“Dial ”Call <911>.
“Play Artist
”*Play the artist .
I want to hear the band
.

140
1. VOICE COMMAND SYSTEM OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
3. COMMAND LIST
Frequently used commands are listed in the following tables.
 For devices that are not installed in the vehicle, the related commands will not be dis-
played in the screen. Also, according to conditions, other comm ands may not be dis-
played in the screen.
 The functions available may va ry according to the system installed.
Main Menu
 Shortcut Menu
Recognizable voice commands and their actions are shown below.
 Voice recognition language can be changed. ( P.72)
CommandAction
“Navigation”Displays navigation short cut menu
“Phone”Displays phone short cut menu
“Music”Displays music short cut menu
“Radio”Displays radio short cut menu
“Information”Displays information short cut menu
“Climate”Displays climate short cut menu
CommandAction
“Go to ”Displays the command list of the selected tab
“Address”Enables setting a destina tion by saying the address
“Find ”Displays a list of near the current posi-
tion*2
“Call ”Places a call to the said phone type of the contact from
the phone book
“Tune to AM”Changes the radio to the specified AM frequency
“Help”Prompts voice guidance to offer examples of commands
or operation methods
*
1: For example; “Gas stations”, “Restaurants”, etc.
*2: Depending on the search results, a POI list may be provided by a relevant POI application of
the Toyota apps. ( P.286)

141
1. VOICE COMMAND SYSTEM OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
VOICE COMMAND SYSTEM
4
Navi Menu
 Phone Menu*
CommandAction
“Address”Enables setting a destinatio n by saying the address
“Find ”Displays a list of near the current posi-
tion*2
“Go Home”Displays the route to home
“Delete Destination”Deletes the destination
“More Hints”Displays more commonly used commands
*
1: For example; “Gas stations”, “Restaurants”, etc.
*2: Depending on the search results, a POI list may be provided by a relevant POI application of
the Toyota apps. ( P.286)
CommandAction
“Call ”Places a call to the said phone type of the contact from
the phone book
“Dial ”Places a call to the said phone number
“Show Recent Calls”Displays the call history screen
“Redial”Places a call to the phone number of the latest outgoing
call
“Call Back”Places a call to the phone num ber of latest incoming call
*: When an Apple CarPlay connecti on is established, this voice commands will be unavailable.

142
1. VOICE COMMAND SYSTEM OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
Music Menu
 Radio Menu
CommandAction
“Play Artist ”*Plays tracks from the selected artist
“Play Album ”*Plays tracks from the selected album
“Play Song ”*Plays the selected track
“Turn Music On/Off”Turns the audio system on/off
“More Hints”Displays more commonly used commands
*: When an Apple CarPlay connection is established, this voice commands will be unavailable.
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to preset ”Changes the radio to the specified preset radio station
“Tune to satellite ”*Changes the radio to the specified satellite radio station
with the specified name
“Listen to ”*Changes the radio to the specified satellite radio station
of the specified genre
“Listen to on satellite”*
“More Hints”Displays more commonly used commands
*: When the voice recognition language is set to English.

143
1. VOICE COMMAND SYSTEM OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
VOICE COMMAND SYSTEM
4

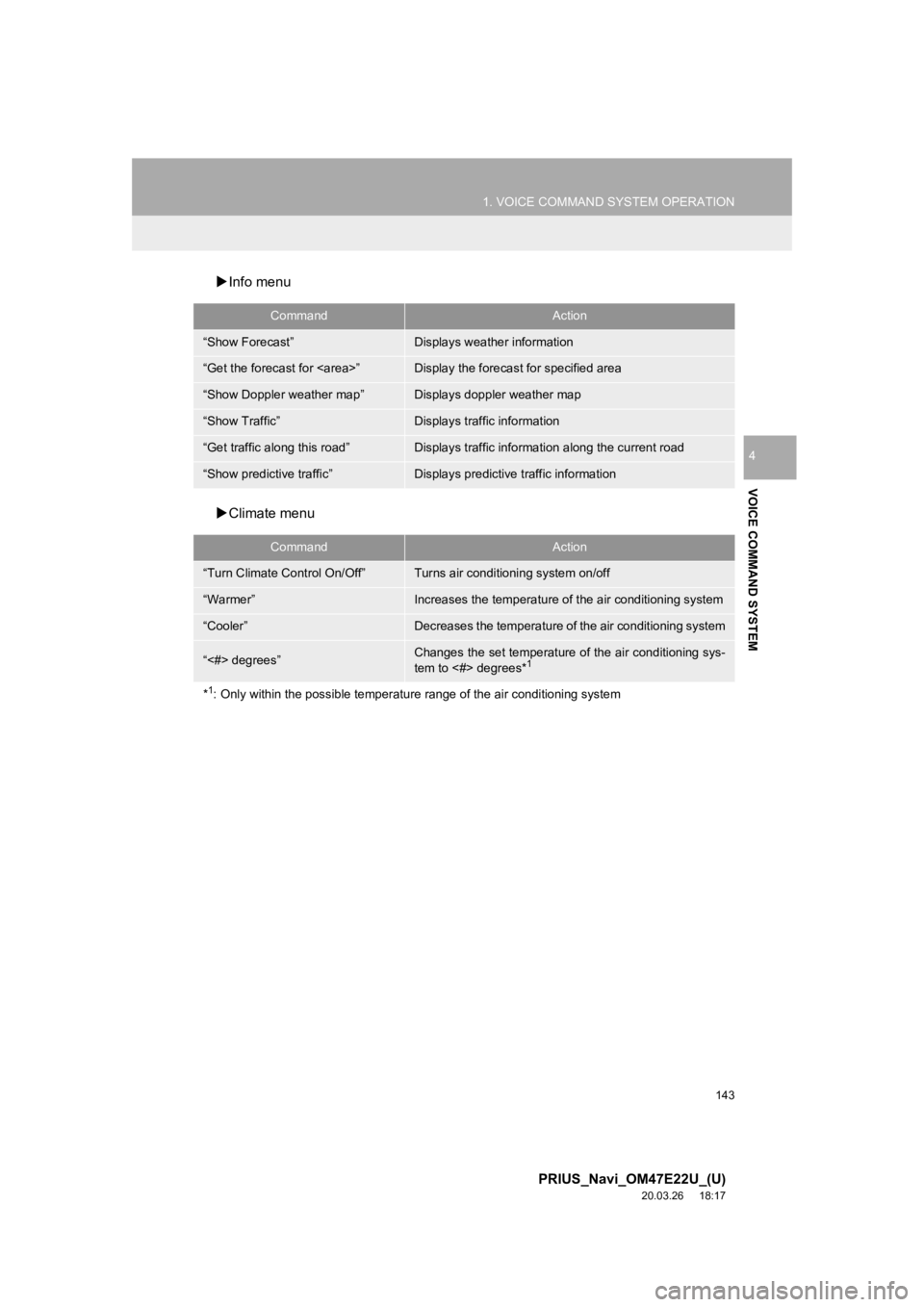

Info menu
 Climate menu
CommandAction
“Show Forecast”Displays weather information
“Get the forecast for ”Display the forecast for specified area
“Show Doppler weather map”Displays doppler weather map
“Show Traffic”Displays traffic information
“Get traffic along this road”Displays traffic information along the current road
“Show predictive traffic”Displays predictive traffic information
CommandAction
“Turn Climate Control On/Off”Turns air conditioning system on/off
“Warmer”Increases the temperature o f the air conditioning system
“Cooler”Decreases the temperature of the air conditioning system
“<#> degrees”Changes the set temperature of the air conditioning sys-
tem to <#> degrees*1
*1: Only within the possible temper ature range of the air conditioning system

144
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold the talk switch on the
steering wheel until you hear the
beeps.
2The Mobile Assistant can be used only
when the following screen is displayed.
To cancel the Mobile Assistant: Select
“Cancel” or press and hold the talk switch
on the steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the talk switch on
the steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice
command.
• After some phone and music com-
mands, the Mobile Assistant feature will
automatically end to complete the
requested action.
The Mobile Assistant feature will
activate Apple’s Siri
® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this
system via Bluetooth
®. ( P.51)
When an Apple CarPlay connection is
established, this function will be
unavailable.
PS094IO
 The volume of the Mobile Assistant can
be adjusted using the “VOL” button or
steering wheel volume control switches.
The Mobile Assistant and phone call
volumes are synchronized.
