2021 TOYOTA PRIUS Accessories, Audio & Navigation (in English)

8
201
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1
2
3
4
5
6
7
8
9
1. QUICK REFERENCE .................. 204
MAP SCREEN ..................................... 204
NAVIGATION OPTIONS SCREEN...... 206
2. MAP SCREEN OPERATION....... 207
CURRENT POSITION DISPLAY ......... 207
MAP SCALE ........................................ 208
ORIENTATION OF THE MAP ............. 208
SWITCHING THE MAP MODE............ 209
SCREEN SCROLL OPERATION ........ 211
ADJUSTING LOCATION IN SMALL INCREMENTS ................................... 212
3. MAP SCREEN INFORMATION ......................... 213
DISPLAYING MAP INFORMATION .... 213
DISPLAYING INFORMATION ABOUT
THE ICON WHERE THE CURSOR
IS SET ............................................... 218
STANDARD MAP ICONS .................... 219
4. TRAFFIC INFORMATION ........... 220
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 222
1BASIC OPERATION
NAVIGATION SYSTEM

202
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1. DESTINATION SEARCH SCREEN .................................... 223
2. SEARCH OPERATION . ............... 225
SELECTING SEARCH AREA .............. 226
SETTING HOME AS
DESTINATION .................................. 226
SETTING PRESET DESTINATIONS AS DESTINATION ............................ 226
SEARCHING BY ADDRESS ............... 227
SEARCHING BY POINT OF INTEREST......................................... 228
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 231
SEARCHING BY ADDRESS BOOK .... 231
SEARCHING BY EMERGENCY.......... 232
SEARCHING BY INTERSECTION AND FREEWAY ................................ 232
SEARCHING BY MAP ......................... 234
SEARCHING BY COORDINATES ...... 234
3. STARTING ROUTE GUIDANCE ............... ................. 235
STARTING ROUTE GUIDANCE ......... 235
PAUSING GUIDANCE ......................... 238
1. ROUTE GUIDANCE SCREEN .... 239
SCREEN FOR ROUTE GUIDANCE .... 239
ROUTE OVERVIEW ............................ 241
DURING FREEWAY DRIVING ............ 242
WHEN APPROACHING
INTERSECTION ................................ 243
TURN LIST SCREEN ........................... 244
TURN-BY-TURN ARROW SCREEN ............................................ 244
2. TYPICAL VOICE GUIDANCE PROMPTS ................................. 245
3. EDITING ROUTE ......................... 246
ADDING DESTINATIONS .................... 247
REORDERING DESTINATIONS ......... 247
DELETING DESTINATIONS ................ 247
SETTING ROUTE PREFERENCES .... 248
SELECTING ROUTE TYPE ................. 248
DETOUR SETTING.............................. 249
STARTING FROM ADJACENT ROAD ................................................ 250
2DESTINATION SEARCH3ROUTE GUIDANCE

203
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1
2
3
4
5
6
7
8
9
1. MEMORY POINTS SETTINGS ................................. 251
SETTING UP HOME ........................... 252
SETTING UP PRESET
DESTINATIONS................................ 253
SETTING UP ADDRESS BOOK ......... 255
SETTING UP AREAS TO AVOID ........ 258
DELETING PREVIOUS DESTINATIONS................................ 260
1. DETAILED NAVIGATION SETTINGS ................................. 261
SCREENS FOR NAVIGATION
SETTINGS ........................................ 261
2. TRAFFIC SETTINGS................... 265
SCREEN FOR TRAFFIC SETTINGS ........................................ 265
AUTO AVOID TRAFFIC....................... 266
MY TRAFFIC ROUTES ....................... 267
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 272
LIMITATIONS OF THE NAVIGATION
SYSTEM ............................................ 272
2. MAP DATABASE VERSION AND COVERED AREA ...................... 275
MAP INFORMATION ........................... 275
ABOUT THE MAP DATA ..................... 276
4MEMORY POINTS5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM

204
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “HOME” button.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
208
Options buttonSelect to display the “Navigation Options” screen.206

205
1. BASIC OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
NAVIGATION SYSTEM
8
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.240
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
240
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.213
Destination but-
tonSelect to display the “Destination” screen.223
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
208
Scale indicatorThis figure indicates the map scale.208
Traffic indicator
Shows that traffic informat ion is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
220
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.272
No.NameFunctionPage

206
1. BASIC OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17

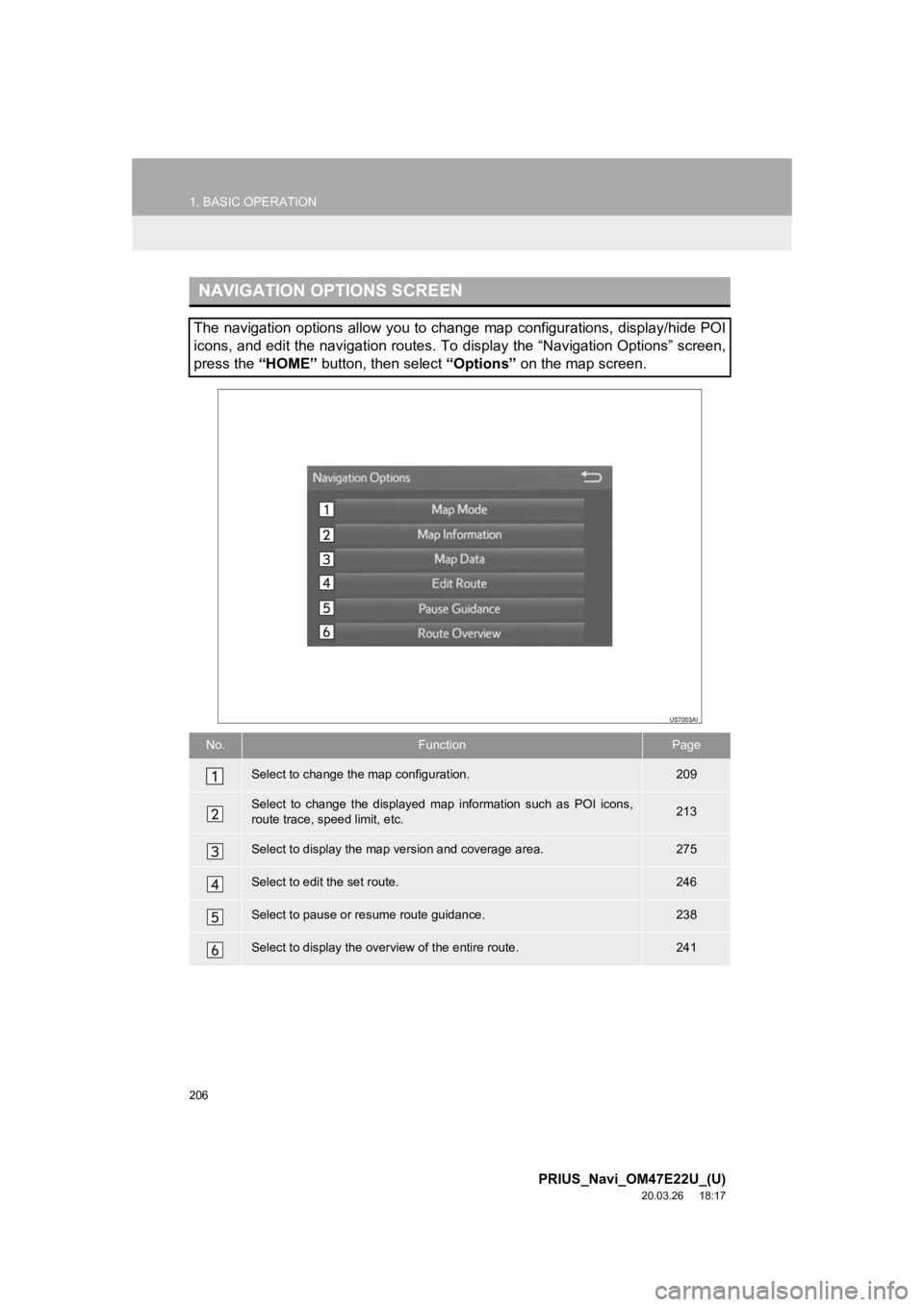

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “HOME” button, then select “Options” on the map screen.
No.FunctionPage
Select to change the map configuration.209
Select to change the displayed map information such as POI icon s,
route trace, speed limit, etc.213
Select to display the map version and coverage area.275
Select to edit the set route.246
Select to pause or resume route guidance.238
Select to display the over view of the entire route.241

207
1. BASIC OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “HOME” button.
2Check that the current position map is
displayed.
CURRENT POSITION
DISPLAY
To correct the current position manually:
P. 2 6 3
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.

208
1. BASIC OPERATION
PRIUS_Navi_OM47E22U_(U)
20.03.26 18:17
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
1Select , or .
 North-up screen
 Heading-up screen
MAP SCALE
INFORMATION
● The map scale is displayed at the left of
the screen. ( P.204)
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
