Specifications
▼Engine
Gasoline engine
Item Specification
SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.010.5
Diesel engine
Item Specification
SKYACTIV-D 2.2
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 86.0

CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-22.
Coolant FL-22 type
Automatic transaxle fluid Mazda Genuine ATF-FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
▼Capacities
(Approximate Quantities)
Specifications
Specifications
9-5
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

ItemCapacity
Fuel tank FWD
56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,550 mm (179.1 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,675 mm (65.9 in)
Front tread 17 inch styled steel wheel
vehicle
1,586 mm (62.4 in)
17 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
19 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
Rear tread 17 inch styled steel wheel
vehicle
1,586 mm (62.4 in)
17 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
19 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
Wheelbase 2,698 mm (106.2 in)
▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.5
Item Weight
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,060 kg (4,541 lbs)/
2,075 kg (4,575 lbs) 2,143 kg (4,724 lbs)
GAWR (Gross Axle Weight
Rating) Front
1,060 kg (2,337 lbs)/
1,075 kg (2,370 lbs) 1,100 kg (2,425 lbs)
Rear 1,000 kg (2,205 lbs) 1,043 kg (2,299 lbs)
Item Weight
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,140 kg (4,718 lbs) 2,180 kg (4,806 lbs)
9-6
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

ItemWe i g h t
FWD AWD
GAWR (Gross Axle Weight
Rating) Front
1,120 kg (2,469 lbs) 1,140 kg (2,513 lbs)
Rear 1,020 kg (2,249 lbs) 1,040 kg (2,293 lbs)
SKYACTIV-D 2.2
Item We i g h t
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,175 kg (4,795 lbs) 2,240 kg (4,938 lbs)
GAWR (Gross Axle Weight
Rating) Front
1,150 kg (2,535 lbs) 1,170 kg (2,579 lbs)
Rear 1,025 kg (2,260 lbs) 1,070 kg (2,359 lbs)
Mexico
SKYACTIV-G 2.5
Item We i g h t
Without moonroof With moonroof
GVW (Gross Vehicle Weight) Total
2,060 kg (4,542 lbs) 2,110 kg (4,652 lbs)
Front 1,035 kg (2,282 lbs) 1,045 kg (2,304 lbs)
Rear 1,025 kg (2,260 lbs) 1,065 kg (2,348 lbs)
GAW (Permissible axle load) Front
1,055 kg (2,326 lbs) 1,065 kg (2,348 lbs)
Rear 1,105 kg (2,436 lbs) 1,145 kg (2,524 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) Total
2,115 kg (4,663 lbs)
Front 1,100 kg (2,425 lbs)
Rear 1,015 kg (2,238 lbs)
GAW (Permissible axle load) Front
1,125 kg (2,480 lbs)
Rear 1,090 kg (2,403 lbs)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UN-R*1(SAE)
Headlights/Daytime running lights LED― (― )
Parking lights LED typeLED― (― )
Front turn signal lights/Parking lights
*28/8 ― (#7444NA)
*Some models.9-7
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Light bulbCategory
Wat t a ge UN-R*1(SAE)
Front side-marker lights LED type LED
― (― )
Bulb type 5 W5W ( ―)
Fog lights
*LED ― (― )
Side turn signal lights LED ― (― )
High-mount brake light LED― (― )
Rear turn signal lights 21WY21W (7443NA)
Brake lights/Taillights/Rear
side-marker lights LED type
LED― (― )
Bulb type 21/5W21/5W (7443)
Reverse lights LED― (― )
License plate lights LED― (― )
*1 UN-R stands for United Nations Regulation.
Interior light
Light bulb Category
Wat t a ge UN-R*1
Luggage compartment light LED type LED
―
Bulb type 8―
Overhead light (Front)/Map lights LED type
LED ―
Bulb type 8―
Rear map lights LED type
LED ―
Bulb type 8―
Vanity mirror lights
*LED type LED ―
Bulb type 2―
Ambient lights
*LED ―
*1 UN-R stands for United Nations Regulation.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Pressure Label on page 9-2.
Refer to Tire Inflation Pressure on page 6-43.
Specifications
Specifications
9-8*Some models.
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

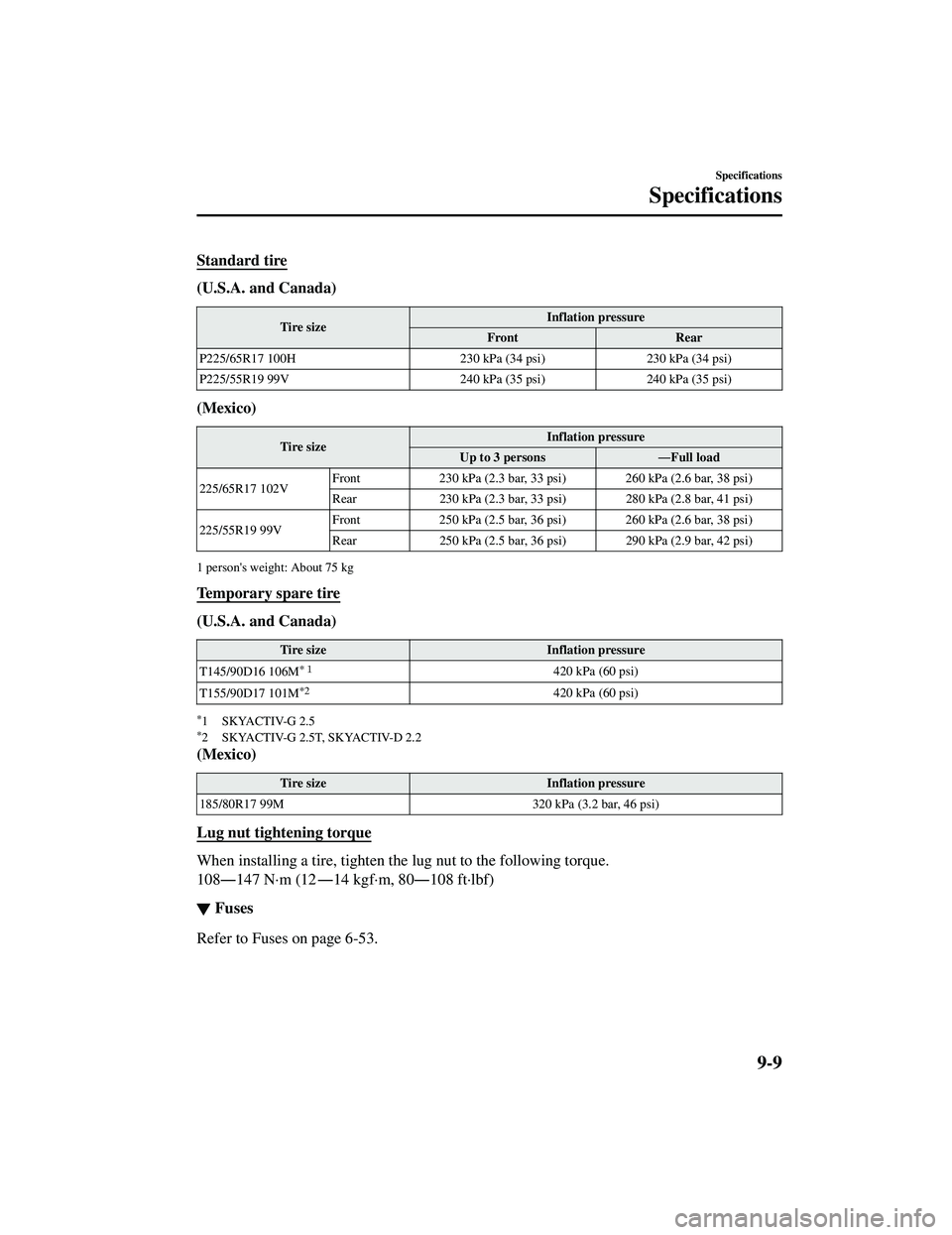

Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
P225/65R17 100H 230 kPa (34 psi)230 kPa (34 psi)
P225/55R19 99V 240 kPa (35 psi)240 kPa (35 psi)
(Mexico)
Tire size Inflation pressure
Up to 3 persons ―Full load
225/65R17 102V Front 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear 230 kPa (2.3 bar, 33 psi) 280 kPa (2.8 bar, 41 psi)
225/55R19 99V Front 250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Temporary spare tire
(U.S.A. and Canada)
Tire size
Inflation pressure
T145/90D16 106M
* １420 kPa (60 psi)
T155/90D17 101M
*2420 kPa (60 psi)
*1 SKYACTIV-G 2.5*2 SKYACTIV-G 2.5T, SKYACTIV-D 2.2
(Mexico)
Tire size Inflation pressure
185/80R17 99M 320 kPa (3.2 bar, 46 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108 ―147 N·m (12 ―14 kgf·m, 80―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-53.
Specifications
Specifications
9-9
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53
