Interior Features
Mazda Connect (Mazda Connect (Type B))
5-50
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Connected Service (If applicable)
▼Connected Service Overview
Connected Service Overview (U.S.A.)
There are several types of connected services available via Mazda Connect. Some services
may require you to download the MyMazda app to your smartphone and subscribe to the
services, while others may require you to
pair your smartphone to the vehicle via
Bluetooth
®. In addition, on a regular basis and unless you opt-out, your vehicle will
automatically transmit certain geo-location, driving behavior data, and vehicle health
information to Mazda for product quality, data analysis, research, and product development.
Using the QR codes or URLs below, refer to the Connected Service Owner's Manual and
Privacy Policy for more details and opt-out options.
Connected Service Owner's Manual
https://www.mazdausa.com/static/manuals/mazda-connected-service/index.html
Connected Service Overview (Canada)
If your vehicle is equipped for connected services, there may be several types of connected
services available to you. The availability, terms and capability of connected services vary
by vehicle and other factors. Some services may require you to download the MyMazda app
to your compatible smartphone, purchase a su bscription or be in a supported area with
wireless coverage, while others may require you to pair your smartphone to the vehicle via
Bluetooth
®. If your vehicle is equipped for connected services, certain data may be
collected and transmitted through the conn ected vehicle system, including, without
limitation, geo-location, driving behaviour data and vehicle health information. Please refer
to connected services terms and privacy polic y available on the Mazda Canada website for
more details.
Connected Services owner’s manual:
Interior Features
Mazda Connect (Mazda Connect (Type B))
5-51
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

http://www.mazda.ca/en/digital-owners-manual/2021/connectedservice/
(U.S.A. and Canada)
Privacy Policy
Mazda maintains a Privacy Statement which describes how we collect, use, share, store and
secure data from your vehicle equipped with connected services.
We provide you with connected services by co llecting and using your personal information
and vehicle location, health and driving data.
To learn more about our Privacy Statement, please visit:
(U.S.A.)
https://www.mazdausa.com/site/privacy-connectedservices
(Canada)
https://www.mazda.ca/en/cv-privacy/
Interior Features
Mazda Connect (Mazda Connect (Type B))
5-52
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.
Sunvisor
▼Side Extension Sunvisors*
The visor extender ex
tends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract the visor
extender to its original position. Otherwise,
the visor extender could hit the rearview
mirror.
▼ Va n i t y M i r r o r s
To use the vanity
mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the tilt range shown in the
figure.

offoff
on
Interior Features
Interior Equipment
*Some models.5-53
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Interior Lights
NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.
Overhead Lights
Ty p e A
Switch Posi‐
tion Overhead Lights
Light off
Light is on when any door is openLight is on or off when the illumi
‐
nated entry system is on
Light on
NOTE
The rear map lights also turn on and off
when the overhead light switch is
operated.
Ty p e B
Switch Overhead Lights
(DOOR
OFF) The DOOR OFF switch can be
switched between the DOOR posi
‐
tion and DOOR OFF position.
DOOR position
The lights turn on when any of the
doors is opened.
The lights turn on/off in conjunc ‐
tion with the illuminated entry
system.
DOOR OFF position
The lights do not turn on even if
any of the doors is opened.
The lights do not turn on/off in
conjunction with the illuminated
entry system.
(ON/
OFF) Press the switch to turn it on. Press
the switch again to turn off the
lights.
Front Map Lights
Ty p e A
When the overhead light
switch is in the
door or off position, press the lens to
Interior Features
Interior Equipment
5-54
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

illuminate the front map lights, and then
press the lens again to turn them off.
NOTE
The front map lights will not turn off even
if the lens is pressed in the following
cases:
The overhead light switch is in the ON
position.
The overhead light switch is in the door
position with the door open.
The illuminated entry system is on.
Ty p e B
Press the switch to illuminate the front
map lights, and then press the switch again
to turn them off.
NOTE
The front map lights will not turn off even
if the switch is pre ssed in the following
cases:
The overhead lights turn on by
operating the overhead ON/OFF switch
(
).
The overhead lights turn on in
conjunction with a door opening/
closing.
The illuminated entry system is on.
Rear Map Lights
Ty p e A
When the overhead li ght switch is in the
door or off position, press the lens to
illuminate a rear map light, and then press
the lens again to turn it off.
NOTE
Once the rear map lights have been
turned off, they will turn on and off
depending on the position to which the
overhead light is switched.
The rear map lights will not turn off
even if the lens is pressed in the
following cases:
The overhead light switch is ON.
The overhead light switch is in the
door position with the door open.
The illuminated entry system is on.
Ty p e B
Press the switch to illuminate the rear map
lights, and then press the switch again to
turn them off.
Interior Features
Interior Equipment
5-55
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

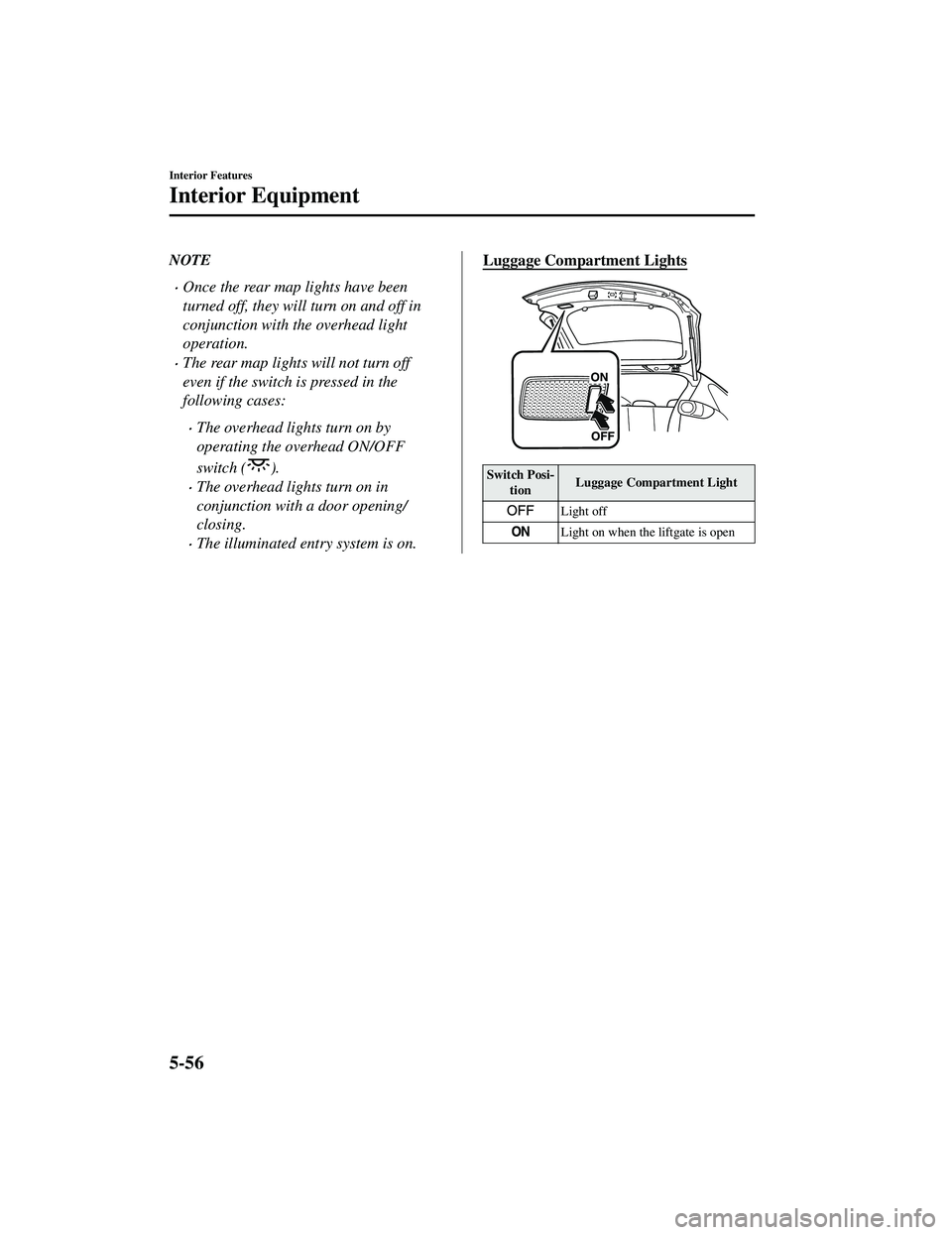

NOTE
Once the rear map lights have been
turned off, they will turn on and off in
conjunction with the overhead light
operation.
The rear map lights will not turn off
even if the switch is pressed in the
following cases:
The overhead lights turn on by
operating the overhead ON/OFF
switch (
).
The overhead lights turn on in
conjunction with a door opening/
closing.
The illuminated entry system is on.
Luggage Compartment Lights
Switch Posi‐tion Luggage Compartment Light
Light off
Light on when the liftgate is open
Interior Features
Interior Equipment
5-56
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

Ambient Light*
An ambient light continuously turn on when the ignition is switched ON.
An ambient light dim when the parking lights or headlights are turned on.
Ambient light
NOTE
An ambient light turn on or off in conjunction with the illuminated entry system when the
ignition is switched OFF.
The ambient light illumination level can be changed while the parking lights or headlights
are turned on.
Refer to the Settings section in the Mazda Connect Owner's Manual.
▼Illuminated Entry System
The overhead lights turn on when any of
the following operations is done with the
overhead light switch in the DOOR
position.
The ambient lights turn on regardless of
the overhead light switch position.
The driver's door is unlocked with the
ignition is switched OFF.
The ignition is switched OFF with all
doors closed.
NOTE
The illumination tim
e differs depending
on the operation.
Battery saver
If an interior light is left on with the
ignition switched OFF, the light turns off
automatically after a certain period of
time has passed to prevent battery
depletion.
The operation of the illuminated entry
system can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
Interior Features
Interior Equipment
*Some models.5-57
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53
