SignalWarning
(Red)
Brake Pedal Opera ‐
tion Demand Warn ‐
ing Light
*
When only flashing
Flashes if there is the possibility of the vehi cle not being held in the stopped position by
the AUTOHOLD function, such as on steep slopes. Depress and hold your foot on the
brake pedal.
When flashing and beep sound is activated at the same time
The warning light flashes and the beep sound is activated for about 5 seconds if there is a
problem with the system. If the warning light flashes and the warning sound is activated,
immediately depress the brake pedal and st op using the AUTOHOLD function then con ‐
tact an Authorized Mazda Dealer.
WARNING
Immediately depress the brake pedal if the warning light flashes and the beep sound is acti‐
vated while using the AUTOHOLD function:
Because the AUTOHOLD function is canceled forcibly, the vehicle may move unexpectedly
and result in an accident.
Check Engine Light If this light illuminates while driving, the ve
hicle may have a problem. It is important to
note the driving conditions wh en the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illu minate in the following cases:
The engine's electrical system has a problem.The emission control system has a problem.(Except SKYACTIV-D 2.2)
The fuel tank level being very low or approaching empty.The fuel-filler cap is missing or not tightened securely.
If the check engine light remains on, or it flashes continuously , do not drive at high
speeds and consult an Authorized M azda Dealer as soon as possible.
WARNING
If the check engine light turns on, do not disconnect the battery cables.
If the battery cables are disconnected and th en reconnected, the engine could be damaged
and catch on fire.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-28*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

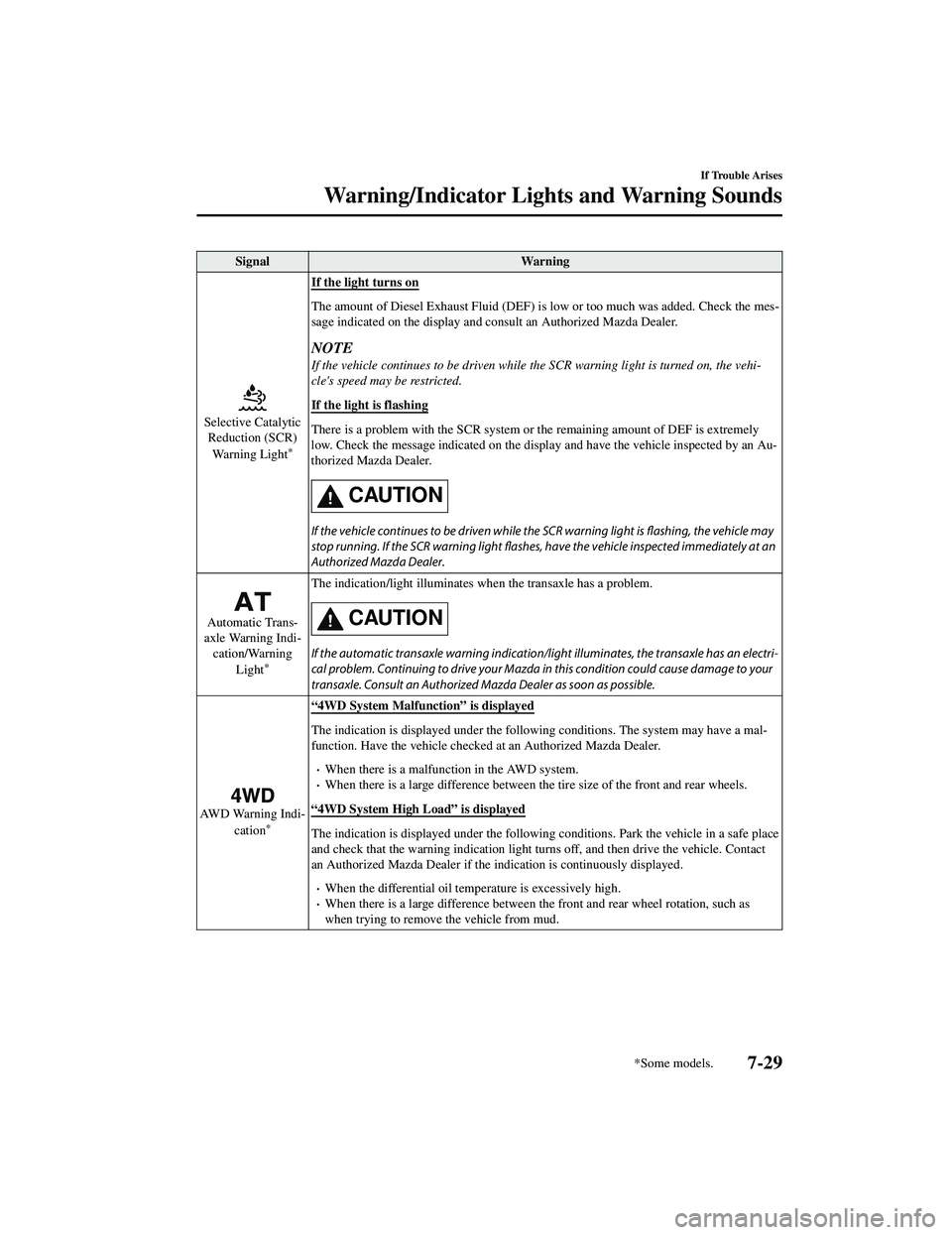

SignalWarning
Selective Catalytic
Reduction (SCR)
Warning Light
*
If the light turns on
The amount of Diesel Exhaust Fluid (DEF) is low or too much was added. Check the mes ‐
sage indicated on the display and c onsult an Authorized Mazda Dealer.
NOTE
If the vehicle continues to be driven while the SCR warning light is turned on, the vehi ‐
cle's speed may be restricted.
If the light is flashing
There is a problem with the SCR system or the remaining amount of DEF is extremely
low. Check the message indicated on the display and have the vehicle inspected by an Au ‐
thorized Mazda Dealer.
CAUTION
If the vehicle continues to be driven while th e SCR warning light is flashing, the vehicle may
stop running. If the SCR warnin g light flashes, have the vehicle inspected immediately at an
Authorized Mazda Dealer.
Automatic Trans‐
axle Warning Indi ‐
cation/Warning
Light
*
The indication/light illuminates wh en the transaxle has a problem.
CAUTION
If the automatic transaxle warning indication/ light illuminates, the transaxle has an electri‐
cal problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
AWD Warning Indi ‐
cation*
“4WD System Malfunction” is displayed
The indication is displayed under the follow ing conditions. The system may have a mal‐
function. Have the vehicle checked at an Authorized Mazda Dealer.
When there is a malfunction in the AWD system.When there is a large difference between th e tire size of the front and rear wheels.
“4WD System High Load” is displayed
The indication is displayed under the followin g conditions. Park the vehicle in a safe place
and check that the warning indi cation light turns off, and then drive the vehicle. Contact
an Authorized Mazda Deal er if the indication is continuously displayed.
When the differential oil temperature is excessively high.When there is a large difference between the front and rear wheel rotation, such as
when trying to remove the vehicle from mud.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-29
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
AW D Wa r n i n g
Light*
When the light is turned on
The light turns on u nder the following conditions. The system may have a malfunction.
Have the vehicle checked at an Authorized Mazda Dealer.
When there is a malfunction in the AWD system.When there is a large difference between th e tire size of the front and rear wheels.
When the light is flashing
Park the vehicle in a safe place. After a few moments, if the warning light stops flashing,
you can resume driving. If th e light does not stop flashing, contact an Authorized Mazda
Dealer.
When the differential oil temp erature is excessively high.When there is a large difference between th e front and rear wheel rotation, such as
when trying to remove the vehicle from mud.
(Turns on)
TCS/DSC Indicator
Light If the light stays on, the TCS, DSC or the brak
e assist system may have a malfunction and
they may not operate correctly . Take your vehicle to an Authorized Mazda Dealer.
Air Bag/Front Seat
Belt PretensionerSystem Warning Light A system malfunction is indicated if the warning light consta
ntly flashes, constantly illu‐
minates or does not illuminate at all when th e ignition is switched ON. If any of these oc ‐
cur, consult an Authorized M azda Dealer as soon as possible. The system may not operate
in an accident.WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda
Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could
accidentally activate or become disabled causing serious injury or death.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-30*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
(Flashing)
Tire Pressure Moni ‐
toring System
Warning Light
*
If the tire pressure monitoring system has a malfunction, the tire pressure warning light
flashes. Have your vehicle checked by an Au thorized Mazda Dealer as soon as possible.
WA R N I N G
If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pres‐
sure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden
maneuvering and braking:
If the tire pressure monitoring system warning light illuminates or flashes, or the tire pres‐
sure warning beep sound is heard, it is dangerous to drive the vehicle at high speeds, or
perform sudden maneuvering or braking. Vehicle drivability could worsen and result in an
accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed to a
place where air may be added and the system monitored again by an Authorized Mazda
Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have
the problem taken care of as soon as possible before it develops into a more serious situa‐
tion that could lead to tire failure and a dangerous accident.
(Amber)
KEY Warning Indi ‐
cation
*
“Keyless System Malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authori zed Mazda Dealer.
CAUTION
If the message is indicated, or the pu sh button start indicator light (amber)
flashes, the en‐
gine may not start. If the engine cannot be st arted, try starting it using the emergency oper‐
ation for starting the engine, and have the vehicle inspected at an Authorized Mazda Deal‐
er as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9.
“Ignition is On” is displayed
This message is displayed when the driver's door is opened without switching the ignition
off.
“Key Not Detected” is displayed
This message is displayed when any of the fo llowing operations is performed with the key
out of the operational range or placed in areas inside the cabin where it is difficult for the
key to be detected.
The push button start is pressed with the ignition switched offThe ignition is switched onAll doors are closed withou t switching the ignition off
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-31
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
(Red)
(Turns on)
KEY Warning
Light
*
If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light (amber)
flashes, the engine may not start. If the engine cannot be started, try starting it using the
emergency operation for starting the engine, and have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
Refer to Emergency Operation for St arting the Engine on page 4-9.
(Amber)
High Beam Control
System (HBC)
Warning Indication/
Wa r n i n g L i g h t
*
The light remains turned on if there is a pr oblem with the system. Have your vehicle in ‐
spected at an Authorized Mazda Dealer.
NOTE
If the Forward Sensing Camera (FSC) field of view is impaired during bad weather condi ‐
tions (such as rain, fog, and snow) and when the windshield is dirty, the warning indica ‐
tion/warning light for the High Beam Contro l System (HBC) may display/turn on. Howev‐
er, this does not indicate a problem.
Blind Spot Monitor ‐
ing (BSM) Warning
Indication
*
The Warning indication turns on if there is any malfunction in the Blind Spot Monitoring
(BSM). Have your vehicle inspected by an Authorized Mazda Dealer.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause. How ever, it does not indicate a malfunction.
Blind Spot Monitor‐
ing (BSM) OFF In ‐
dicator Light
*
A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not turn on when the ignition is switched ON.The light remains on even when the Blind Spot Monitoring (BSM) system can be oper‐
ated.
It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blin d Spot Monitoring (BSM) OFF indicator light
in the instrument cluster illuminates). Ho wever, it does not indicate a malfunction.
(Amber)
Driver Attention
Alert (DAA) Warn ‐
ing Indication
*
The message is displayed when the system ha s a malfunction. Have your vehicle inspect‐
ed at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-32*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
(Amber)
Mazda Radar Cruise Control with Stop & Go function
(MRCC with Stop & Go function)
Warning Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect ‐
ed at an Authorized Mazda Dealer.
Lane-keep Assist System (LAS) & Lane Departure
Wa r n i n g S y s t e m
(LDWS) Warning
Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect ‐
ed at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.
CAUTION
Always use tires for all wheels that are of the specified size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with significantly different wear
patterns on the same vehicle. If such improper tires are used, the system may not operate
normally.
 When an emergency spare tire is used, the system may not operate normally.
LED Headlight
Warning Light This light illuminates if ther
e is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
▼ Taking Action
Take the appropriate action and verify that the warning light turns off.
Signal
Warning Action to be taken
(Amber)
Smart Brake Support/
Smart City Brake Sup ‐
port (SBS/SCBS)
Warning Indication/
Wa r n i n g L i g h t
*
The light turns on if th e windshield or the
radar sensor are dirty, or there is a malfunc ‐
tion in the system. Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is illu
‐
minated is due to a dirty windshield, clean
the windshield.
If the warning light is illuminated because
of a dirty radar sensor, clean the front em ‐
blem.
For any other reasons, have the vehicle in ‐
spected at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-33
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning Action to be taken
Low Fuel Warning In‐
dication/Warning Light The light turns on wh
en the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal).NOTE
The light illumination timing may vary be ‐
cause fuel inside the fuel tank moves
around according to the driving conditions
and the vehicle posture. Add fuel.
Check Fuel Cap Warn
‐
ing Indication/Warning
Light If the check fuel cap warning light illumi
‐
nates while driving, the fuel-filler cap may
not be installed properly. Stop the engine and reinstall the fuel-filler
cap.
Refer to Refueling on page 3-33.
Engine Oil Level
Warning Light This warning light indicates that the engine
oil level is around the MIN mark (page
6-24).
Add 1 L (0.3 US gal, 0.2 Imp gal) of en
‐
gine oil (page 6-22).
Seat Belt Warning Light (Front seat) Except Mexico
The seat belt warning lig
ht turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig ‐
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and if the vehicle is driven
at about 20 km/h (12 mph) or faster, or
about 10 km/h (6 mph) or faster for a con ‐
tinuous 30 seconds, with the seat belt unfas ‐
tened, the warning light flashes for a certain
period. After a short time, the warning light
stops flashing, but remains illuminated.
NOTE
The warning light fla shes for about 6
seconds if the driver's seat belt is not fas ‐
tened when the ignition is switched ON.
To allow the front passenger occupant
classification sensor to function properly,
do not place and sit on an additional seat
cushion on the front passenger's seat.
The sensor may not function properly be ‐
cause the additional seat cushion could
cause sensor interference.
If a small child is seated on the front pas ‐
senger's seat, the warning light may not
operate. Fasten the seat belts.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-34
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

SignalWarning Action to be taken
Seat Belt Warning
Light (Front seat) Mexico
The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig
‐
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re ‐
mains illuminated. If a seat belt remains un ‐
fastened, the warning light flashes again for
a given period of time.
NOTE
Placing heavy items on the front pas‐
senger's seat may cause the front pas ‐
senger's seat belt warning function to op ‐
erate depending on the weight of the
item.
To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sen ‐
sor interference.
If a small child is seated on the front pas ‐
senger's seat, the warning light may not
operate. Fasten the seat belts.
(Red)
Seat Belt Warning Light (Rear seat) If the rear seat belts are not fastened while
the ignition is switched
ON , the driver and
the passenger are alerted by the warning
light.
The warning light operates even if there is
no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a cer ‐
tain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.
Low Washer Fluid
Level Warning Indica ‐
tion/Warning Light
*
This warning light indicates that little wash ‐
er fluid remains. Add washer fluid (page 6-28).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-35
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53
