2021 HYUNDAI SANTA FE CALLIGRAPHY Owners Manual

03

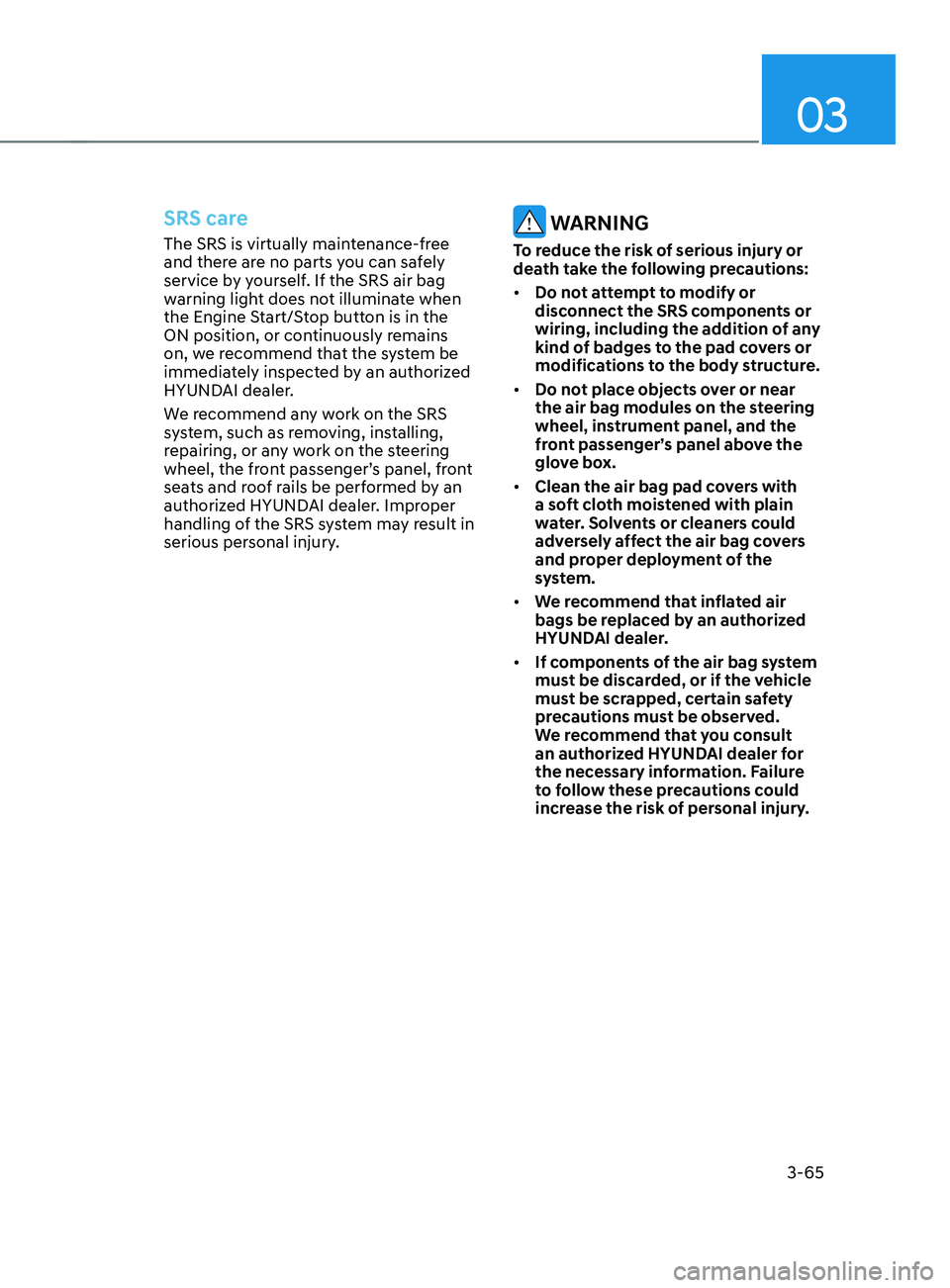

3-65
SRS care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the Engine Start/Stop button is in the
ON position, or continuously remains
on, we recommend that the system be
immediately inspected by an authorized
HYUNDAI dealer.
We recommend any work on the SRS
system, such as removing, installing,
repairing, or any work on the steering
wheel, the front passenger’s panel, front
seats and roof rails be performed by an
authorized HYUNDAI dealer. Improper
handling of the SRS system may result in
serious personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:
• Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.
• Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.
• Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.
• We recommend that inflated air
bags be replaced by an authorized
HYUNDAI dealer.
• If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
We recommend that you consult
an authorized HYUNDAI dealer for
the necessary information. Failure
to follow these precautions could
increase the risk of personal injury.

Seats & Safety System

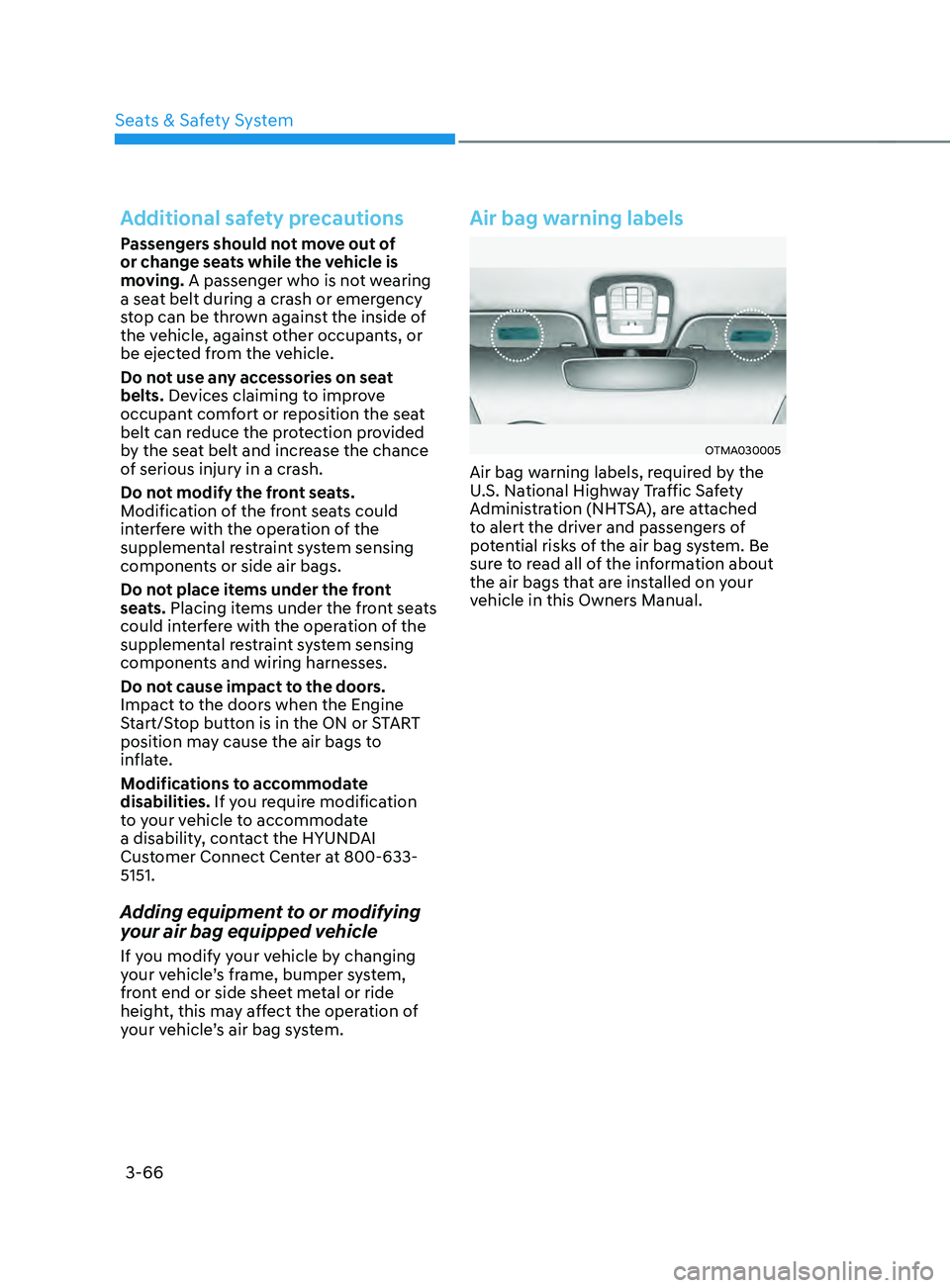

3-66
Additional safety precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air bag warning labels
OTMA030005
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system. Be
sure to read all of the information about
the air bags that are installed on your
vehicle in this Owners Manual.

Instrument cluster
Instrument cluster ........................................................................\
....................4-4Instrument cluster control ........................................................................\
...................4-5
Instrumen t panel illumination ........................................................................\
........... 4-5
Gauges and me
ters
........................................................................\
.............................. 4-5
Speedome

ter
........................................................................\
..................................... 4-5
T

achometer
........................................................................\
.....................................
...4-5
Engine coolant temperature gauge
........................................................................\
. 4-6
Fuel gauge ........................................................................\
.....................................

....4-6
Outside temperature gauge
........................................................................\
.............. 4

-7
Odometer
........................................................................\
.....................................

.....4-8
Distance to empty
........................................................................\
............................ 4-8
F

uel economy (for 12.3-inch cluster)
...................................................................... 4-9
T

ransmission shift indicator
........................................................................\
................ 4-9
A

utomatic transmission / Dual clutch transmission shift indicator
..................... 4-9
W

arning and indicator lights
........................................................................\
............. 4-

10
Seat belt warning light
........................................................................\
.................... 4-

10
Air bag warning light
........................................................................\
....................... 4-

10
Parking brake & Brake fluid warning light
.............................................................. 4-10
An

ti-lock Brake System (ABS) warning light
........................................................... 4-

11
Electronic Brake Force Distribution (EBD) system warning light
.......................... 4-

11
Electric Power Steering (EPS) warning light
.......................................................... 4-

12
Charging system warning light
........................................................................\
....... 4-

12
Engine oil pressure warning light
........................................................................\
... 4-

13
Low fuel level warning light
........................................................................\
............ 4-

13
Malfunction Indicator Lamp (MIL)
........................................................................\
.. 4-13
Exhaus

t system (GPF) warning light (for gasoline engine)
................................... 4-

14
Electronic Parking Brake (EPB) warning light
........................................................ 4-

14
AUTO HOLD indicator light
........................................................................\
............. 4-

15
Low tire pressure warning light
........................................................................\
...... 4-

15
Forward Safety warning light
........................................................................\
.......... 4-16
Lane Sa

fety indicator light
........................................................................\
.............. 4-

16
4 Wheel Drive (4WD) warning light
........................................................................\
4-

16
4 Wheel Drive (4WD) LOCK Indicator Light
............................................................ 4-17
LED headligh

t warning light
........................................................................\
............. 4-

17
Icy road warning light
........................................................................\
...................... 4-

18
Electronic Stability Control (ESC) indicator light
................................................... 4-

18
Electronic Stability Control (ESC) OFF indicator light
........................................... 4-

18
Immobilizer Indicator Light (without smart key)
.................................................. 4-

19
Immobilizer Indicator Light (with smart key)
......................................................... 4-

19
Downhill Brake Control (DBC) indicator light
........................................................

4-20
4. Instrument cluster
4

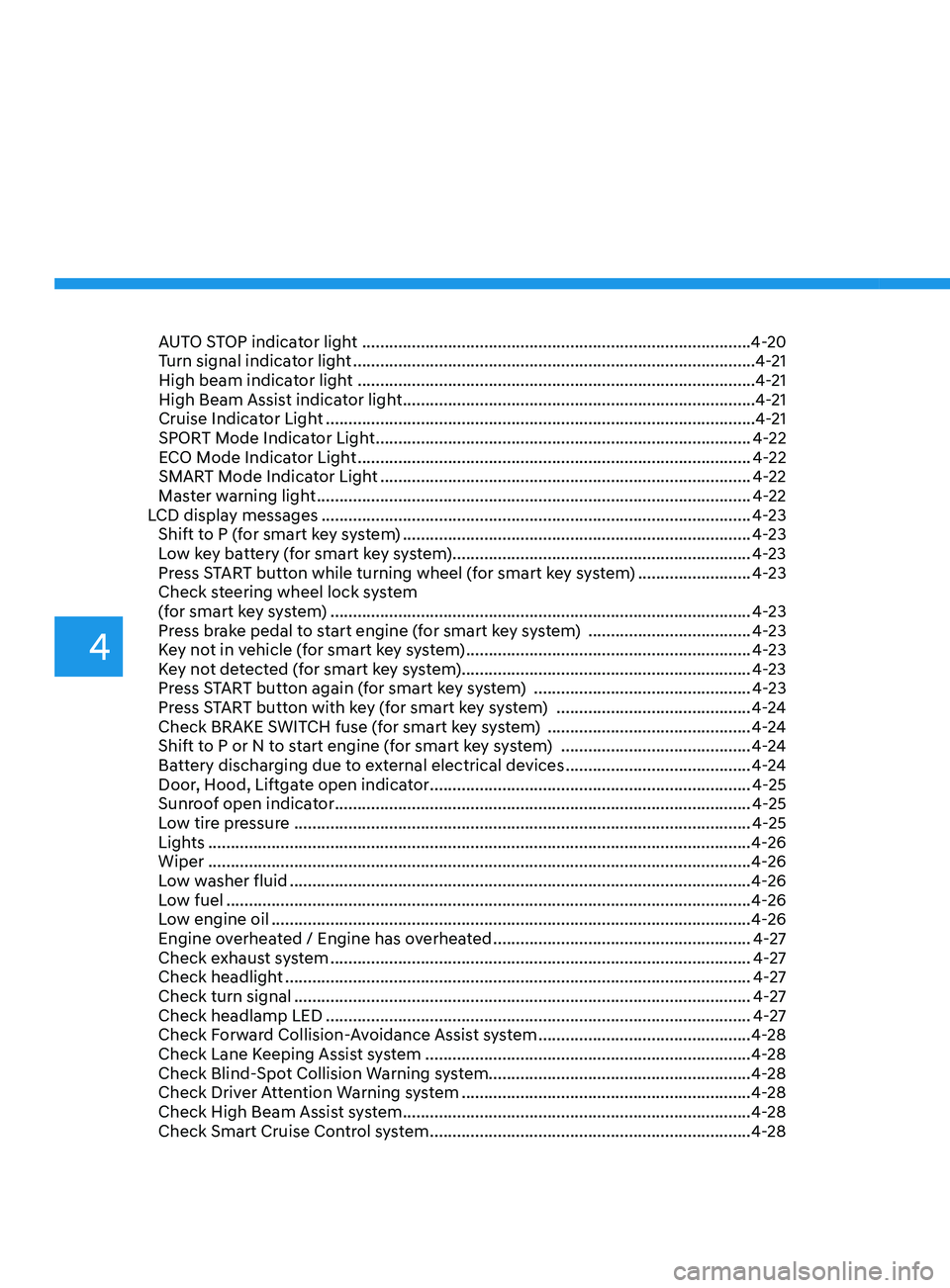

AUTO STOP indicator light ........................................................................\
..............4-20
T urn signal indicator light ........................................................................\
................. 4-
21
High beam indicator light
........................................................................\
................ 4-

21
High Beam Assist indicator light
........................................................................\
...... 4-

21
Cruise Indicator Light
........................................................................\
....................... 4-

21
SPORT Mode Indicator Light
........................................................................\
........... 4-

22
ECO Mode Indicator Light
........................................................................\
............... 4-

22
SMART Mode Indicator Light
........................................................................\
.......... 4-22
Mas

ter warning light
........................................................................\
........................ 4-

22
LCD display messages
........................................................................\
....................... 4-

23
Shift to P (for smart key system)
........................................................................\
..... 4-

23
Low key battery (for smart key system).................................................................. 4-23
Press START button while turning wheel (for smart key system)
......................... 4-

23
Check steering wheel lock system
(for smart key system)
........................................................................\
..................... 4-

23
Press brake pedal to start engine (for smart key system)
.................................... 4-

23
Key not in vehicle (for smart key system)
............................................................... 4-23
K

ey not detected (for smart key system)................................................................ 4-23
Press START button again (for smart key system)
................................................ 4-

23
Press START button with key (for smart key system)
........................................... 4

-24
Check BRAKE SWITCH fuse (for smart key system)
............................................. 4

-24
Shift to P or N to start engine (for smart key system)
.......................................... 4

-24
Battery discharging due to external electrical devices
......................................... 4

-24
Door, Hood, Liftgate open indicator
....................................................................... 4-25
Sunr

oof open indicator
........................................................................\
.................... 4-

25
Low tire pressure
........................................................................\
............................. 4-

25
Lights
........................................................................\
................................................ 4-

26
Wiper
........................................................................\
.....................................

...........4-26
Low washer fluid
........................................................................\
.............................. 4-

26
Low fuel
........................................................................\
.....................................

.......4-26
Low engine oil
........................................................................\
.................................. 4-

26
Engine overheated / Engine has overheated
......................................................... 4-

27
Check exhaust system
........................................................................\
..................... 4-

27
Check headlight
........................................................................\
............................... 4-

27
Check turn signal
........................................................................\
............................. 4-

27
Check headlamp LED
........................................................................\
...................... 4-

27
Check Forward Collision-Avoidance Assist system
............................................... 4-

28
Check Lane Keeping Assist system
........................................................................\
4-28
Check Blind-

Spot Collision Warning system..........................................................4-28
Check Driver Attention Warning system
................................................................ 4-

28
Check High Beam Assist system
........................................................................\
..... 4-

28
Check Smart Cruise Control system
....................................................................... 4-28
4

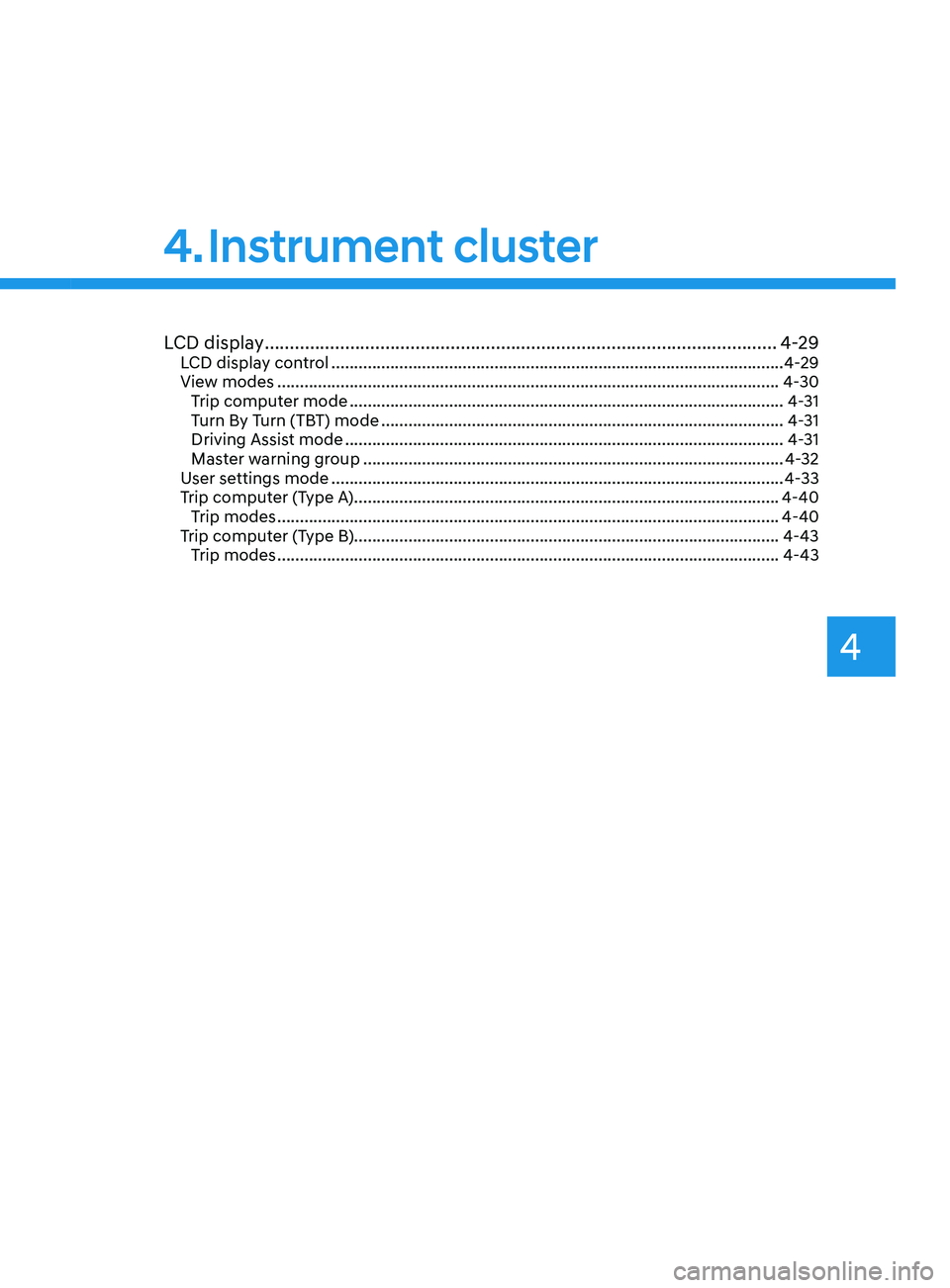

4. Instrument cluster
LCD display ........................................................................\
..............................4-29LCD display control ........................................................................\
............................4-29
Vie w modes ........................................................................\
....................................... 4-
30
Trip computer mode
........................................................................\
........................ 4-

31
Turn By Turn (TBT) mode
........................................................................\
................. 4-

31
Driving Assist mode
........................................................................\
......................... 4-

31
Master warning group
........................................................................\
..................... 4-

32
User settings mode
........................................................................\
............................ 4-

33
Trip computer (Type A)........................................................................\
...................... 4-40 Trip modes
........................................................................\
....................................... 4-40
T

rip computer (Type B)........................................................................\
...................... 4-43Trip modes
........................................................................\
....................................... 4-43
4

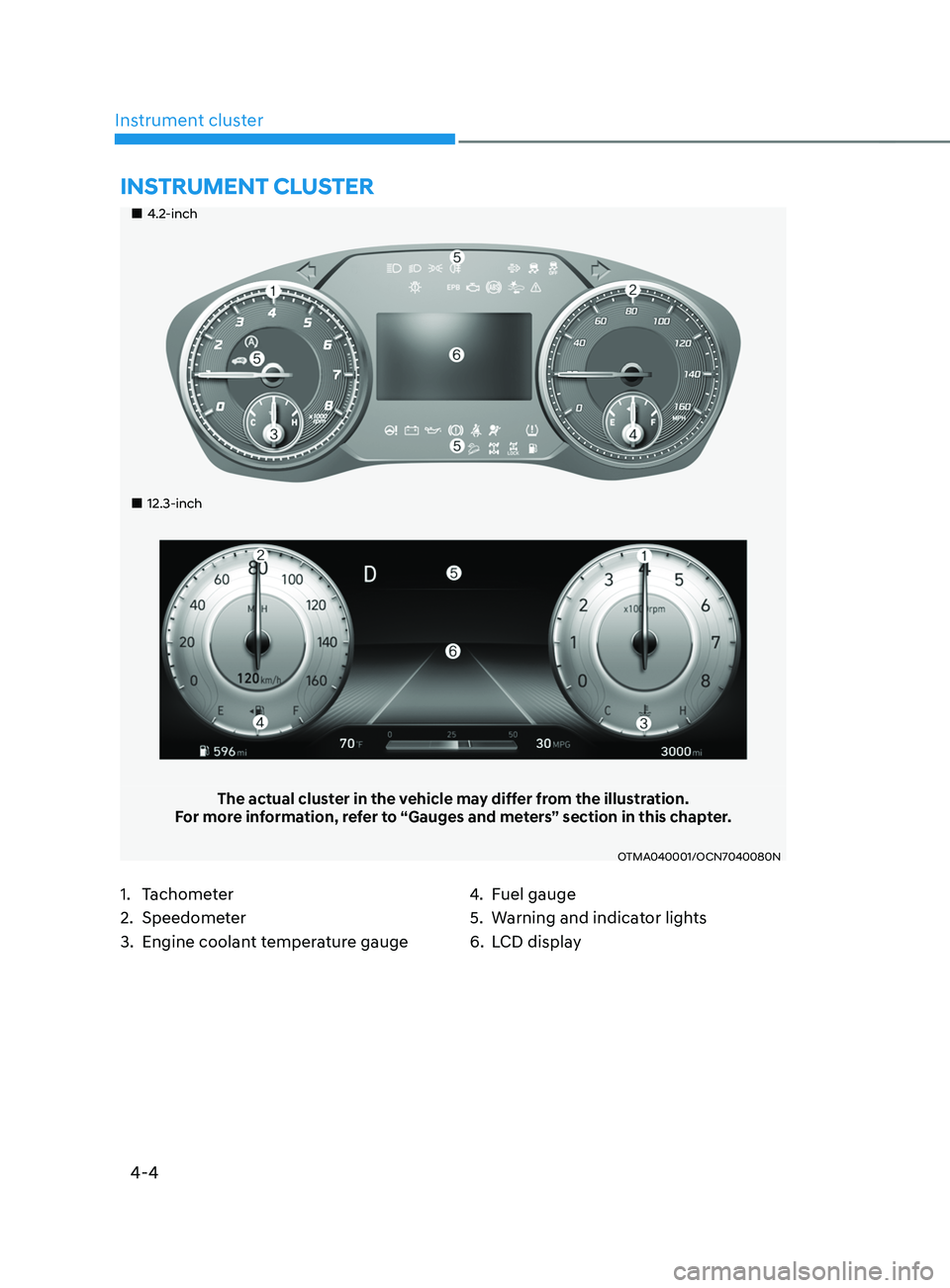

4-4
Instrument cluster
„„4.2-inch
„„12.3-inch
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
OTMA040001/OCN7040080N
1. Tachometer
2.
Speedomet
er
3.
Engine coolan

t temperature gauge 4. Fuel gauge
5.
Warning and indica

tor lights
6.
LCD displa

y
INSTRUMENT CLUSTER

04
4-5
Instrument cluster control
Instrument panel illumination
When the vehicle’s parking lights or
headlamps are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity also adjusted.
You can adjust the brightness of the
instrument panel illumination form the
User Settings Mode on the LCD display
when
the ignition s
witch
is on (‘Ligh
ts
→ Illumination

’). When the vehicle’s parking
lights or headlamps are on, interior
switch illumination intensity and mood
lamps are also adjusted.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.
• The brightness of the instrument
panel illumination is displayed.
• If the brightness reaches to the
maximum or minimum level, a chime
will sound.
Gauges and meters
Speedometer
„„4.2-inch „„12.3-inch
OTM040059LOTM040006L
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH) and/or kilometers per hour
(km/h).
Tachometer
„„4.2-inch„„12.3-inch
OTM040007LOTM040008LThe tachometer indicates the
approximate number of engine
revolutions per minute (rpm).
Use the tachometer to select the correct
shift points and to prevent lugging and/
or over-revving the engine.
NOTICE
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.

Instrument cluster
4-6
Engine coolant temperature gauge
„„4.2-inch„•Type A„•Type B
OTM040009OTM040009L
„„12.3-inch„•Type A„•Type B
OTM040010OTM040010L
This gauge indicates the temperature
of the engine coolant when the ignition
switch is in the ON position.
NOTICE
If the gauge pointer moves beyond
the normal range area toward the
“H (Hot) or 130” position, it indicates
overheating that may damage the
engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” section in chapter 8.
WARNING
Never remove the engine coolant
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could cause severe burn. Wait until
the engine is cool before adding coolant
to the reservoir.
Fuel gauge
„„4.2-inch„•Type A„•Type B
OTM040011OTM0400011L
„„12.3-inch„•Type A„•Type B
OTM040012OTM040012L
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
