2021 HONDA ODYSSEY Owner's Manual (in English)

719
uuCleaning uExterior Care
Maintenance
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Cleaning the Window
■Maintaining Aluminum Wheels
■Fogged Exterior Light Lenses
21 US ODYSSEY-31THR6310.book 719 ページ ２０２０年６月１７日　水曜日　午後２時４６分

720
Maintenance

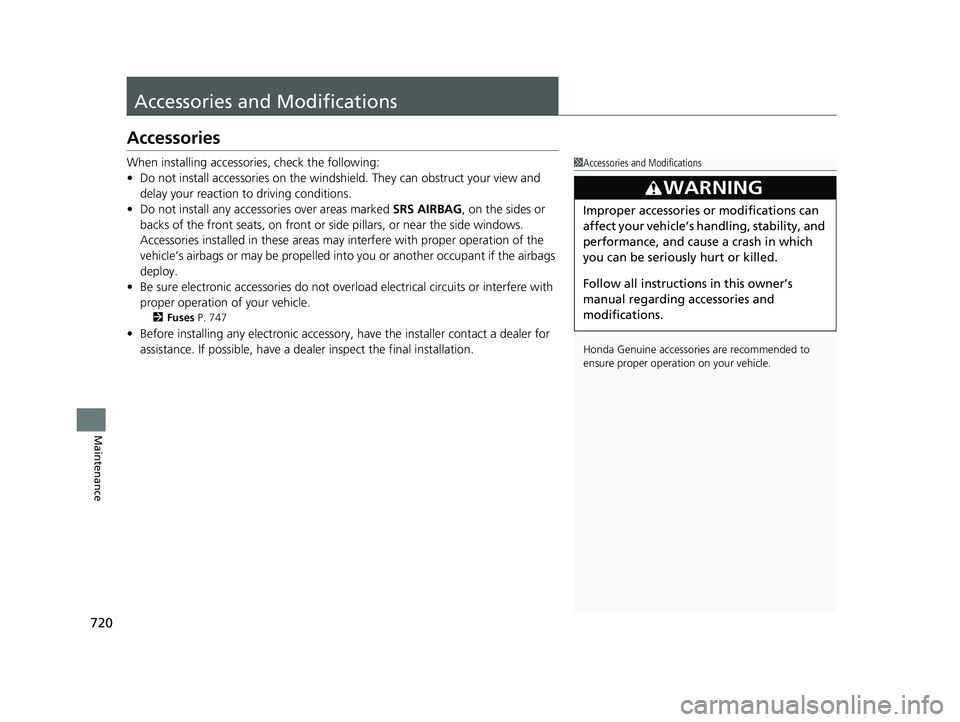

Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the front seats, on front or si de pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 747
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
21 US ODYSSEY-31THR6310.book 720 ページ ２０２０年６月１７日　水曜日　午後２時４６分

721
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1 962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair any of the electrical components.
21 US ODYSSEY-31THR6310.book 721 ページ ２０２０年６月１７日　水曜日　午後２時４６分

722
21 US ODYSSEY-31THR6310.book 722 ページ ２０２０年６月１７日　水曜日　午後２時４６分

723
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 724
If a Tire Goes Flat Changing a Flat Tire ......................... 725
Engine Does Not Start Checking the Engine ........................ 734
If the Remote Battery is Weak .......... 735
Emergency Engine Stop ................... 736
If the Battery Is Dead ....................... 737
Overheating How to Handle Overheating ............. 739
Indicator, Coming On/Blinking
If the Low Oil Pressure Symbol Appears... 741
If the Charging System Indicator Comes
On ................................................. 742
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 742
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 743
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 744
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 745
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 745 If the Transmission System Indicator Blinks
along with the Warning Message... 746
Fuses Fuse Locations ................................. 747
Inspecting and Changing Fuses ........ 753
Emergency Towing ........................... 754
If You Cannot Unlock the Fuel Fill Door ... 755
If You Cannot Open the Tailgate .... 756
When You Cannot Close the Power Sliding Doors*................................. 758
Refueling
Refueling From a Portable Fuel Container .... 759
* Not available on all models
21 US ODYSSEY-31THR6310.book 723 ページ ２０２０年６月１７日　水曜日　午後２時４６分

724
Handling the Unexpected

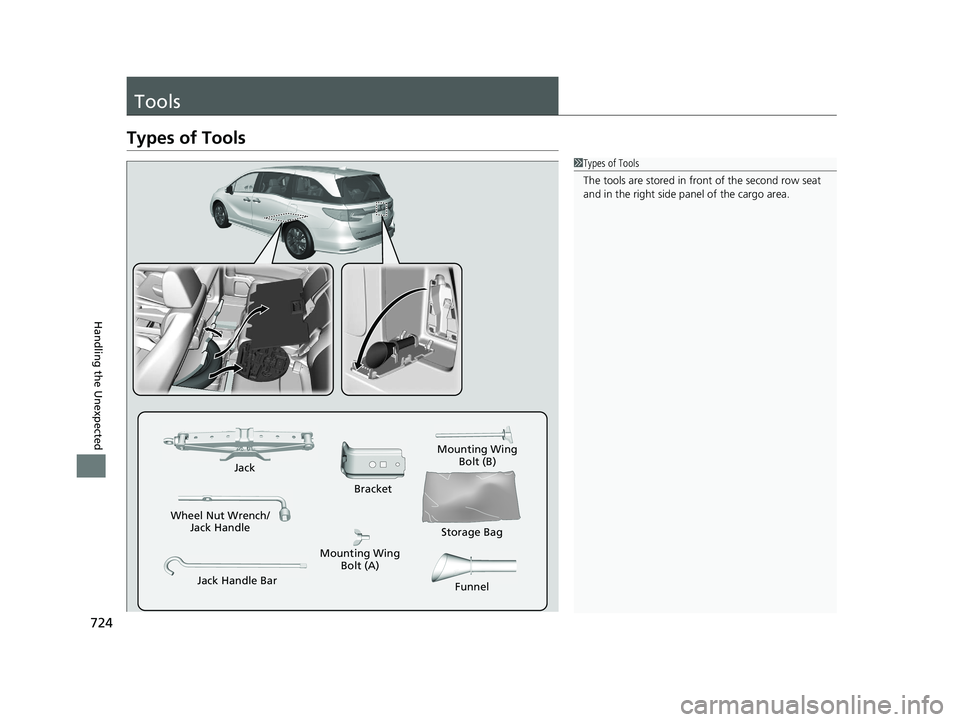

Tools
Types of Tools
1Types of Tools
The tools are stored in fr ont of the second row seat
and in the right side pa nel of the cargo area.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle Bar Bracket
Mounting Wing
Bolt (B)
Mounting Wing Bolt (A) Storage Bag
Funnel
21 US ODYSSEY-31THR6310.book 724 ページ ２０２０年６月１７日　水曜日　午後２時４６分

725Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Press the
(P button.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
21 US ODYSSEY-31THR6310.book 725 ページ ２０２０年６月１７日　水曜日　午後２時４６分

726
uu If a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the second row floor mat.
2 Floor Mats P. 715
2.Pull up the floor carpet.
3. Lift up the floor lid using the handle and
remove it.
4. Take the tool case out of the spare tire well.
Take the jack and wheel nut wrench out of
the tool case.
5. Unscrew the wing bolt, then remove the
spare tire.
6. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.

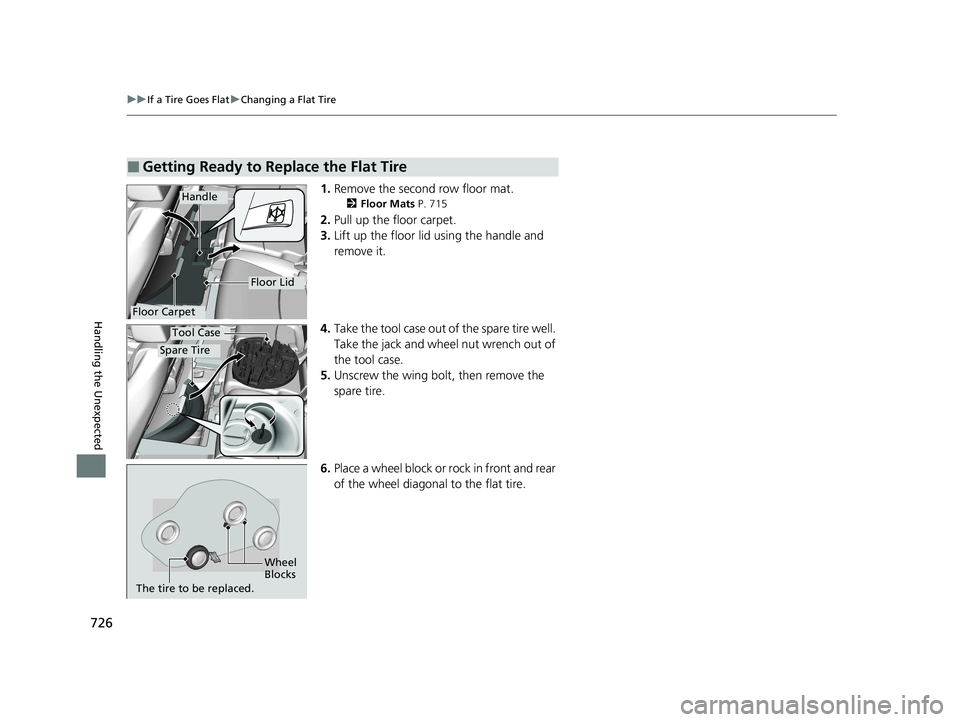

■Getting Ready to Replace the Flat Tire
Floor Carpet
Handle
Floor Lid
Spare Tire
Tool Case
Wheel
Blocks
The tire to be replaced.
21 US ODYSSEY-31THR6310.book 726 ページ ２０２０年６月１７日　水曜日　午後２時４６分
