2021 HONDA ODYSSEY Owner's Manual (in English)

Continued135
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

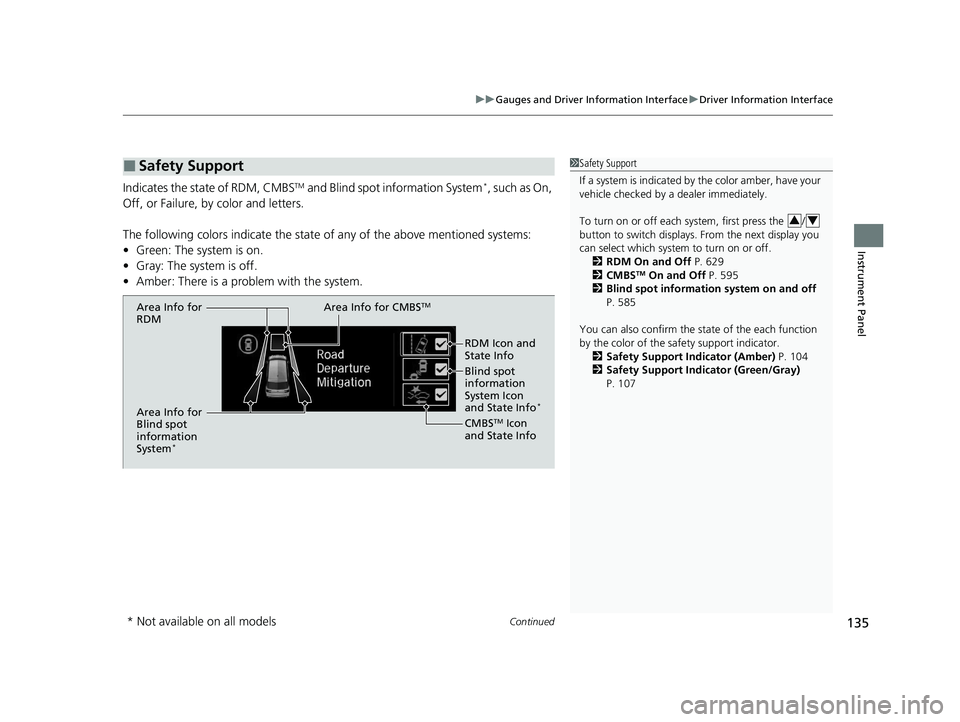

Indicates the state of RDM, CMBSTM and Blind spot information System*, such as On,
Off, or Failure, by color and letters.
The following colors indica te the state of any of the above mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a problem with the system.
■Safety Support1Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn on or off each system, first press the /
button to switch displays. From the next display you
can select which system to turn on or off.
2 RDM On and Off P. 629
2 CMBS
TM On and Off P. 595
2 Blind spot information system on and off
P. 585
You can also confirm the st ate of the each function
by the color of the sa fety support indicator.
2 Safety Support Indicator (Amber) P. 104
2 Safety Support Indicator (Green/Gray)
P. 107
34
Area Info for CMBSTM
CMBSTM Icon
and State Info
Area Info for
Blind spot
information
System
*
RDM Icon and
State Info
Area Info for
RDM
Blind spot
information
System Icon
and State Info
*
* Not available on all models
21 US ODYSSEY-31THR6310.book 135 ページ ２０２０年６月１７日　水曜日　午後２時４６分

uuGauges and Driver Information Interface uDriver Information Interface
136
Instrument Panel
2 Driver Information Interface Warning and
Information Messages P. 108

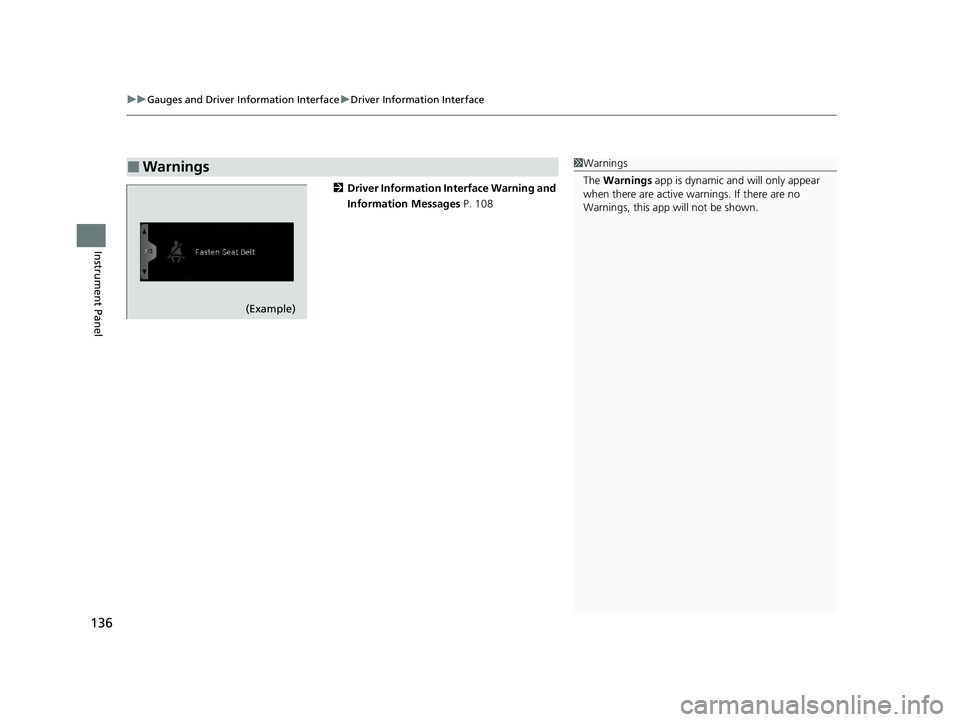

■Warnings1Warnings
The Warnings app is dynamic a nd will only appear
when there are active warnings. If there are no
Warnings, this app will not be shown.
(Example)
21 US ODYSSEY-31THR6310.book 136 ページ ２０２０年６月１７日　水曜日　午後２時４６分

137
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

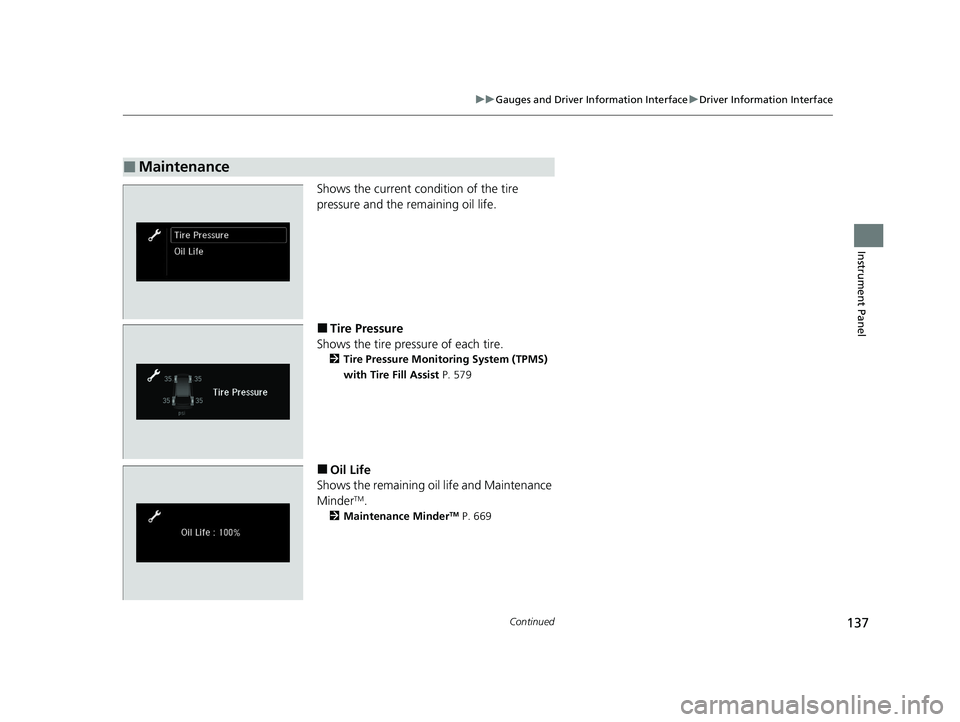

Shows the current condition of the tire
pressure and the remaining oil life.
■Tire Pressure
Shows the tire pressure of each tire.
2 Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist P. 579
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 669
■Maintenance
21 US ODYSSEY-31THR6310.book 137 ページ ２０２０年６月１７日　水曜日　午後２時４６分

138
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

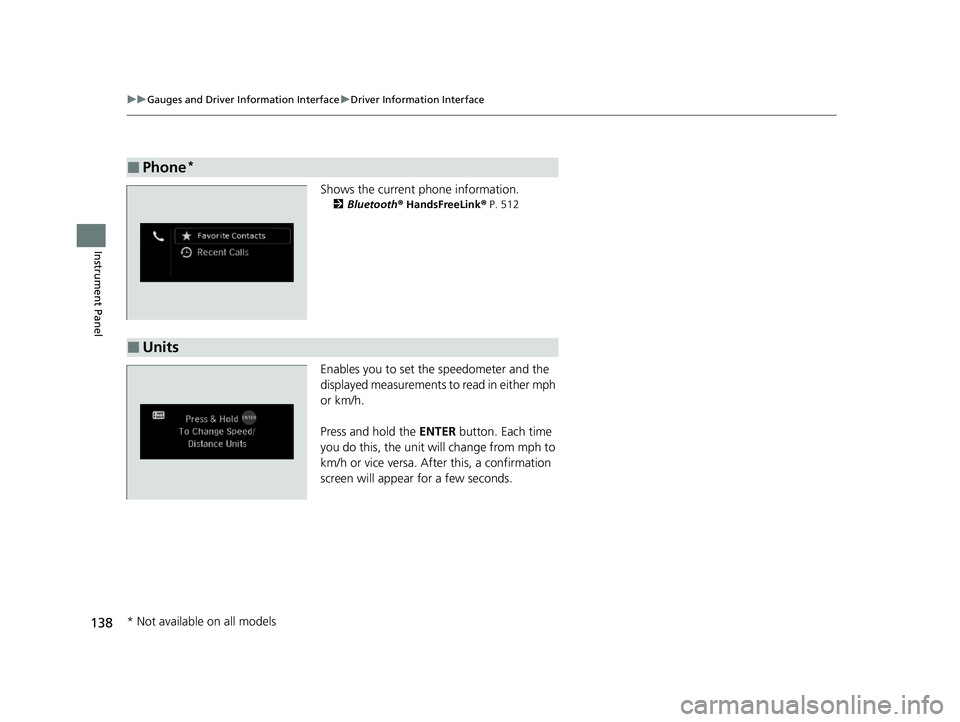

Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 512
Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.
Press and hold the ENTER button. Each time
you do this, the unit will change from mph to
km/h or vice versa. After this, a confirmation
screen will appear for a few seconds.
■Phone*
■Units
* Not available on all models
21 US ODYSSEY-31THR6310.book 138 ページ ２０２０年６月１７日　水曜日　午後２時４６分

139
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

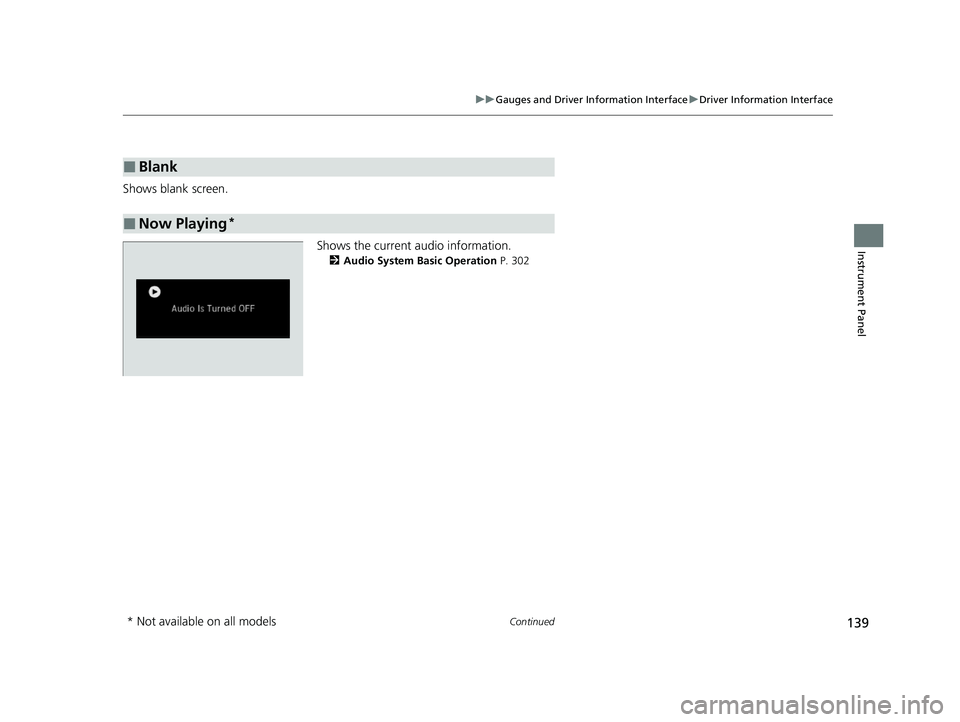

Shows blank screen.
Shows the current audio information.
2Audio System Basic Operation P. 302
■Blank
■Now Playing*
* Not available on all models
21 US ODYSSEY-31THR6310.book 139 ページ ２０２０年６月１７日　水曜日　午後２時４６分

uuGauges and Driver Information Interface uDriver Information Interface
140
Instrument Panel
You can show or hide the meter contents.
Select the content you wish to show or hide,
then press ENTER.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB, AM,
FM , Bluetooth Audio , Social Playlist , AUX Input ,
CD
* and Rear Entertainment* apps.
Models with Display Audio
Shown
Press ENTER
Hidden
* Not available on all models
21 US ODYSSEY-31THR6310.book 140 ページ ２０２０年６月１７日　水曜日　午後２時４６分

Continued141
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Change the settings to your liking.
■Arrange Apps
You can change the order of the apps on the home screen. 1.Press the / button to select Arrange
Apps , then press ENTER.
2. Press the / button to select the icon
you want to move, then press ENTER.
3. Press the / button repeatedly to move
the icon to your desired position, then press
ENTER .
■Settings
1Arrange Apps
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
34
34
34
21 US ODYSSEY-31THR6310.book 141 ページ ２０２０年６月１７日　水曜日　午後２時４６分

uuGauges and Driver Information Interface uDriver Information Interface
142
Instrument Panel

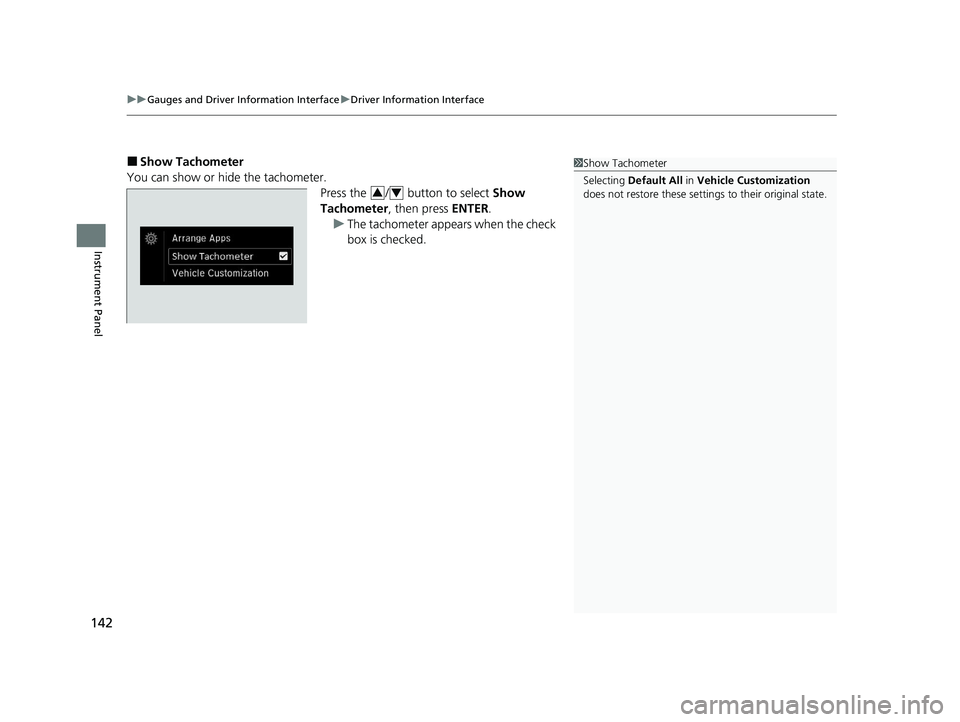

■Show Tachometer
You can show or hide the tachometer. Press the / button to select Show
Tachometer , then press ENTER.
u The tachometer appears when the check
box is checked.1Show Tachometer
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
34
21 US ODYSSEY-31THR6310.book 142 ページ ２０２０年６月１７日　水曜日　午後２時４６分
