uu Maintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.Canadian models
21 US ODYSSEY-31THR6310.book 687 ページ 2020年6月17日 水曜日 午後2時46分
Page 690 of 787
688
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
* Not available on all models
21 US ODYSSEY-31THR6310.book 688 ページ 2020年6月17日 水曜日 午後2時46分
Page 691 of 787
689
uu Replacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the screws, and pull the inner
fender back.
3. Rotate the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Front Turn Signal Light: 28/8 W (Amber)
Screws
Bulb
Socket
21 US ODYSSEY-31THR6310.book 689 ページ 2020年6月17日 水曜日 午後2時46分
Page 692 of 787

690
uu Replacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulb.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clip and screw, and
pull the inner fender back.
3. Rotate the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Front Side Marker Light: 3 CP
1 Front Side Marker Light Bulbs
Press down the center pin until it clicks to unlock it.
Push the center pin back to lock the clip. Then, insert
the clip into the hole and press on the center pin until
it is flat.
Center pin
Push until
the pin is
flat.
Clip
Screw
SocketBulb
* Not available on all models
21 US ODYSSEY-31THR6310.book 690 ページ 2020年6月17日 水曜日 午後2時46分
Page 693 of 787
691
uu Replacing Light Bulbs uBrake, Rear Turn Signal Light Bulb s, and Rear Side Marker/Taillights
Continued
Maintenance
Brake, Rear Turn Signal Light Bulbs, and Rear Side
Marker/Taillights
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver to remove
the bolt.
2. Pull the cover out of the rear pillar.
3. Use a Phillips-head screwdriver to remove
the bolts.
4. Pull on the light assembly to rotate about
the grommet and remove from the rear
pillar.
Brake Light: 21 W
Rear Turn Signal Light: 21 W
Rear Side Marker/Taillight: LED
1Brake, Rear Turn Signal Light Bulbs, and Rear Side Marker/
Taillights
Rear side marker /taillights are LED type. Have an
authorized Honda d ealer inspect and replace the light
assembly.
Bolt
Cover
Grommet
Pin
Bolts
21 US ODYSSEY-31THR6310.book 691 ページ 2020年6月17日 水曜日 午後2時46分
Page 694 of 787
692
uu Replacing Light Bulbs uBrake, Rear Turn Signal Light Bulbs, and Rear Side Marker/Taillights
Maintenance
5. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
6. Insert a new bulb and turn the socket
clockwise.
7. Slide the light assembly onto the guide on
the body.
8. Align the pin with the body grommet, then
push in until it fully seats.Bulb
Socket Pin
21 US ODYSSEY-31THR6310.book 692 ページ 2020年6月17日 水曜日 午後2時46分
Page 695 of 787
693
uu Replacing Light Bulbs uBack-Up Light Bulbs/Taillights
Maintenance

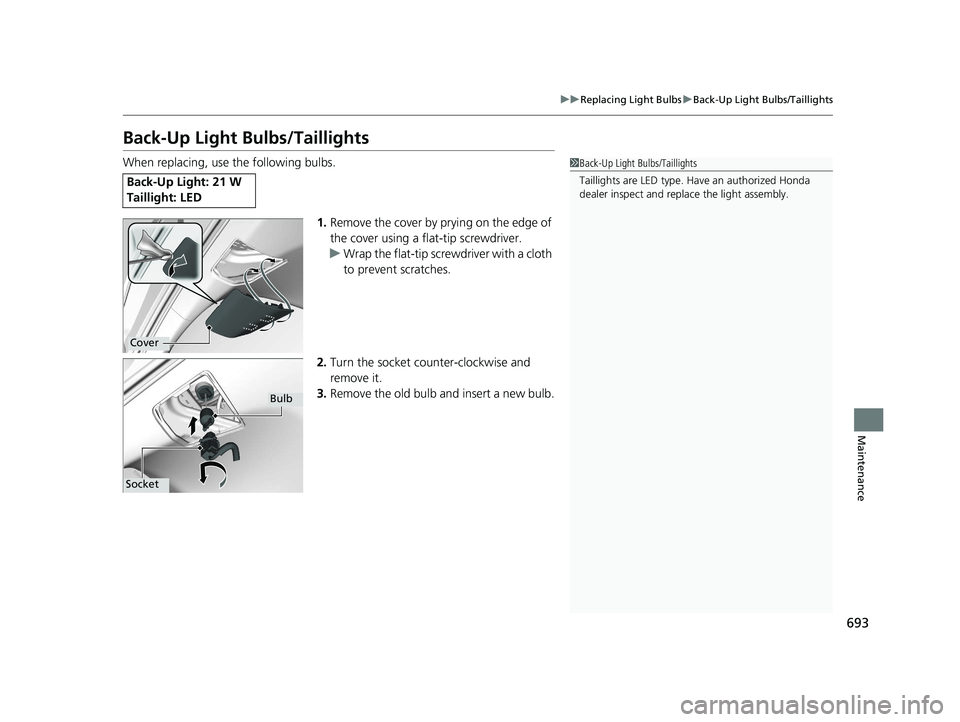

Back-Up Light Bulbs/Taillights
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 21 W
Taillight: LED
1Back-Up Light Bulbs/Taillights
Taillights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Cover
Bulb
Socket
21 US ODYSSEY-31THR6310.book 693 ページ 2020年6月17日 水曜日 午後2時46分
Page 696 of 787
694
uu Replacing Light Bulbs uRear License Plate Light
Maintenance

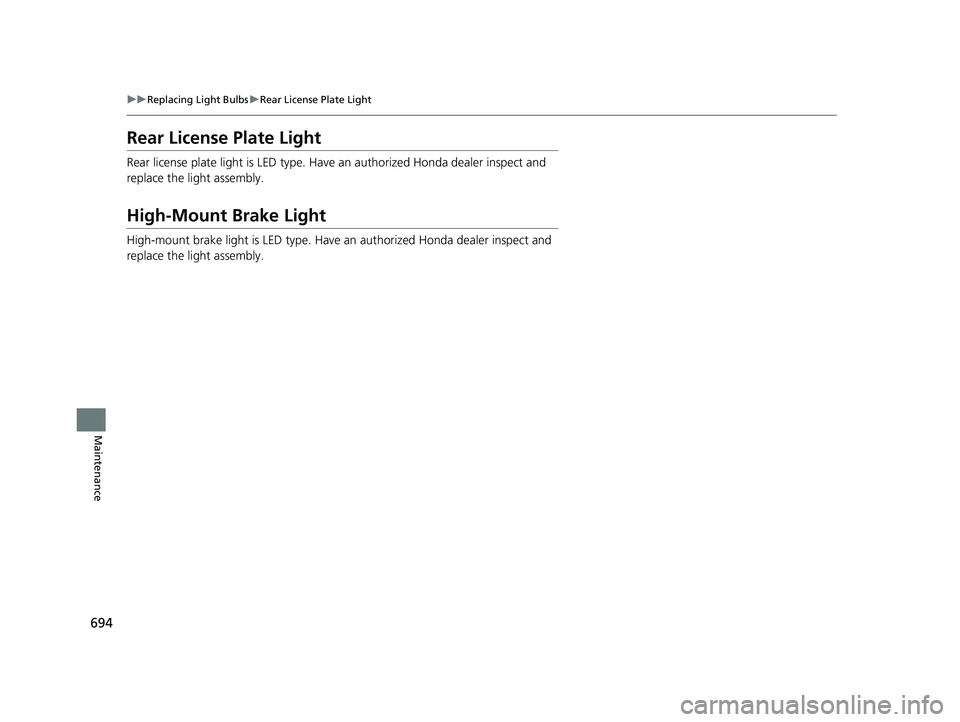

Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
