2021 HONDA ODYSSEY Owner's Manual (in English)

423
uuBlu-ray/DVD Rear Entertainment System*uPlaying a DVD/Blu-rayTM
Features
■Adjusting the screen
1. Press the (home) button on the remote.
2. Select Settings and then press the ENTER button on the remote to display the
Settings screen.
3. Select Display and then press the ENTER button on the remote.
4. Select the setting you want.
The following items are available:
• Brightness: Adjusts the screen’s brightness.
• Contrast : Adjusts the screen’s contrast.
• Tint : Adjusts the screen’s hue.
• Color : Adjusts the screen ’s color strength.
■Setting the Language
1. Press the (home) button on the remote.
2. Select Settings and then press the ENTER button on the remote to display the
Settings screen.
3. Select Language and then press the ENTER button on the remote.
4. Select the setting you want.
u You can select the language from US English, UK English , Spanish ,
Canadian French , Arabic , or Korean .
■Setting the Headphones
1. Press the (home) button on the remote.
2. Select Settings and then press the ENTER button on the remote to display the
Settings screen.
3. Select Headphones and then press the ENTER button on the remote.
4. Select the setting you want.
u You can select the options from Off or On. Select Off to disable the feature.
21 US ODYSSEY-31THR6310.book 423 ページ ２０２０年６月１７日　水曜日　午後２時４６分

424
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Features
Front Control Panel Operation
You can operate the Blu-ray/DVD Rear En tertainment System (RES) from the audio/
information screen.
1.Select .
2. Select Rear Entertainment .
3. Select Rear if the power is off.
u If you select this icon while the system is
operating, the system is turned off.
4. Select the app you want to use.
The following items are available on the audio/information screen:
• Rear : Turns the system on or off.
• Now Playing : Displays the current playing app.
• Rear Apps : Displays the home screen.
• CabinTalk : Displays the CabinTalk screen.
2CabinTalk ®* P. 538
•Remote : Disables controls from the remote.
• Settings : Changes the system settings.
2Rear System Setup P. 425
■Selecting the App using Front Control Panel
* Not available on all models
21 US ODYSSEY-31THR6310.book 424 ページ ２０２０年６月１７日　水曜日　午後２時４６分

425
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Continued
Features
■Manage Apps
Shows or hides app icons on the home screen.
1. Select .
2. Select Rear Entertainment .
3. Select Settings .
4. Select Manage Apps .
5. Select Available or Hidden .
6. Select Save.
■Rear System Setup
21 US ODYSSEY-31THR6310.book 425 ページ ２０２０年６月１７日　水曜日　午後２時４６分

uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
426
Features
Select Options while a DVD or Blu-rayTM is
playing.
The following items are available on the audio/information screen:
• Subtitles and Audio
2 Setting the Player Options P. 420
•Repeat
2 Setting the Player Options P. 420
•Change Order
2 Setting the Player Options P. 420
•Autoplay: Turns on and off to automatically play a DVD or Blu-rayTM disc.
■Setting the DVD or Blu-rayTM Menu1Setting the DVD or Blu-rayTM Menu
Depending on the disc you insert, some items may
not be displayed.
21 US ODYSSEY-31THR6310.book 426 ページ ２０２０年６月１７日　水曜日　午後２時４６分

427
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Continued
Features

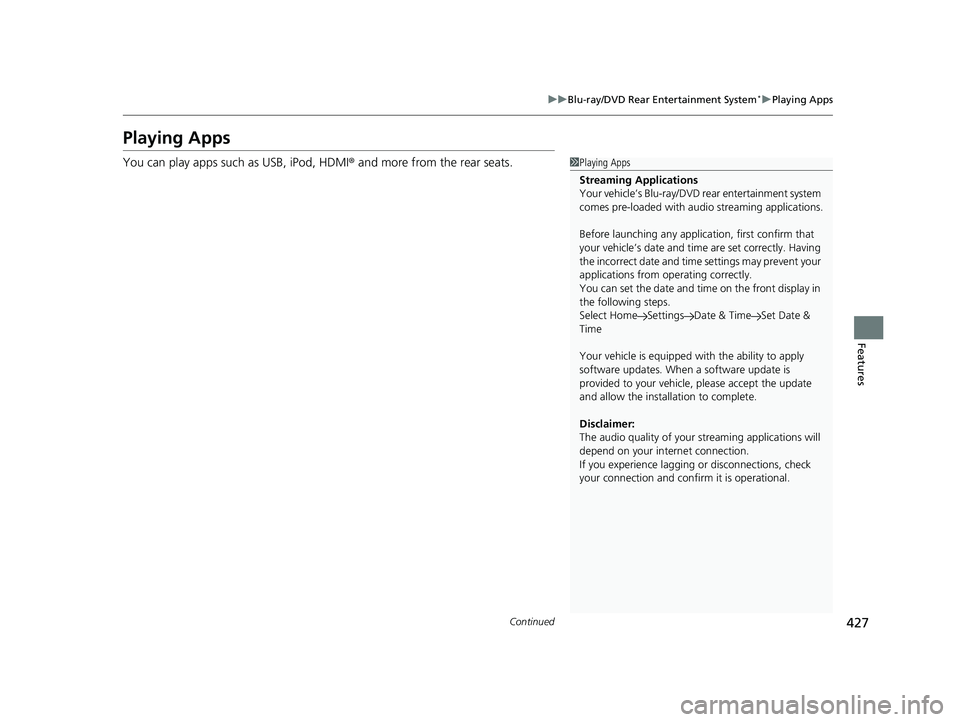

Playing Apps
You can play apps such as USB, iPod, HDMI ® and more from the rear seats.1Playing Apps
Streaming Applications
Your vehicle’s Blu-ray/DVD rear entertainment system
comes pre-loaded with audi o streaming applications.
Before launching any application, first confirm that
your vehicle’s date and time are set correctly. Having
the incorrect date and time settings may prevent your
applications from operating correctly.
You can set the date and ti me on the front display in
the following steps.
Select Home Settings Date & Time Set Date &
Time
Your vehicle is equipped wi th the ability to apply
software updates. When a software update is
provided to your vehicle, please accept the update
and allow the installation to complete.
Disclaimer:
The audio quality of your streaming applic ations will
depend on your internet connection.
If you experience lagging or disconnections, check
your connection and conf irm it is operational.
21 US ODYSSEY-31THR6310.book 427 ページ ２０２０年６月１７日　水曜日　午後２時４６分

428
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features

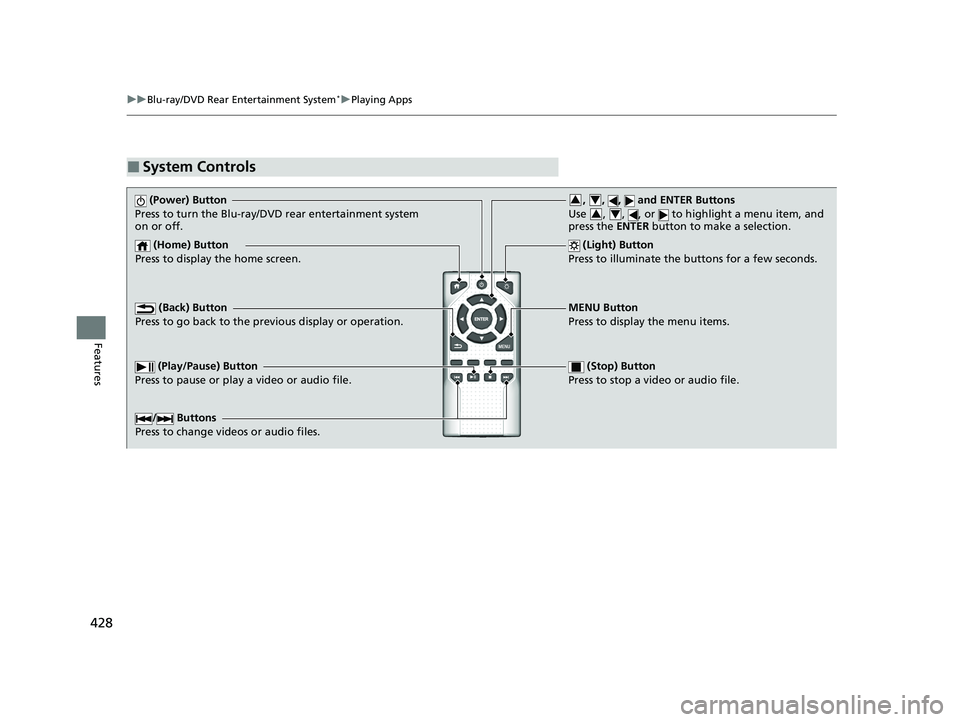

■System Controls
(Power) Button
Press to turn the Blu-ray/DVD rear entertainment system
on or off.
(Home) Button
Press to display the home screen. (Light) Button
Press to illuminate the buttons for a few seconds.
/ Buttons
Press to change videos or audio files.
(Play/Pause) Button
Press to pause or play a video or audio file. (Stop) Button
Press to stop a video or audio file.
MENU Button
Press to display the menu items.
(Back) Button
Press to go back to the pr evious display or operation.
, , , and ENTER Buttons
Use , , , or to highlight a menu item, and
press the ENTER button to make a selection.34
34
21 US ODYSSEY-31THR6310.book 428 ページ ２０２０年６月１７日　水曜日　午後２時４６分

Continued429
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features
To play a disc, press the (home) button on the remote, and then select the Blu-
ray Disc icon on th e overhead screen.
When you press the MENU button on the remote while the CD is playing, the audio
menu appears on the overhead screen.
The available options app ear on the overhead screen are repeat, random,
brightness, and contrast.
To play an iPod and a USB flash drive, press the (home) button on the remote,
and then select the USB icon on the overhead screen.
When you press the MENU button on the remote while the iPod or USB flash drive
is playing, the audio menu ap pears on the overhead screen.
The available options appear on the overhead screen are repeat, random, aspect
ratio, brightness, and contrast.
■Playing a Disc in the Rear
■Playing an iPod and a USB Flash Drive in the Rear
1 System Controls
You can also operate the Blu-ray/DVD rear
entertainment system on the audio/information
screen.
21 US ODYSSEY-31THR6310.book 429 ページ ２０２０年６月１７日　水曜日　午後２時４６分

430
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features

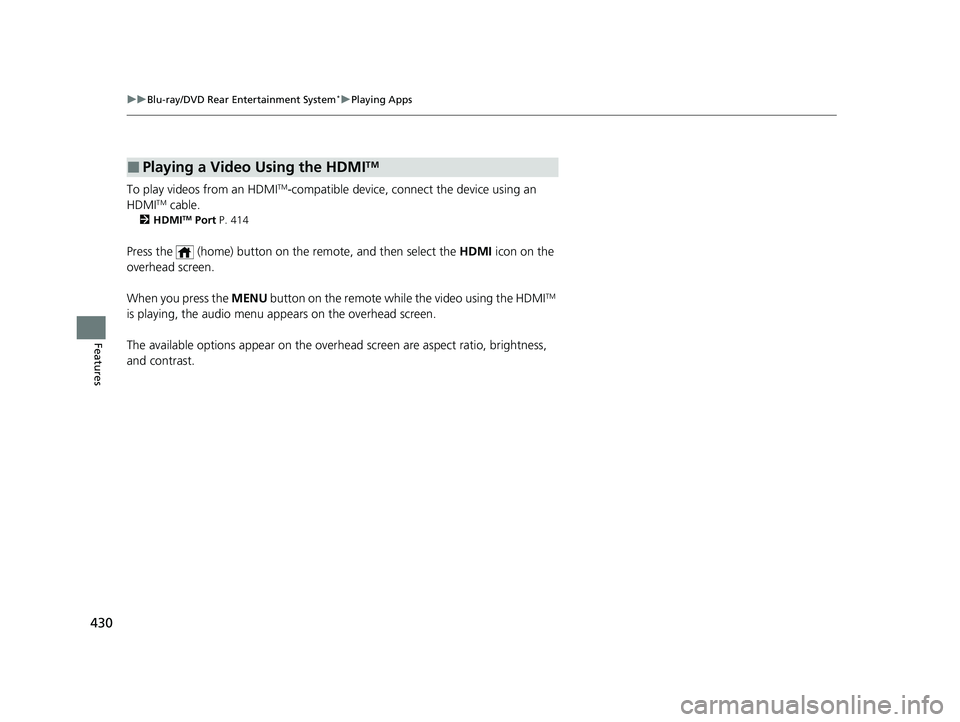

To play videos from an HDMITM-compatible device, connect the device using an
HDMITM cable.
2 HDMITM Port P. 414
Press the (home) button on the remote, and then select the HDMI icon on the
overhead screen.
When you press the MENU button on the remote wh ile the video using the HDMI
TM
is playing, the audio menu ap pears on the overhead screen.
The available options appear on the overhead screen are aspect ratio, brightness,
and contrast.
■Playing a Video Using the HDMITM
21 US ODYSSEY-31THR6310.book 430 ページ ２０２０年６月１７日　水曜日　午後２時４６分
