2021 HONDA CLARITY FUEL CELL Owner's Manual (in English)

87
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 88
Driver Information Interface Warning and Information Messages ..................... 104
Gauges and Driver Information Interface ....................................... 118
Gauges ............................................ 118
Driver Information Interface ............. 121
Head-Up Display .............................. 129
21 CLARITY FCV CSS-31TRT6400_02.book 87 ページ ２０２０年９月２５日　金曜日　午後３時１５分

88
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 516
●Comes on along with the parking
brake and brake system indicator
(amber) - Immediately stop in a safe
place. Contact an authorized Honda
Clarity Fuel Cell dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.
●Comes on along with the ABS
indicator - Have your vehicle checked by
an authorized Honda Clarity Fuel Cell
dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 516
21 CLARITY FCV CSS-31TRT6400_02.book 88 ページ ２０２０年９月２５日　金曜日　午後３時１５分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for about 15 seconds
when you pull or push the electric
parking brake switch while the
power mode is in VEHICLE OFF.
●Stays on for about 15 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.
●Blinks and the parking brake and
brake system indicator (amber) comes
on at the same time - There is a
problem with the electric parking brake
system. The parking brake may not be
set.
Avoid using the parking brake and have
your vehicle checked by an authorized
Honda Clarity Fuel Cell dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 517
—
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 431
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the automatic
brake hold is activated.
2Automatic Brake Hold P. 431—
21 CLARITY FCV CSS-31TRT6400_02.book 89 ページ ２０２０年９月２５日　金曜日　午後３時１５分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.
●Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer immediately.
●Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to
an authorized Honda Clarity Fuel Cell
dealer immediately.
21 CLARITY FCV CSS-31TRT6400_02.book 90 ページ ２０２０年９月２５日　金曜日　午後３時１５分

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the electric vehicle system
(Generating electric ity is stopped).
●Stop in a safe place and have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer immediately.
2 Overheating P. 511
●Comes on if there is a problem
with the power system.●Your vehicle has less ability to accelerate
and may be harder to start on an incline.
●Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
●Comes on if there is a problem
with the hydrogen leak detection
system.●Your vehicle has less ability to accelerate
and may be harder to start on an incline.
●Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
●Comes on when the ion filter
needs replacing.●Have the ion exchange r replaced by an
authorized Honda Clarity Fuel Cell dealer
immediately.
2 Maintenance MinderTM P. 455
21 CLARITY FCV CSS-31TRT6400_02.book 91 ページ ２０２０年９月２５日　金曜日　午後３時１５分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
READY Indicator
●Comes on when the vehicle is
ready to drive.●May go off if the POWER SYSTEM or
transmission system indicator comes on.
2 Turning on the Power P. 372
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when
the power system is on.
●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 515
Low Fuel
Indicator●Comes on when the vehicle is
running low on fuel (3 or 2 fuel-
gauge bars illuminated).●Refuel your vehicle as soon as possible.
Hydrogen Leak
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if a small hydrogen gas
leak is detected.
●Your vehicle has less ability to accelerate
and may be harder to start on an incline.
●Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
●Comes on if a hydrogen gas leak is
detected.●Generating electricity by the fuel cell is
stopped.
●Immediately stop in a safe place and have
your vehicle checked by an authorized
Honda Clarity Fuel Cell dealer.
21 CLARITY FCV CSS-31TRT6400_02.book 92 ページ ２０２０年９月２５日　金曜日　午後３時１５分

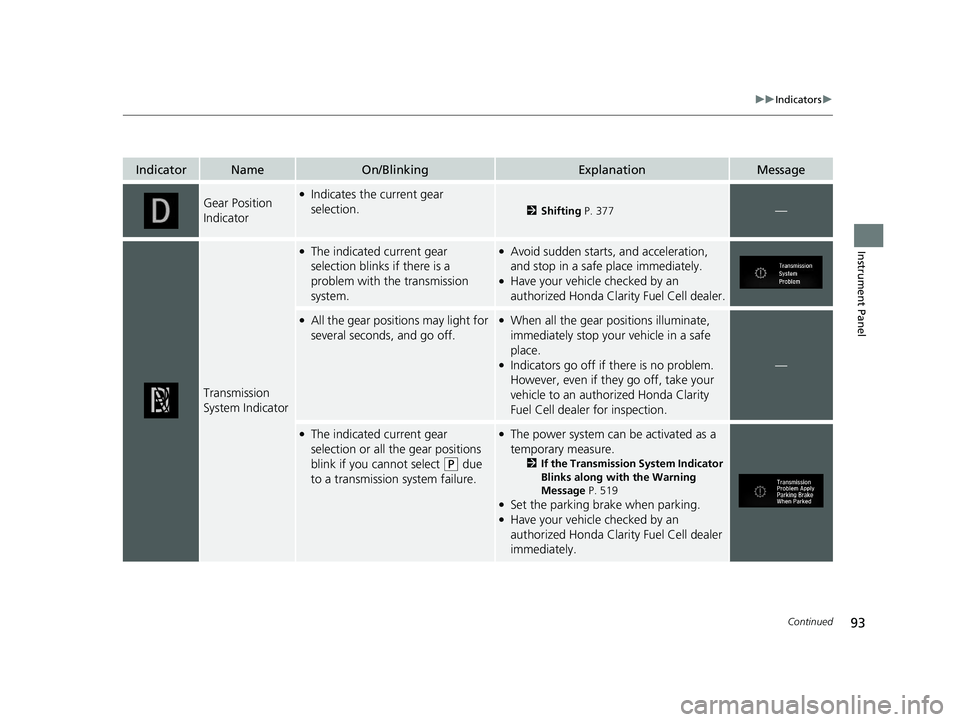

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator●Indicates the current gear
selection.
2Shifting P. 377—
Transmission
System Indicator
●The indicated current gear
selection blinks if there is a
problem with the transmission
system.●Avoid sudden starts, and acceleration,
and stop in a safe place immediately.
●Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer.
●All the gear positions may light for
several seconds, and go off.●When all the gear positions illuminate,
immediately stop your vehicle in a safe
place.
●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to an authorized Honda Clarity
Fuel Cell dealer for inspection.—
●The indicated current gear
selection or all the gear positions
blink if you cannot select
(P due
to a transmission system failure.
●The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 519
●Set the parking brake when parking.●Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
21 CLARITY FCV CSS-31TRT6400_02.book 93 ページ ２０２０年９月２５日　金曜日　午後３時１５分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if either you
and/or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you and/or the front
passenger has fastened the seat
belt(s) - A detection error may have
occurred in the sensor. Have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer.
2 Seat Belt Reminder P. 50
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer. With this indicator on,
your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 433
