2021 HONDA CLARITY FUEL CELL display

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Steering Wheel Adjustments (P 171)
❚ (Vehicle Stability AssistTM (VSA®)
System OFF) Button
(P 416)
❚Road Departure Mitigation (RDM)
Button
(P 388)❚Gauges (P 118)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 438)
❚Head-Up Display Buttons (P 129)
❚Driver Information Interface
(P 121)
❚Navigation System
() See the Navigation System Manual
❚Audio System (P 200)
❚Hazard Warning Button
❚Climate Control System (P 190)
❚POWER Button (P 156)
❚Seat Heater Buttons (P 188)
❚Rear Defogger (P 168)
❚Heated Door Mirror Button (P 168)
❚System Indicators (P 88)
21 CLARITY FCV CSS-31TRT6400_02.book 6 ページ ２０２０年９月２５日　金曜日　午後３時１５分

7
Quick Reference Guide
❚Wipers/Washers (P 164)
❚Headlights/Turn Signals (P 159, 160)
❚Brightness Control (P 166)
❚LaneWatchTM (P 425)
❚TRIP Button (P121, 123)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 393)
❚ (Display/Information) Button (P121 )
❚/ / / Buttons (P121, 203)34
❚ENTER Button (P121 )
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 331)
❚Horn (Press an area around .)
❚Voice Control Buttons (P 234)
❚Interval Button (P 401)
❚Lane Keeping Assist System (LKAS) Button (P 410)
❚MAIN Button (P 392, 410)
21 CLARITY FCV CSS-31TRT6400_02.book 7 ページ ２０２０年９月２５日　金曜日　午後３時１５分

18
Quick Reference Guide
Hydrogen Gas Leak
If a hydrogen gas leak is suspected, follow the recommended actions listed in the
instructions of this manual. 2 If Hydrogen Gas is Leaking (P513)
WARNING
Since hydrogen gas is highly flammable, a
hydrogen gas leak is extremely dangerous
as the leaked gas, which is dispersed into
the atmosphere, can ignite, resulting in a
fire in which you or someone else can be
serious injured or killed. Keep flammable
materials and liquids away from the vehicle
at all times, especially if a hydrogen gas
leak is detected.
In the case of a hydrogen gas leak, a buzzer
will sound and the hydrogen gas leak
indicator will come on. If you are driving
the vehicle, stop in a safe, well-ventilated
place. Then turn the power mode to OFF
and contact an authorized Honda Clarity
Fuel Cell dealer at once. You should also
display signs warning of the danger and be
aware of and keep away anything that
could ignite the gas.
The system is designed so that in the event
that the vehicle catches fire, the gas inside
the tanks will be released through the tank
valves, thereby ensuring that pressure (due
to heat from the fire) within the tanks does
not build up.
This gas is released toward the rear of the
vehicle in a downward direction. Do not
attempt to extinguish the fire from behind
the vehicle as the exiting gas may ignite
into a flame.
21 CLARITY FCV CSS-31TRT6400_02.book 18 ページ ２０２０年９月２５日　金曜日　午後３時１５分

24
Quick Reference Guide
Eco Assist® System
Aggressive Deceleration Moderate
DecelerationFuel-Efficient Driving Moderate
AccelerationAggressive Acceleration
Ambient Meter
With SPORT
mode off, the color of the ambient meter changes to green to indicate that the vehicle is being driven in a fuel efficient
manner.
Eco Drive Display
●Keep the vehicle icon near the center of the circle.
Fuel economy is:
Worse Better Best Better Worse
21 CLARITY FCV CSS-31TRT6400_02.book 24 ページ ２０２０年９月２５日　金曜日　午後３時１５分

26
Quick Reference Guide
Instrument Panel (P 87)
Lights On Indicator
System Indicators
12-Volt Battery
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist
TM (VSA
®) System
Indicator
VSA ® OFF Indicator Electric Power
Steering (EPS)
System Indicator
Lights Indicators
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Gauges (P 118)/Driver Information Interface (P 121)/
Head-Up Display
(P 129)/System Indicators (P 88)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Speedometer
Automatic Brake Hold
System Indicator Parking Brake and
Brake System
Indicator (Amber)
SPORT
Mode Indicator
Collision Mitigation
Brake System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Automatic Brake Hold
Indicator
Head-Up Display
READY Indicator
POWER SYSTEM
Indicator
Gear Position
Indicator
Fuel Gauge
Driver Information
Interface
High Voltage Battery
Charge Level Gauge
POWER/CHARGE
Gauge
Low Fuel Indicator
Hydrogen Leak
Indicator Adaptive Cruise
Control ( ACC) with
Low Speed Follow
Indicator
Lane Keeping Assist
System ( LKAS)
Indicator
21 CLARITY FCV CSS-31TRT6400_02.book 26 ページ ２０２０年９月２５日　金曜日　午後３時１５分

Quick Reference Guide
31
Features (P 199)
Audio Remote Controls
(P 203)
●(+ / (- Bar
Press to adjust the volume up/down.
● / Button
Press or to cycl e through the audio
mode as follows:
FM AM SiriusXM ®USB iPod ®
Bluetooth ® Audio Pandora ®Apple
CarPlay/Android Auto
ENTER Button
/ / / Button34(+ / (- Bar
Button
34
34
●ENTER Button
•When listening to the radio and
SiriusXM ®
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
34
34
34
•When listening to an iPod ®
aPress ENTER to display the iPod ® music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
• When listening to Pandora ®
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth® Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
21 CLARITY FCV CSS-31TRT6400_02.book 31 ページ ２０２０年９月２５日　金曜日　午後３時１５分

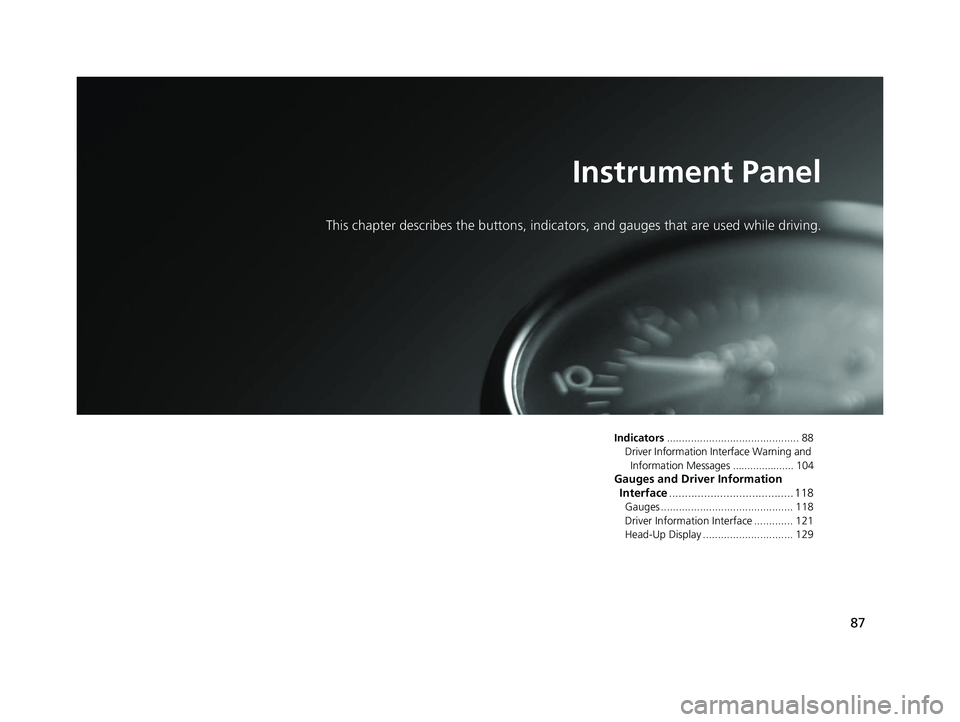

87
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 88
Driver Information Interface Warning and Information Messages ..................... 104
Gauges and Driver Information Interface ....................................... 118
Gauges ............................................ 118
Driver Information Interface ............. 121
Head-Up Display .............................. 129
21 CLARITY FCV CSS-31TRT6400_02.book 87 ページ ２０２０年９月２５日　金曜日　午後３時１５分

97
uuIndicators u
Continued
Instrument Panel

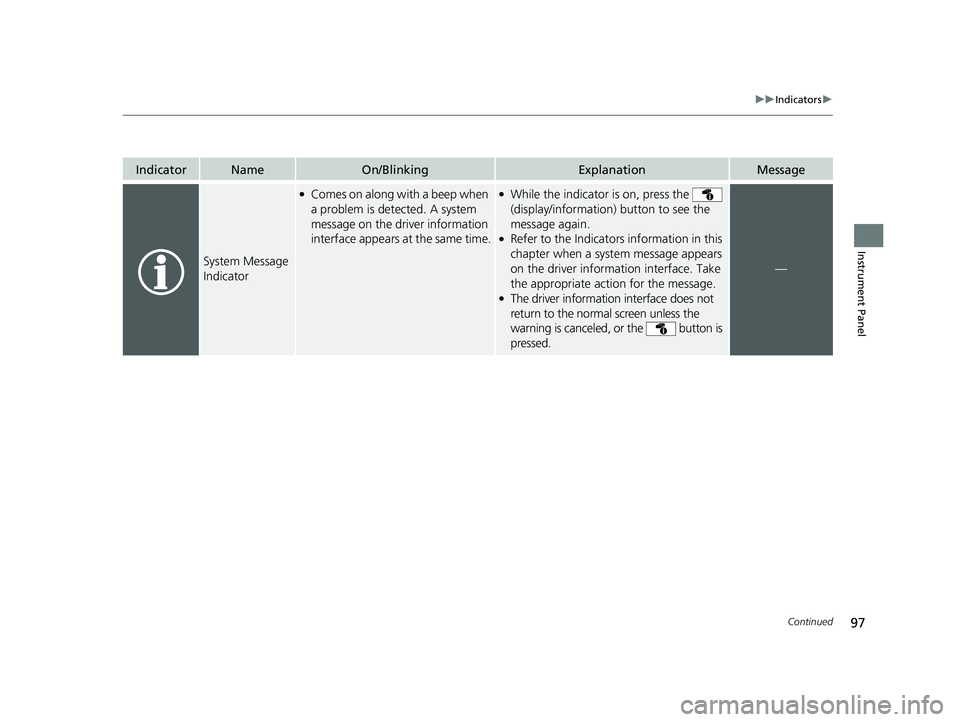

IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep when
a problem is detected. A system
message on the driver information
interface appears at the same time.●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver inform ation interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button is
pressed.
—
21 CLARITY FCV CSS-31TRT6400_02.book 97 ページ ２０２０年９月２５日　金曜日　午後３時１５分
