2021 HONDA CLARITY FUEL CELL headlights

7
Quick Reference Guide
❚Wipers/Washers (P 164)
❚Headlights/Turn Signals (P 159, 160)
❚Brightness Control (P 166)
❚LaneWatchTM (P 425)
❚TRIP Button (P121, 123)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 393)
❚ (Display/Information) Button (P121 )
❚/ / / Buttons (P121, 203)34
❚ENTER Button (P121 )
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 331)
❚Horn (Press an area around .)
❚Voice Control Buttons (P 234)
❚Interval Button (P 401)
❚Lane Keeping Assist System (LKAS) Button (P 410)
❚MAIN Button (P 392, 410)
21 CLARITY FCV CSS-31TRT6400_02.book 7 ページ ２０２０年９月２５日　金曜日　午後３時１５分

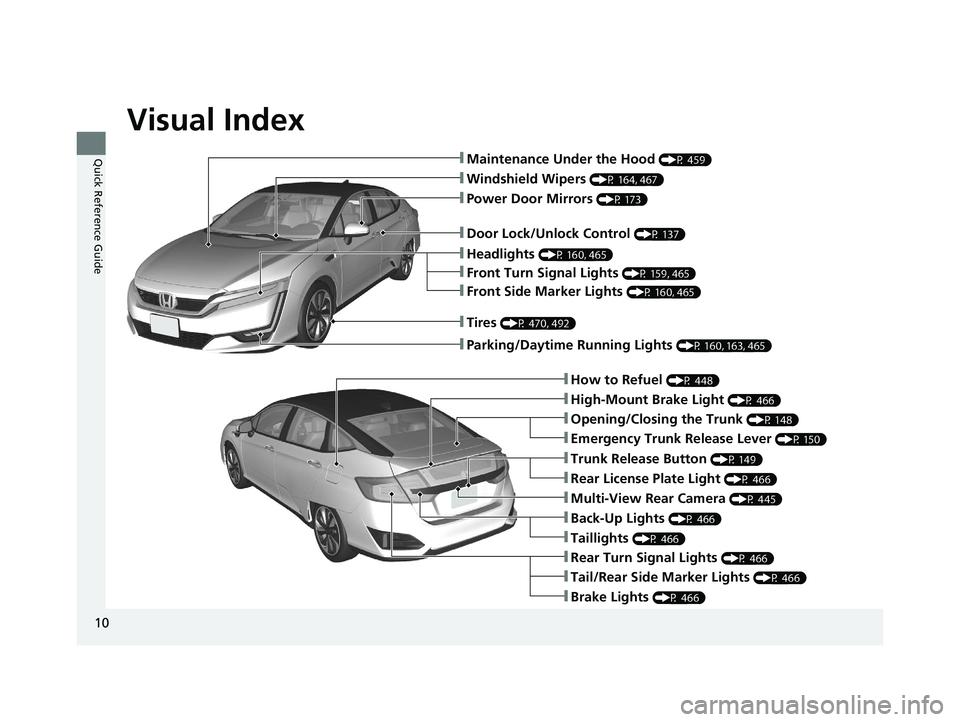

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 459)
❚Windshield Wipers (P 164, 467)
❚Door Lock/Unlock Control (P 137)
❚Power Door Mirrors (P 173)
❚Headlights (P 160, 465)
❚Front Side Marker Lights (P 160, 465)
❚Front Turn Signal Lights (P 159, 465)
❚How to Refuel (P 448)
❚High-Mount Brake Light (P 466)
❚Emergency Trunk Release Lever (P 150)
❚Opening/Closing the Trunk (P 148)
❚Brake Lights (P 466)
❚Rear Turn Signal Lights (P 466)
❚Back-Up Lights (P 466)
❚Taillights (P 466)
❚Trunk Release Button (P 149)
❚Rear License Plate Light (P 466)
❚Multi-View Rear Camera (P 445)
❚Parking/Daytime Running Lights (P 160, 163, 465)
❚Tires (P 470, 492)
❚Tail/Rear Side Marker Lights (P 466)
21 CLARITY FCV CSS-31TRT6400_02.book 10 ページ ２０２０年９月２５日　金曜日　午後３時１５分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly -
Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch in
a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on.●If you set the power mode to VEHICLE
OFF while the exterior lights are on, a
chime sounds when the driver’s door is
opened.
—
Immobilizer
System Indicator
●Blinks if the immobilizer system
cannot recognize the key
information.●Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF, then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer.
●Do not attempt to alter this system or add
other devices to it. El ectrical problems can
occur.
—
Indicator
21 CLARITY FCV CSS-31TRT6400_02.book 98 ページ ２０２０年９月２５日　金曜日　午後３時１５分

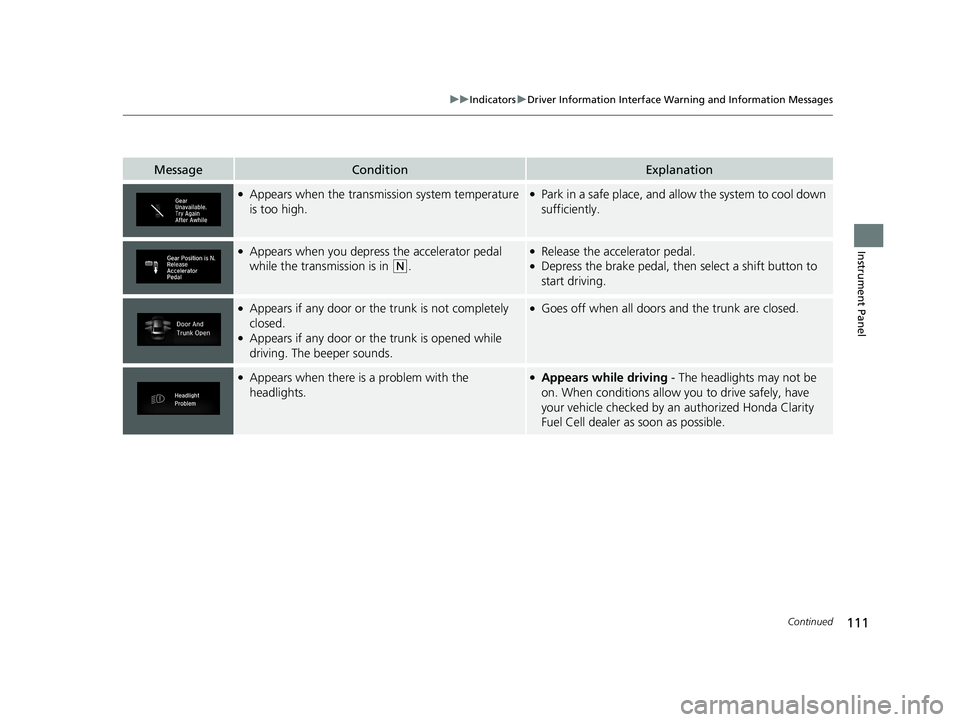

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the transmission system temperature
is too high.●Park in a safe place, and allow the system to cool down
sufficiently.
●Appears when you depress the accelerator pedal
while the transmission is in
(N.
●Release the accelerator pedal.●Depress the brake pedal, then select a shift button to
start driving.
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or th e trunk is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when there is a problem with the
headlights.●Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have
your vehicle checked by an authorized Honda Clarity
Fuel Cell dealer as soon as possible.
21 CLARITY FCV CSS-31TRT6400_02.book 111 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

160
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
■Manual Operation1 Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
while the lights are on, a chime sounds when the
driver’s door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 98
Do not leave the lights on when the power system is
off because it will caus e the 12-volt battery to
discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehi cle inspected by an
authorized Honda Clarit y Fuel Cell dealer.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking,
side marker, tail, and rear
license plate lights
21 CLARITY FCV CSS-31TRT6400_02.book 160 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Continued161
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Automatic lighting control can be used when
the power mode is in ON.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights comes on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1 Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
You can adjust the auto li ght sensitivity as follows:
2 Customized Features P. 302
SettingThe exterior lights come on
when the ambient light is at
Max
High
Mid
Low
Min
Light Sensor
Bright
Dark
21 CLARITY FCV CSS-31TRT6400_02.book 161 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuOperating the Switches Around the Steering Wheel uLight Switches
162
Controls
The headlights automatically come on when the wipers are used several times within
a certain number of intervals wi th the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.
The headlights, all other exterior lights, an d the instrument panel lights turn off 15
seconds after you set the power mode to VE HICLE OFF (LOCK), take the remote with
you, and close th e driver's door.
If you set the power mode to VEHICLE OFF (LOCK) with the headlight switch on, but
do not open the door, the lights turn off after 10 minutes (3 minutes, if the switch
is in the AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.
■Headlight Integration with Wipers
■Automatic Lighting Off Feature
1Headlight Integration with Wipers
This feature activates when the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
You can turn the headlight integration with wipers
function on and off.
2 Customized Features P. 302
1Automatic Lighting Off Feature
You can change the headli ght auto off timer setting.
2 Customized Features P. 302
21 CLARITY FCV CSS-31TRT6400_02.book 162 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

172
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you, based
on inputs from the mirror sensor. This feature
is always active.
■Automatic Dimming Rearview Mirror
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 174
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the
transmission is in
(R.
Sensor Up
Down
21 CLARITY FCV CSS-31TRT6400_02.book 172 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
