2021 HONDA CLARITY FUEL CELL start stop button

104

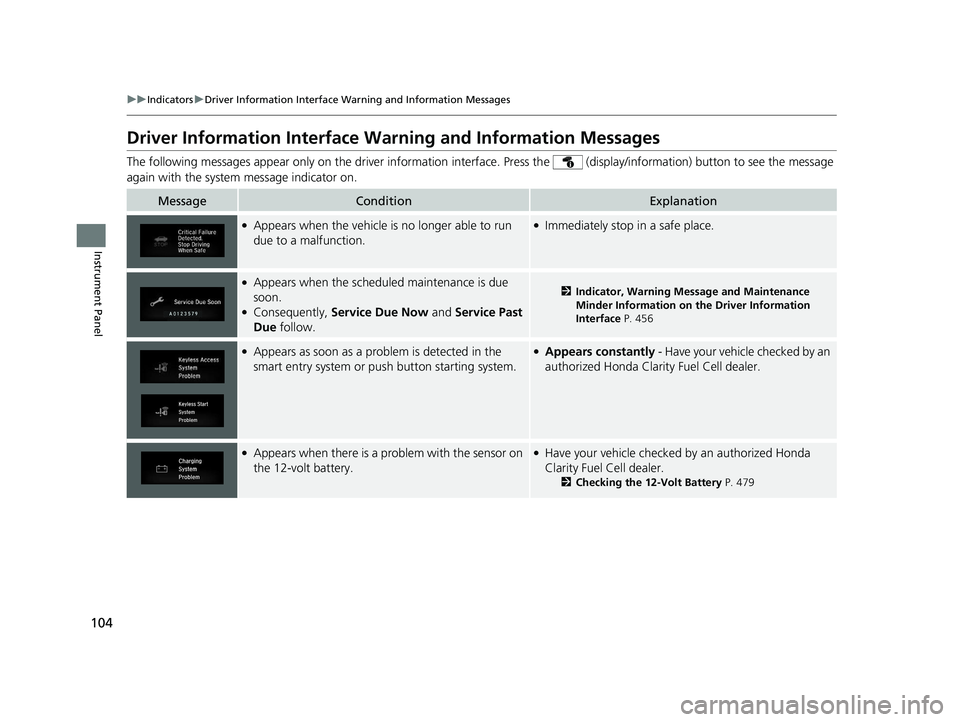

uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press th e (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears when the vehicle is no longer able to run
due to a malfunction.●Immediately stop in a safe place.
●Appears when the schedul ed maintenance is due
soon.
●Consequently, Service Due Now and Service Past
Due follow.
2Indicator, Warning Message and Maintenance
Minder Information on the Driver Information
Interface P. 456
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.●Appears constantly - Have your vehicle checked by an
authorized Hond a Clarity Fuel Cell dealer.
●Appears when there is a pr oblem with the sensor on
the 12-volt battery.●Have your vehicle checked by an authorized Honda
Clarity Fuel Cell dealer.
2 Checking the 12-Volt Battery P. 479
21 CLARITY FCV CSS-31TRT6400_02.book 104 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

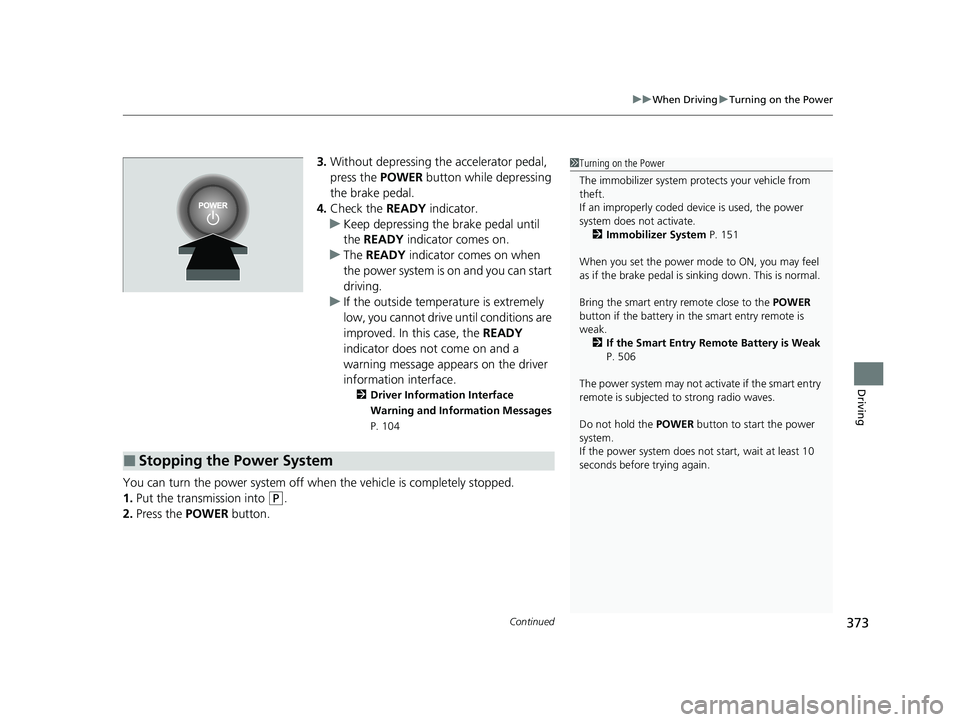

Continued373
uuWhen Driving uTurning on the Power
Driving
3. Without depressing the accelerator pedal,
press the POWER button while depressing
the brake pedal.
4. Check the READY indicator.
u Keep depressing the brake pedal until
the READY indicator comes on.
u The READY indicator comes on when
the power system is on and you can start
driving.
u If the outside temperature is extremely
low, you cannot drive until conditions are
improved. In this case, the READY
indicator does not come on and a
warning message appears on the driver
information interface.
2 Driver Information Interface
Warning and Information Messages
P. 104
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
1Turning on the Power
The immobilizer system pr otects your vehicle from
theft.
If an improperly coded de vice is used, the power
system does not activate. 2 Immobilizer System P. 151
When you set the power mode to ON, you may feel
as if the brake pedal is sinking down. This is normal.
Bring the smart entry remote close to the POWER
button if the battery in the smart entry remote is
weak.
2 If the Smart Entry Remote Battery is Weak
P. 506
The power system may not activate if the smart entry
remote is subjected to strong radio waves.
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 10
seconds before trying again.
■Stopping the Power System
21 CLARITY FCV CSS-31TRT6400_02.book 373 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

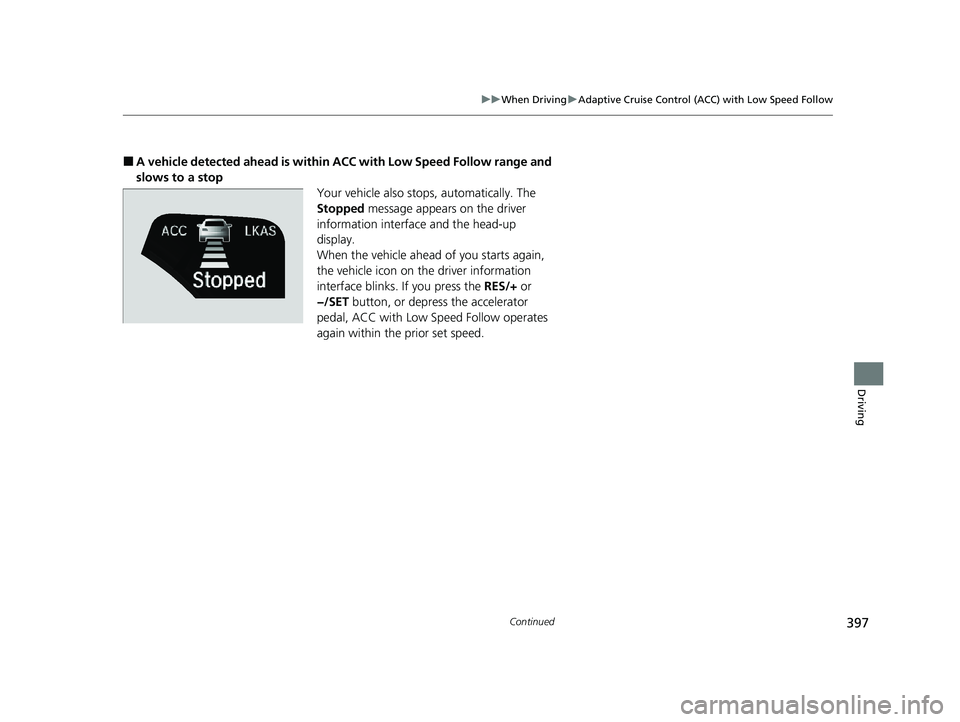

397
uuWhen Driving uAdaptive Cruise Control (ACC) with Low Speed Follow
Continued
Driving
■A vehicle detected ahead is within ACC with Low Speed Follow range and
slows to a stop Your vehicle also stops, automatically. The
Stopped message appears on the driver
information interfac e and the head-up
display.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the RES/+ or
−/SET button, or depress the accelerator
pedal, ACC with Low Sp eed Follow operates
again within the prior set speed.
21 CLARITY FCV CSS-31TRT6400_02.book 397 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Continued431
uuBraking uBrake System
Driving
Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake
pedal after the
automatic brake hold
indicator comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission is in
( D.
The system is canceled
and the vehicle starts to
move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On OnComes
On
Comes
On
21 CLARITY FCV CSS-31TRT6400_02.book 431 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

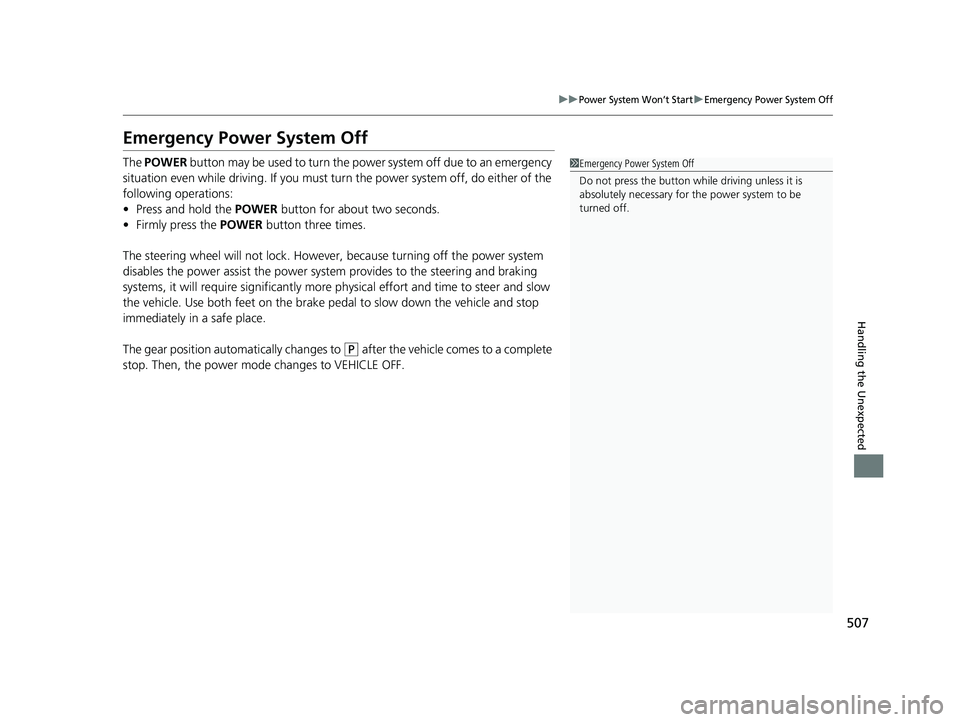

507
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the button while driving unless it is
absolutely necessary for the power system to be
turned off.
21 CLARITY FCV CSS-31TRT6400_02.book 507 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

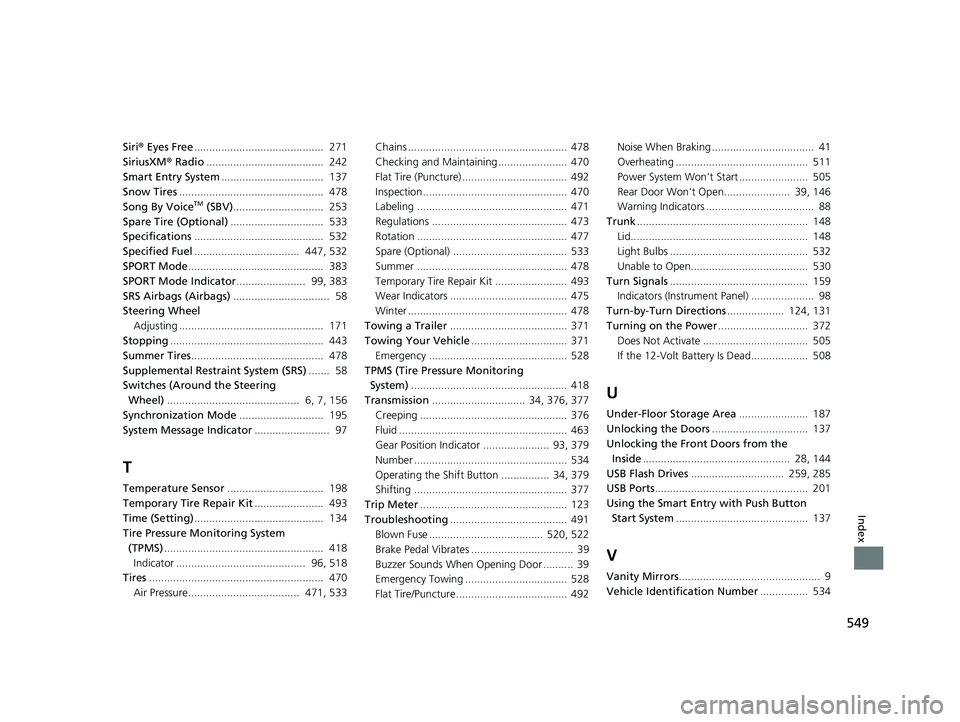

549
Index
Siri® Eyes Free ........................................... 271
SiriusXM ® Radio ....................................... 242
Smart Entry System .................................. 137
Snow Tires ................................................ 478
Song By Voice
TM (SBV) .............................. 253
Spare Tire (Optional) ............................... 533
Specifications ........................................... 532
Specified Fuel ................................... 447, 532
SPORT Mode ............................................. 383
SPORT Mode Indicator ....................... 99, 383
SRS Airbags (Airbags) ................................ 58
Steering Wheel Adjusting ................................................ 171
Stopping ................................................... 443
Summer Tires ............................................ 478
Supplemental Restraint System (SRS) ....... 58
Switches (Around the Steering
Wheel) ............................................ 6, 7, 156
Synchronization Mode ............................ 195
System Message Indicator ......................... 97
T
Temperature Sensor................................ 198
Temporary Tire Repair Kit ....................... 493
Time (Setting) ........................................... 134
Tire Pressure Monitoring System
(TPMS) ..................................................... 418
Indicator ........................................... 96, 518
Tires .......................................................... 470
Air Pressure..................................... 471, 533 Chains ..................................................... 478
Checking and Maintaining ....................... 470
Flat Tire (Puncture) ................................... 492
Inspection ................................................ 470
Labeling .................................................. 471
Regulations ............................................. 473
Rotation .................................................. 477
Spare (Optional) ...................................... 533
Summer .................................................. 478
Temporary Tire Repair Kit ........................ 493
Wear Indicators ....................................... 475
Winter ..................................................... 478
Towing a Trailer ....................................... 371
Towing Your Vehicle ................................ 371
Emergency .............................................. 528
TPMS (Tire Pressure Monitoring System) .................................................... 418
Transmission ............................... 34, 376, 377
Creeping ................................................. 376
Fluid ........................................................ 463
Gear Position Indicator ...................... 93, 379
Number ................................................... 534
Operating the Shift Button ................ 34, 379
Shifting ................................................... 377
Trip Meter ................................................. 123
Troubleshooting ....................................... 491
Blown Fuse ...................................... 520, 522
Brake Pedal Vibrates .................................. 39
Buzzer Sounds When Opening Door .......... 39
Emergency Towing .................................. 528
Flat Tire/Puncture ..................................... 492 Noise When Braking .................................. 41
Overheating ............................................ 511
Power System Won’t Start ....................... 505
Rear Door Won’t Open...................... 39, 146
Warning Indicators .................................... 88
Trunk ......................................................... 148
Lid........................................................... 148
Light Bulbs .............................................. 532
Unable to Open....................................... 530
Turn Signals .............................................. 159
Indicators (Instrument Panel) ..................... 98
Turn-by-Turn Directions ................... 124, 131
Turning on the Power .............................. 372
Does Not Activate ................................... 505
If the 12-Volt Battery Is Dead................... 508
U
Under-Floor Storage Area ....................... 187
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ................................................. 28, 144
USB Flash Drives ............................... 259, 285
USB Ports ................................................... 201
Using the Smart Entr y with Push Button
Start System ............................................ 137
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 534
21 CLARITY FCV CSS-31TRT6400_02.book 549 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
