uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Fuel Cell
dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage. 2 Fuse Locations P. 520
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
21 CLARITY FCV CSS-31TRT6400_02.book 527 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

528
Handling the Unexpected

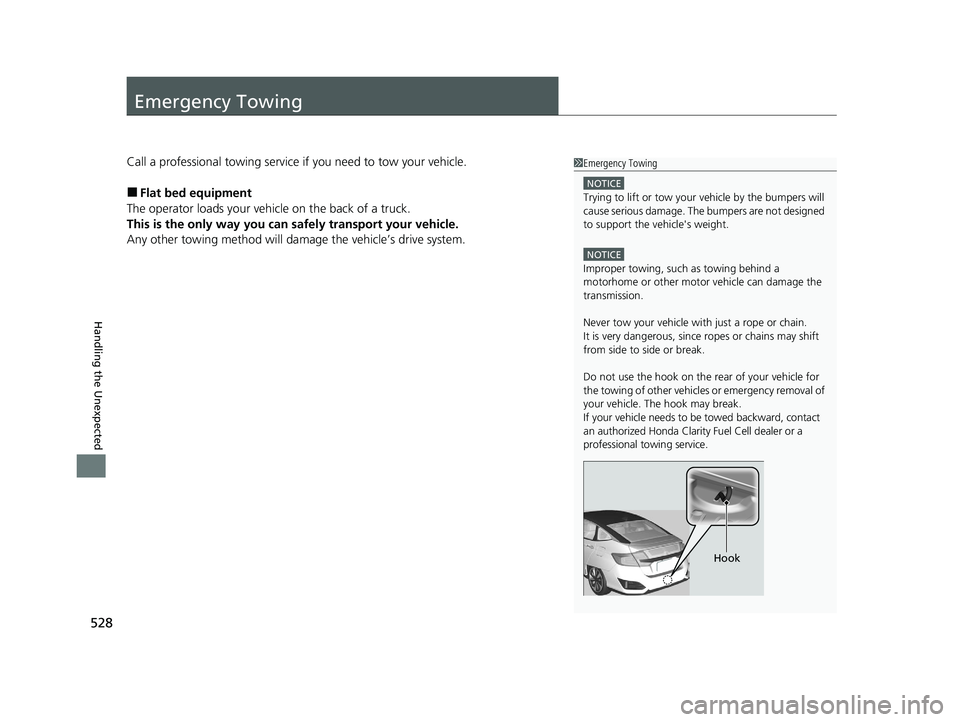

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Fuel Cell dealer or a
professional towing service.
Hook
21 CLARITY FCV CSS-31TRT6400_02.book 528 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

529
Handling the Unexpected

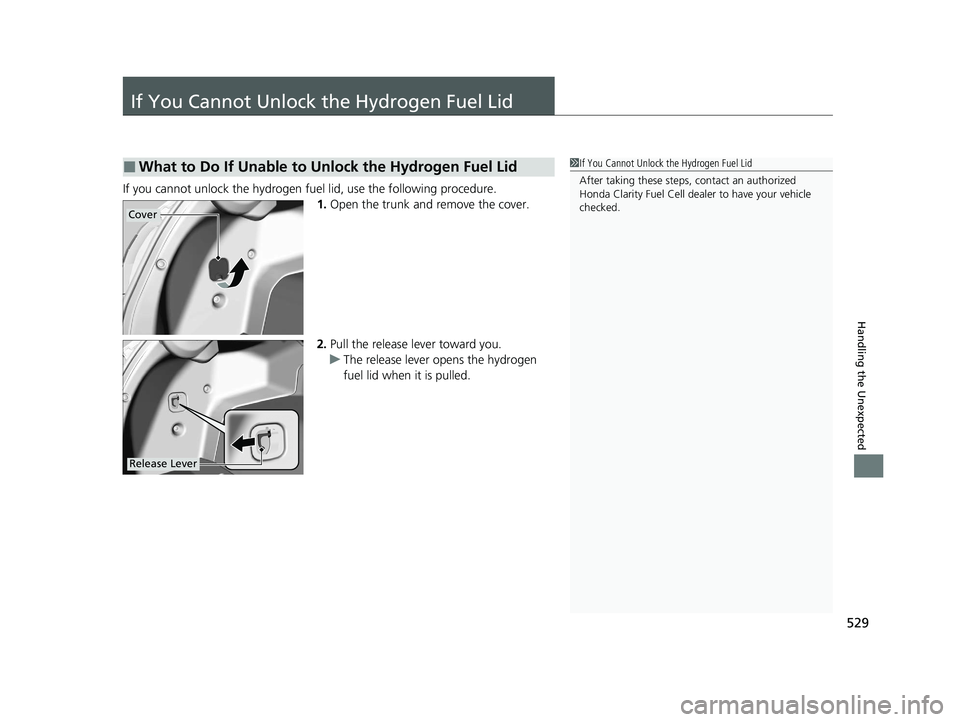

If You Cannot Unlock the Hydrogen Fuel Lid
If you cannot unlock the hydrogen fuel lid, use the following procedure.1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever opens the hydrogen
fuel lid when it is pulled.
■What to Do If Unable to Unlock the Hydrogen Fuel Lid1If You Cannot Unlock the Hydrogen Fuel Lid
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Cover
Release Lever
21 CLARITY FCV CSS-31TRT6400_02.book 529 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

530
Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1If You Cannot Open the Trunk
Following up:
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Built-in Key
21 CLARITY FCV CSS-31TRT6400_02.book 530 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

531
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 532
Identification Numbers Vehicle Identification Number (VIN), Motor
Number, and Transmission Number .. 534
Devices that Emit Radio Waves ....... 535
Reporting Safety Defects ................. 536
Warranty Coverages ........................ 537
Authorized Manuals ......................... 540
Customer Service Information ......... 541
21 CLARITY FCV CSS-31TRT6400_02.book 531 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

532
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure compliant with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
21 CLARITY FCV CSS-31TRT6400_02.book 532 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

533
uuSpecifications u
Information
■

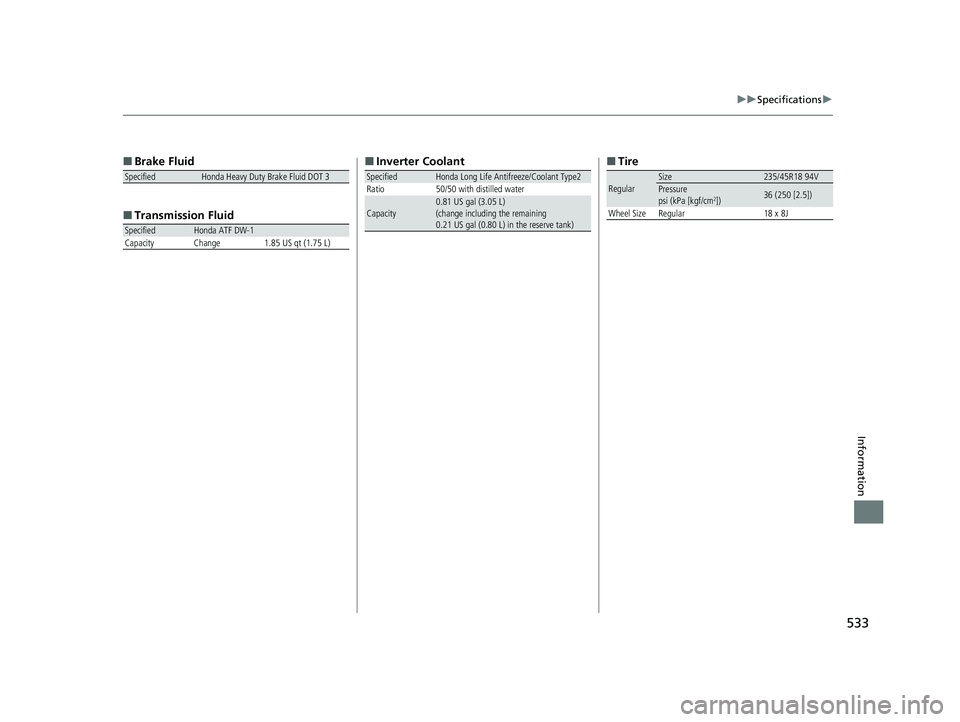

Brake Fluid
■ Transmissi on Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 1.85 US qt (1.75 L)
■ Inverter Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.81 US gal (3.05 L)
(change including the remaining
0.21 US gal (0.80 L) in the reserve tank)
■ Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Wheel Size Regular 18 x 8J
21 CLARITY FCV CSS-31TRT6400_02.book 533 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

534
Information

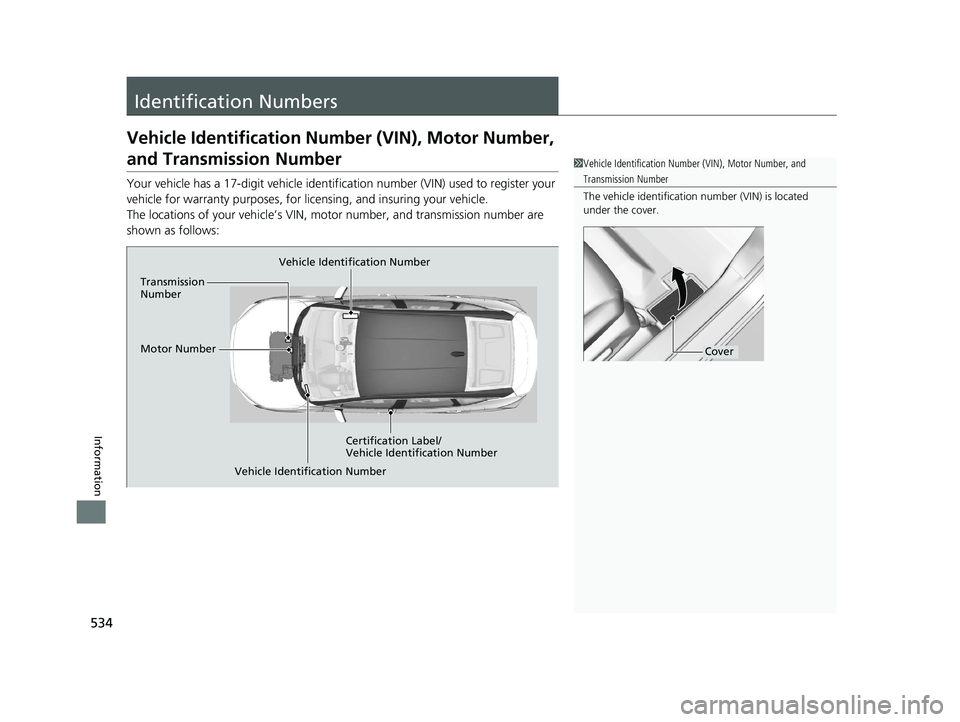

Identification Numbers
Vehicle Identification Number (VIN), Motor Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, motor number, and transmission number are
shown as follows:
1 Vehicle Identification Number (VIN), Motor Number, and
Transmission Number
The vehicle identification number (VIN) is located
under the cover.
Cover
Vehicle Identification Number
Transmission
Number
Certification Label/
Vehicle Identification Number
Vehicle Identification Number
Motor Number
21 CLARITY FCV CSS-31TRT6400_02.book 534 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
