Information

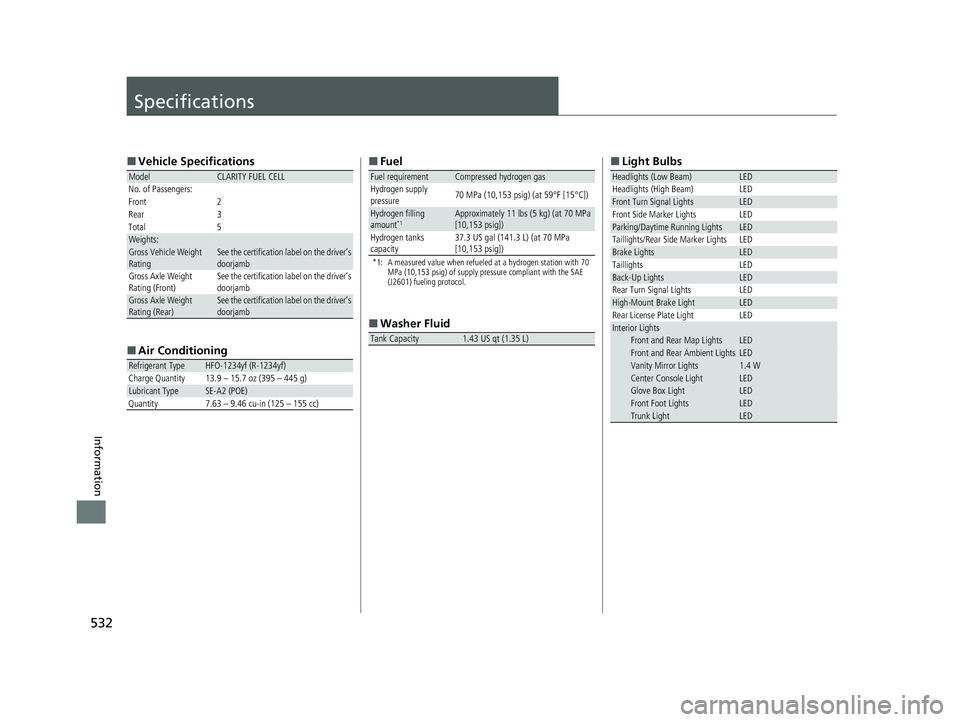

Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure compliant with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
