2021 HONDA CLARITY FUEL CELL Owner's Manual (in English)

Quick Reference Guide
31
Features (P 199)
Audio Remote Controls
(P 203)
●(+ / (- Bar
Press to adjust the volume up/down.
● / Button
Press or to cycl e through the audio
mode as follows:
FM AM SiriusXM ®USB iPod ®
Bluetooth ® Audio Pandora ®Apple
CarPlay/Android Auto
ENTER Button
/ / / Button34(+ / (- Bar
Button
34
34
●ENTER Button
•When listening to the radio and
SiriusXM ®
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
34
34
34
•When listening to an iPod ®
aPress ENTER to display the iPod ® music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
• When listening to Pandora ®
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth® Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
21 CLARITY FCV CSS-31TRT6400_02.book 31 ページ ２０２０年９月２５日　金曜日　午後３時１５分

32
Quick Reference Guide

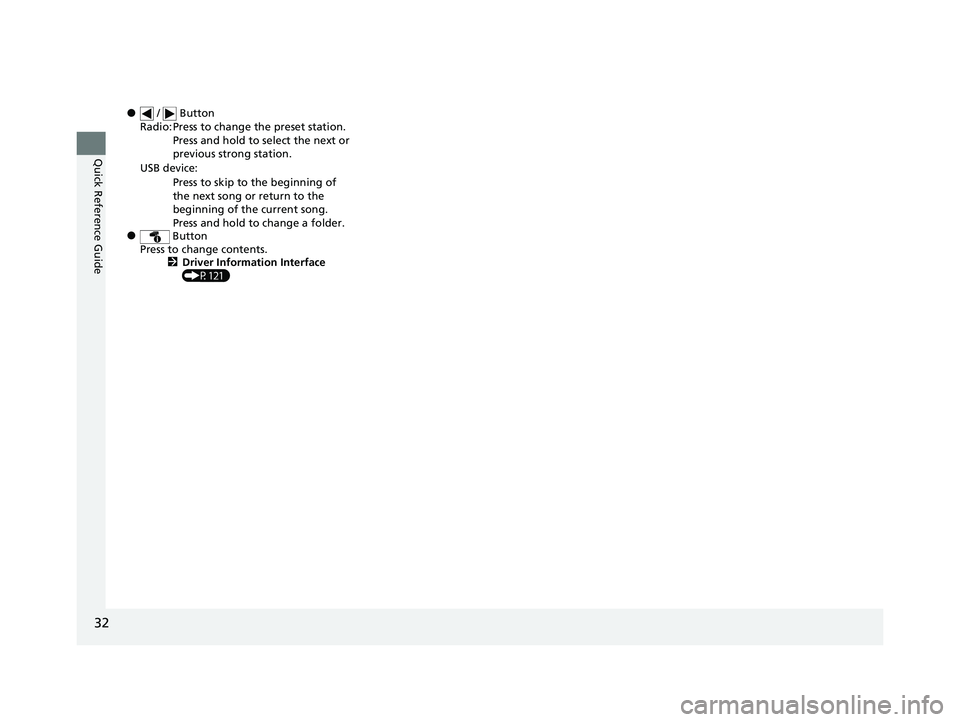

● / Button
● Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Press to change contents. 2Driver Information Interface
(P121)
21 CLARITY FCV CSS-31TRT6400_02.book 32 ページ ２０２０年９月２５日　金曜日　午後３時１５分

33
Quick Reference Guide

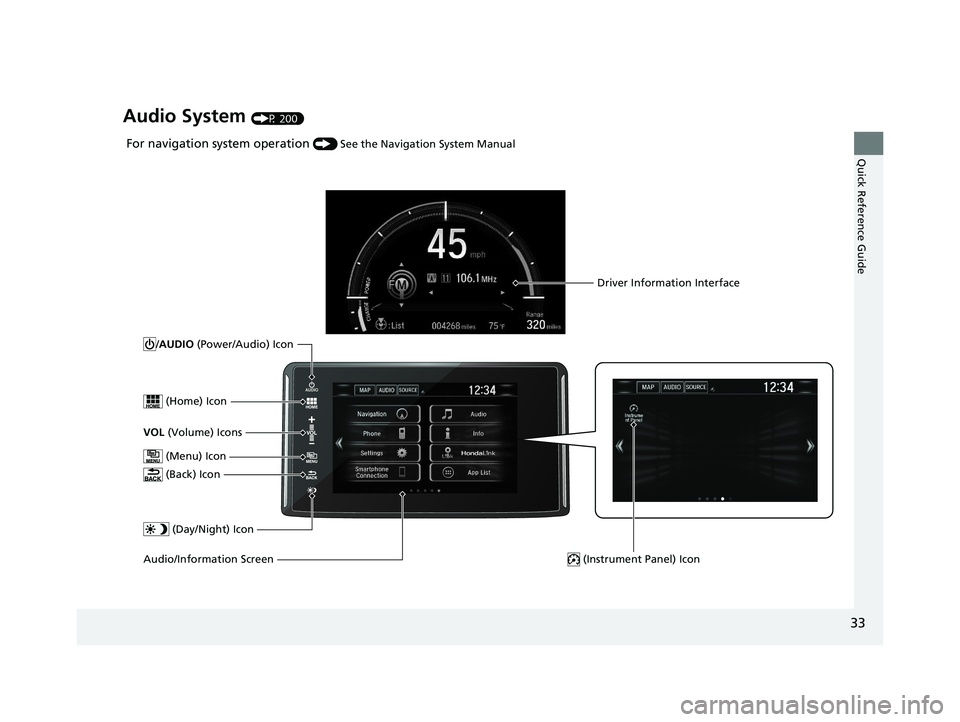

Audio System (P 200)
For navigation system operation () See the Navigation System Manual
(Menu) Icon
VOL (Volume) Icons
(Home) Icon
(Back) Icon
Audio/Information Screen /AUDIO
(Power/Audio) Icon
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Icon
21 CLARITY FCV CSS-31TRT6400_02.book 33 ページ ２０２０年９月２５日　金曜日　午後３時１５分

34
Quick Reference Guide
Driving (P 365)
Electronic Gear Selector (P 377)
●Select (P and depress the brake pedal when turning on the power.
Park
Press the
(P button.
Used when parking or before turning the power on or off.
Transmission is locked.
Reverse
Press back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Drive
Press the
( D button.
Used for normal driving.
Gear Position Indicator
The gear position indicator
and the shift button
indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
Gear selection
21 CLARITY FCV CSS-31TRT6400_02.book 34 ページ ２０２０年９月２５日　金曜日　午後３時１５分

35
Quick Reference Guide
VSA® On and Off (P 416)
●The Vehicle Stability AssistTM (VSA ®)
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you turn on the power system.
●To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P 438)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle speed and the severity
of the collision.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 418)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you turn on the power system.
●A calibration procedure must be
performed when certain conditions arise.
Refueling (P 447)
aSet the power mode
to OFF.
bPress the hydrogen
fuel lid release
button on the
driver’s door to open
the fuel lid.
cRemove the dust cap
inside the hydrogen
fuel lid.
dStart refueling.
Fuel requirement: Compressed hydrogen gas
Hydrogen supply pressure: 70 MP a (10,153 psig) (at 59°F [15°C])
Hydrogen filling amount
*1: Approximately 11 lbs (5 kg) (at 70 MPa)
Hydrogen tanks capacity: 37.3 US gal (141.3 L) (at 70 MPa [10,153 psig])
*1:
A measured value when refueled at a hydrogen station with 70 MPa (10,153
psig) of supply pressure compliant with the SAE (J2601) fueling protocol.
Hydrogen Filling Station: To completely fi ll the hydrogen tank, you need to use a
hydrogen filling station that has an H70 di spenser, which is capable of supplying
pressures of up to 10,153 psig (70 MPa).
Refueling the vehicle is only possible if the pressure inside the hydrogen tank of
the vehicle does not exceed the supp ly pressure of the filling station.
If you use an H35 dispenser, you will be able to fill only half of the tank.
21 CLARITY FCV CSS-31TRT6400_02.book 35 ページ ２０２０年９月２５日　金曜日　午後３時１５分

36
Quick Reference Guide
Honda Sensing®
Honda Sensing® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located behind the emblem and a front
sensor camera mounted to the interior side
of the windshield, behind the rearview
mirror.
The camera is
located behind the
rearview mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor
is behind the
emblem.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P 391)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Road Departure
Mitigation (RDM) System
(P 387)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P 408)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 435)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
21 CLARITY FCV CSS-31TRT6400_02.book 36 ページ ２０２０年９月２５日　金曜日　午後３時１５分

37
Quick Reference Guide
Maintenance (P 451)
Under the Hood (P 459)
●Check inverter coolant and windshield washer fluid. Add
when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 465)
●Inspect all lights regularly.
Wiper Blades (P 467)
●Replace blades if they leave streaks
across the windshield.
Tires (P 470)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
21 CLARITY FCV CSS-31TRT6400_02.book 37 ページ ２０２０年９月２５日　金曜日　午後３時１５分

38
Quick Reference Guide
Handling the Unexpected (P 491)
Flat Tire (P 492)
●Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Indicators Come On
(P 515)
●Identify the indicator and consult the
owner’s manual.
Power System Won’t Start
(P 505)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse

(P 520)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 511)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing
(P 528)
●Call a professional towing service if you
need to tow your vehicle.
21 CLARITY FCV CSS-31TRT6400_02.book 38 ページ ２０２０年９月２５日　金曜日　午後３時１５分
