2021 HONDA CLARITY FUEL CELL low beam

26
Quick Reference Guide
Instrument Panel (P 87)
Lights On Indicator
System Indicators
12-Volt Battery
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist
TM (VSA
®) System
Indicator
VSA ® OFF Indicator Electric Power
Steering (EPS)
System Indicator
Lights Indicators
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Gauges (P 118)/Driver Information Interface (P 121)/
Head-Up Display
(P 129)/System Indicators (P 88)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Speedometer
Automatic Brake Hold
System Indicator Parking Brake and
Brake System
Indicator (Amber)
SPORT
Mode Indicator
Collision Mitigation
Brake System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Automatic Brake Hold
Indicator
Head-Up Display
READY Indicator
POWER SYSTEM
Indicator
Gear Position
Indicator
Fuel Gauge
Driver Information
Interface
High Voltage Battery
Charge Level Gauge
POWER/CHARGE
Gauge
Low Fuel Indicator
Hydrogen Leak
Indicator Adaptive Cruise
Control ( ACC) with
Low Speed Follow
Indicator
Lane Keeping Assist
System ( LKAS)
Indicator
21 CLARITY FCV CSS-31TRT6400_02.book 26 ページ ２０２０年９月２５日　金曜日　午後３時１５分

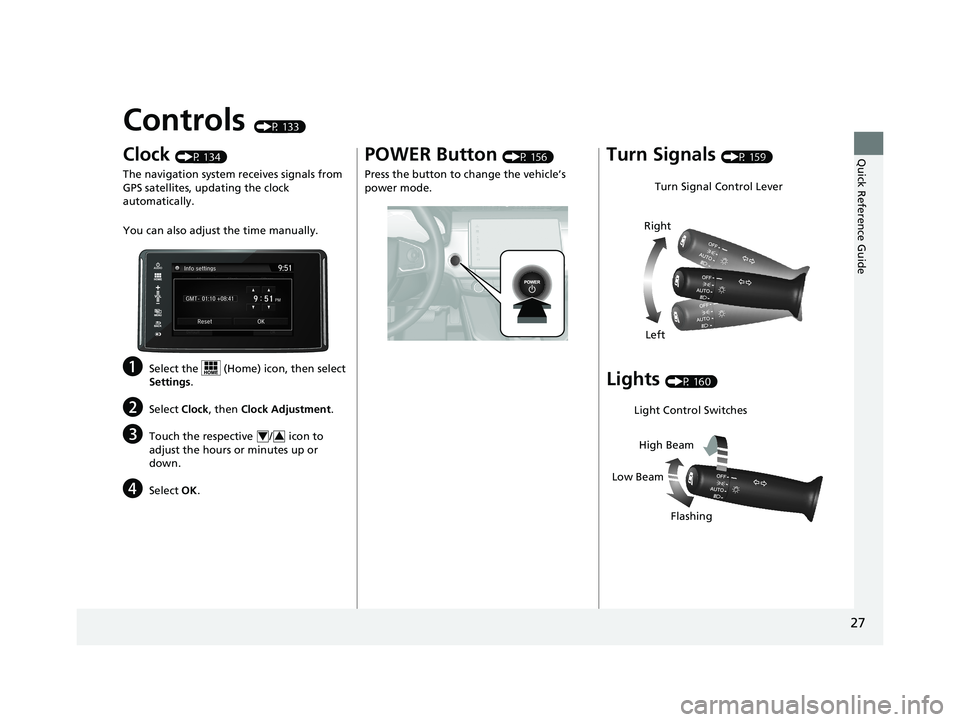

27
Quick Reference Guide
Controls (P 133)
Clock (P 134)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aSelect the (Home) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
43
POWER Button (P 156)
Press the button to ch ange the vehicle’s
power mode.Turn Signals (P 159)
Lights (P 160)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
21 CLARITY FCV CSS-31TRT6400_02.book 27 ページ ２０２０年９月２５日　金曜日　午後３時１５分

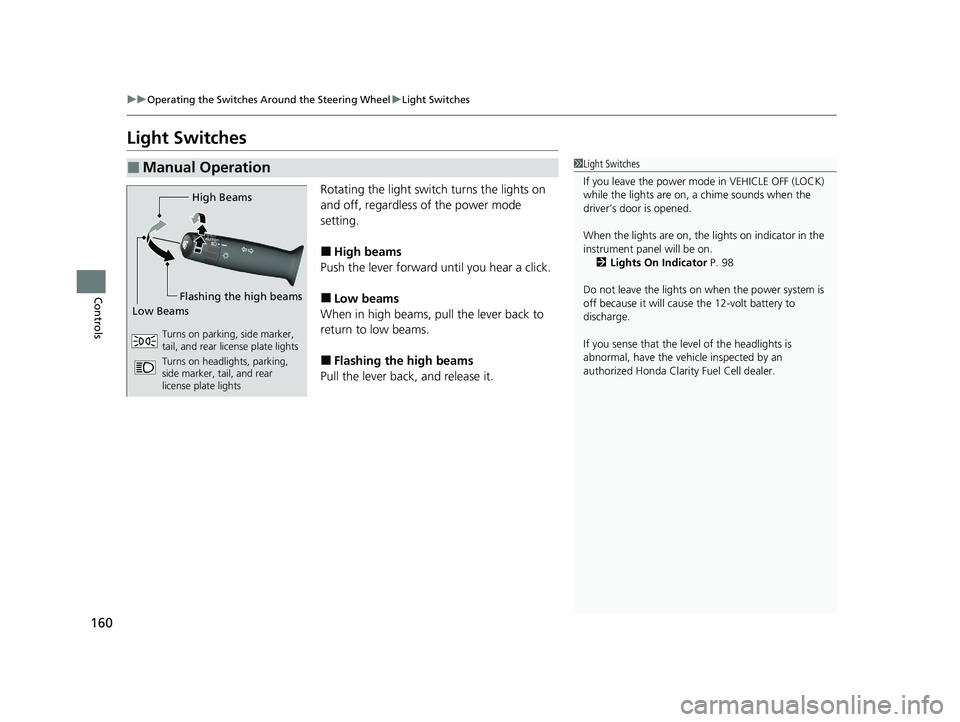

160
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
■Manual Operation1 Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
while the lights are on, a chime sounds when the
driver’s door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 98
Do not leave the lights on when the power system is
off because it will caus e the 12-volt battery to
discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehi cle inspected by an
authorized Honda Clarit y Fuel Cell dealer.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking,
side marker, tail, and rear
license plate lights
21 CLARITY FCV CSS-31TRT6400_02.book 160 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

532
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure compliant with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
21 CLARITY FCV CSS-31TRT6400_02.book 532 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

546
Index
H
Handling the Unexpected........................ 491
HandsFreeLink® (HFL)............................... 331
Automatic Import of Cellular Phonebook
and Call History ..................................... 344
Displaying Messages ................................ 358
HFL Buttons ............................................. 331
HFL Menus .............................................. 334
HFL Status Display.................................... 333
In Case of Emergency .............................. 362
Limitations for Manua l Operation ............ 333
Making a Call .......................................... 352
Options During a Call .............................. 355
Phone Setup ............................................ 339
Phonebook Phonetic M odification ........... 348
Receiving a Call ....................................... 355
Receiving a Text Message/E-mail .............. 356
Ring Tone ................................................ 343
Selecting a Mail Account ......................... 357
Speed Dial ............................................... 345
To Set Up Text Message/E-mail Options ... 342
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 238
Head Restraints ......................................... 176
Headlights ................................................. 160
Aiming .................................................... 465
Automatic Operation ............................... 161
Dimming ......................................... 160, 163
Operating ................................................ 160
Head-Up Display ....................................... 129
Brightness Control ................................... 167 Heated Door Mirror
................................. 168
Heaters (Seat) ........................................... 188
HFL (HandsFreeLink ®)............................... 331
High Beam Indicator .................................. 98
High Voltage Battery ............................... 422
Hill Start Assist System ............................. 374
HomeLink ® Universal Transceiver ............ 328
Honda App License Agreement .............. 286
Honda Sensing ®........................................ 36
HondaLink ®............................................. 264
I
Identification Numbers
Motor, and Transmission ......................... 534
Vehicle Identification ............................... 534
Illumination Control Buttons ........................................... 166, 167
Immobilizer System .................................. 151
Indicator.................................................... 98
Indicators .................................................... 88
12-Volt Battery Charging System ....... 92, 515
Adaptive Cruise Control (ACC) with Low Speed Follow ......................... 101, 391
Anti-lock Brake System (ABS)..................... 94
Automatic Brake Hold ....................... 89, 431
Automatic Brake Hold System ........... 89, 431
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 102, 103
Electric Power Steering (EPS) System .. 95, 516
Gear Position............................................. 93 High Beam ................................................ 98
Hydrogen Leak.......................................... 92
Immobilizer System ................................... 98
Lane Keeping Assist System
(LKAS) ........................................... 102, 410
Lights On .................................................. 98
Low Fuel ................................................... 92
Low Tire Pressure/TPMS ............ 96, 418, 420
Parking Brake and Brake System (Amber) .. 90
Parking Brake and Brake System (Red) ..................... 88, 89, 516, 517
POWER SYSTEM ....................................... 91
READY ...................................................... 92
Road Departure Mitigation (RDM) ........... 100
Seat Belt Reminder .............................. 50, 94
Security System Alarm............................... 99
SPORT Mode..................................... 99, 383
Supplemental Restraint System ........... 68, 95
System Message ....................................... 97
Transmission System ................................. 93
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 415
VSA ® OFF .......................................... 95, 416
Information .............................................. 531
Instant Fuel Economy .............................. 124
Instrument Panel ........................................ 87
Brightness Control .................................. 166
Interior Lights ........................................... 180
Interior Rearview Mirror ......................... 172
21 CLARITY FCV CSS-31TRT6400_02.book 546 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

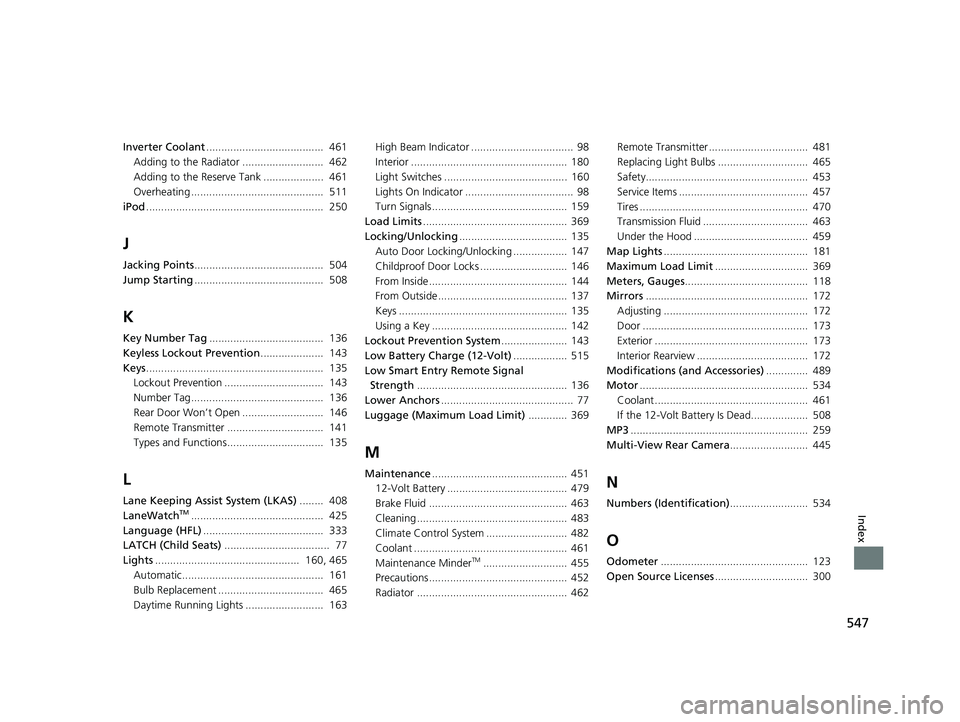

547
Index
Inverter Coolant....................................... 461
Adding to the Radiator ........................... 462
Adding to the Reserve Tank .................... 461
Overheating ............................................ 511
iPod ........................................................... 250
J
Jacking Points ........................................... 504
Jump Starting ........................................... 508
K
Key Number Tag ...................................... 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 135
Lockout Prevention ................................. 143
Number Tag............................................ 136
Rear Door Won’t Open ........................... 146
Remote Transmitter ................................ 141
Types and Functions................................ 135
L
Lane Keeping Assist System (LKAS) ........ 408
LaneWatchTM............................................ 425
Language (HFL) ........................................ 333
LATCH (Child Seats) ................................... 77
Lights ................................................ 160, 465
Automatic............................................... 161
Bulb Replacement ................................... 465
Daytime Running Lights .......................... 163 High Beam Indicator .................................. 98
Interior .................................................... 180
Light Switches ......................................... 160
Lights On Indicator .................................... 98
Turn Signals ............................................. 159
Load Limits ................................................ 369
Locking/Unlocking .................................... 135
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 135
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge (12-Volt) .................. 515
Low Smart Entry Remote Signal Strength .................................................. 136
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) ............. 369
M
Maintenance............................................. 451
12-Volt Battery ........................................ 479
Brake Fluid .............................................. 463
Cleaning .................................................. 483
Climate Control System ........................... 482
Coolant ................................................... 461
Maintenance Minder
TM............................ 455
Precautions .............................................. 452
Radiator .................................................. 462 Remote Transmitter ................................. 481
Replacing Light Bulbs .............................. 465
Safety...................................................... 453
Service Items ........................................... 457
Tires ........................................................ 470
Transmission Fluid ................................... 463
Under the Hood ...................................... 459
Map Lights ................................................ 181
Maximum Load Limit ............................... 369
Meters, Gauges ......................................... 118
Mirrors ...................................................... 172
Adjusting ................................................ 172
Door ....................................................... 173
Exterior ................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 489
Motor ........................................................ 534
Coolant ................................................... 461
If the 12-Volt Battery Is Dead................... 508
MP3 ........................................................... 259
Multi-View Rear Camera .......................... 445
N
Numbers (Identification).......................... 534
O
Odometer................................................. 123
Open Source Licenses ............................... 300
21 CLARITY FCV CSS-31TRT6400_02.book 547 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
