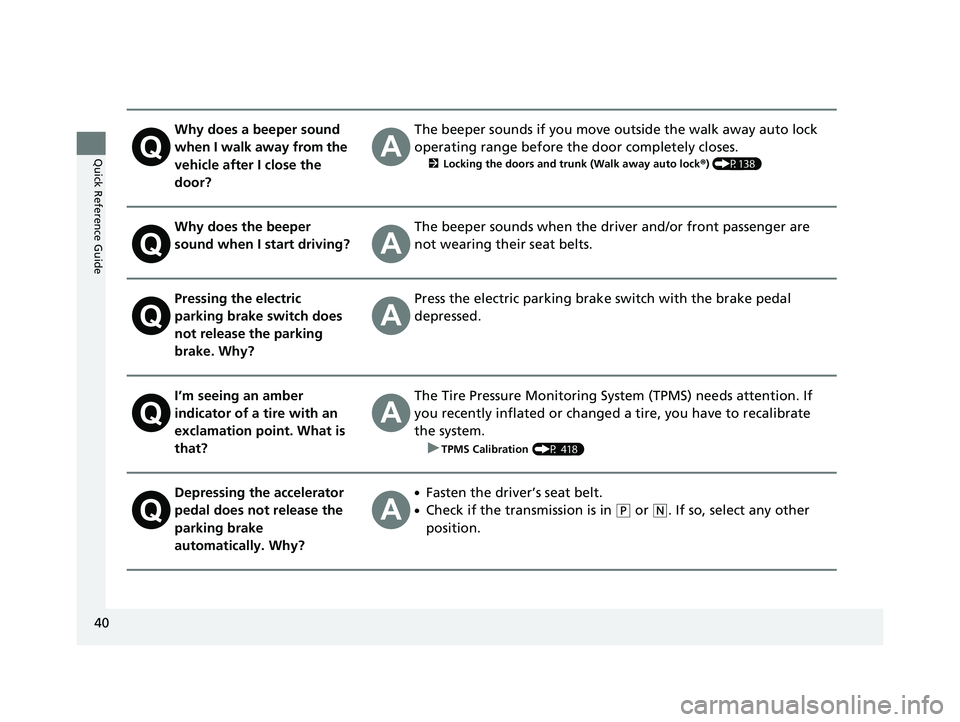

40
Quick Reference Guide
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock ®) (P138)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Syst em (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
u
TPMS Calibration (P 418)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
21 CLARITY FCV CSS-31TRT6400_02.book 40 ページ ２０２０年９月２５日　金曜日　午後３時１５分

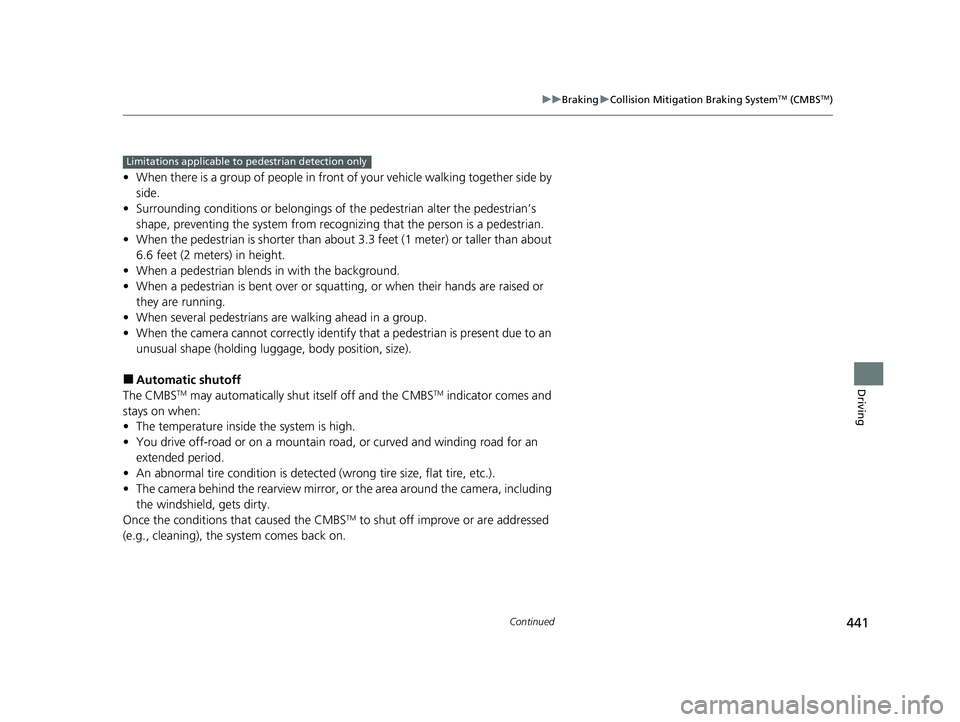

441
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is shorte r than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squatting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
The CMBSTM may automatically shut itself off and the CMBSTM indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions th at caused the CMBS
TM to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
Limitations applicable to pedestrian detection only
21 CLARITY FCV CSS-31TRT6400_02.book 441 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

491
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
If a Tire Goes FlatTemporarily Repairi ng a Flat Tire....... 492
Handling of the Jack ......................... 504
Power System Won’t Start Checking the Procedure ................... 505
If the Smart Entry Remote Battery is Weak .......................................... 506
Emergency Power System Off........... 507
If the 12-Volt Battery Is Dead .......... 508
Overheating How to Handle Overheating ............. 511
If Hydrogen Gas is Leaking .............. 513Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 515
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 516
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 516If the Brake System Indicator (Red) Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On ...................... 517
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 518
If the Transmission System Indicator Blinks along with the Warning Message .... 519
Fuses Fuse Locations ................................. 520
Inspecting and Changing Fuses ........ 527
Emergency Towing ........................... 528
If You Cannot Unlock the Hydrogen Fuel Lid ...................................................... 529
If You Cannot Open the Trunk ........ 530
21 CLARITY FCV CSS-31TRT6400_02.book 491 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

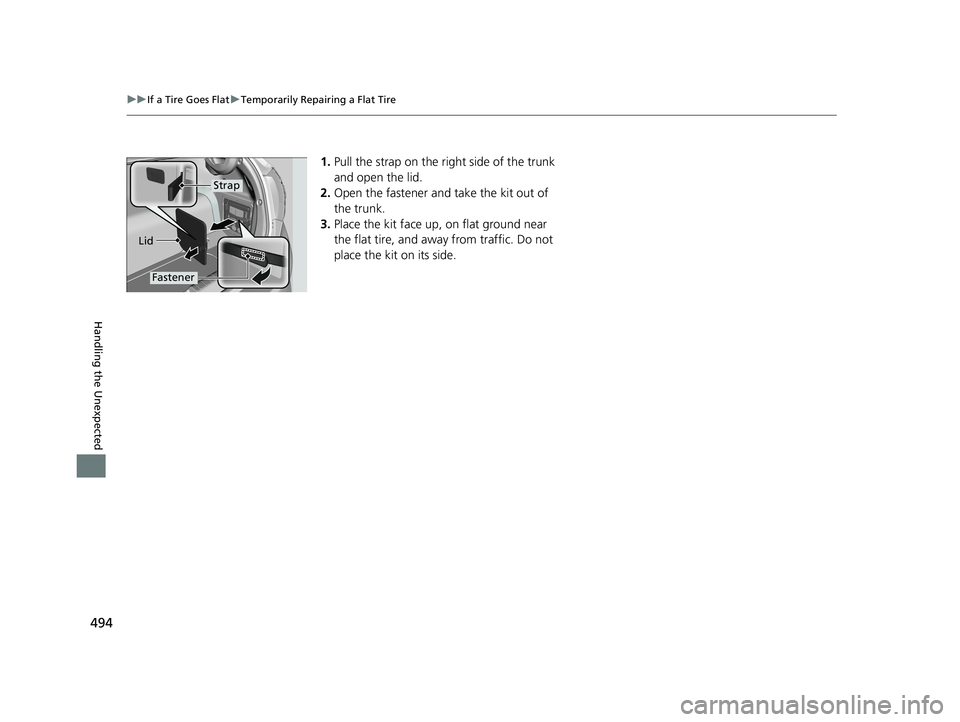

494
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
1. Pull the strap on the right side of the trunk
and open the lid.
2. Open the fastener and take the kit out of
the trunk.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Lid
Fastener
Strap
21 CLARITY FCV CSS-31TRT6400_02.book 494 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

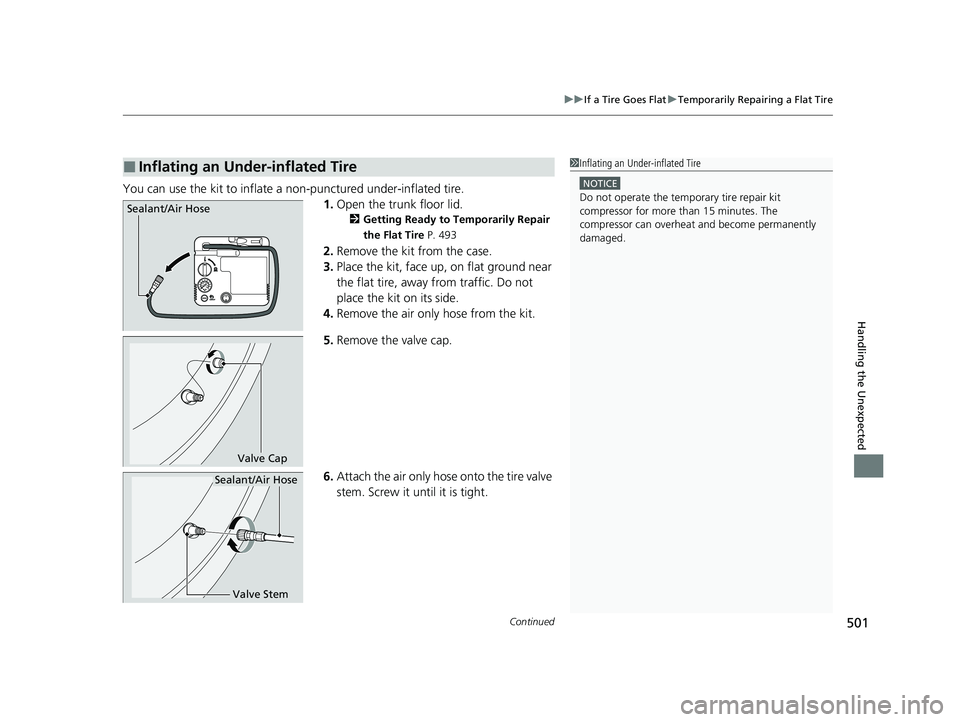

Continued501
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the trunk floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 493
2.Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
4. Remove the air only hose from the kit.
5. Remove the valve cap.
6. Attach the air only hose onto the tire valve
stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.Sealant/Air Hose
Valve Cap
Valve Stem
Sealant/Air Hose
21 CLARITY FCV CSS-31TRT6400_02.book 501 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

545
Index
D
Daytime Running Lights.......................... 163
Dead Battery (12-Volt) ............................. 508
Defrosting the Windshield and Windows ................................................. 194
Devices that Emit Radio Waves ............... 535
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 172
Directional Signals (Turn Signal) ............. 159
Display Button .......................................... 207
Door Mirrors ............................................. 173
Doors ........................................................ 135
Auto Door Locking.................................. 147
Auto Door Unlocking .............................. 147
Door Open Message ................................. 47
Keys........................................................ 135
Locking/Unlocking the Doors from the Inside .............................................. 28, 144
Locking/Unlocking the Doors from the Outside ................................................. 137
Lockout Prevention System ..................... 143
DOT Tire Quality Grading ........................ 473
Driver Information Interface ................... 121
Driver’s Knee Airbag .................................. 63
Driving ...................................................... 365
Braking ................................................... 427
Shifting Gear .......................................... 377
Transmission ........................................... 376
Turning on the Power ............................. 372
Driving Position Memory System ............ 169Dust and Pollen Filter
............................... 482
E
Eco Assist® System ...................................... 24
Eco Drive Display ...................................... 127
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System Indicator ............................................ 95, 516
Electronic Stability Control (ESC) ............. 415
Emergency ................................................ 528
EPS (Electric Power Steering) System ........ 95
Exterior Care (Cleaning) ........................... 485
Exterior Mirrors ........................................ 173
F
FC System in Extreme Cold-weather
Conditions ............................................... 423
Features ..................................................... 199
Filters Dust and Pollen ....................................... 482
Flat Tire ..................................................... 492
Floor Mats ................................................. 484
Fluids Brake ....................................................... 463
Coolant ................................................... 461
Transmission ............................................ 463
Windshield Washer .................................. 464
FM/AM Radio ............................................ 238
Foot Brake ................................................. 430 Front Airbags (SRS)
..................................... 58
Front Seat Heaters .................................... 188
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ................................ 385
Fuel ...................................................... 35, 447
Economy ................................................. 450
Gauge ..................................................... 118
How to Handle Leaked Hydrogen Gas ..... 513
Hydrogen Leak Indicator............................ 92
Instant Fuel Economy .............................. 124
Low Fuel Indicator ..................................... 92
Range ..................................................... 118
Refueling................................................. 447
Requirement ................................... 447, 532
Fuel Cell Power Generation Monitor ...... 126
Fuel Cell Vehicle Precautions ..................... 14
Fuel Economy ........................................... 450
Fuel Fill Door .............................................. 35
Fuses .......................................................... 520
Inspecting and Changing......................... 527
Locations......................................... 520, 522
G
Gauges ...................................................... 118
Gear Position Indicator ...................... 93, 379
Gear Shift Positions Transmission ........................................... 377
Glass (care) ........................................ 483, 486
Glove Box .................................................. 182
21 CLARITY FCV CSS-31TRT6400_02.book 545 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

549
Index
Siri® Eyes Free ........................................... 271
SiriusXM ® Radio ....................................... 242
Smart Entry System .................................. 137
Snow Tires ................................................ 478
Song By Voice
TM (SBV) .............................. 253
Spare Tire (Optional) ............................... 533
Specifications ........................................... 532
Specified Fuel ................................... 447, 532
SPORT Mode ............................................. 383
SPORT Mode Indicator ....................... 99, 383
SRS Airbags (Airbags) ................................ 58
Steering Wheel Adjusting ................................................ 171
Stopping ................................................... 443
Summer Tires ............................................ 478
Supplemental Restraint System (SRS) ....... 58
Switches (Around the Steering
Wheel) ............................................ 6, 7, 156
Synchronization Mode ............................ 195
System Message Indicator ......................... 97
T
Temperature Sensor................................ 198
Temporary Tire Repair Kit ....................... 493
Time (Setting) ........................................... 134
Tire Pressure Monitoring System
(TPMS) ..................................................... 418
Indicator ........................................... 96, 518
Tires .......................................................... 470
Air Pressure..................................... 471, 533 Chains ..................................................... 478
Checking and Maintaining ....................... 470
Flat Tire (Puncture) ................................... 492
Inspection ................................................ 470
Labeling .................................................. 471
Regulations ............................................. 473
Rotation .................................................. 477
Spare (Optional) ...................................... 533
Summer .................................................. 478
Temporary Tire Repair Kit ........................ 493
Wear Indicators ....................................... 475
Winter ..................................................... 478
Towing a Trailer ....................................... 371
Towing Your Vehicle ................................ 371
Emergency .............................................. 528
TPMS (Tire Pressure Monitoring System) .................................................... 418
Transmission ............................... 34, 376, 377
Creeping ................................................. 376
Fluid ........................................................ 463
Gear Position Indicator ...................... 93, 379
Number ................................................... 534
Operating the Shift Button ................ 34, 379
Shifting ................................................... 377
Trip Meter ................................................. 123
Troubleshooting ....................................... 491
Blown Fuse ...................................... 520, 522
Brake Pedal Vibrates .................................. 39
Buzzer Sounds When Opening Door .......... 39
Emergency Towing .................................. 528
Flat Tire/Puncture ..................................... 492 Noise When Braking .................................. 41
Overheating ............................................ 511
Power System Won’t Start ....................... 505
Rear Door Won’t Open...................... 39, 146
Warning Indicators .................................... 88
Trunk ......................................................... 148
Lid........................................................... 148
Light Bulbs .............................................. 532
Unable to Open....................................... 530
Turn Signals .............................................. 159
Indicators (Instrument Panel) ..................... 98
Turn-by-Turn Directions ................... 124, 131
Turning on the Power .............................. 372
Does Not Activate ................................... 505
If the 12-Volt Battery Is Dead................... 508
U
Under-Floor Storage Area ....................... 187
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ................................................. 28, 144
USB Flash Drives ............................... 259, 285
USB Ports ................................................... 201
Using the Smart Entr y with Push Button
Start System ............................................ 137
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 534
21 CLARITY FCV CSS-31TRT6400_02.book 549 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
