6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Steering Wheel Adjustments (P 171)
❚ (Vehicle Stability AssistTM (VSA®)
System OFF) Button
(P 416)
❚Road Departure Mitigation (RDM)
Button
(P 388)❚Gauges (P 118)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 438)
❚Head-Up Display Buttons (P 129)
❚Driver Information Interface
(P 121)
❚Navigation System
() See the Navigation System Manual
❚Audio System (P 200)
❚Hazard Warning Button
❚Climate Control System (P 190)
❚POWER Button (P 156)
❚Seat Heater Buttons (P 188)
❚Rear Defogger (P 168)
❚Heated Door Mirror Button (P 168)
❚System Indicators (P 88)
21 CLARITY FCV CSS-31TRT6400_02.book 6 ページ ２０２０年９月２５日　金曜日　午後３時１５分

13
Quick Reference Guide

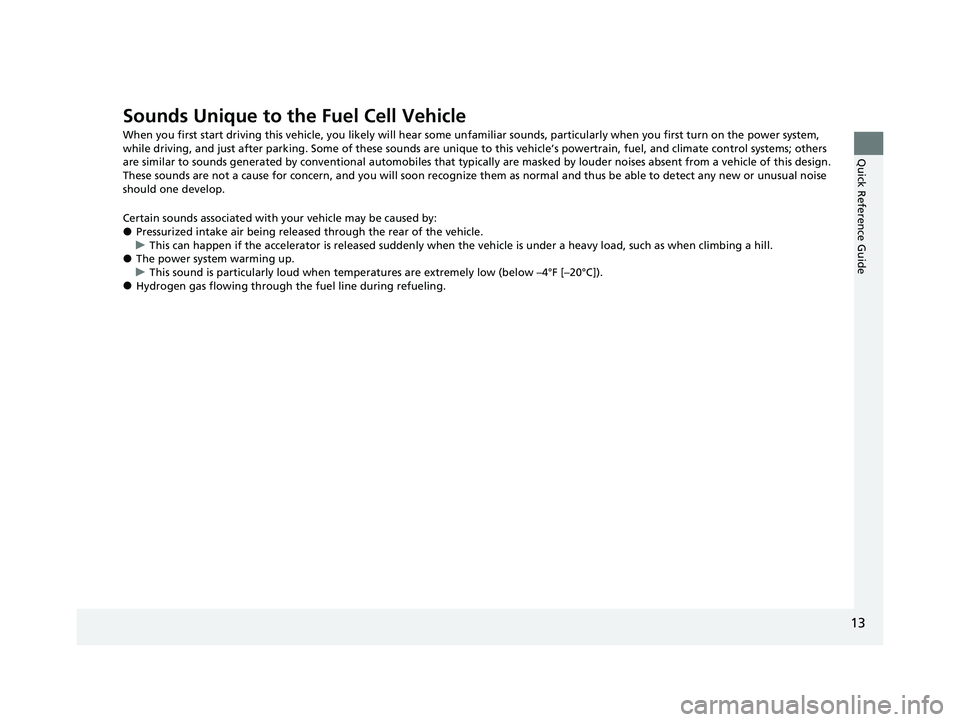

Sounds Unique to the Fuel Cell Vehicle
When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particularly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this ve hicle’s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
Certain sounds associated with your vehicle may be caused by:
●Pressurized intake air being released through the rear of the vehicle.
u This can happen if the accelerator is released suddenly when the vehicle is under a heavy load, such as when climbing a hill.
●The power system warming up.
u This sound is particularly loud when temperat ures are extremely low (below –4°F [–20°C]).
●Hydrogen gas flowing through the fuel line during refueling.
21 CLARITY FCV CSS-31TRT6400_02.book 13 ページ ２０２０年９月２５日　金曜日　午後３時１５分

30
Quick Reference Guide
Climate Control System (P 190)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
The climate control system is voice operable. (P234)
AUTO Button
/ (Fan Control) Buttons
MODE
Control Icon
(Air flows from floor and dashboard
vents, and back of the center console) A/C (Air Conditioning) Icon
Plasmacluster Mark
MODE Control Icon
(Air flows from floor and
windshield defroster vents)
MODE Control Icon
(Air flows from floor vents)
Passenger’s Side
Temperature Control Dial
SYNC (Synchronization) Button
(Windshield Defroster) Button
(ON/OFF) Button
(Recirculation) Button
(Auto Recirculation) Button
MODE Control Icon
(Air flows from dashboard vents
and back of the center console)
Driver’s Side Temperature
Control Dial CLIMATE
Button
Fan Control Icon
21 CLARITY FCV CSS-31TRT6400_02.book 30 ページ ２０２０年９月２５日　金曜日　午後３時１５分

45
uuFor Safe Driving uImportant Safety Precautions
Safe Driving

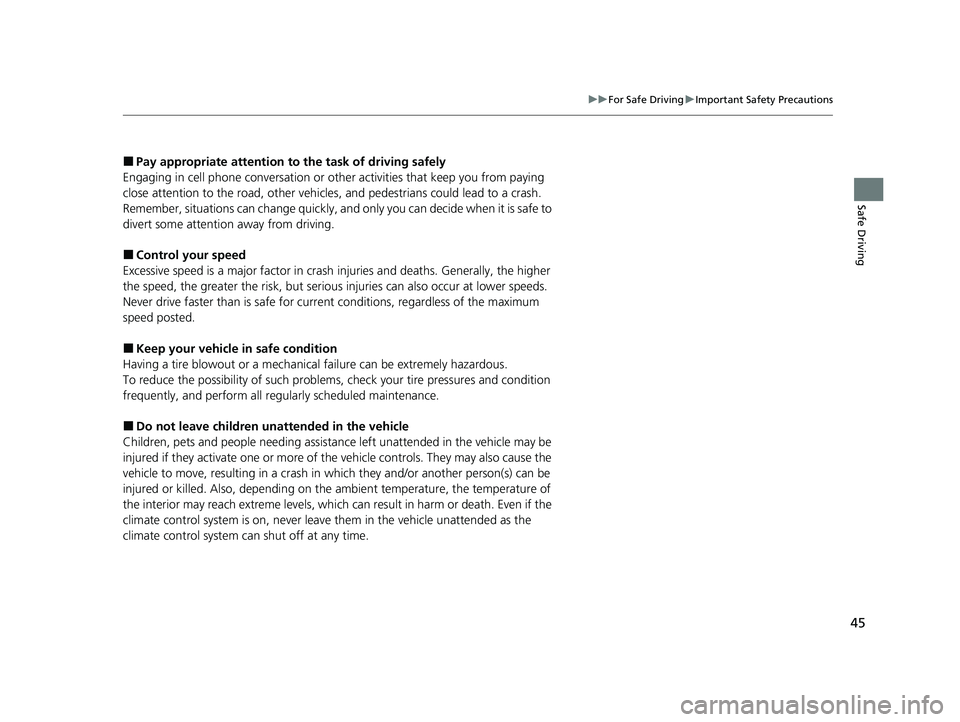

■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets and people needing assistan ce left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which ca n result in harm or death. Even if the
climate control system is on, never leave them in the vehicle unattended as the
climate control system can shut off at any time.
21 CLARITY FCV CSS-31TRT6400_02.book 45 ページ ２０２０年９月２５日　金曜日　午後３時１５分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
READY Indicator
●Comes on when the vehicle is
ready to drive.●May go off if the POWER SYSTEM or
transmission system indicator comes on.
2 Turning on the Power P. 372
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when
the power system is on.
●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 515
Low Fuel
Indicator●Comes on when the vehicle is
running low on fuel (3 or 2 fuel-
gauge bars illuminated).●Refuel your vehicle as soon as possible.
Hydrogen Leak
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if a small hydrogen gas
leak is detected.
●Your vehicle has less ability to accelerate
and may be harder to start on an incline.
●Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
●Comes on if a hydrogen gas leak is
detected.●Generating electricity by the fuel cell is
stopped.
●Immediately stop in a safe place and have
your vehicle checked by an authorized
Honda Clarity Fuel Cell dealer.
21 CLARITY FCV CSS-31TRT6400_02.book 92 ページ ２０２０年９月２５日　金曜日　午後３時１５分

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation
(RDM) Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the RDM system.
●Stays on constantly - Have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer.
●Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system acti vates when the
temperature inside the camera cools
down sufficiently.
2 Front Sensor Camera P. 385
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
●Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
if the indicator and message come back
on after you cleaned the area around the
camera.
2 Front Sensor Camera P. 385
21 CLARITY FCV CSS-31TRT6400_02.book 100 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
