2021 HONDA CLARITY FUEL CELL Owner's Manual (in English)

519
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected

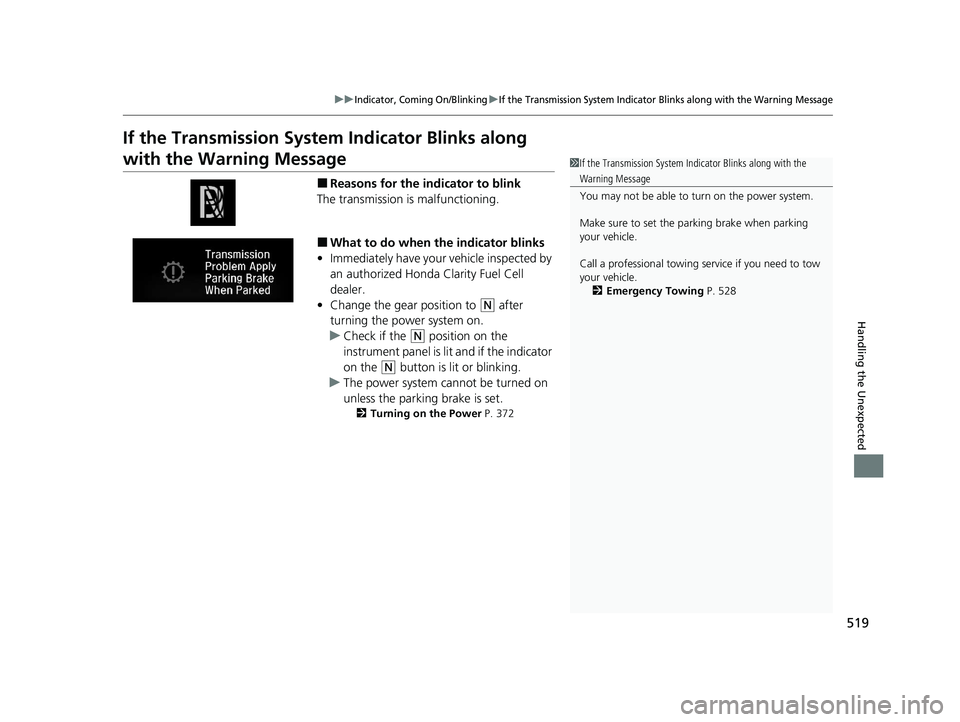

If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
an authorized Honda Clarity Fuel Cell
dealer.
• Change the gear position to
(N after
turning the power system on.
u Check if the
(N position on the
instrument panel is lit and if the indicator
on the
(N button is lit or blinking.
u The power system cannot be turned on
unless the parking brake is set.
2 Turning on the Power P. 372
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 528
21 CLARITY FCV CSS-31TRT6400_02.book 519 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

520
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are two fuse boxes in the motor
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the windshield washer
reservoir. Push the tabs to open the box.
■Motor Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY200 A
2
EPS70 A
ESB40 A
ABS/VSA_FSR20 A
SUB FUSE BOX 440 A
P-ACT30 A
−−
H/L LO MAIN30 A
3
WIPER MOTOR 130 A
WIPER MOTOR 230 A
IG MAIN 130 A
IG MAIN 230 A
4 HAZARD 10 A
5IGB15 A
6 IG CRASH 10 A
7IGA7.5 A
8 P-ACT_DRV 7.5 A
9SHIFTER7.5 A
10 STOP LIGHT 7.5 A
11VBU7.5 A
12 RFC 60 A
FUSE BOX MAIN 3 50 A
FUSE BOX MAIN 1 60 A H/L HI MAIN 40 A
PREMIUM AUDIO 30 A
FUSE BOX MAIN 2 40 A ABS/VSA MOTOR 40 A −−
SMALL MAIN 20 A
SUB FUSE BOX 2-1 40 A
13HEATER MOTOR40 A
14 REAR DEFROSTER 40 A
15BATT FAN15 A
16 BATT SNSR 7.5 A
17H2 PMP30 A
18 A/C MAIN/DRL 10 A
19EGR PMP20 A
20 BATT SNSR (IR) 10 A
21BACK UP10 A
22 AUDIO 15 A
23IGB LEAK SNSR5 A
24 R H/L LO 7.5 A
25L H/L LO7.5 A
26 IGB ECU 5 A
Circuit ProtectedAmps
21 CLARITY FCV CSS-31TRT6400_02.book 520 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

521
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse box B
Tab
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of motor compartment fuses
should be done by an authorized Honda
Clarity Fuel Cell dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
a−−
bFC WP70 A
c−−
d SUB FUSE BOX 1 60 A
21 CLARITY FCV CSS-31TRT6400_02.book 521 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

522
uuFuses uFuse Locations
Handling the Unexpected
There are five fuse boxes on the driver’s
side.
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC7.5 A
2−−
3−−
4SHIFTER7.5 A
5OPTION MAIN7.5 A
6SRS OPTION7.5 A
7METER10 A
8FUEL PUMP7.5 A
9OPTION7.5 A
10CTR ACC SOCKET20 A
11−−
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17P-DRV7.5 A
18IGIR7.5 A
19WASHER15 A
20ESB7.5 A
21ACG7.5 A
22DRL7.5 A
23IGFC37.5 A
24FR SENSOR CAMERA5A
25DR DOOR LOCK10 A
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30INTERIOR LIGHT7.5 A
31DR P/SEAT REC20 A
32FR SEAT HEATER20 A
33DR P/SEAT SLI20 A
34ABS/VSA7.5 A
35SRS10 A
36−−
37LID ACT10 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
Circuit ProtectedAmps
21 CLARITY FCV CSS-31TRT6400_02.book 522 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

523
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse Box B
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
aIGB SRS5A
b−−
21 CLARITY FCV CSS-31TRT6400_02.book 523 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

524
uuFuses uFuse Locations
Handling the Unexpected
■Fuse Box C
Located under the fuse box A.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
cIGFC215 A
dR H/L HI7.5 A
eL H/L HI7.5 A
fHORN10 A
gSMALL7.5 A
hILLUMI7.5 A
i−−
j−−
21 CLARITY FCV CSS-31TRT6400_02.book 524 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

525
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse Box D
Located on the left side of fuse box C.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
kIGFC 115 A
lIGDTWP20 A
mIGMG7.5 A
nSMART10 A
21 CLARITY FCV CSS-31TRT6400_02.book 525 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

526
uuFuses uFuse Locations
Handling the Unexpected
■Fuse Box E
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Hond a Clarity Fuel Cell dealer.
Fuse Box E
■Circuit protected and fuse rating
Circuit ProtectedAmps
p−−
q−−
r−−
s−−
t−−
u−−
vAS P/SEAT REC20 A
wAS P/SEAT SLI20 A
21 CLARITY FCV CSS-31TRT6400_02.book 526 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
