2021 FORD ESCAPE Owners Manual

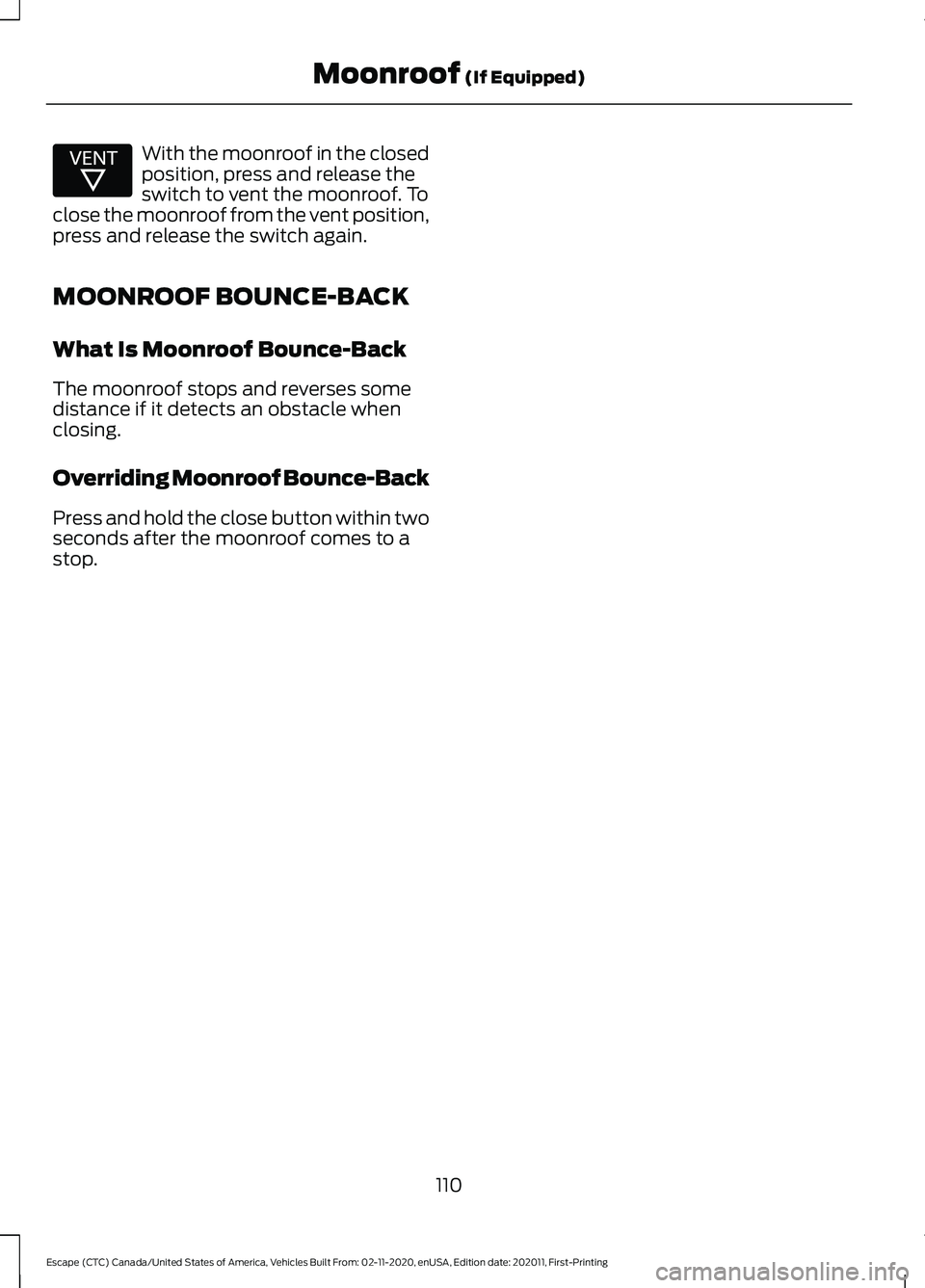

With the moonroof in the closed
position, press and release the
switch to vent the moonroof. To
close the moonroof from the vent position,
press and release the switch again.
MOONROOF BOUNCE-BACK
What Is Moonroof Bounce-Back
The moonroof stops and reverses some
distance if it detects an obstacle when
closing.
Overriding Moonroof Bounce-Back
Press and hold the close button within two
seconds after the moonroof comes to a
stop.
110
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Moonroof (If Equipped)E312252

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 4.2 INCH INSTRUMENT CLUSTER DISPLAY SCREEN
Tachometer.
A
Instrument cluster display.
B
Speedometer.
C
Fuel gauge.
D
Engine coolant temperature gauge.
E
111
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Instrument ClusterE282227

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 6.5 INCH INSTRUMENT CLUSTER DISPLAY SCREEN
Tachometer.
A
Information bar.
B
Speedometer.
C
Fuel gauge.
D
Instrument cluster display.
E
Engine coolant temperature gauge.
F
112
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Instrument ClusterE282067

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 12.3 INCH INSTRUMENT CLUSTER DISPLAY SCREEN
Engine coolant temperature gauge.
A
Speedometer.
B
Information bar.
C
Instrument cluster display.
D
Tachometer.
E
Fuel gauge.
F
113
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Instrument ClusterE320077

INSTRUMENT CLUSTER OVERVIEW - HYBRID ELECTRIC VEHICLE
(HEV), VEHICLES WITH: 6.5 INCH INSTRUMENT CLUSTER
DISPLAY SCREEN
Power gauge.
A
Information bar.
B
Speedometer.
C
Fuel gauge.
D
Vehicle driving range.
E
Instrument cluster display.
F
Engine coolant temperature gauge.
G
114
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Instrument ClusterE307890

INSTRUMENT CLUSTER OVERVIEW - HYBRID ELECTRIC VEHICLE
(HEV), VEHICLES WITH: 12.3 INCH INSTRUMENT CLUSTER
DISPLAY SCREEN
Coolant temperature gauge.
A
Speedometer.
B
Information bar.
C
Instrument cluster display.
D
Vehicle driving range.
E
Power gauge.
F
Fuel gauge.
G
115
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Instrument ClusterGE340894

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV), VEHICLES WITH: 6.5 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN
Power gauge.
A
Information bar.
B
Speedometer.
C
Fuel gauge.
D
Battery gauge and vehicle driving range.
E
Instrument cluster display.
F
Engine coolant temperature gauge.
G
116
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Instrument ClusterE307890

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV), VEHICLES WITH: 12.3 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN
Coolant temperature gauge.
A
Speedometer.
B
Information bar.
C
Instrument cluster display.
D
Battery gauge and vehicle driving range.
E
Power gauge.
F
Fuel gauge.
G
WHAT IS THE TACHOMETER -
EXCLUDING: HYBRID
ELECTRIC VEHICLE (HEV)/
PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV) (IF EQUIPPED)
Shows the engine speed. The red line
thickens where the engine speed enters
the overspeed limiter.
117
Escape (CTC) Canada/United States of America, Vehicles Built From: 02-11-2020, enUSA, Edition date: 202011, First-Printing Instrument ClusterGE320093
