2021 AUDI Q2 display

Navigation
(D Business navigation destination
(4) Private navigation destination
- SeLect and confirm a postal address or
a
naviga­
tion destination. If
you
select
a
navigation des­

tination,
route guidance is started immediate-

iy.

- If
you
select a postal address, you can check the
address details again.
- You can then select and confirm Start route
guidance.
Further directory functions in the navigation sys­
tem can be found on
<^>page
216.
- Addresses which you have imported from
your mobiLe phone into the MMI can also be
used as navigation destinations.
- If
a
directory contact is greyed out, no
navi­

gation destination/postal address has yet
been added for the contact.
Point of interest search (special
destinations)

Applies
to: vehicles with navigation system
Navigation: enter destination
Search area
Find entry
Select category
Ç myAudi special destinations

H
Petrol station
P parking facilities
in vicinity of destination

Fig.
175 Example: Searching for a special destination

•
Press the |NAV/MAP| button repeatedly until
the Enter destination menu is displayed

•=>
page 207, Fig. 172.

*-
Select: left control button > Special destina­

tions.

- To change the search area: Select and confirm
Search area and then a search area from the
list.
The following search categories are available:
In immediate vicinity: You can select special des­
tinations from different categories. The special
destinations are displayed in a list, starting with
destinations in the immediate vicinity and going
up to destinations within a radius of 200 km.
In vicinity of route: Special destinations along
the route can only be selected when the route
guidance function is active. The special destina­
tions are located directly on or in the immediate
vicinity of your route. You can also select special
destinations from different categories. For exam­

ple,
you can look for
a
hotel or
a
car park at the
destination.
In vicinity of destination/In vicinity of stopover:
Special destinations near the
destination/stop­

over can only be selected when the route
guid­

ance function is active. You can also select special
destinations from different categories. For exam­

ple,
you can look for
a
hotel or
a
car park at the
destination.
In new town: SeLect
a
country or search in a new

town.
Enter the name of the desired town. You
can select special destinations from different cat­
egories. You can use this function to find special
destinations in any town irrespective of the desti­
nation currently set or the vehicle position.
- To find the name of
a
special destination in
the selected search area: Enter the name of the
special destination.
- To search for a special destination in a specific
category: Choose Select category. SeLect and
confirm a category, for example Restaurant.
myAudi special
destinations*1525

In myAudi special destinations, you can find per­
sonal special destinations which you have added
in your myAudi account and imported to the MMI
using an SD card or online*
^>page
224.
- To add further myAudi special destinations:
Select the right control button > Import •

CO

<
O
rN
IN
rN
t-H
o

<

^
Important: You must have created a myAudi account at

my.audi.com,
added a vehicle to the account and stored a

destination.

2)
This function is not available in the Mexican market.
211

Audi connect (infotainment)

•
Select:
1MENU[
button
>
Telephone
>
right
con­

trol button
>
Wi-Fi settings.
The following settings can be made:
Wi-Fi
The Wi-Fi hotspot is deactivated when the vehicle
leaves the factory. Switch the Wi-Fi hotspot on
before establishing an Internet connection be­
tween your vehicle and your Wi-Fi device.
-
on:
The
MMI's
Wi-Fi hotspot is activated and
visible to other devices. You can connect your
Wi-Fi device to the MMI.
- off: The MMI's Wi-Fi hotspot is deactivated.
Wi-Fi devices will not be able to connect to the
Internet.

Network
key
The Wi-Fi connection between your vehicle and
the Wi-Fi device (laptop or mobile phone) is en­

crypted.
Before a connection can be established,
you must enter the following values/settings
when setting up your Wi-Fi device (these values
can be edited as required):
-Access point
(SSID):
Name of the Wi-Fi net­
work.
- Password: A random MMI password is set at
the factory. This password can be changed. The
encryption type WPA2 requires the password to
be at least 8 characters
long.
Please select
a
se­
cure password.
- Discoverability: To switch the discoverability of
your Wi-Fi network on
([vj)
or off.
Network
search15

A list of the Wi-Fi networks available near you is

displayed.

Connection to personal hotspot15
The Wi-Fi hotspot of the MMI is activated. The
MMI can establish an Internet connection to a
personal Wi-Fi hotspot (e.g. smartphone). You
can search for your personal hotspot and connect
to the MMI using Network search. For more in­

formation,
please refer to
^>page
195.
Not available in all markets.
This mode is not available if your own mini SIM
card is inserted in the SIM card reader.

A<
i
WARNING
- The Audi connect infotainment services
should only be used via a Wi-Fi hotspot
when the vehicle is stationary or from the
rear seats if the vehicLe is in motion - risk of
accident!
- Mobile devices, tablet and laptop computers
and devices of
a
similar weight can only be
operated safely when the vehicle is station­
ary. Like any loose object, they can be cata­
pulted through the vehicle in an accident
and cause serious injuries. Always make sure
that such devices are securely stowed while
you are driving.
- No Wi-Fi devices may be used from the front
seats in the areas around the airbags while
the vehicLe is being driven. Please also ob­
serve the safety warnings in the chapter on

<3>page
282, Front airbags.
- Do not allow the features of the Wi-Fi hot-
spot to distract you from watching the traf­
fic - taking your eyes off the road can cause
an accident.
© CAUTION
- Depending on the configuration of the Wi-Fi
device you are using (refer to the operating
manual of your Wi-Fi device for more de­

tails),
the SIM card of the device may be
used in certain cases to provide the data
connection for Internet-supported apps and
services which use the MMI Wi-Fi hotspot.
Depending on your network provider, you
may be charged for this service, especially if
you are using the system abroad. We there­
fore strongly recommend that you use an
unlimited data
plan.
For more information,
contact your service provider. Some exam­
ple cases are described below:
- Data plan expired/used up
- Data plan not valid abroad •
202

Audi connect (infotainment)
- SIM card in the card reader* is not a data
SIM card
- SIM card in the card reader* is defective/
not valid
- Network is switched automatically due to
a low signal strength/data rate of the Wi-
Fi hotspot, the eSIM*
or
the SIM card in
the card reader*
- Connection to Wi-Fi hotspot interrupted
-Applies when using the embedded SIM
card:

The data connection costs for Audi connect
infotainment services are included in the
price of Audi connect (infotainment). This
does not include services which use the Wi-
Fi hotspot, such as online media

<^>page
239. These services require
addi­

tional paid data plans
^page
197. For more
information on prices and purchasing,
please visit my.audi.com.
- Applies when using your own SIM
card:
The
connection via the eSIM card
^page
191 is
disconnected when you use your own SIM

card.
All data connections for all Audi
con­

nect infotainment services will use your SIM

card.
Depending on your network provider,
you may be charged for this service, espe­
cially if
you
are using the system abroad.
We therefore strongly recommend
that
you
use an unlimited data
plan.
For more infor­

mation,
contact your service provider.
- Please note that it is your responsibility to
take precautions regarding data protection,
anti-virus protection and protection against
loss of data on mobile devices used to
con­

nect to the Internet via the Wi-Fi hotspot.
© Note
- In vehicles without Audi connect (infotain­
ment)*, the Wi-Fi hotspot can only be used
for the Wi-Fi audio player*. A data connec­
tion to the Internet cannot be established.
- Further information on Audi connect info­
tainment services can be found on the Inter­
net at www.audi.com.
Configuring the data
connection
Applies to: vehicles with Audi connect (infotainment)
A data connection for Audi connect infotainment
services is pre-configured at the factory. Howev­
er, if
a
configuration is
necessary,
you can adjust
the settings as described below.

•
Select:
MENU|
button > right control button >
Connection manager.

•
Select: right control button > Online settings >
Data connection settings.
You can select when you would like the system to
establish an Internet connection in the Data
con­

nection settings menu. The online connection is
ended automatically when a requested Audi
con­

nect infotainment service no longer requires any
further data.
The following options are available:
Connection setup
- with request: A data connection will only be es­
tablished on request.
- no request: A data connection will be establish­
ed automatically
for
the use of Audi connect in­
fotainment services.
- never: A data connection will not be establish­

ed.
It is then not possible to call up Audi
con­

nect infotainment services.
When a data connection has been established, a

symboL
indicating the active data connection ©

^page
161, Fig. 156 appears in the status line

of
the infotainment display.
You can cancel an active data connection manual­
ly by setting the Connection setup option to nev­
er.
Data roaming
The Data roaming function is deactivated when
the vehicle leaves the factory. Data roaming
must be activated
((vj)
before you can use a data
connection abroad. This setting is saved for the
current SIM card/the mobiLe phone currently

connected.
•
203

Audi connect (infotainment)

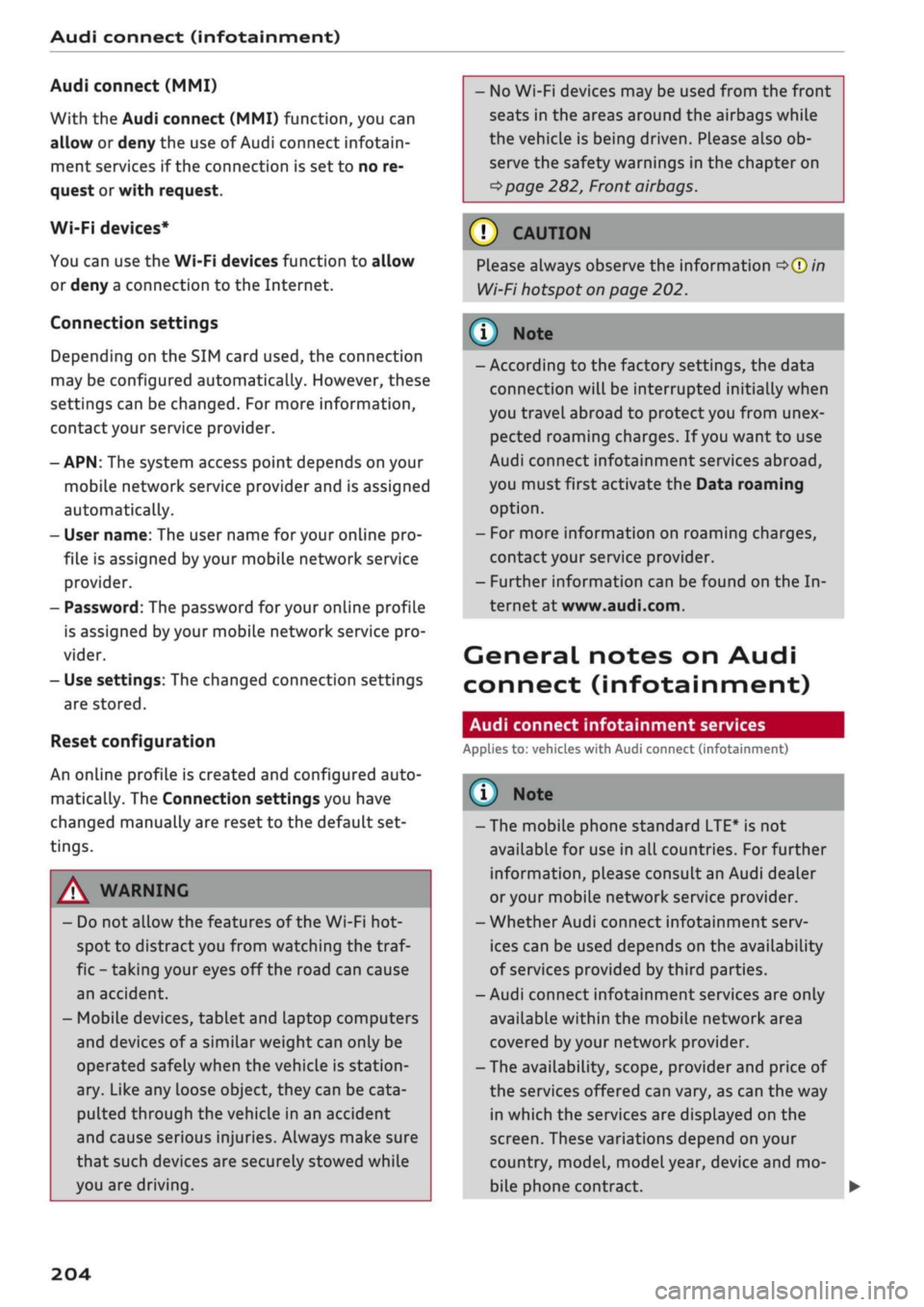

Audi connect (MMI)
With the Audi connect (MMI) function, you can
allow or deny the use of Audi connect infotain­
ment services if the connection is
set
to no re­
quest or with request.
Wi-Fi devices*
You can use the Wi-Fi devices function to allow
or deny a connection to the Internet.
Connection settings
Depending on the SIM card used, the connection
may be configured automatically. However, these
settings can be changed. For more information,
contact your service provider.
- APN: The system access point depends on your
mobile network service provider and is assigned
automatically.
- User name: The user name for your online pro­
file is assigned by your mobile network service
provider.
- Password: The password for your online profile
is assigned by your mobile network service pro­
vider.
- Use settings: The changed connection settings

are
stored.
Reset configuration
An online profile is created and configured auto­
matically. The Connection settings you have
changed manually are reset to the default set­

tings.

/Sy
WARNING
- Do not allow the features of the Wi-Fi hot-
spot to distract you from watching the traf­
fic - taking your eyes off the road can cause
an accident.
- Mobile devices, tablet and laptop computers
and devices of a similar weight can only be
operated safely when the vehicle is station­
ary. Like any loose object, they can be cata­
pulted through the vehicle in an accident
and cause serious injuries. Always make sure
that such devices are securely stowed while
you are driving.
- No Wi-Fi devices may be used from the front
seats in the areas around the airbags while
the vehicle is being driven. Please also ob­
serve the safety warnings in the chapter on

^>page
282, Front airbags.
© CAUTION
Please always observe the information
•=>©
in
Wi-Fi hotspot on page 202.
© Note
- According to the factory settings, the data
connection will be interrupted initially when
you travel abroad to protect you from unex­
pected roaming charges. If you want to use
Audi connect infotainment services abroad,
you must first activate the Data roaming

option.

- For more information on roaming charges,
contact your service provider.
- Further information can be found on the In­
ternet at www.audi.com.
General notes on Audi
connect (infotainment)
Audi connect infotainment services
Applies to: vehicles with Audi connect (infotainment)
-The mobile phone standard LTE* is not
available for use in all countries. For further
information, please consult an Audi dealer
or your mobile network service provider.
- Whether Audi connect infotainment serv­
ices can be used depends on the availability
of services provided by third parties.
- Audi connect infotainment services are only
available within the mobiLe network area
covered
by
your network provider.
- The availability, scope, provider and price of
the services offered can vary, as can the way
in which the services are displayed on the

screen.
These variations depend on your
country, model, model year, device and mo­
bile phone contract.
204

Audi connect (infotainment)
- Further information on Audi connect (info­
tainment) is also available on the Internet
at www.audi.com. For information on the
conditions of your mobile phone contract,
please contact your mobile network service
provider.
- Please also observe the notes in the chapter

^>page
172, Telephone.
Data protection
Applies to: vehicles with Audi connect (infotainment)
© Note
AUDI AC collects, processes, transmits and
uses the personal data you provide in ac­
cordance with legal requirements to ensure
that the individual Audi connect infotain­
ment services are provided and function
properly. You can use our myAudi platform,
for example, to activate further Audi
con­

nect infotainment services and to transfer
data to and from your vehicle. You must
register once in order to be able to connect
your vehicle to the platform. AUDI AC
col­

lects,
processes, transmits and uses the
personal data you must provide for the
reg­

istration as is necessary to ensure that AUDI
AG can provide the services and
that
you can
use them. Your data are not passed on to
third parties. Using the myAudi platform
and your mobile phone, you can transmit
data to your vehicle for the functions of your
Audi connect infotainment services und al­
low certain vehicle data to be transmitted
from your vehicle.
- If
you
activate certain information services
included in your Audi connect (infotain­
ment) portfolio, you can use the corre­
sponding functions directly in your vehicle
after entering your personal identification
data (for example for access to social net­
works). In this case we pass on your identifi­
cation data to the corresponding service
provider. You can then access your personal
content via a secure communication chan­

nel.
This content is displayed and can be
used in the vehicLe. AUDI AG will not store
your personal content. The necessary
con­

nection data are processed and used in ac­
cordance with legal requirements to ensure
that the services are provided and function
properly.
- Further information can also be found on
the MMI in the options menu of the Audi
connect infotainment service selected and
on the Internet at www.audi.com.

CO

rN
IN
rN
•-H

00
Troubleshooting
Applies to: vehicles with Audi connect (infotainment)
Subject
Audi connect infotainment serv­

ices:
Some Audi connect infotain­
ment services are greyed out/not
available.
Wi-Fi hotspot: No Wi-Fi connec­
tion is possible.
Wi-Fi hotspot: The data connec­
tion is interrupted.
Advice
Before you first use some Audi connect infotainment services, it
is necessary to activate/configure them via your personal myAudi
account. Detailed information can be found on the Internet at
my.audi.com.
Delete all existing Wi-Fi connections on your mobile device and
restart it.
Check whether the Connection to personal hotspot function is
switched on
•=>page
201. Switch the function off when you are
not using a personal hotspot.
205

Navigation

CO

â
rN
IN
rN
•-H

•H
00
Navigation
Introduction
Applies to: vehicles with navigation system
Depending on your vehicle's equipment, the
navi­

gation data
for
your navigation system is located
either on the SD card provided or on the internal
flash drive of the MMI. The information given
here always applies to both navigation systems
unless otherwise stated, e.g. "Applies to vehicles
with navigation system (SD card)".
The navigation system is designed for use on­
ly with the SD card provided. AUDI AG shall
not accept any liability for the consequences
of the use of other SD cards.
Setup
Applies to: vehicles with navigation system (SD card)

•
Slide the SD card with navigation data (provi­
ded) into the slot in the SD card reader until
you feel it engage. The missing corner of the SD
card should be at the front right.
© CAUTION
Do not store the SD card with navigation data
outside of the SD card reader slot (e.g. in the
glove box) for long periods. External factors,
such as excessive heat, may cause data loss.
Audi recommends
that
you make a backup
copy of the SD card and store it in a location
protected from external factors (outside of
the vehicLe).
©
Note

- Please note that the navigation system is
immediately no longer available if the SD
card is removed from the SD card reader.
- Store the SD cards in a suitable case to pro­
tect them from dirt and dust and to avoid
damage.
Calling up the navigation
menu
Applies to: vehicles with navigation system
The navigation system guides you directly
to
your
destination, avoiding traffic obstructions and us­
ing alternative routes if desired.
Navigation: enter destination

Î5^
Where would you like to go?

f
e.g. "Prague Charles Bridge"
1 Home address
Last destinations

I
Petrol station
<£
2,3 km (D)
M jnchener
StraSe,
Ingolstadt
John Smith

Fig.
172 Illustration: Entering a destination

•
Select: |NAV/MAP| button.
After calling up the navigation system, the Enter
destination menu will be displayed. The follow­
ing information can be shown on the infotain­
ment display:

(T)
Entry field
for
the search function
(D Home address
(5) Destinations recently travelled to

(Î)
Stored favourites
208
210
208
210
If you have connected a mobile phone to the

MMI,
your directory contacts are then listed if
you have added navigation data to at least one
contact.
The menu item Favourites (4)
^Fig.
172 and your
directory contacts are shown in the Enter desti­
nation menu when you have entered one or more
Letters in the entry
field.

Switching between destination entry and map:
- Press the |NAV/MAP| button repeatedly until
the map is displayed. Or: Press the left control
button > Switch to map.
A WARNING
- Today's driving conditions require the full
attention of drivers. Please always note the
information in the chapter
^>page
263,
Safe driving.
- Pay attention to traffic rules when driving.
207

Navigation
- The route calculated by the navigation sys­
tem is a recommendation of how best to
reach a destination. Pay attention to traffic

lights,
no stopping signs, lane change re­
strictions, one-way streets, etc.
© CAUTION
-Should the navigation directions contradict
the current traffic regulations, you must al­
ways follow the traffic regulations.
- The volume should only be set at a level
which enables you to hear distant police and
emergency vehicles clearly - failure to do so
could result in an accident.
© Note
- Snow or other obstructions on the GPS aer­
ial or interference caused by trees or large
buildings could affect the reception of the
satellite signals and make positioning
diffi­

cult. GPS reception and vehicle positioning
can also be adversely affected by deactiva­
tion or a malfunction of several satellites.
- Road names can change; therefore the
names stored on the MMI may be different
from the actual names in exceptional cases.
Entering a destination
Searching for navigation destinations
Applies to: vehicles with navigation system
With the search function, you can use the MMI
touch
pad*
or the speller for letters/numbers to
enter navigation destination information in any
order (e.g. Forest Road 20 London).
You
can
search for special destinations, contacts, recent
destinations or favourites in the same way to
help you navigate to the desired address.
Press the |NAV/MAP| button repeatedly untiL the
Enter destination menu is displayed
opage
207,
Fig. 172.
• Push the rotary pushbutton upwards. The entry
field will be displayed
@ ^>page
207, Fig. 172.
- Enter one or more search terms in the entry

field.

- If appropriate, confirm an autocomplete
sug­

gestion*
or a suggested word*. Refer to

^page
159, Speller for letters/numbers.
- Turn the rotary pushbutton clockwise to switch
to the results list.
- Select a destination from the results list and
confirm it.
- Select and confirm Start route guidance.
The route will be displayed as an overview on the

map.
Route guidance is already active.
Narrowing the search area
All countries are preselected for the search func­
tion at the factory.
-In the input menu
(T)<=>page207,
Fig. 172, se­
lect the right controL button > Country selec­

tion.

- Select the country flvj) which you would Like to
search in. This will limit the number of results
and speed up the search. The entry selected in
the country selection menu will be stored.
© Note
- The terms suggested by the MMI depend on
the destinations to which you have recently

driven.

- Up to 50 entries are stored in the list of des­
tinations to which you have recently driven.
- For more information on the search func­

tion,
please refer to
^>page
160.
Loading last destination
Applies to: vehicles with navigation system

The
destinations you have most recently driven
to are stored automatically and can be loaded
directly as new destinations.
Important: You must have set
a
destination in
the past.

•
Press the |NAV/MAP| button repeatedly until
the Enter destination menu is displayed

opage
207, Fig. 172.
The destinations to which you have recently driv­
en are listed directly in the Enter destination
menu under your home address and marked with
the
symbol®^
page
207, Fig. 172. •
208

Navigation

CO

â
rN
IN
rN
•-H

•H
00
- Select and confirm one of the recently set des­
tinations from the List.
- Select and confirm Start route guidance.
Deleting recent destinations
- Select and confirm one of the recently set des­
tinations from the list.
- Select: right control button > Delete destina­
tion > Delete this recent destination or Delete
all recent destinations.
The destination selected or all the recent desti­
nations will be deleted and no longer displayed in
the Enter destination menu.
Entering an address
Applies to: vehicles with navigation system
As an alternative to the search function, you can
also enter an address step by step.

•
Press the |NAV/MAP| button repeatedly until
the Enter destination menu is displayed

«*
page 207, Fig. 172.

•
Select: left control button > Enter address.
- To enter a destination via the country: Select
and confirm Country. Select
a
country from the
list and confirm it. Or: Search for
a
country via
the entry
field.

- To enter a destination via the town/post code:
Select and confirm Town/post code. Enter a
town or a post code. Or: Select and confirm a
town from the list.
- Select and confirm additional details for the
destination such as Street, House number or
Centre.
- To enter a destination via an intersection*: Se­
lect and confirm Intersection. You must al­
ready have entered a street. SeLect
a
street di­
rectly from the list and confirm it. Or: Search

fora
street via the entry
field.

- Select and confirm Start route guidance.
Setting a destination from the map (via
rotary pushbutton)
Applies to: vehicles with navigation system (SD card) and ro­
tary pushbutton with joystick function
A location on the map can be set as a destina­
tion.

Fig.
173 Moving the crosshairs (MMI control console with
rotary pushbutton with joystick function)

•
Press the |NAV/MAP| button repeatedly until
the map is displayed.
- To set a convenient map scale: Turn the rotary
pushbutton clockwise or anti-clockwise.
- To activate the crosshairs: Press the rotary
pushbutton.
- To navigate in the legend menu: Select and
confirm the crosshairs mode in the legend
menu
(D^F/g.
173. The crosshairs will appear
on the
map(î).

- To move the crosshairs: Turn the rotary push­
button in the direction you would like to move
the crosshairs (see magnified detail

^>Fig.
173). Press and hold the rotary pushbut­
ton until the crosshairs are at the desired
posi­

tion on the map. Press the |BACK| button.
- To use the destination: Select
|QK[
in the
Leg­

end menu
(f)^>
Fig.
173.
If you
wish to set a
stopover, select and confirm Set as stopover
and then Start route guidance.
- To hide the crosshairs: Press the
I BACK |
button

twice.

Additional information on the point selected
with the crosshairs: If
you
use the crosshairs to
preselect a location on the map, any existing in­
formation on this location (e.g. road name, ad­
dress or special destinations) will be displayed ©

<=>page
219, Fig. 182.
209
