2021 AUDI Q2 display

Speech dialogue system
Alternative commands are separated by the sym­
bol "/"; for example you can say: Telephone /(or)
Navigation /(or) Radio.
Commands that belong together and should be
spoken as a sequence are marked with the sym­
bol ">"; for example you can say: Enter address >
(and subsequently) Enter country.
As a rule, only the main commands are displayed.
However, the system may also recognise some
synonyms. For example, for business address
you can also say work address, office address,
the office or at work.
Commands
Global commands
Applies to: vehicles with speech dialogue system
You can give global commands any time, irre­
spective of the menu currently selected.
Function
Calling up the menu
Having the system play the possible
commands
Telephone functions
Navigation functions*
Calling up the favourites
Selecting an entry from a List
Scrolling through a list
Correcting a command
Switching off the speech dialogue
system
Say:
Telephone / Directory / Navigation / Radio / Media / Audi
con­

nect*/Car/Tone

Help / Help Speech dialogue system / Help Telephone /
Help Navigation / Help Map / Help Radio / Help Media / Help
Audi connect*
Call (XY), e.g.
Call John
Smith /
Enter number / Redial / Directory / Read new text message /
Read new e-mail / Dictate text message
Drive me to (XY) or Navigate to (XY), e.g. Navigate to John
Smith /
Enter address / Stop route guidance / Map / Online destina­

tions*
/ Online destination (XY)*
Favourites
>
follow the directions given by the system
Line (XY)
Next page / Previous page
Correction
Cancel

CO

<
O
rN
IN
rN

00
Telephone
Applies to: vehicles with speech dialogue system and telephone
Important: A mobile phone must be connected
to the MMI
^>page
173, and the Telephone
menu must be open
stable
on page 165.
You may be able to say the following commands
depending on the menu item selected:
Function
Calling a contact from the directory
Dialling a specific number stored

fora
contact
Say:
Call (XY), e.g. Call
John
Smith
Call (XY) business / private / land line / mobile,

e.g.
Call
John
Smith private

165

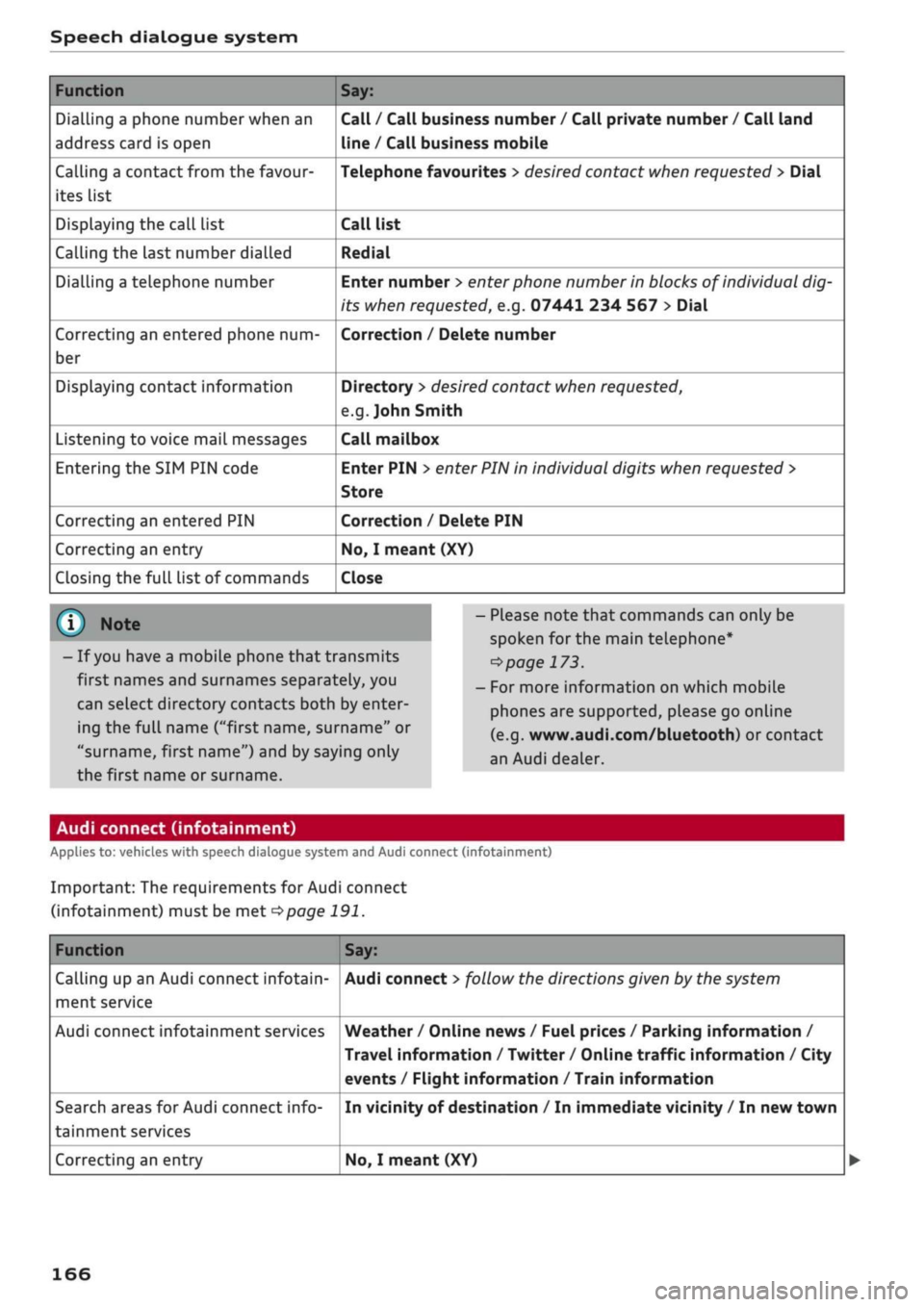

Speech dialogue system
Function
Dialling a phone number when an
address card is open
Calling a contact from the favour­
ites list
Displaying the call list
Calling the last number dialled
Dialling a telephone number
Correcting an entered phone num­
ber
Displaying contact information
Listening to voice mail messages
Entering the SIM PIN code
Correcting an entered PIN
Correcting an entry
Closing the full List of commands
Say:
Call / Call business number / Call private number / Call land
line / Call business mobile
Telephone favourites
>
desired contact when requested
>
Dial
Call list
Redial
Enter number
>
enter phone number in blocks of individual dig­
its when requested, e.g. 07441 234
567
> Dial
Correction / Delete number
Directory
>
desired contact when requested,

e.g.
John Smith
Call mailbox
Enter PIN
>
enter PIN in individual digits when requested >
Store
Correction / Delete PIN

No,
I meant (XY)
Close
© Note
- If
you
have a mobile phone that transmits
first names and surnames separately, you
can select directory contacts both by enter­
ing the full name
("first
name, surname" or
"surname, first name") and by saying only
the first name or surname.
- Please note that commands can only be
spoken for the main teLephone*

^>page
173.
- For more information on which mobile
phones are supported, please go online

(e.g.
www.audi.com/bluetooth) or contact
an Audi dealer.
Audi connect (infotainment)
Applies to: vehicles with speech dialogue system and Audi connect (infotainment)
Important: The requirements for Audi connect
(infotainment) must be met
^>page
191.
Function
Calling up an Audi connect infotain­
ment service
Audi connect infotainment services
Search areas for Audi connect info­
tainment services
Correcting an entry
Say:
Audi connect
>
follow the directions given by the system
Weather / Online news / Fuel prices / Parking information /
Travel information / Twitter / Online traffic information / City
events / Flight information / Train information
In vicinity of destination / In immediate vicinity / In new town

No,
I meant (XY)
166

Speech dialogue system
Function
General map options
Map type
Displaying the route list
Displaying remaining distance/time
while route guidance is active
Highest speed query
Setting the navigation cues during
active route guidance
Dynamic traffic avoidance
Excluding the next section of the
route
Excluding a certain section of the
route
Say:
Map / Day map / Night map / Change map colours automati­
cally
2D driving position map / 2D north position map / 3D map /
Destination map / Overview map / Standard map* / Traffic

map*
/ Google Earth map*
Route list
Destination info
How fast can I go here?
Voice guidance on / Voice guidance off / Voice guidance com­
pact / Voice guidance complete / Voice guidance
traffic

Manual traffic avoidance / Automatic traffic avoidance /
Switch off traffic avoidance
Exclude route
Exclude route for (XY) metres/kilometres/yards/miles / Ex­
clude next street / Exclude next section of route
© Note
- Depending on the selected menu language
and the country you are in, you may have to
spell destinations to enter them for route
guidance.
- Please always note the information in the
chapter
^>page
204, General notes on Audi
connect (infotainment).

CO

<
O
rN
IN
rN
•-i

00
Applies to: vehicles with speech dialogue system
Important: The Radio menu must have already
been opened.
You may be able to say the following commands
depending on the waveband selected:
Function
Selecting a waveband
Tuning to a station from the station
list
Selecting a station from the favour­
ites
Setting the frequency
Receiving traffic news stations and
switching traffic announcements
on/off
Correcting an entry
Closing the full list of commands
Say:
FM and DAB* / DAB* / FM / AM
Station (XY) / Ensemble
(XY)a>

Radio favourites > Line (XY)
Frequency (XY)
Traffic announcements on / Traffic announcements off

No,
I meant (XY)
Close

a)
Applies
to
the DAB* waveband
169

Telephone
- We recommend using the vehicle's Wi-Fi
hotspot* when the car phone* is in use so

that
your mobile phone's apps retain access
to the Internet.
- When the car phone function* is active, Audi
connect (infotainment)* is only available us­
ing
your
own SIM card
^>page
191.
Setting up
Connecting a mobile phone via Bluetooth

Applies
to: vehicles with telephone

Does
this PIN match the PIN on your

Bluetooth
device?
967536

Fig.
159
PIN display for entry on mobile phone
Important
The vehicle must be stationary, and the ignition
must be switched on.
The Bluetooth function and the discoverability
option of the MMI system
Opcge
258 and the
mobile phone must be activated.
The mobile phone you would like to connect must
not be connected to any other Bluetooth device.
The MMI must not be connected to a mobile

phone.

A mini SIM card must not be inserted in the SIM
card reader*.
Connecting a mobile phone

•
Select: |MENU| button
>
Telephone
>
Connect
mobile phone
>
Find new devices > Continue.
The available Bluetooth devices will be shown
on the infotainment display. Or: Select:
|MENU|

button > Settings > left control button > MMI
settings > Connection manager
^>page
257.

•
Select and confirm the desired mobile phone
from the list of Bluetooth devices shown.
• The MMI will generate a PIN for the connection

*Fig.
159.

•
Select and confirm Yes.

•
Enter the PIN to establish a connection on your
mobiLe phone. Or: If the PIN is already being
displayed on your mobile phone, confirm it on
the phone and on the MMI. You have about 30
seconds to enter the PIN.

•
You may need to enter the PIN for your SIM
card
intheMMl".

•
Please note any additional system queries on
your mobiLe phone, e.g. whether the phone
should connect automatically in the future. On
some mobiLe phones, you may also need to
download the directory and allow access to
your messages separately.
After connecting successfully
After the connection has been established suc­
cessfully, you will be shown a short message
con­

taining information on the profiles used to estab­
lish the connection. You can also change the pro­
files afterwards. Select: |MENU| button > Set­
tings > left control button > MMI settings
>
Con­
nection manager
<=$page
257.
In addition, the contacts on the mobile phone are
automatically loaded into the directory of the

MMI.
This may take several minutes, depending
on how many contacts are stored on the mobile

phone.

Applies
to: vehicles with Audi connect (infotainment)

•
If
you
have successfully connected your mobile
phone via the Bluetooth remote SIM Access
Profile, you can use either the embedded SIM
card
2)
or your own SIM card to use Audi
con­

nect infotainment services.

•
Confirm the system query with either Yes or

No.
For more information on Audi connect (in­
fotainment), please refer to
^>page
191.

*•
Yes:
All data connections for all Audi connect
infotainment services will be established by a

CO
<
o
rN
IN
rN
t-H
o

<

-1'
Not available in all markets. Applies to mobile phones

with
Bluetooth remote SIM Access Profile on vehicles with

Audi
connect (infotainment)* and Audi phone box*.

2)
SIM card installed in vehicle at factory.
173

Telephone
Operating two phones via the MMI
Applies to: vehicles with Audi phone box

You
can connect two mobile phones to the MMI
system using the Audi phone box (e.g. your
busi­

ness mobile as the primary phone and your
per­

sonal mobile as an additional phone).
You
can
then be reached inside the vehicle on both mo­
bile phones.
The first mobiLe phone that you connect is shown
as the primary phone on the MMI system. The
second mobile phone is connected as an
addi­

tional phone.
The system will always display the phone book on
the primary phone while it is connected. To use
the phone book on the additional phone, you
have to swap the primary phone and additional
phone
^>page
175.
Connecting a mobile phone as the primary
phone
Connect your mobile phone to the MMI system
via Bluetooth. The first mobiLe phone that you
connect is shown as the primary phone on the
MMI system.
Refer to
^page
173,
Connecting a mobile phone
via Bluetooth.
Connecting a mobile phone as an additional
phone
Important: A mobile phone must be connected
to the MMI system as the primary phone. Or:
Your own mini SIM
card15
for making and receiv­
ing calls must be inserted in the SIM card
read­

er*.

CO

<
O
rN
IN
rN
t-H
o < 00
Select:
|MENU|
button
>
Telephone > right
con­

trol button > Connect additional phone.
Refer to
^>page
173,
Connecting a mobile phone
via Bluetooth.
For example, you have connected your business
mobile to the MMI system as the primary phone
and your personal mobile as the additional

phone.
To call
a
contact stored in your personal

x)
Not available in all markets. On vehicles with Audi connect
(infotainment)* and Audi phone box*
phone book, you now have to swap the primary
phone with the additional phone because the sys­
tem always displays the phone book from the
pri­

mary phone.
Inserting your own mini SIM card in the SIM
card reader*
Important: The MMI must not be connected to a
mobile phone.
Refer to
^>page
176,
Making and receiving calls
using your own mini SIM card.
If
you
want to use your mini SIM card in the SIM
card reader* as an additional phone, please refer
to
*$page
189.
Swapping the primary phone and additional
phone
Important: A primary phone and additional
phone must be connected.
To swap the primary phone with the additional
phone, select:
|MENU|
button
>
Telephone
>
right
control button > Switch primary & additional
phone.
- Please note that the system only ever dis­
plays the directory on the primary phone.
- Please note that, when your mini SIM card is
inserted in the SIM card reader*, any mobile
phones for making and receiving calls which
are already connected to the MMI via Blue­
tooth will be disconnected.
- You can see in the connection manager

^>page
257 whether your mobile phone is
connected as a primary phone or an
addi­

tional phone. Or: The device name of the
primary phone connected to the system

(e.g.
MyPhone) is displayed in the Tele­
phone menu.
- If the primary phone is not connected to the
MMI automatically when the ignition is
switched on, e.g. because it is out of range
of the vehicle or because the Bluetooth
function is switched off, a phone which was

175

Telephone

|MENU|
button
>
Settings
>
left control button >
MMI settings > Connection manager

•=>
page 257.
In addition, the contacts on the mobile phone are
automatically loaded into the directory of the

MMI.
This may take several minutes, depending
on how many contacts are stored on the mobile

phone.

Removing a mini SIM card
• Briefly press the mini SIM
card.
The card will
then eject from the slot. Remove the mini SIM

card.

© CAUTION
-To avoid damaging the SIM card reader, on­
ly use mini SIM cards
(25
mm x
15
mm)

^Fig.
160. Please contact your service pro­
vider for more information on mini SIM

cards.

- Should you have inserted a different SIM
card size in the SIM card reader, do not un­
der any circumstances attempt to remove it
yourself as this may damage the SIM card
reader. Please contact
a
qualified workshop.
- If
you
use SIM card adapters, the vibrations
caused by the movement of the vehicle may
cause the SIM card to become detached
from the adapter - risk of damage to the
SIM card reader.
If your mobile phone does not support the re­
mote SIM Access Profile (e.g. iPhone), you can
use the contacts from your mobile phone by
connecting the mobiLe phone to the system
via the Directory/contacts profile

•=>
page 258.
Using the Audi phone
box

Applies
to: vehicles with Audi phone box

You
can use the Audi phone box to charge your
mobile phone's battery.
You
can use the vehicle's
external aerial to make calls, which reduces
radi­

ation in the vehicle and also ensures better re­
ception quality.*

Fig.
161 Audi phone
box
with
connections
The Audi phone box is Located in the centre
con­

sole beneath the armrest©
opage
10, Fig. 2
Important: A mobile phone must be connected
via Bluetooth
^>page
173.
The following options are available:
- To establish a connection with the external car

aerial15:
Place your mobiLe phone onto the
mid­

dle of the telephone symbol in the Audi phone
box
^>Fig.
161 with the phone's display facing
upwards. When doing so, make sure that there
are no objects between the Audi phone box and
the mobile phone.
- To charge a mobile phone wirelessly: Place
your
Qi
compatible25 mobile phone onto the
middle of the
<]>
symbol in the Audi phone box

oFig.
161 with the phone's display facing up­
wards. The mobile phone
wiLl
be charged.
- To charge a mobile phone via a USB adapter:
Connect your mobile phone to the USB charging

socket
(TjoF/g.
161 using a USB adapter cable.
You can charge your mobiLe phone using special
USB adapters
^>page
240, Fig. 196. •

CO

<
O
rN
IN
rN
t-H
o

< 00

^
Not available in all markets. Additional car telephone

function
only with Audi connect (infotainment)*.

2)
The Qi standard enables you to charge your mobile phone

wirelessly.

177

Telephone
A WARNING
- Loose objects can be flung around in the
passenger compartment in the event of
sud­

den driving or braking manoeuvres. This
could result in serious injuries and also
cause you to lose control of the vehicle. Al­
ways keep the centre armrest closed when

driving.

- The mobile phone may become hot while
charging wirelessly. Consider the tempera­
ture of your mobile phone when removing

it.
Take the mobile phone out of the Audi
phone box carefully.
© Note
- The Audi phone box is not available in all
countries. Your Audi dealer will be able to
provide you with more detailed information.
- If the mobile phone is placed in the Audi
phone box in a bag or
a
protective case, this
may interfere with the connection to the ex­
ternal aerial*.
- Any metal objects in the Audi phone box will
prevent the mobile phone from charging
wirelessly or being used to make calls via
the external aerial*.
- The charging time and the temperature vary
depending on the mobile phone being used.
-The ignition must be switched on to charge
a mobile phone in the Audi phone box.
- To avoid malfunctions, ensure that the mo­
biLe phone is correctly placed inside the
Audi phone box.
-The maximum charging capacity is 5 W.
- An enhanced transmission quality cannot be
guaranteed if more than one mobile phone
is placed inside.*
-Audi recommends the use of Audi Genuine
Accessories. Audi has tested these products
for suitability, reliability and safety.
- USB adapters are available from Audi
deal­

ers or specialist retailers.
- When you charge your mobile phone wire­
lessly, the charging procedure may be inter­
rupted if
you
place your remote control key
in the Audi phone box together with the
mobile phone.
Using the telephone
Calling up the telephone

Applies
to: vehicles with telephone

~~ .*|
Call
list

^^
•£?
Favourites

i
'^
Directory

y»
^ Enter
phone number

^^f
I
Text message (SIM card)

Fig.
162 Example: Telephone functions in the selection

menu

i\ï
Enter
number

SI
Text
message
(SIM
card)

I
Text message (MyPhone)

Text
message (Additional phone)

^mail
(MyPhone)

Fig.
163 Example: Further telephone functions in the se­

lection
menu
Important: A mobile phone must be connected
to the MMI
<^>page
173,
or
your own mini SIM
card must be inserted in the SIM card reader*

^>page
176.
• Select: |MENU| button
>
Telephone > left
con­

trol button.
The following telephone functions are available

*Fig.
1621'*
Fig.
163:

® Call
list 179

©
Favourites 181
(D Directory 185
(4) Enter number 179

(D
Text message (SIM card)*/Text
message (MyPhone)VText message
(additional phone)* 182
(6)
E-mail
(MyPhone)*/E-mail
(addi­
tional phone)* 183
Your mobile phone's device name is displayed in
the Telephone menu, e.g. Text message (My­
Phone)
^>Fig.
163.
178

Telephone
Answering/ending a call
Applies to: vehicles with telephone
- To answer a
call:
Select and confirm Answer.
- To decline a
call:
Select and confirm Ignore.
- To mute an active
call:
Select and confirm

Mute.

- To end a call/cancel the dialling process: Se­
lect and confirm End
call.

Caller information: Depending on whether the
caller is stored in the directory and whether the
telephone number is transmitted with the
call,

the caller's name, his/her telephone number or
Unknown will appear on the infotainment dis­
play. A photo of the caller may also be shown if
one has been assigned to the contact in your mo­
biLe phone and transmitted to the MMI. You can
find out if your mobiLe phone supports this func­
tion by asking your mobile network provider,
con­

sulting your mobile phone's operating manual or
visiting www.audi.com/bluetooth.
- Media playback or the radio
is
muted auto

matically
during a call
- A symbol is displayed in the status line of
the infotainment display if there are any
missed calls
(f)
<^>page
161, Fig. 156
During a telephone call
Applies to: vehicles with telephone
Important: A call must be in progress.

•
End
call:
You can end the
call.

•
Send tone sequence: You can enter DTMF
tones ("touch-tones") directly using the speller
for numbers. These are then sent to the person
you are speaking to.

•
Further call options: Press the right control

button.

The following options may be available during a
call depending on the mobile phone being used
and the type of connection:
-To answer
a
further
call:
If
you
are already talk­
ing on the phone when someone else calls, se­
lect Answer to place the current call on hold
and to answer the incoming
call.
If
you
select
Ignore, the incoming
call
will be declined.
- To answer
a
further call when you are talking
on the phone and have another call on
hold:
Se­
lect Replace. The current call will be replaced
by the incoming
call.

-To mute an incoming
call:
Select and confirm

Mute.

- Further
call:
Select Find contact
>
Call list/Di­
rectory/Favourites > an entry from the
list.

Switch microphone off: If
you
select and confirm
this option, the caller will no longer be able to
hear
you;
you will still be able to hear the caller.
SeLect and confirm Switch microphone on to
switch the microphone back on.
Hold/Resume: You can put
a
call on hold and re­
trieve it later from the hold queue. Select and
confirm a
call
to resume it.
Transfer call to mobile phone*: Select and
con­

firm Transfer call to mobile phone to transfer
your current call from the MMI to your mobile

phone.

Retrieve
call*:
Important: A call must be in pro­

gress.
Select and confirm Retrieve call to trans­
fer the current call back to the MMI from your
mobile phone.

Switch:
You can switch between two phone calls
(one of them will be on hold at any given time).
Select End call to end whichever call is active.
The call on hold will remain in the hold queue
and can be continued by pressing the right
con­

troL button > Resume.
Conference: Up to five callers and one caller on
hold can take part in a conference (depending on
the mobile network service provider).
- To add participants: Select the left control but­
ton > Call list/Directory/Favourites
>
an entry
in the
list.

- SeLect the right control button:
- Hold: To put all existing conference partici­
pants on
hold.

- Resume: To resume the conference with all
participants. •
180
