Page 145 of 156
143
DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres.
Height is measured with vehicle unladen.
BOOT VOLUMEUnladen capacity (V.D.A. standards) = 110 dm
3
121A0L0205
BACDEFGHL
3990 864 2380 746 1189 1639 1868 1606 2090
Page 146 of 156
SPIDER
144
PERFORMANCE
Top speed (km/h)Acceleration from 0-100 km/h (sec.)
1750 Turbo Petrol 257 4.5
Versions
GENERAL INFORMATION1750 Turbo Petrol
Type code 960A100
Cycle Otto
Number of cylinders and position 4 in line
Piston diameter and stroke (mm) 83 x 80.5
Total capacity (cm³) 1742
Compression ratio 9.25 ± 0.25
Maximum power (EEC) (kW) 177 (*)
Maximum power (EEC) (HP) 240
- corresponding engine speed (rpm) 6000
Maximum torque (EEC) Nm 350 (*)
Maximum torque (EEC) (kgm) 35.7
- corresponding engine speed (rpm) 2100 - 4000
Spark plugs NGK ILKAR7D6G
Fuel Unleaded petrol 98 RON or 95 RON (EN 228 specifications)
(*) Values obtained using 98 RON unleaded petrol.
ENGINE
Page 147 of 156
145
Fuel consumption according to the current European directive (litres/100 km) FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific
European Directives.
The following procedures are used to measure the fuel consumption:
❒ urban cycle: cold starting followed by driving that simulates urban use of the car;
❒ extra-urban cycle: driving that simulates extra-urban use of the car, with frequent acceleration in all gears; the speed varies from 0
to 120 km/h;
❒ combined consumption: this is calculated with a weighting of about 37% urban cycle consumption and about 63% extra-urban
consumption.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the car, trim
level/equipment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to different fuel
consumption levels than those measured.
VersionsUrban Extra-urban Combined
1750 Turbo Petrol 10.1 5.1 6.9
CO2 emissions as per the European directive in force (g/km)
EMISSIONS OF CO2
The CO2emission levels shown in the following table refer to combined fuel consumption.
1750 Turbo Petrol 161
Versions
Page 148 of 156

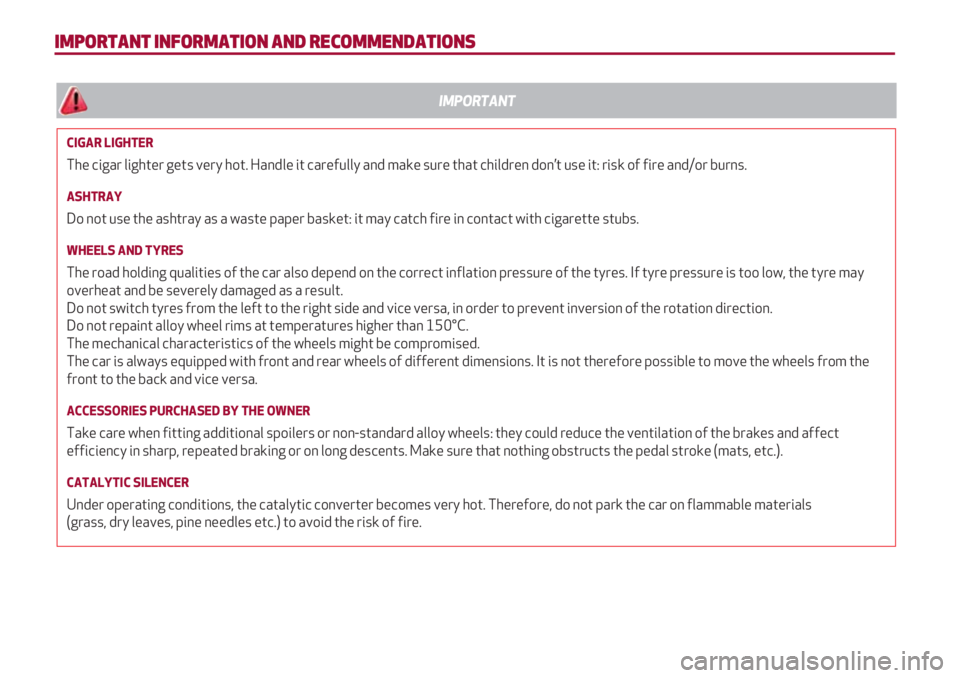

IMPORTANT INFORMATION AND RECOMMENDATIONS
CIGAR LIGHTER
The cigar lighter gets very hot. Handle it carefully and make sure that children don’t use it: risk of fire and/or burns.
ASHTRAY
Do not use the ashtray as a waste paper basket: it may catch fire in contact with cigarette stubs.
WHEELS AND TYRES
The road holding qualities of the car also depend on the correct inflation pressure of the tyres. If tyre pressure is too low, the tyre may
overheat and be severely damaged as a result.
Do not switch tyres from the left to the right side and vice versa, in order to prevent inversion of the rotation direction.
Do not repaint alloy wheel rims at temperatures higher than 150°C.
The mechanical characteristics of the wheels might be compromised.
The car is always equipped with front and rear wheels of different dimensions. It is not therefore possible to move the wheels from the
front to the back and vice versa.
ACCESSORIES PURCHASED BY THE OWNER
Take care when fitting additional spoilers or non-standard alloy wheels: they could reduce the ventilation of the brakes and affect
efficiency in sharp, repeated braking or on long descents. Make sure that nothing obstructs the pedal stroke (mats, etc.).
CATALYTIC SILENCER
Under operating conditions, the catalytic converter becomes very hot. Therefore, do not park the car on flammable materials
(grass, dry leaves, pine needles etc.) to avoid the risk of fire.
IMPORTANT
Page 149 of 156
Page 150 of 156
Page 151 of 156
149
ALPHABETICAL INDEX
ABS system......................................................50
Active safety systems ..........................50
Air cleaner ................................................112
Alarm .............................................................11
Alfa DNA system .....................................27
All Weather mode ...................................28
Dynamic mode ..........................................27
Natural mode .............................................27
Race mode ..................................................27
All Weather mode ...................................28
Alfa Romeo CODE system .................11
Alfa Romeo Code.....................................12
ASR (AntiSlip Regulation) system..50
Battery.............................................................113
recharging ................................................113
replacement ...........................................114
tips for extending battery life ......114
Body cleaning and maintenance..........115
Body paintwork
identification plate ....................................121
Bodywork........................................................115
corrosion warranty .............................115
maintenance ...........................................116
protection against
atmospheric elements ......................115
Boot/bonnet.............................................24/25
opening .........................................................24
closing ..........................................................25Brake (liquid level) ......................................110
Bulb types .........................................................82
Bump starting ..................................................98
Carrying children safely ............................60
CBC (Cornering Brake Control)
system .................................................................51
Changes/alterations to the car..................4
Changing a bulb ..............................................82
Changing a wheel ...........................................90
Chassis number ...........................................121
Checking levels ...........................................106
Child restraint system ........................61/62
Child restraint systems
recommended by Alfa Romeo.................62
Cleaning (outside and inside) ....116/118
engine compartment ..........................116
fabric seats and parts ........................118
genuine leather parts .........................118
headlights ................................................116
interiors.....................................................117
leather seats...........................................118
plastic and coated parts ...................118
windows ....................................................116
Climate control system ..............................20
CO
2emissions .............................................133
Courtesy lights ...............................................18
Cruise Control..................................................75
Dashboard ...........................................................8
Dashboard and on-board
instruments.......................................................30
Daytime running lights (DRL) ...................17
Dimensions ....................................................127
Dipped beam headlights ............................17
bulb replacement ....................................84
Dipped beam headlights ............................17
bulb replacement ....................................82
Direction indicators ......................................17
bulb replacement ....................................82
Display .................................................................32
Door locking .....................................................12
Door mirrors .....................................................15
Door opening/closing ..................................13
Doors ...................................................................12
central locking/unlocking....................12
DTC (Drag Torque Control) system ......50
EBD system .....................................................50
Electronic Q2 system (“E-Q2”) ................51
Emergency starting .....................................97
Engine codes .................................................121
Engine compartment ................................106
engine coolant level ...........................108
engine oil ..................................................130
identification codes ............................120
Page 152 of 156
ALPHABETICAL INDEX
150
marking .....................................................121
specifications.........................................119
Engine compartment ................................106
checking levels ......................................106
washing .....................................................116
Engine coolant .............................................108
Engine coolant gauge ...................................30
Engine number..............................................121
Engine oil consumption............................108
level check ...............................................108
ESC (Electronic Stability Control)
system .................................................................51
Exterior light bulbs replacement ...........84
Exterior lights .................................................16
Filling the tank ................................................79
Fitting universal child seat .......................61
Fix&Go Automatic.........................................94
Flashing the headlights ..............................17
Fluids and lubricants
(specifications) ...........................................130
Follow Me Home device .............................17
Front airbag driver’s side ...........................64
Front light clusters
(changing a bulb) .............................................84
Fuel consumption ......................................132
Fuel cut-off system ......................................98
Fuel gauge .........................................................30
Fuse replacement .........................................87
Gear Shift Indicator .....................................32
Getting to know your car ..............................7
Handbrake ........................................................69
Hazard warning lights ..................................82
HBA system ......................................................50
Headlights .........................................................25
adjusting headlights abroad .............25
light beam direction ...............................25
Headlights (bulb replacement) ...............84
Heating and ventilation ..............................20
Heavy-duty use of the car ......................105
Hill Holder system .........................................51
Identification data ....................................120
chassis number......................................121
engine marking ......................................121
identification data plate ..................120
paintwork identification plate.......121
Ignition device .................................................10
steering wheel lock ................................11
In an emergency ..............................................81
Interior lights....................................................18
Interiors (cleaning) ....................................117
Jack ......................................................................90
Jump starting ...................................................97
Keys.........................................................................9
key with remote control ................................9
mechanical key ............................................9Kit Fix&Go Automatic .................................94
Knowing the instrument panel ................29
Load limiters ...................................................60
Lubricants (specifications) ....................130
Main beam headlights ................................17
bulb replacement ....................................84
Main beam headlights .................................17
bulb replacement ....................................82
Maintenance and care .............................101
bodywork..................................................115
heavy-duty use of the car ................105
regular checks .......................................106
scheduled servicing plan .................103
scheduled servicing ............................102
Manual climate control ...............................21
Menu options ..................................................34
Mirrors.................................................................15
Number plate lights
(bulb replacement) ........................................87
On-board instruments ...............................30
display...................................................30/32
engine coolant gauge.............................30
fuel gauge ...................................................30
speedometer .............................................30
tachometer .................................................30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
