2020 Alfa Romeo 4C Owner handbook (in English)

55
OperationSensor presence on wheel
installed on vehicleFault indicationAction needed
–
Wheel replacement with
winter tyres
Wheel replacement wit
winter tyres
Wheel replacement with others of
different size (*)–
NO
YES
YESYES
SI
NO
NOContact a dedicated Alfa Romeo
Dealership
Contact a dedicated Alfa Romeo
Dealership
–
–
(*) Shown as an alternative in the Owner Handbook or on the registration certificate;
available at Lineaccessori Alfa Romeo. In order to use the system properly, refer to the following table when you have to change wheels/tyres:

SAFETY
56
43)The presence of the TPMS does not
permit the driver to neglect regular
checks of the tyre pressure, including for
the spare wheel.
44)Tyre pressure must be checked with
tyres rested and cold. Should it become
necessary for whatever reason to check
pressure with warm tyres, do not reduce
pressure even though it is higher than the
prescribed value. Repeat the check when
the tyres are cold.
45)Should one or more wheels be fitted
without sensors, the system will no longer
be available and, in addition to the TPMS
warning light flashing for less than one
minute before becoming constant, a
warning message will be shown on the
display, until 4 wheels with sensors are
fitted again.
46)The TPMS cannot warn of sudden
decreases in tyre pressure (for example
when a tyre bursts). In this case, stop the
car, braking with caution and avoiding
abrupt steering.
47)Replacing standard tyres with winter
tyres (and vice versa) requires TPMS
adjustment that must only be performed
by a dedicated Alfa Romeo Dealership.
IMPORTANT48)Changes in outside temperature may
cause tyre pressures to vary. The TPMS
system may temporarily indicate
insufficient pressure. In this case, check
the tyre pressure when cold and, if
necessary, restore the inflation values.
49)When a tyre is removed, it is
advisable to replace the rubber valve seal
as well: contact a dedicated Alfa Romeo
Dealership. Tyre and/or rim
fitting/removal operations require
specific precautions; to avoid damaging
or fitting the sensors incorrectly, tyre
and/or rim fitting/removal operations
should only be carried out by specialised
staff. Contact a dedicated Alfa Romeo
Dealership.
50)Strong radio-frequency interference
could inhibit the regular operation of the
TPMS. This condition will be indicated by
a message on the display. The message
will disappear automatically as soon as
the radio-frequency interference ceases
to affect the system.51)The tyre repair kit (“Fix&Go
Automatic”) provided with the car (where
provided) is compatible with the TPMS
sensors; using sealants not equivalent
with that in the original kit may adversely
affect its operation. If sealants not
equivalent with the original one are used,
it is recommended to have the TPMS
sensors checked by a qualified repair
centre.

57
SEAT BELTS
All vehicle seats are equipped with seat
belts with three anchor points and a
retractor.
The retractor mechanism operates
locking the belt in the event of sharp
braking or strong deceleration due to an
impact. This allows the belt strap to slide
freely and to adapt to the body of the
occupant. In the event of an accident, the
belt will lock reducing the risk of impact
inside the passenger compartment and
of being projected outside the vehicle.
The driver is responsible for respecting,
and ensuring that all the other occupants
of the vehicle also respect, the local laws
in force in relation to the use of the seat
belts.
Always fasten the seat belts before
setting off.
USING THE SEAT BELTS
The belt should be worn keeping the
torso straight and rested against the
backrest. To fasten the seat belts, hold
the tongue 1 fig. 33 and insert it into the
buckle 2, until it clicks into place.On removal of the belt, if it jams, let it
rewind for a short stretch, then pull it out
again without jerking.
To unfasten the seat belts, press button
3 and guide the seat belt with your hand
while it is rewinding, to prevent it from
twisting.
52))
The retractor may lock when the vehicle
is parked on a steep slope: this is
perfectly normal. Furthermore, the reel
mechanism locks the belt if it is pulled
sharply or in the event of sudden braking,
collisions and high-speed bends.
33A0L0050
GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTS
Comply with (and make sure all car
passengers follow) the local laws in force
regarding the use of seat belts. Always
fasten the seat belts before setting off.
Seat belts must also be worn by
pregnant women: the risk of injury in the
event of an accident is reduced for them
and the unborn child if they are wearing a
seat belt.
Pregnant women must position the lower
part of the belt very low down so that it
passes over the pelvis and under the
abdomen fig. 34.
The belt must not be twisted.
The upper part must pass over the
shoulder and cross the chest diagonally.
34A0L0052

SAFETY
58
The lower part must adhere to the pelvis
fig. 35, not to the abdomen of the
occupant. Never use devices (clips,
clamps, etc.) that hold the seat belt away
from your body.
53)
Each seat belt may only be used by one
person at a time:
do not carry children on your lap with one
seat belt protecting both fig. 36.
In general, do not place any objects
between the person and the belt.
54) 55)
35A0L0053
SEAT BELTS MAINTENANCE
❒ Always use the seat belts well
stretched and never twisted; make sure
that they are free to run without
obstructions;
❒ check seat belt operation as follows:
attach the seat belt and pull it hard;
❒ replace the belt after an accident of a
certain severity even if it does not appear
to be damaged. Always replace the belt if
the pretensioners were deployed;
❒ prevent the retractors from getting
wet: their correct operation is only
guaranteed if water does not get inside;
❒ replace the seat belt if it shows signs
of wear and tear.
52)Do not press the button 3 fig. 33
while driving.
53)For maximum protection, keep the
backrest upright, lean back into it and
make sure the seat belt fits closely across
your chest and pelvis. Always fasten the
seat belts! Travelling without wearing
seat belts will increase the risk of serious
injury and even death in the event of an
accident.
54)Removing or otherwise tampering
with seat belt and pretensioner
components is strictly prohibited.
Any intervention on these components
must be performed by qualified and
authorised technicians. Always contact a
dedicated Alfa Romeo Dealership.
55) If the belt has been subjected to a
high level of stress, for example after an
accident, it must be completely replaced
together with the attachments,
attachment fixing screws and the
pretensioner. In fact, even if the belt has
no visible defects, it could have lost its
resilience.
IMPORTANT

59
SBR (Seat Belt Reminder)
SYSTEM
This system comprises an acoustic
warning which, in conjunction with the
panel, advises the driver if their seat belt
has not been fastened.
Contact a dedicated Alfa Romeo
Dealership to deactivate this acoustic
warning permanently.
The acoustic warning can be reactivated
at any time through the Setup menu (see
“Menu items” paragraph in “Knowing the
instrument panel” chapter).
If the driver side seat belt is not
fastened, when 20 km/h is exceeded or
when travelling at a speed from 10 to
20 km/h for longer than 5 seconds, an
acoustic signal sequence will be started
(continuous acoustic signal for the first 6
seconds followed by approximately
90 seconds of intermittent beeping) and
the
stay on with a fixed light until the car is
turned off. The acoustic signal is
interrupted immediately when the seat
belt is fastened.
If the seat belt is unfastened again when
driving the car, the acoustic signal and
the flashing warning light resume as
described previously.
PRE-TENSIONERS
The car is equipped with seat belt
pretensioners, which draw back the seat
belts by several centimetres in the event
of a strong frontal impact. This
guarantees the perfect adherence of the
seat belts to the occupant’s bodies
before the retention action begins.
It is evident that the pretensioners have
operated when the belt withdraws
toward the retractor.
This car is also equipped with a second
pretensioner (fitted in the kick plate
area). Its activation is signalled by the
shortening of the metal cable.
A slight discharge of smoke may be
produced during the activation of the
pretensioner which is not harmful and
does not involve any fire hazard.
IMPORTANT To obtain the highest
degree of protection from the action of
the pretensioning device, wear the seat
belt, keeping it close to the chest and
pelvis.

SAFETY

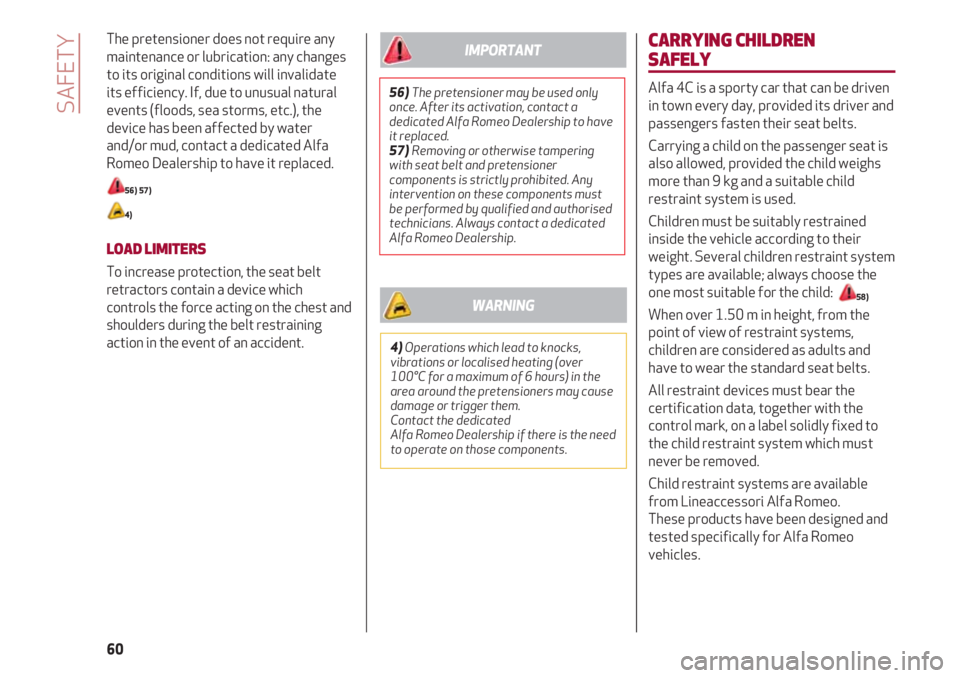

60
The pretensioner does not require any
maintenance or lubrication: any changes
to its original conditions will invalidate
its efficiency. If, due to unusual natural
events (floods, sea storms, etc.), the
device has been affected by water
and/or mud, contact a dedicated Alfa
Romeo Dealership to have it replaced.
56) 57)
4)
LOAD LIMITERS
To increase protection, the seat belt
retractors contain a device which
controls the force acting on the chest and
shoulders during the belt restraining
action in the event of an accident.
CARRYING CHILDREN
SAFELY
Alfa 4C is a sporty car that can be driven
in town every day, provided its driver and
passengers fasten their seat belts.
Carrying a child on the passenger seat is
also allowed, provided the child weighs
more than 9 kg and a suitable child
restraint system is used.
Children must be suitably restrained
inside the vehicle according to their
weight. Several children restraint system
types are available; always choose the
one most suitable for the child:
58)
When over 1.50 m in height, from the
point of view of restraint systems,
children are considered as adults and
have to wear the standard seat belts.
All restraint devices must bear the
certification data, together with the
control mark, on a label solidly fixed to
the child restraint system which must
never be removed.
Child restraint systems are available
from Lineaccessori Alfa Romeo.
These products have been designed and
tested specifically for Alfa Romeo
vehicles.
56)The pretensioner may be used only
once. After its activation, contact a
dedicated Alfa Romeo Dealership to have
it replaced.
57)Removing or otherwise tampering
with seat belt and pretensioner
components is strictly prohibited. Any
intervention on these components must
be performed by qualified and authorised
technicians. Always contact a dedicated
Alfa Romeo Dealership.
IMPORTANT
4)Operations which lead to knocks,
vibrations or localised heating (over
100°C for a maximum of 6 hours) in the
area around the pretensioners may cause
damage or trigger them.
Contact the dedicated
Alfa Romeo Dealership if there is the need
to operate on those components.
WARNING

61
FITTING “UNIVERSAL” CHILD
RESTRAINT SYSTEM
(with seat belts)
Only Group 1, 2 and 3 child restraint
systems, namely forward facing child
restraint systems, can be installed on
Alfa 4C.
This vehicle is NOT compliant for fitting
rear facing child restraint systems on the
passenger seat.
GROUP 1
Children of weight from 9 to 18 kg may
be carried in forward facing child
restraint systems fig. 37.
59)
37A0L0059
GROUP 2
Children from 15 to 36 kg may use the
car seat belts directly, fig. 38.
The child restraint system is used only to
position the child correctly with respect
to the belts so that the diagonal section
crosses the child’s chest and never the
neck, and the horizontal part is snug on
the pelvis not the abdomen.
59)
38A0L0064
58)The car passenger’s seat is not
suitable for carrying rear facing child
restraint systems (Group 0 and 0+).
Therefore, very small children (from 0 to
9 kg) must NOT be carried in this vehicle.
IMPORTANT

SAFETY
62
GroupWeight groupsPassenger
Group 1 9-18 kg L
Group 2 15-25 kg L
Group 3 22-36 kg L
L = suitable for special child restraint systems for this type of car.
PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSAL CHILD RESTRAINT SYSTEM USE
According to the European Directive 2000/3/EC the suitability of each passenger seat position for the fixing of universal child
restraint systems is shown in the following table:
CHILD RESTRAINT SYSTEMS RECOMMENDED BY ALFA ROMEO FOR YOUR ALFA 4C
Lineaccessori Alfa Romeo has two child restraint systems specific for your Alfa 4C which are fitted facing forward and fixed using
the three-point seat belt only.
Weight groupRestraint systemRestraint typeRestraint system installation
Britax Romer Duo Plus
Type-approval number:
E1 04301133
Fiat order code: 71803161 Group 1 – from 9 to
18 kgChild restraint system to be fitted forward facing
only, using ONLY the car’s safety belts.
It is recommended not to use the ISOFIX anchorages
and the child restraint system top tether as the car
is not equipped with ISOFIX anchorages and top
tether.
Fair Junior Fix
Type-approval number:
E4 04443721
Fiat order code: 71806570It must be installed forward facing only, using ONLY
the car’s seat belt.
It is recommended not to use the ISOFIX
anchorages as the car is not equipped with ISOFIX
anchorages. Group 2 – 3 from 15 to
36 kg
