15
REAR VIEW MIRRORS
INTERIOR MIRROR
Adjustment
Operate lever 1 fig. 11 to adjust the
mirror into two different positions:
normal or anti-glare.
DOOR MIRRORS
Electric adjustment
The mirrors can only be adjusted with the
ignition key at MAR.
Select the mirror you wish to adjust using
device 3 fig. 12:
❒ device in position 1:
left mirror selection;
11A0L0013
❒ device in position 2: right mirror
selected.
To adjust the selected mirror, press
button 4 in the four directions indicated
by the arrows.
11)
IMPORTANT Once adjustment is
complete, rotate device 3 to position 0
to prevent accidental movements.
12A0L0014
9)Adjustments must be made only with
the vehicle stationary and engine off.
10)It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-
theft device) that could adversely affect
performance and safety, invalidate the
warranty and also result in
non-compliance of the vehicle with
type-approval requirements.
IMPORTANT

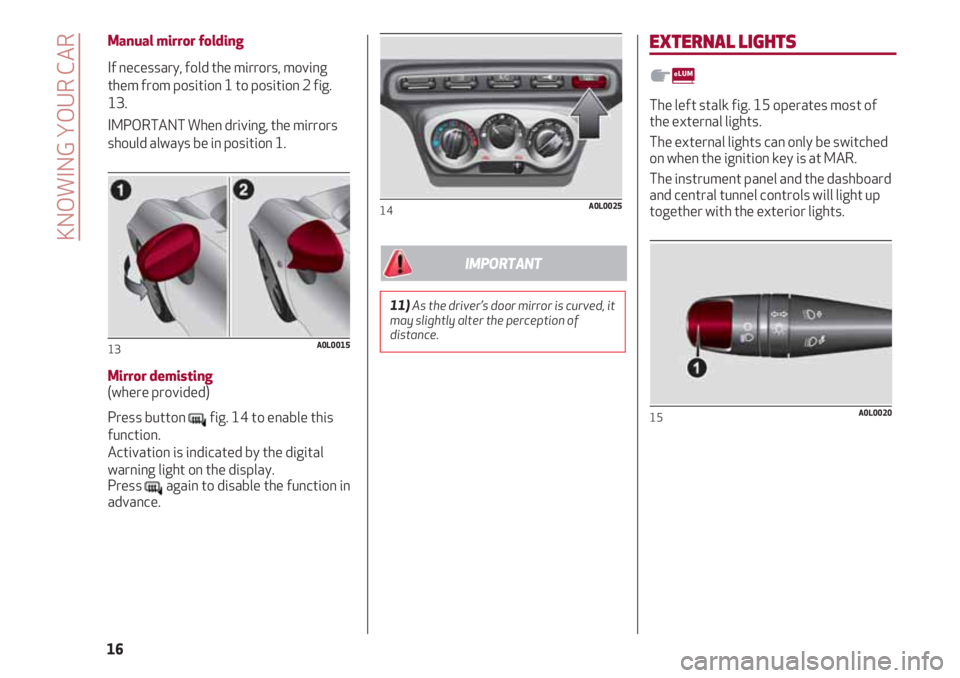

Manual mirror folding
If necessary, fold the mirrors, moving
them from position 1 to position 2 fig.
13.
IMPORTANT When driving, the mirrors
should always be in position 1.
Mirror demisting(where provided)
Press button fig. 14 to enable this
function.
Activation is indicated by the digital
warning light on the display.
Press again to disable the function in
advance.
13A0L0015
14A0L0025
EXTERNAL LIGHTS
The left stalk fig. 15 operates most of
the external lights.
The external lights can only be switched
on when the ignition key is at MAR.
The instrument panel and the dashboard
and central tunnel controls will light up
together with the exterior lights.
15A0L0020
KNOWING YOUR CAR
16
11)As the driver’s door mirror is curved, it
may slightly alter the perception of
distance.
IMPORTANT

17
DRL (Daytime Running Lights)
With the ignition key at MAR and ring nut
1 fig. 15 turned to å, the daytime
running lights switch on.
The other lights and interior lighting stay
off.
IMPORTANT The daytime running lights
are an alternative to the dipped
headlights for driving during the daytime
in countries where it is compulsory to
have lights on during the day; where it is
not compulsory, the use of daytime
running lights is permitted.
IMPORTANT Daytime running lights
cannot be used in place of dipped
headlights when driving through tunnels
or at night.
The use of daytime running lights is
governed by the Highway Code of the
country in which you are driving. Comply
with legal requirements.
SIDE LIGHTS/DIPPED BEAM
HEADLIGHTS
With the ignition key at MAR and ring nut
1 fig. 15 turned to 2.The daytime running lights are switched
off and the side lights and dipped beam
headlights are switched on.
Warning light 3comes on in the
instrument panel.
PARKING LIGHTS
These lights can only be switched on
with ignition key at STOP or removed, by
moving ring nut 1 fig. 15 first to position
åand then to position 2.
The warning light 3on the instrument
panel will come on.
MAIN BEAM HEADLIGHTS
To activate the main beam headlights,
with ring nut A at 2, pull the stalk
towards the steering wheel beyond the
end of travel position.
The warning light 1on the instrument
panel will come on. When the stalk is
pulled towards the steering wheel again,
beyond the end of travel position, the
main beam headlights deactivate, the
dipped beam headlights reactivate and
the 1warning light switches off.
FLASHING
To do this, pull the stalk towards the
steering wheel (unstable position),
regardless of the position of ring nut 1
fig. 15. The warning light 1on the
instrument panel will come on.
DIRECTION INDICATORS
Bring the left stalk fig. 15 to the (stable)
position:
❒ upwards: activates right direction
indicator;
❒ downwards: activates left direction
indicator.
The Dor Fwarning light will flash on
the instrument panel.
The direction indicators are switched off
automatically when the steering wheel is
straightened.
“FOLLOW ME HOME” DEVICE
This device allows you to illuminate the
area in front of the car for a certain
amount of time.
Activation
With the key turned to STOP or
removed, pull the left-hand stalk fig. 15
towards the steering wheel within 2
minutes from when the engine is turned
off.
Each time the stalk is moved, the lights
stay on for an extra 30 seconds up to a
maximum of
210 seconds; then the lights are
switched off automatically.
Deactivation
Keep the stalk fig. 15 pulled towards the
steering wheel for more than 2 seconds.

REAR FOG LIGHT
Operation
Press the 4fig. 16 button to switch the
light on/off.
The LED on the button lights up to
indicate the activation of the rear fog
light. The rear fog light switches on only
when the dipped headlights are on.
16A0L0024
INTERIOR LIGHTS
ROOF LIGHT
The lens of roof light 1 fig. 17 can be set
to three positions:
❒ right side pressed: light always on
❒ left side pressed: light always off
❒ central position (neutral): the light
turns on and off when the doors are
opened or closed.
17A0L0060
ROOF LIGHT TIMING
To facilitate getting in/out of the car at
night or in poorly lit areas, two timed
modes have been provided.
Timing while getting into the car
The roof light switches on as follows:
❒ for about 10 seconds when the doors
are unlocked;
❒ for about 3 minutes when one of the
doors is opened;
❒ for about 10 seconds when one of the
doors is closed.
The timed period is interrupted when the
ignition is turned to “MAR-ON”.
KNOWING YOUR CAR
18

19
Timing while getting out of the car
After removing the key from the ignition
switch, the roof light will switch on as
follows:
❒ for about 10 seconds, if the key is
removed within 2 minutes of the engine
switching off;
❒ for about 3 minutes when one of the
doors is opened;
❒ for about 10 seconds when one of the
doors is closed.
The timing stops automatically when the
doors are locked.
WINDSCREEN WASHER/
WIPER
This operates only with the ignition key
turned to MAR.
Operation
12) 13)
Ring nut 1 fig. 18 can be set to the
following positions:
å windscreen wiper off;
intermittent operation;
continuous slow operation;
continuous fast operation.
18A0L0021
Move the stalk upwards (unstable
position) to limit operation to the time
for which the stalk is held in this
position. When released, the stalk will
return to its initial position and the
screen wiper will be stopped
automatically.
With ring nut 1 fig. 18 in position,
the windscreen wiper will automatically
adapt its operating speed to the speed
of the vehicle.
12)Do not use the screen wiper to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor cut-out
switch, which prevents operation for a
few seconds, may intervene.
If operation is not restored
(even after restarting that car with the
key), contact a dedicated Alfa Romeo
Dealership.
13)Do not operate the screen wiper with
the blades lifted from the windscreen.
IMPORTANT

KNOWING YOUR CAR
20
CLIMATE CONTROL
HEATING AND VENTILATION
2)
1 air temperature adjustment knob (hot/cold air mixing);
2 internal air recirculation on/off cursor;
3 fan activation/adjustment knob;
4 air distribution knob:
μair from central and side vents and side diffusers;
∑air from central and side vents, side diffusers and footwell diffusers;
∂air from footwell diffusers;
∏air from footwell and side diffusers and from windscreen diffuser;
-air from windscreen diffuser and side diffusers.
19A0L0003

21
MANUAL CLIMATE CONTROL SYSTEM (where provided)
2)
1 air temperature adjustment knob (hot/cold air mixing);
2 internal air recirculation on/off cursor;
3 fan activation/adjustment knob;
4 air distribution knob;
5 climate control compressor on/off button;
6 mirror demister button.
20A0L0019

KNOWING YOUR CAR
22 Knob 4 enables the air introduced into the vehicle to reach all areas of the passenger compartment through five distribution
options:
μair from central and side vents and side diffusers;
∑air from central and side vents, side diffusers and footwell diffusers;
∂air from footwell diffusers;
∏air from footwell and side diffusers and from windscreen diffuser;
-air from windscreen diffuser and side diffusers.
2)The system uses a coolant that is compatible with the laws in force in the countries where the vehicle is sold, R134a or R-1234yf (indicated
on a specific plate in the engine compartment). The use of other coolants affects the efficiency and condition of the system. Also the
compressor coolants used must be compatible with the indicated coolant.
IMPORTANT
