2020 ACURA NSX Owners Manual

119
Continued
Controls
Opening and Closing the Hatch
Precautions for Openin
g/Closing the Hatch
■ Opening the hatch
Open the hatch all the way.
uIf it is not fully opened, the hatch may begin to close under its own weight.
■ Closing the hatch
Keep the hatch closed while driving to:
uAvoid possible damage.
uPrevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 67
Using the Hatch Release Button
Press the hatch release button on the driver’s
door unlocks and opens the hatch. 2 When You Cannot Open the Hatch P. 464
Hatch Release Button
20 ACURA NSX PMC-31T6N6300.book 119 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuOpening and Closing the HatchuUsing the Remote Transmitter
120
Controls
Push the release button on the hatch after the
doors are unlocked. 2 When You Cannot Open the Hatch P. 464
Even if the hatch is locked, you can open the
hatch if you carry the keyless access remote.
uThe beeper sounds.
Using the Remote Transmitter
Press the hatch release button for
approximately one second to unlock and open the hatch.
1Using the Hatch Release Button• If you forget the remote inside, the beeper will
sound and the hatch will not close.
• A person who is not carryi ng the keyless access
remote can unlock the hatch if a person who is
carrying it is within range.
• If the beeper sounds after close the hatch, move
the keyless access remote away from the trunk and
close again.
• The keyless access remote may not operate if it is
too close to the hatch.
Hatch
Release
Button
20 ACURA NSX PMC-31T6N6300.book 120 ページ ２０１９年９月１１日　水曜日　午後４時５１分

121
uuOpening and Closing the HatchuHatch Main Switch
Controls
Hatch Main SwitchThe hatch main switch disables the hatch
release button on the remote transmitter, the
hatch release button on the hatch and the
hatch release button on the driver’s door to
protect luggage in the trunk. 1.Turn off the hatch main switch in the glove
box.
2. Lock the glove box.
Emergency Hatch Opener
The hatch release lever allows you to open the
hatch from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Hatch Main Switch
If you need to give the key to someone else, remove
the built-in key from the keyless access remote by
sliding the release knob, and give the remote as a
valet key.Main Switch
ON
OFF
1Emergency Hatch Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
20 ACURA NSX PMC-31T6N6300.book 121 ページ ２０１９年９月１１日　水曜日　午後４時５１分

122
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehi cle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as a televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the hood, hatch or doors are forcibly
opened. The alarm does not go off if the hatch or doors are opened with the key,
remote transmitter or keyless access system.
However, the alarm goes off when a door is opened with the key, then select other
than
(P or the hood is opened before the power mode is set to ON.
■ When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash. ■ To deactivate the security system alarm
Unlock the vehicle using the remote transm itter or keyless access system, or the
power mode is set to ON. The system, along with the horn and flashing lights, is
deactivated.
1Immobilizer System
NOTICE
Leaving the keyless access re mote in the vehicle can
result in theft or accident al movement of the vehicle.
Always take the remote with you whenever you leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
20 ACURA NSX PMC-31T6N6300.book 122 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued123
uuSecurity SystemuSecurity System Alarm
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met: • The power mode is set to VEHICLE OFF.
• The hood and hatch are closed.
• Both doors are locked from outside with the key, remote transmitter or keyless
access system.
■ When the security system alarm sets
The security system indicator in the in strument panel blinks. When the blinking
interval changes after about 15 seconds, the security system is set. ■ To cancel the security system alarm
The security system is canc eled when the vehicle is unlocked using the remote
transmitter, keyless access system, or when the power mode is set to ON. The
security system indicator go es off at the same time.1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when: • The door is unlocked with the lock tab.
• The hatch is opened with the hatch release button
on the driver’s door or wi th the emergency hatch
opener.
• The gear position is shifted out of
(P .
• The hood is opened with the hood release.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
keyless access system.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Do not open the hatch with the key unless it is an
emergency.
Opening the hatch with th e key will trigger the
security system. 2 When You Cannot Open the Hatch P. 464
20 ACURA NSX PMC-31T6N6300.book 123 ページ ２０１９年９月１１日　水曜日　午後４時５１分

124
uuSecurity SystemuSecurity System Alarm
Controls
■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds: • The horn sounds.
• Some exterior lights flash.
■ Canceling panic mode
• Press any button on the remote transmitter.
• Set the power mode to ON.
■Panic Mode
Panic Button
20 ACURA NSX PMC-31T6N6300.book 124 ページ ２０１９年９月１１日　水曜日　午後４時５１分

125
Continued
Controls
Opening and Clos
ing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the power mode is in ON,
using the switches on the doors. The driver’s side switches can be used to open and
close both windows.
The power window lock button on the driver’s side must be switched off (not
pushed in, indicator off) to open and close the passenger’s window from the
passenger’s side.
When the power window lock button is pushed in, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on if a
child is in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly. ■ Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
■Opening/Closing the Windows with Auto-Open/Close Function
1Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you set the power mode to VEHICLE OFF.
Opening either door cancels this function.
Auto Reverse If a power window senses resistance when closing
automatically, it stops clos ing and reverses direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
3WARNING
Closing a power window on someone’s
hands or fingers can cause serious injury.
Make sure your passenger is away from the
windows before closing them.
ON
OFF
Power Window
Lock Button
IndicatorDriver’s
Window
SwitchPassenger’s
Window Switch
20 ACURA NSX PMC-31T6N6300.book 125 ページ ２０１９年９月１１日　水曜日　午後４時５１分

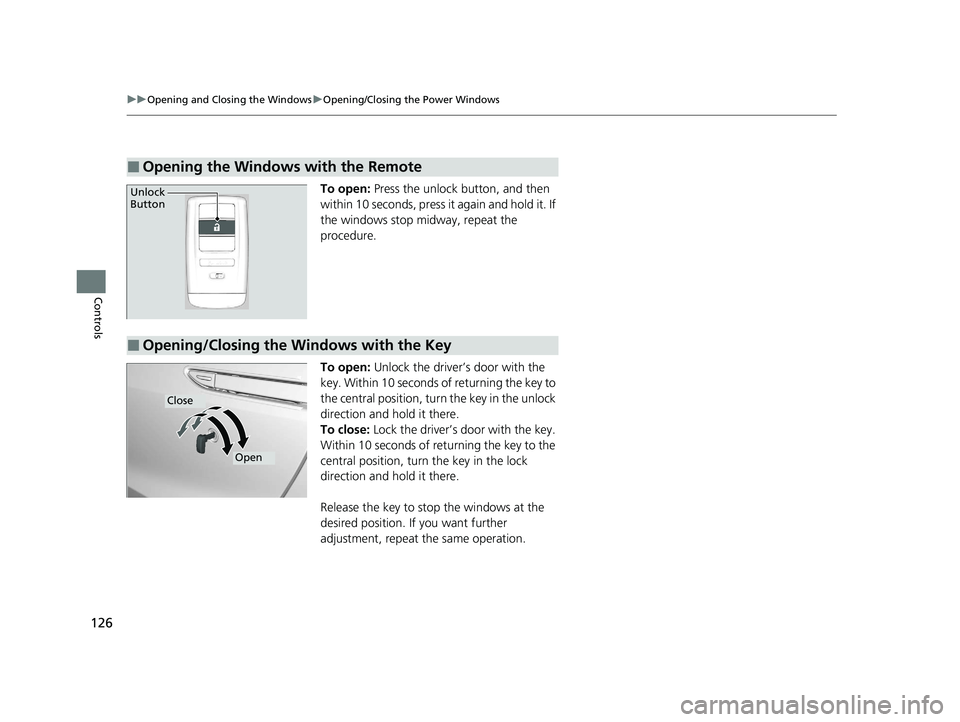

126
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Press the unlock button, and then
within 10 seconds, press it again and hold it. If
the windows stop midway, repeat the
procedure.
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows at the
desired position. If you want further
adjustment, repeat the same operation.
■Opening the Windows with the Remote
Unlock Button
■Opening/Closing the Windows with the Key
Close
Open
20 ACURA NSX PMC-31T6N6300.book 126 ページ ２０１９年９月１１日　水曜日　午後４時５１分
