2020 ACURA NSX Owners Manual

391
uuMaintenance Under the Hood and HatchuOil Check
Continued
Maintenance
Oil Check
We recommend that you check the engine oil level every time you refuel.
1. Bring up the Oil Level Check Assist
display on the driver information interface. 2 Driver Information Interface P. 98
2. Warm up the engine until all the bars in the Warm Up gauge light up.
3. When the bars turn green, park the
vehicle on level ground and select
(P .
4. Allow the engine to continue idling until
all the bars in the Idle Time gauge in the
engine Oil Level Check Assist display
light up.
uDo not depress the accelerator pedal
while the engine is idling, as this will
reset the Idle Time .
1Oil Check
NOTICE
Do not open a door or the hatch before the Ready
To Check Oil Level message appears.
If a door or the hatch is open, the corresponding
warning message will be given priority, and the Oil
Level Check Assist will not be displayed.
20 ACURA NSX PMC-31T6N6300.book 391 ページ ２０１９年９月１１日　水曜日　午後４時５１分

392
uuMaintenance Under the Hood and HatchuOil Check
Maintenance
5.When all the bars in the Idle Time gauge
light up, Ready To Check Oil Level
message appears.
6. Change the display in the driver
information interface to any display other
than the Oil Level Check Assist display.
2 Driver Information Interface P. 98
7. Change the power mode to VEHICLE OFF.
20 ACURA NSX PMC-31T6N6300.book 392 ページ ２０１９年９月１１日　水曜日　午後４時５１分

393
uuMaintenance Under the Hood and HatchuOil Check
Maintenance
8.Open the hatch.
2 Opening the Hatch P. 387
9. Remove the right engine compartment
cover.
2 Engine Compartment Cover P. 389
10. Remove the dipstick (orange).
11. Wipe the dipstick with a clean cloth or
paper towel.
12. Insert the dipstick back all the way into its
hole.
13. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks.
uThe engine oil level should be checked
after two minutes after changing the
power mode to VEHICLE OFF.
uAdd oil if necessary.
uWhen engine oil is added, recheck the
engine oil level using steps 1 - 14.
14. After checking the engine oil level, make
sure to select a display other than the Oil
Level Check Assist display.
2 Driver Information Interface P. 98
1Oil Check
For a proper oil level reading, the dipstick must be
inserted with the flat si de of the dipstick handle
facing the oil fill cap.
The amount of oil consum ed depends on how the
vehicle is driven and the cl imatic and road conditions
encountered. The rate of oil consumption can be up
to 1.05 US quart (1 liter) per 625 miles (1000 km).
Consumption is likely to be higher when the engine is new.
Oil Fill CapFlat Side
Upper Mark Lower Mark
20 ACURA NSX PMC-31T6N6300.book 393 ページ ２０１９年９月１１日　水曜日　午後４時５１分

394
uuMaintenance Under the Hood and HatchuAdding Engine Oil
Maintenance
Adding Engine Oil1.Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten it securely.
4. Recheck the engine oil level.
2 Oil Check P. 391
1Adding Engine Oil
NOTICE
Do not fill the engine oil above the upper mark. Overfilling the engine oil may result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
Engine Oil Fill Cap
20 ACURA NSX PMC-31T6N6300.book 394 ページ ２０１９年９月１１日　水曜日　午後４時５１分

395
uuMaintenance Under the Hood and HatchuChanging the Engine Oil and Oil Filter
Maintenance
Changing the Engine Oil and Oil Filter
You must change the engine oil and oil fi lter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Specialized equipment and procedures are required to change the engine oil and oil filter. Have an authorized Ac ura NSX dealer replace them.
Do not attempt to change the engi ne oil and oil filter yourself.
20 ACURA NSX PMC-31T6N6300.book 395 ページ ２０１９年９月１１日　水曜日　午後４時５１分

396
uuMaintenance Under the Hood and HatchuCooling System
Maintenance
Cooling System
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank. Add the engine coolant accordingly.1. Make sure the engine and radiator are cool.
2. Open the hatch.
2 Opening the Hatch P. 387
3. Remove the left engine compartment
cover.
2 Engine Compartment Cover P. 389
4. Check the amount of c oolant in the reserve
tank.
uIf the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
5. Inspect the cooling system for leaks.
Specified coolant: Acura Long Life Antifreeze/Coolant Type 2
■Checking the Coolant
1Cooling System
NOTICE
Genuine Acura engine cool ant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult an authorized
Acura NSX dealer for details.If Acura antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Ac ura coolant can result in
corrosion, causing the coo ling system to malfunction
or fail. Have the cooling system flushed and refilled
with Acura antifreeze/cool ant as soon as possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. Th ey may not be compatible
with the coolant or with the engine components.
3WARNING
Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the reserve tank
cap.
Reserve
Tank
MAX
MIN
20 ACURA NSX PMC-31T6N6300.book 396 ページ ２０１９年９月１１日　水曜日　午後４時５１分

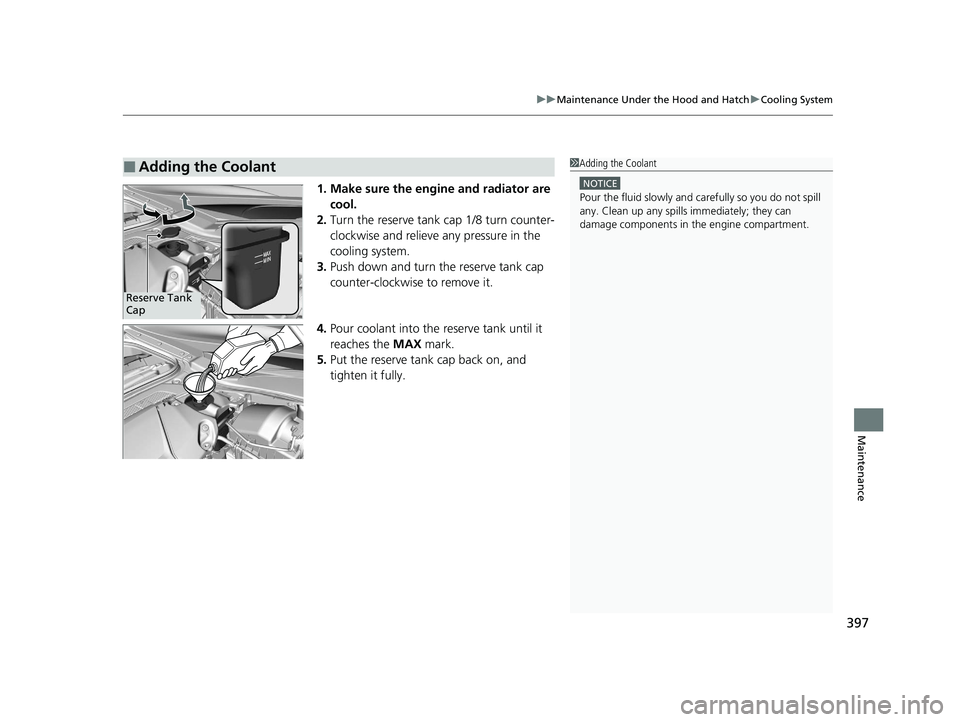

397
uuMaintenance Under the Hood and HatchuCooling System
Maintenance
1. Make sure the engine and radiator are cool.
2. Turn the reserve tank cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the reserve tank cap
counter-clockwise to remove it.
4. Pour coolant into the reserve tank until it reaches the MAX mark.
5. Put the reserve tank cap back on, and
tighten it fully.
■Adding the Coolant1Adding the Coolant
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
Reserve Tank Cap
20 ACURA NSX PMC-31T6N6300.book 397 ページ ２０１９年９月１１日　水曜日　午後４時５１分

398
uuMaintenance Under the Hood and HatchuInverter Coolant
Maintenance
Inverter Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the inverter coolant level every time you refuel.
Have an authorized Acura NSX deal er replace the inverter coolant.
1. Open the hood.
2 Opening the Hood P. 388
2. Check the fluid level in the tank.
3. If the coolant level has dropped below the
MIN level, have your vehicle serviced at an
authorized Acura NSX dealer.
uOnly a properly trained technician can
refill the coolant an d check the system
for leaks.
Specified coolan t: Acura Long Life Antifreeze/Coolant Type 2
■Checking the Coolant
1Inverter Coolant
NOTICE
Genuine Acura engine cool ant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult an authorized
Acura NSX dealer for details. If Acura antifreeze/coolant is not available, you may
use another major brand non- silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended fo r aluminum engines.
Continued use of any non-Ac ura coolant can result in
corrosion, causing the coo ling system to malfunction
or fail. Have the cooling system flushed and refilled
with Acura antifreeze/cool ant as soon as possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. Th ey may not be compatible
with the coolant or with the motor components.
MAX
MIN
Filler
Tank
20 ACURA NSX PMC-31T6N6300.book 398 ページ ２０１９年９月１１日　水曜日　午後４時５１分
