2020 ACURA NSX Owners Manual

143
uuAdjusting the MirrorsuPower Door Mirrors
Controls
If activated, either side door mirror
automatically tilts downward when you press back the
(R button; this improves close-in
visibility on the selected side of the vehicle
when backing up. The mirror automatically
returns to its original position when you take
the transmission out of
(R .
To activate this feature, set the power mode
to ON and slide the sele ctor switch to the left
or right side.
If activated, passenger side door mirror
automatically tilts downward when you press back the
(R button; this improves close-in
visibility on the passenger side of the vehicle
when backing up. The mirror automatically
returns to its original position when you take
the transmission out of
(R .
To activate this feature, set the power mode
to ON and slide the selector switch to the
passenger side.
■Reverse Tilt Door Mirror
Slide the selector switch to left
or right to tilt down either side
door mirror.
Models with driving position memory system
Selector Switch
Models without driving position memory system
20 ACURA NSX PMC-31T6N6300.book 143 ページ ２０１９年９月１１日　水曜日　午後４時５１分

144
Controls
Adjusting the Seats
Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately depress the pedals without leaning forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
■ Adjusting the power seats *1Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana
da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
■Adjusting the Seat Positions
Horizontal Position
Adjustment
Seat-back Angle Adjustment
Driver’s seat is shown.
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 144 ページ ２０１９年９月１１日　水曜日　午後４時５１分

145
uuAdjusting the Seatsu
Continued
Controls

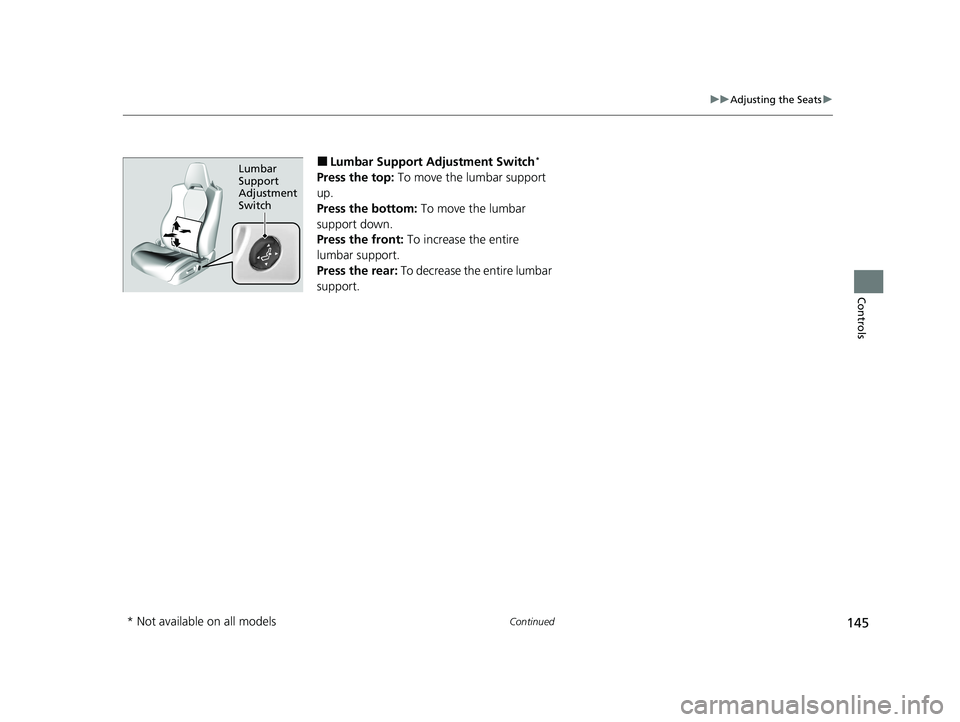

■Lumbar Support Adjustment Switch *
Press the top: To move the lumbar support
up. Press the bottom: To move the lumbar
support down.
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.Lumbar
Support
Adjustment
Switch
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 145 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuAdjusting the Seatsu
146
Controls
■Adjusting the manual seats *1Adjusting the manual seats
*
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar. Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
Driver’s seat is shown.
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 146 ページ ２０１９年９月１１日　水曜日　午後４時５１分

147
uuAdjusting the Seatsu
Controls
Adjust the driver’s seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The passenger should also adjust their seat-
back to a comfortable, upright position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back. Do ing so may interfere with
proper seat belt or airbag operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
20 ACURA NSX PMC-31T6N6300.book 147 ページ ２０１９年９月１１日　水曜日　午後４時５１分

148
uuAdjusting the SeatsuMaintain a Sitting Proper Position
Controls
Maintain a Sitting Proper Position
After all occupants have adjusted their seat s and put on their seat belts, it is very
important that they continue to sit upright, well back in their seats, with their feet
on the floor, until the vehicle is safe ly parked and the power system is off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.
In addition, an occupant who is out of position in the seat can be seriously or fatally
injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
1Maintain a Sitting Proper Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
20 ACURA NSX PMC-31T6N6300.book 148 ページ ２０１９年９月１１日　水曜日　午後４時５１分

149
Continued
Controls
Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless whether
the doors are open or closed. ■ Door activated
The interior lights come on in the following situations: • When either of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE OFF.
■ OFF
The interior lights remain off regardless
whether the doors are open or closed.
■Interior Light Switches1Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations: • When you unlock the driver’s door but do not open
it.
• When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 244
The interior lights go off im mediately in the following
situations:
• When you lock the driver’s door.
• When you close the driver’s door in ACCESSORY mode.
• When you set the power mode to ON.
To avoid draining the 12-vo lt battery, do not leave
the interior light on for an extended length of time
when the power system off.
If you leave either door open in VEHICLE OFF mode,
the interior lights go of f after about 15 minutes.
Door Activated Position
Off
On
20 ACURA NSX PMC-31T6N6300.book 149 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuInterior Convenience ItemsuInterior Lights
150
Controls
The map lights can be turned on and off by
pressing the (map light) button.
■Map Lights1Map Lights
When the ceiling light switch is in the door activated
position and either door is open, the map light will
not go off when you press the (map light) button.
20 ACURA NSX PMC-31T6N6300.book 150 ページ ２０１９年９月１１日　水曜日　午後４時５１分
