2020 ACURA NSX Owners Manual

Continued55
uuAirbagsuAirbag System Indicators
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain ai rbags may also inflate in a moderate-to-severe angled
frontal collision.
Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the driver information interface.
■When the power mode is set to ON
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time , or does not come on at all, have the
system checked by an authorized Acura NSX dealer as soon as possible. If you don’t,
your airbags and seat belt tensioners may not work properly when they are needed.
■Supplemental Restraint System (SRS) Indicator
1Supplemental Restraint System (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly. Have your vehicle checked by an
authorized Acura NSX dealer as soon as
possible if the SRS indicator alerts you to a possible problem.
20 ACURA NSX PMC-31T6N6300.book 55 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuAirbagsuAirbag System Indicators
56
Safe Driving■ When the passenger front airbag off
indicator comes on
The indicator comes on to alert you that the
passenger’s front airbag has been turned off.
This occurs when the weight sensors detect
about 65 lbs (29 kg) or less, the weight of an
infant or small child, on the seat.
Your vehicle is not recommended for child passengers. Never put a rear-facing child
seat in this vehicle.
If you decided to disregard our recommendations and transport a small child, they
should be properly restrained. 2 Child Safety P. 58
Objects placed on the seat can also cause the indicator to come on.
If the passenger’s seat is empty, the passenger’s front airbag will not deploy and the
indicator will not come on.
■Passenger Front Airbag Off Indicator1Passenger Front Airbag Off Indicator
If the indicator comes on with no passenger and no objects on the passenger’s se at, or with an adult
riding there, something may be interfering with the
weight sensor, such as: • An object hanging on the seat.
• An object pressing the rear of the seat-back.
• The seat or seat-back is forced back against cargo
on the rear trays or floor behind it.
• An object placed under the passenger’s seat.
If none of these conditions exist, have your vehicle
checked by an authorized Acura NSX dealer as soon
as possible.
The passenger front airbag off indicator may come on and go off repeatedly if the total weight on the
seat is near the airbag cutoff threshold.
U.S. Canada
20 ACURA NSX PMC-31T6N6300.book 56 ページ ２０１９年９月１１日　水曜日　午後４時５１分

57
uuAirbagsuAirbag Care
Safe Driving
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by an authorized Acura NSX dealer in the following situations:
■ When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt te nsioner has been activated, it must be
replaced. ■ When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not in flate, have an authorized Acura NSX dealer inspect the
following: the weight sensors in the passenger’s seat, seat belt tensioners, and each
seat belt that was worn during the crash. ■ Do not remove or modify a seat without consulting an authorized Acura
NSX dealer
This would likely disable or affect the prope r operation of the weight sensors in the
passenger’s seat. If it is necessary to re move or modify a seat to accommodate a
person with disabilities, contac t an authorized Acura NSX dealer, or for U.S. vehicles,
Acura Client Relations at 1-844-682-2872 and for Canadian vehicles, Acura Client
Service at 1-888-9-ACURA-9 or 1-844-9-MYNSX-9 (NSX-specific).
1Airbag Care
We recommend against the use of salvaged airbag
system components, includi ng the airbag, tensioners,
sensors, and control unit.
20 ACURA NSX PMC-31T6N6300.book 57 ページ ２０１９年９月１１日　水曜日　午後４時５１分

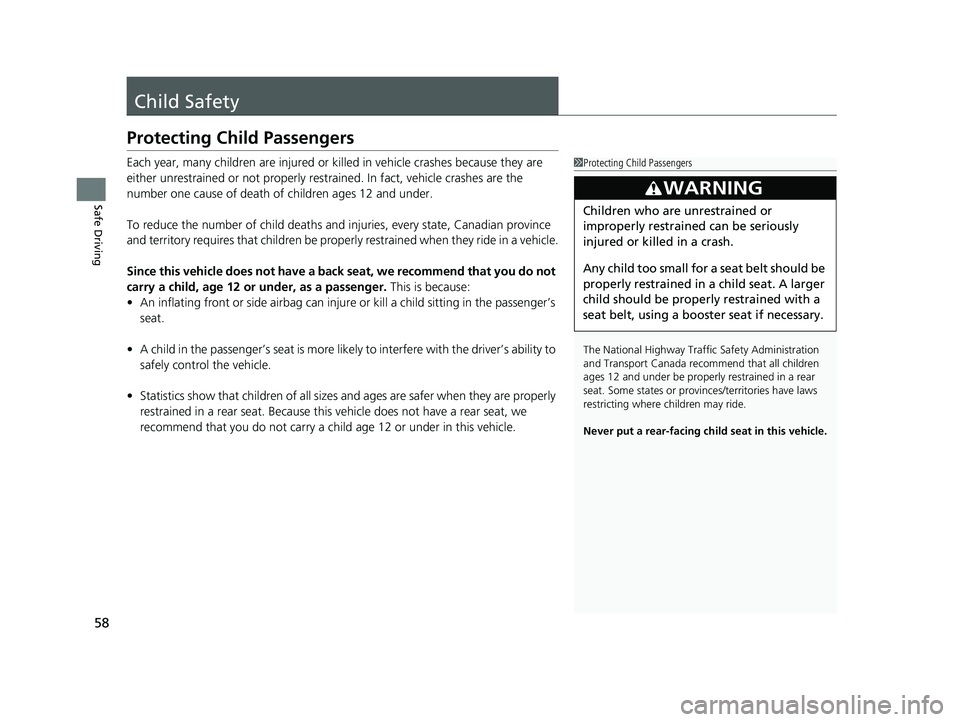

58
Safe Driving
Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly res trained. In fact, vehicle crashes are the
number one cause of death of children ages 12 and under.
To reduce the number of child deaths and in juries, every state, Canadian province
and territory requires that children be prope rly restrained when they ride in a vehicle.
Since this vehicle does not have a back seat, we recommend that you do not
carry a child, age 12 or under, as a passenger. This is because:
• An inflating front or side ai rbag can injure or kill a child sitting in the passenger’s
seat.
• A child in the passenger’s seat is more likel y to interfere with the driver’s ability to
safely control the vehicle.
• Statistics show that children of all sizes and ages are safer when they are properly
restrained in a rear seat. Because this vehicle does not have a rear seat, we
recommend that you do not carry a child age 12 or under in this vehicle.
1Protecting Child Passengers
The National Highway Traffic Safety Administration
and Transport Canada reco mmend that all children
ages 12 and under be properl y restrained in a rear
seat. Some states or provin ces/territories have laws
restricting where ch ildren may ride.
Never put a rear-facing child seat in this vehicle.
3WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be proper ly restrained with a
seat belt, using a booster seat if necessary.
20 ACURA NSX PMC-31T6N6300.book 58 ページ ２０１９年９月１１日　水曜日　午後４時５１分

59
uuChild SafetyuProtecting Child Passengers
Safe Driving
•Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using the lap belt
portion of the lap/shoulder belt.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the pa ssenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels.
2 Safety Labels P. 68
3WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt.
20 ACURA NSX PMC-31T6N6300.book 59 ページ ２０１９年９月１１日　水曜日　午後４時５１分

60
uuChild SafetyuSafety of Infants and Small Children
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weig ht or height limit for the seat, and the
infant is at least one year old. Because rear-facing child seats should not be
used in this vehicle, you should never carry an infant in this vehicle.
■Protecting Infants1Protecting Infants
Rear-facing child seats should never be installed in a
forward-facing position.
3WARNING
Placing a rear-facing child seat in the
passenger’s seat can resu lt in serious injury
or death during a crash.
Never install a rear-facin g child seat in this
vehicle.
20 ACURA NSX PMC-31T6N6300.book 60 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued61
uuChild SafetyuSafety of Infants and Small Children
Safe DrivingSince this vehicle does not have a back seat, we recommend that you do not carry a
child, age 12 or under, as a passenger.
This is because placing a forward-facing child seat in the passenger’s seat can be
hazardous, even with advanced front airbags that automatically turn the
passenger’s front airbag off.
If you choose to ignore our warnings and transport a small child in this vehicle, be
sure to move the passenger seat as far to the rear as possible, and follow the
instructions and guidelines in the following pages.
■Protecting Smaller Children1Protecting Smaller Children
Educate yourself about th e laws and regulations
regarding child seat use wh ere you are driving, and
follow the child seat manufacturer’s instructions.
A child seat must be secure d to the vehicle with the
lap part of a lap/shoulder be lt. A child whose seat is
not properly secured to the vehicle can be
endangered in a crash.
3WARNING
Placing a forward-facing child seat in the
passenger’s seat can resu lt in serious injury
or death if the fron t airbag inflates.
If you must place a forward-facing child
seat in passenger’s seat, move the vehicle
seat as far back as possible, and properly
restrain the child.
20 ACURA NSX PMC-31T6N6300.book 61 ページ ２０１９年９月１１日　水曜日　午後４時５１分

62
uuChild SafetyuSafety of Infants and Small Children
Safe Driving■Important consideration wh en selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federa l Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Forward-facing Child Seat
20 ACURA NSX PMC-31T6N6300.book 62 ページ ２０１９年９月１１日　水曜日　午後４時５１分
