2020 ACURA NSX Owners Manual

463
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the hatch.
2. Pull the release lever toward you.
uThe release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlock the Fuel Fill Door
After taking these steps, c ontact an authorized Acura
NSX dealer to have your vehicle checked.
Release Lever
20 ACURA NSX PMC-31T6N6300.book 463 ページ ２０１９年９月１１日　水曜日　午後４時５１分

464
Handling the Unexpected

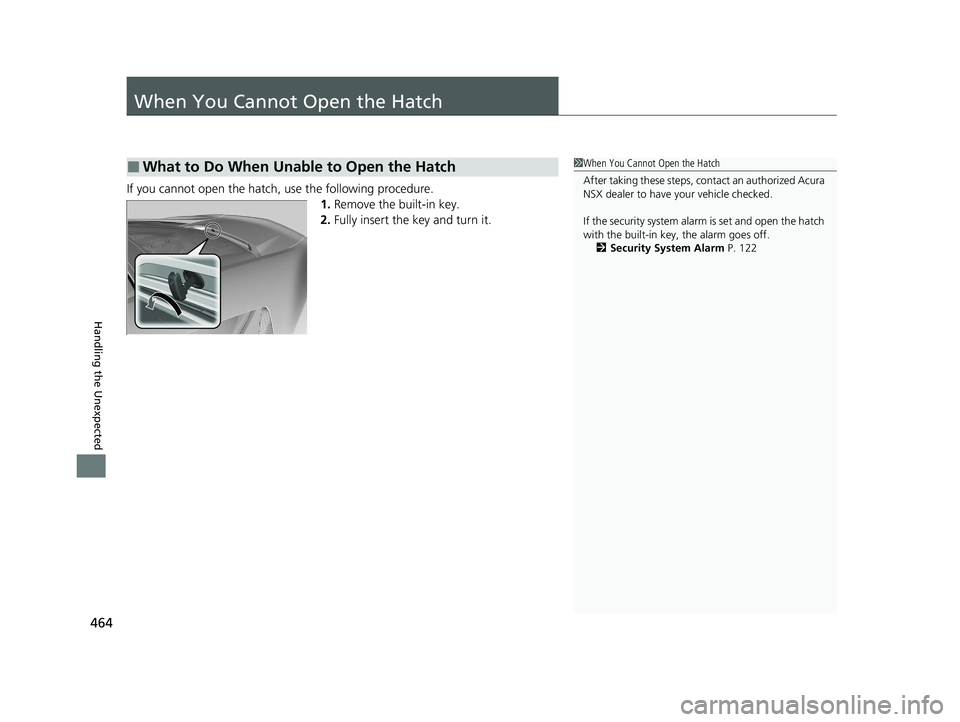

When You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.1.Remove the built-in key.
2. Fully insert the key and turn it.
■What to Do When Unable to Open the Hatch1When You Cannot Open the Hatch
After taking these steps, c ontact an authorized Acura
NSX dealer to have your vehicle checked.
If the security system alar m is set and open the hatch
with the built-in key, the alarm goes off.
2 Security System Alarm P. 122
20 ACURA NSX PMC-31T6N6300.book 464 ページ ２０１９年９月１１日　水曜日　午後４時５１分

465
Handling the Unexpected
Refueling
Refueling from a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Press the fuel fill door release button.
uThe fuel fill door opens.
3. Take the funnel out of the tool box in the trunk.
2 Types of Tools P. 432
4. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and completely.
uMake sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
uPour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
uWipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling from a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the filler opening
with foreign objects. This can damage the filler
opening and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel. • Turn the power system off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
20 ACURA NSX PMC-31T6N6300.book 465 ページ ２０１９年９月１１日　水曜日　午後４時５１分

466
20 ACURA NSX PMC-31T6N6300.book 466 ページ ２０１９年９月１１日　水曜日　午後４時５１分

467
Information
This chapter includes your vehicl e’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 468
Identification Numbers Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number..................... 470
Devices that Emit Radio Waves ....... 471
Reporting Safety Defects ................. 472
Emissions Testing Testing of Readiness Codes.............. 473
Warranty Coverages ........................ 475
Authorized Manuals ......................... 477
Client Service Information ............... 478
20 ACURA NSX PMC-31T6N6300.book 467 ページ ２０１９年９月１１日　水曜日　午後４時５１分

468
Information
Specifications
■Vehicle Specifications
■Air Conditioning
ModelAcura NSX
No. of Passengers:
Front 2
Rear 0
Total 2
Weights:Gross Vehicle Weight RatingSee the certification label on the driver

469
uuSpecificationsu
Information
■Brake Fluid
■Dual Clutch Transmission Fluid
■Twin Motor Unit Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 4
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.75 US qt (2.6 L)
SpecifiedAcura Gear Oil GO-Type 2.0
Capacity Change 4.86 US qt (4.6 L)
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.56 US qt (2.42 L)
Clutch
Transmission
■Engine Oil
■Engine Coolant
■Inverter Coolant
RecommendedUltimate Full Synthetic Motor Oil, Type3,
0W-40
Capacity Change 7.7 US qt (7.3 L)
Change
including filter
8.3 US qt (7.9 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
4.1 US gal (15.5 L)
(change including the remaining
0.34 US gal (1.29 L) in the reserve tank and
heater)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.50 US gal (1.90 L)
(change including the remaining
0.12 US gal (0.46 L) in the reserve tank)
■Tire
Regular
Size
Front
245/35ZR19 (93Y) Rear
305/30ZR20 (103Y)
Pressure
psi (kPa [kgf/cm 2
])Front
32 (220 [2.2])
Rear
32 (220 [2.2])
Wheel Size Regular Front
19 X 8 1/2J
Rear
20 X 11J
20 ACURA NSX PMC-31T6N6300.book 469 ページ ２０１９年９月１１日　水曜日　午後４時５１分

470
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.1Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number Engine Number
Dual Clutch Transmission
Number
Certification Label/Vehicle Identification Number
Motor Number
Motor Number
Motor Number
Dual Clutch Transmission
Number
