Page 10 of 491
Visual Index
8
Quick Reference Guide❚Maintenance Under the Hood (P 385)
❚Windshield Wipers (P 135, 404)
❚Power Door Mirrors (P 142)
❚Headlights (P 131, 401)
❚How to Refuel (P 372)
❚High-Mount Brake Light (P 403)
❚Opening/Closing the Hatch (P 119)
❚Brake/Taillights (P 402)
❚Front Turn Signal/Parking Lights (P 130, 131, 401)
❚Back-Up Lights (P 402)
❚Rear License Plate Lights (P 403)
❚Hatch Release Button (P 119)
❚Door Lock/Unlock Control (P 107)
❚Front Side Marker Lights (P 131, 401)
❚Daytime Running Lights (P 134, 401)
❚Tires (P 407, 433)
❚Taillights (P 402)
❚Rear Turn Signal Lights (P 402)
❚Rear Side Marker Lights (P 402)
❚Multi-View Rear Camera (P 369)
20 ACURA NSX PMC-31T6N6300.book 8 ページ 2019年9月11日 水曜日 午後4時51分
Page 14 of 491

12
Quick Reference Guide
Energy Efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Ag gressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system us e negatively affects vehicle range and efficiency. Either of these use patterns wil l more quickly
reduce the High Voltage battery's state of charge.
Battery Types
There are two types of batteries used in this vehicle; a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a High Voltage battery that is used to power the propulsion motors and recharge the 12-volt battery.
Regenerative Energy and Regenerative Braking
When decelerating without the accelerator being depressed or the brake pedal being applied, or while driving downhill, the elec tric motors
act as generators that a portion of the elec trical energy that was used to accelerate the vehicle. This regenerative braking slows the vehicle
in a manner similar to engine braking in a gasoline-powered vehicle.
20 ACURA NSX PMC-31T6N6300.book 12 ページ 2019年9月11日 水曜日 午後4時51分
Page 18 of 491

16
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System (ABS ) Indicator
Vehicle Stability
Assist TM
(VSA ®) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
Indicator Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges
(P 95)/Driver Information Interface (P 98)/System Indicators (P 70)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage Battery
Charge Level Gauge
Security System
Alarm Indicator
Fuel Gauge
Tachometer
Driver Information Interface Speedometer
Gear Position Indicator Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator
Automatic Brake Hold
System Indicator
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
READY Indicator
POWER SYSTEM
Indicator
Temperature Gauge ASSIST
/CHARGE Gauge
U.S.
Canada Active Damper System
Indicator
Brake Wear Indicator
* CRUISE MAIN
Indicator
CRUISE CONTROL
Indicator
Engine Oil Temperature
Gauge
Integrated Dynamics System
Mode
SH-AWD ® Temperature
Gauge
20 ACURA NSX PMC-31T6N6300.book 16 ページ 2019年9月11日 水曜日 午後4時51分
Page 29 of 491
27
Quick Reference Guide
Under the Hood (P385)
● Check inverter coolant.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
Lights (P401)
● Inspect all lights regularly.
Wiper Blades
(P404)
● Replace blades if they leave
streaks across the windshield.
a Pull the hood release handle under the corner of the
dashboard.
b Locate the hood latch lever, pull it up, and then raise
the hood. Once you have raised the hood slightly,
you can release the lever.
c When finished, close the hood and make sure both
right and left latches are firmly locked in place.
20 ACURA NSX PMC-31T6N6300.book 27 ページ 2019年9月11日 水曜日 午後4時51分
Page 78 of 491

76
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator•Indicates the current gear selection.
2 Shifting P. 326—
Transmission
System Indicator
•The indicated current gear selection
blinks if there is a problem with the
transmission system.• Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by an
authorized Acura NSX dealer.
•All the gear positions may light for
several seconds, and go off.• When all the gear positions light,
immediately stop your vehicle in a safe place.
• Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to an authorized Acura NSX dealer
for inspection.
—
•The indicated current gear selection
or all the gear positions blink if
there is a problem with the
transmission system.• Immediately stop in a safe place.
2Emergency Towing P. 462
• Have your vehicle checked by an
authorized Acura NSX dealer.
•The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
• The power system can be activated as a
temporary measure.
2If the Transmission System Indicator
Blinks along with the Warning
Message P. 456
• Set the parking brake when parking.
• Have your vehicle checked by an
authorized Acura NSX dealer immediately.
20 ACURA NSX PMC-31T6N6300.book 76 ページ 2019年9月11日 水曜日 午後4時51分
Page 133 of 491

131
uuOperating the Switches Around the Steering WheeluLight Switches
Continued
Controls
Light SwitchesRotating the light switch turns the lights on
and off, regardless of the power mode setting. ■High beams
Push the lever forward until you hear a click.■ Low beams
When in high beams, pull the lever back to
return to low beams. ■ Flashing the high beams
Pull the lever back, and release it.■ Lights off
Turn the lever to OFF either when:
• The transmission is in
(P .
• The parking brake is applied.
To turn the light s on again, turn the lever to
OFF to cancel the lights off mode. Even if you
do not cancel the lights off mode, the lights
come on automatically when:• The gear position is changed out of
(P .
• The parking brake is released.
• The vehicle starts to move.
■Manual Operation1Light Switches
If you leave the power mode in VEHICLE OFF while
the lights are on, a chime sounds when the driver’s door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 81
If you sense that the le vel of the headlights is
abnormal, have your vehicle inspected by an
authorized Acura NSX dealer.
Do not leave the lights on when the power system is
off because it will caus e the 12-volt battery to
discharge.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking,
side marker, tail, and rear license
plate lights
20 ACURA NSX PMC-31T6N6300.book 131 ページ 2019年9月11日 水曜日 午後4時51分
Page 136 of 491
134
uuOperating the Switches Around the Steering WheeluDaytime Running Lights
Controls

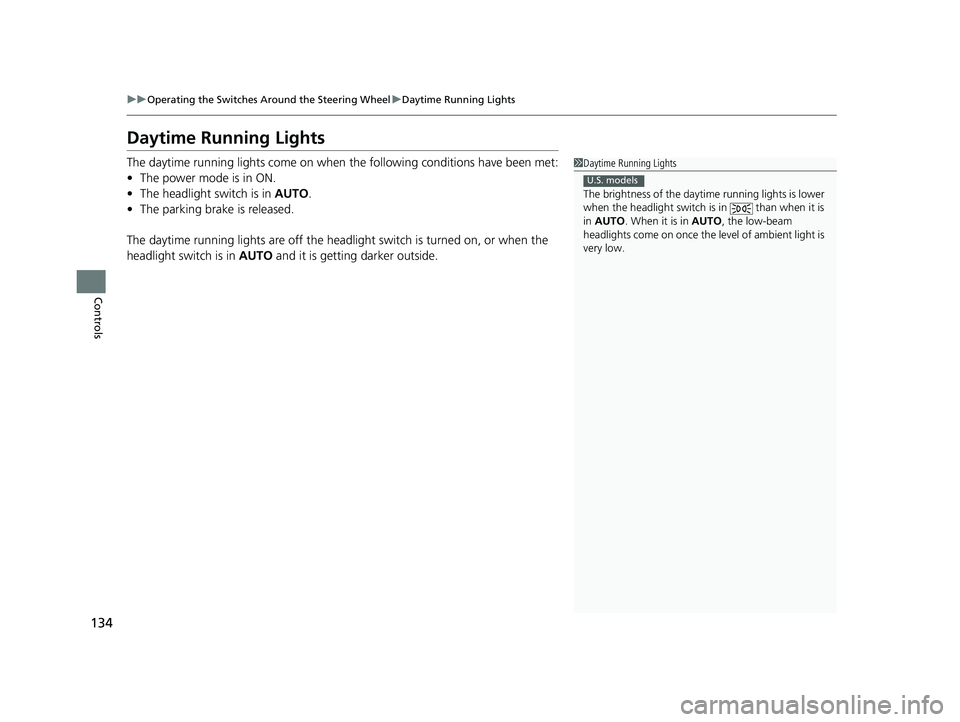

Daytime Running Lights
The daytime running lights come on when the following conditions have been met:
• The power mode is in ON.
• The headlight switch is in AUTO.
• The parking brake is released.
The daytime running lights are off the headli ght switch is turned on, or when the
headlight switch is in AUTO and it is getting darker outside.
1Daytime Running Lights The brightness of the dayt ime running lights is lower
when the headlight switch is in than when it is
in AUTO . When it is in AUTO, the low-beam
headlights come on once the le vel of ambient light is
very low.
U.S. models
20 ACURA NSX PMC-31T6N6300.book 134 ページ 2019年9月11日 水曜日 午後4時51分
Page 141 of 491

139
uuOperating the Switches Around the Steering WheeluDriving Position Memory System*
Controls
1.
Set the power mode to ON. Adjust the
driver’s seat and the door mirrors to the
desired position.
2. Press the SET button.
uYou will hear the beeper, and the
memory button indicator light will blink.
3. Press memory button
(1 or (2 within five
seconds of pressing the SET button.
uOnce the seat and the outside mirrors position have been memorized, you will
hear the beeper twic e, and the indicator
light on the button you pressed stays on.
1. Put the transmission into
(P .
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
uYou will hear the beep, and the indicator
light will blink.
The seat and the door mirrors will
automatically move to the memorized
positions. When it has finished moving, you
will hear the beeper tw ice, and the indicator
light stays on.
■Storing a Position in Memory1Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
• You do not press the memory button within five
seconds.
• You readjust the seat or the outside mirror position
before the double-beep.
• You set the power mode to any position except ON.
SET Button
Memory
Button 1
Memory
Button 2
■Recalling the Stored Position1Recalling the Stored Position
The seat and door mirror s will stop moving if you:
• Press the SET button, or a memory button (
(1 or (2).
• Adjust the seat position or door mirrors.
• Put the transmission into a position other than
(P .
Memory Buttons
20 ACURA NSX PMC-31T6N6300.book 139 ページ 2019年9月11日 水曜日 午後4時51分
